Stone Block Cutter with Horizontal Blade for sale

Introduction of Stone Block Cutter with Horizontal Blade

The Stone Block Cutter with Horizontal Blade is a high-efficiency stone block cutter designed primarily for cutting raw stone blocks, with secondary functions for trimming and shaping. Combining vertical and horizontal cutting technologies, this machine efficiently processes stone slabs and directly handles slab root cutting, eliminating the need for manual hammering. With enhanced productivity and reduced labor intensity, the machine excels in processing granite, marble, and other stone materials, making it an ideal choice for stone block cutting machine and granite block cutter applications.

Product Overview of Stone Block Cutter with Horizontal Blade

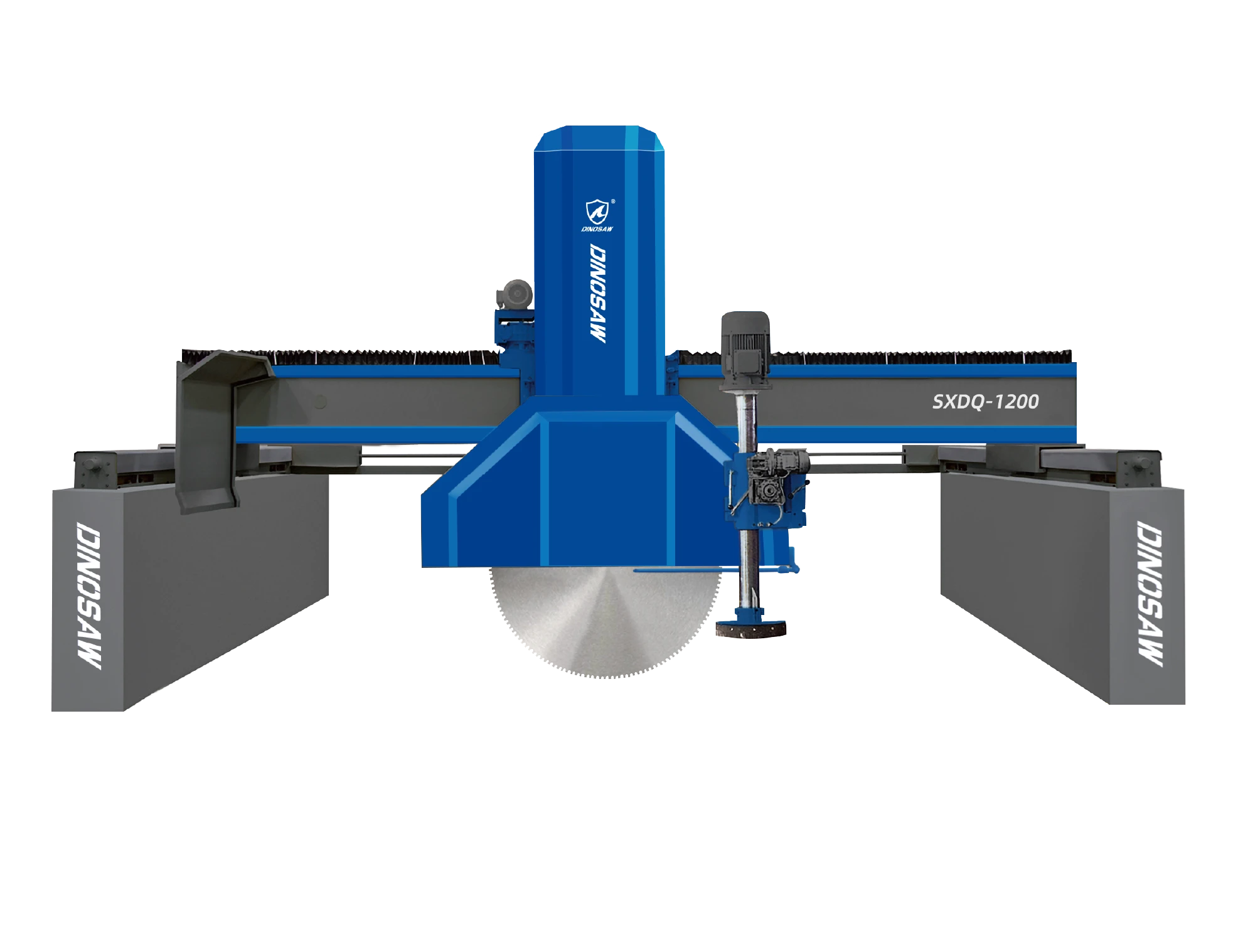

This Stone Block Cutter integrates vertical and horizontal cutting systems to process raw stone blocks with high efficiency. Its vertical blades perform splitting tasks, while horizontal blades handle slab root cutting, significantly simplifying the workflow. Featuring a PLC control system and precision components, the machine is well-suited for processing granite, marble, sandstone, and more.

Features of Stone Block Cutter with Horizontal Blade

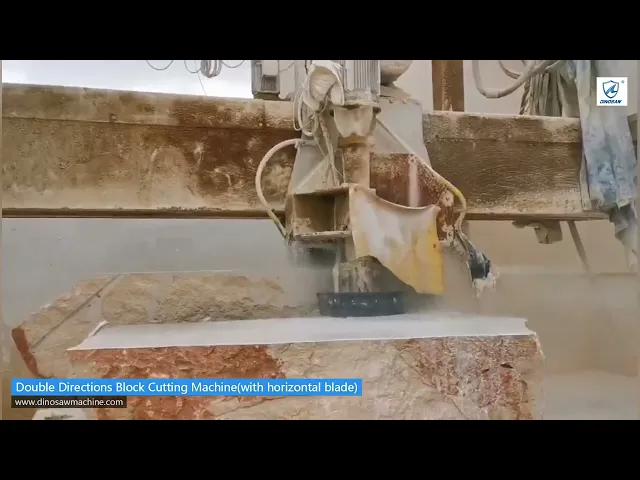

1. High-Efficiency Vertical and Horizontal Cutting System

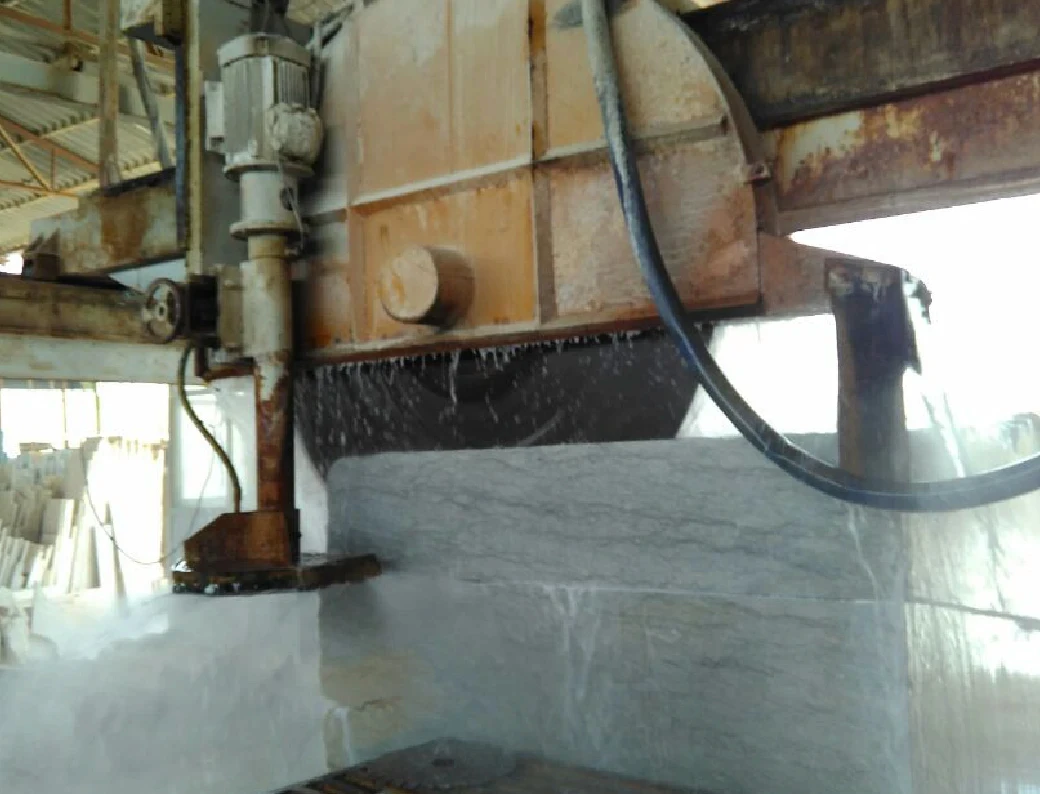

   • The vertical blade efficiently cuts and splits stone blocks, while the horizontal blade handles root cutting of slabs, eliminating the need for manual hammering.

   • The integrated design ensures seamless cutting, improving efficiency for granite block cutting and marble block cutting applications.

2. High Precision and Stability

   • Equipped with a high-precision rotary encoder for accurate slab positioning, ensuring cutting precision of ≤1mm and uniform slab thickness.

   • The horizontal and vertical cutting motion is controlled by a variable frequency drive (VFD) for adjustable speed based on stone hardness. The hydraulic system controls the vertical motion, and a high-precision screw-nut mechanism ensures stable front and back slab splitting.

   • Key components are made from imported high-quality materials, ensuring durability and reliable performance under continuous operation.

3. PLC Control System with Intelligent Operation

   • Features a PLC programmable control system with a user-friendly interface for easy operation and automated cutting.

   • Intelligent process monitoring minimizes manual intervention while maintaining precise output for every task.

4. Flexible Structure and Versatile Design

   • Standard models come with a cement or steel frame structure for superior stability, while column-type designs are available upon request for enhanced adaptability.

   • The machine handles both raw block cutting and slab shaping, making it an excellent choice for initial stone processing and slab production.

Technical parameters of Stone Block Cutter with Horizontal Blade

Applications of Stone Block Cutter with Horizontal Blade

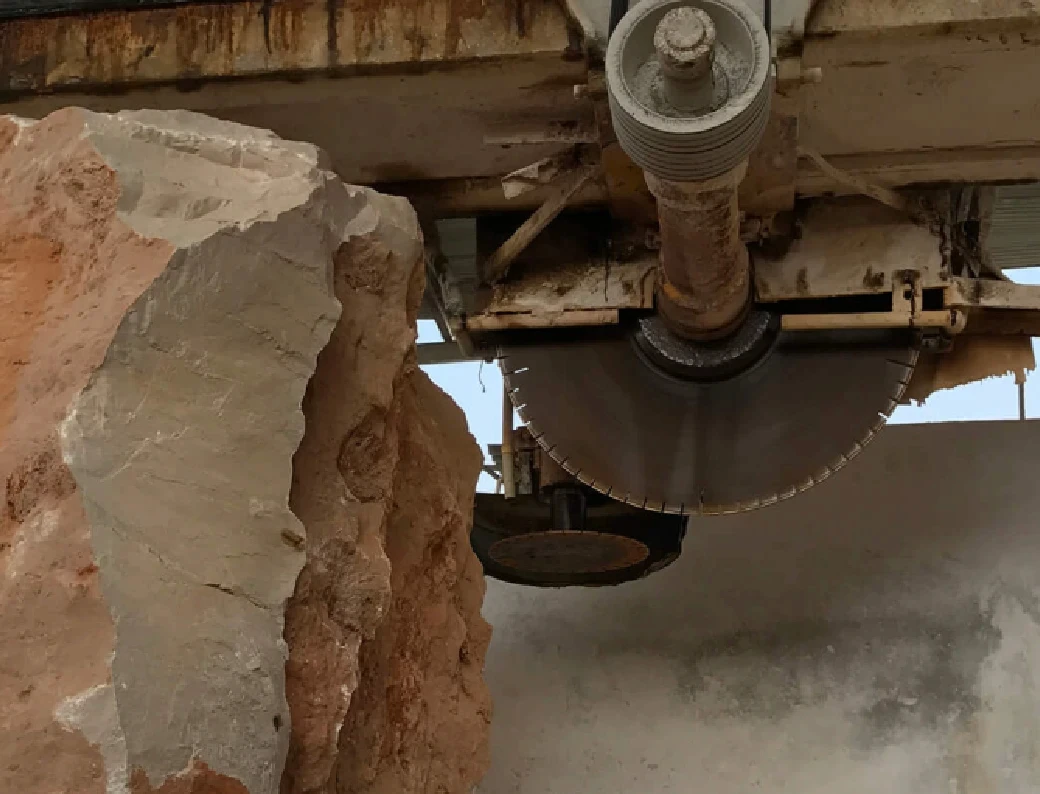

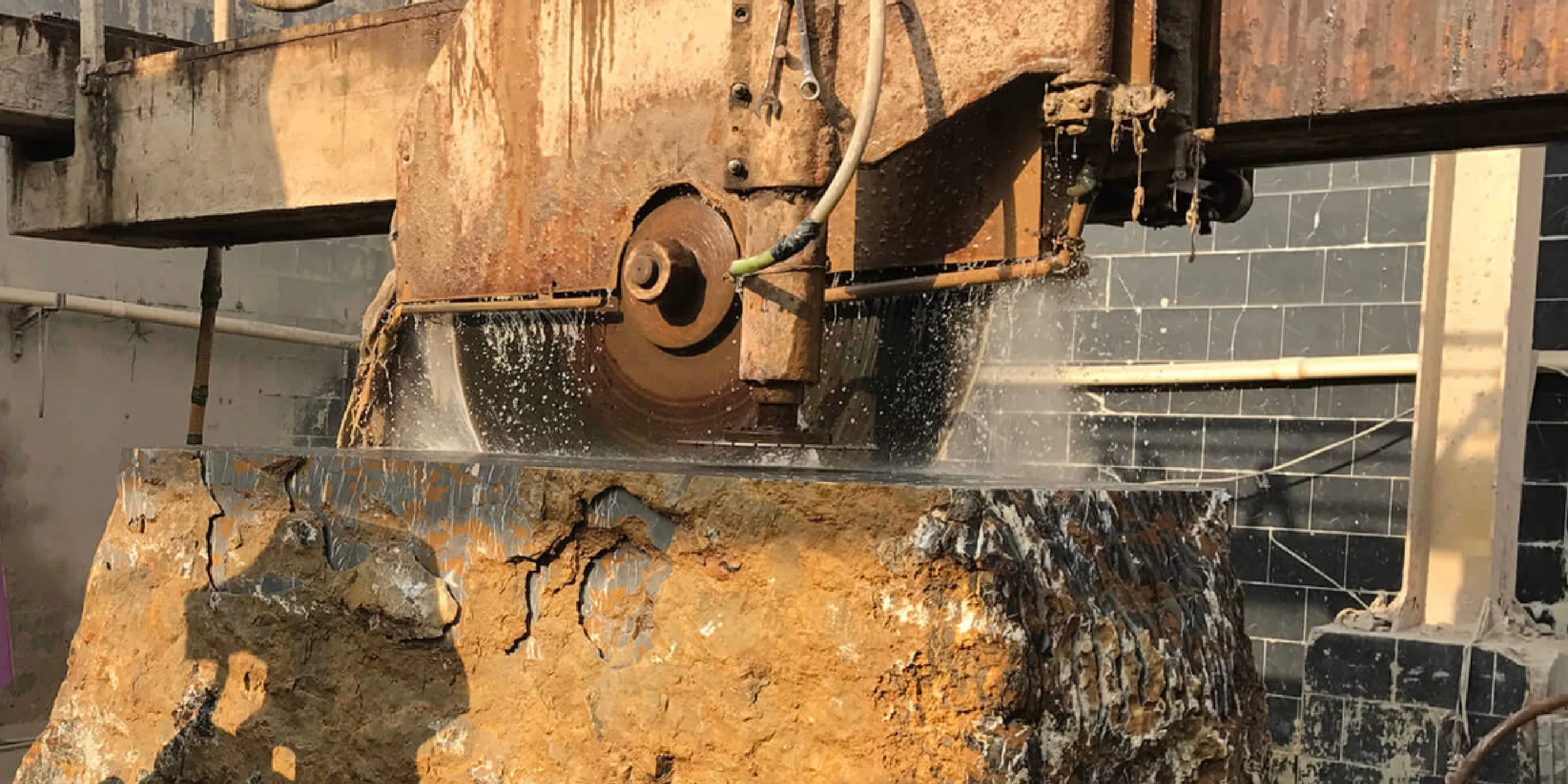

1. Stone Block Cutting

   • Primarily used for cutting raw stone blocks, including granite and marble, into slabs with high efficiency and precision, supporting large-scale tasks for stone block cutting operations.

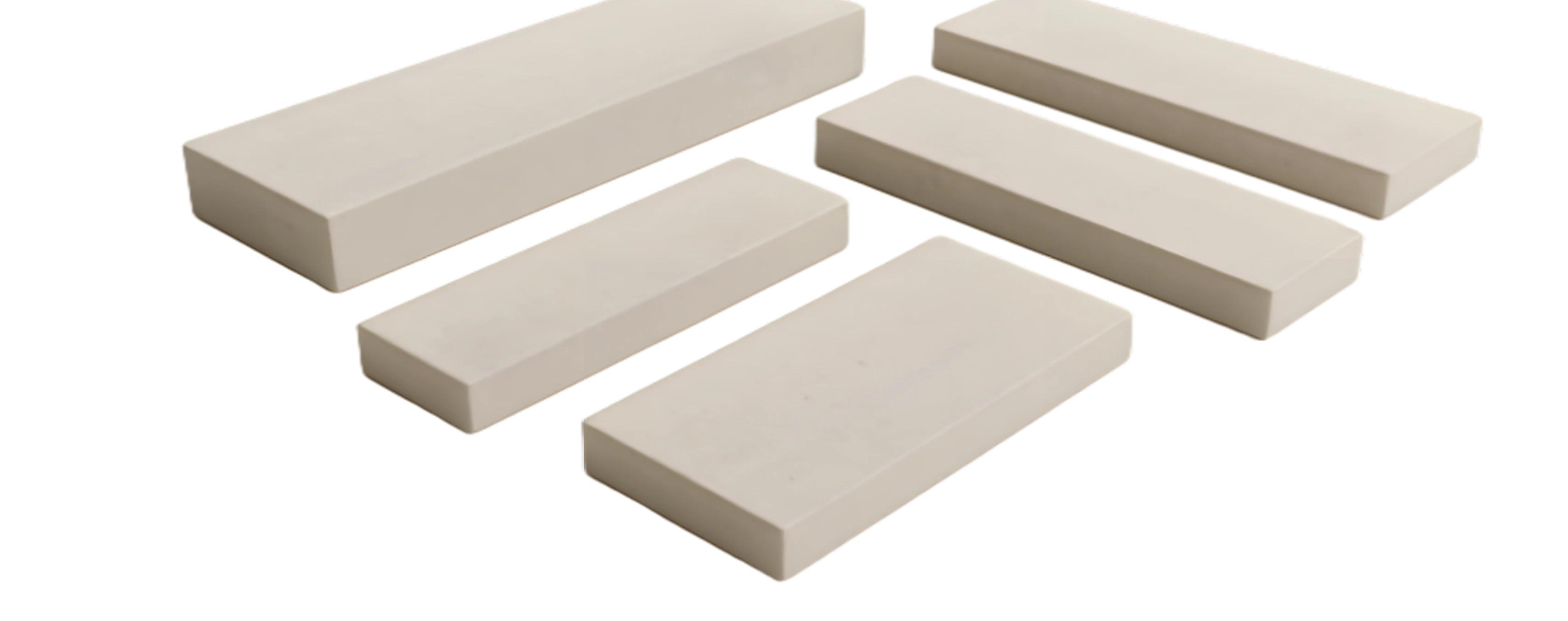

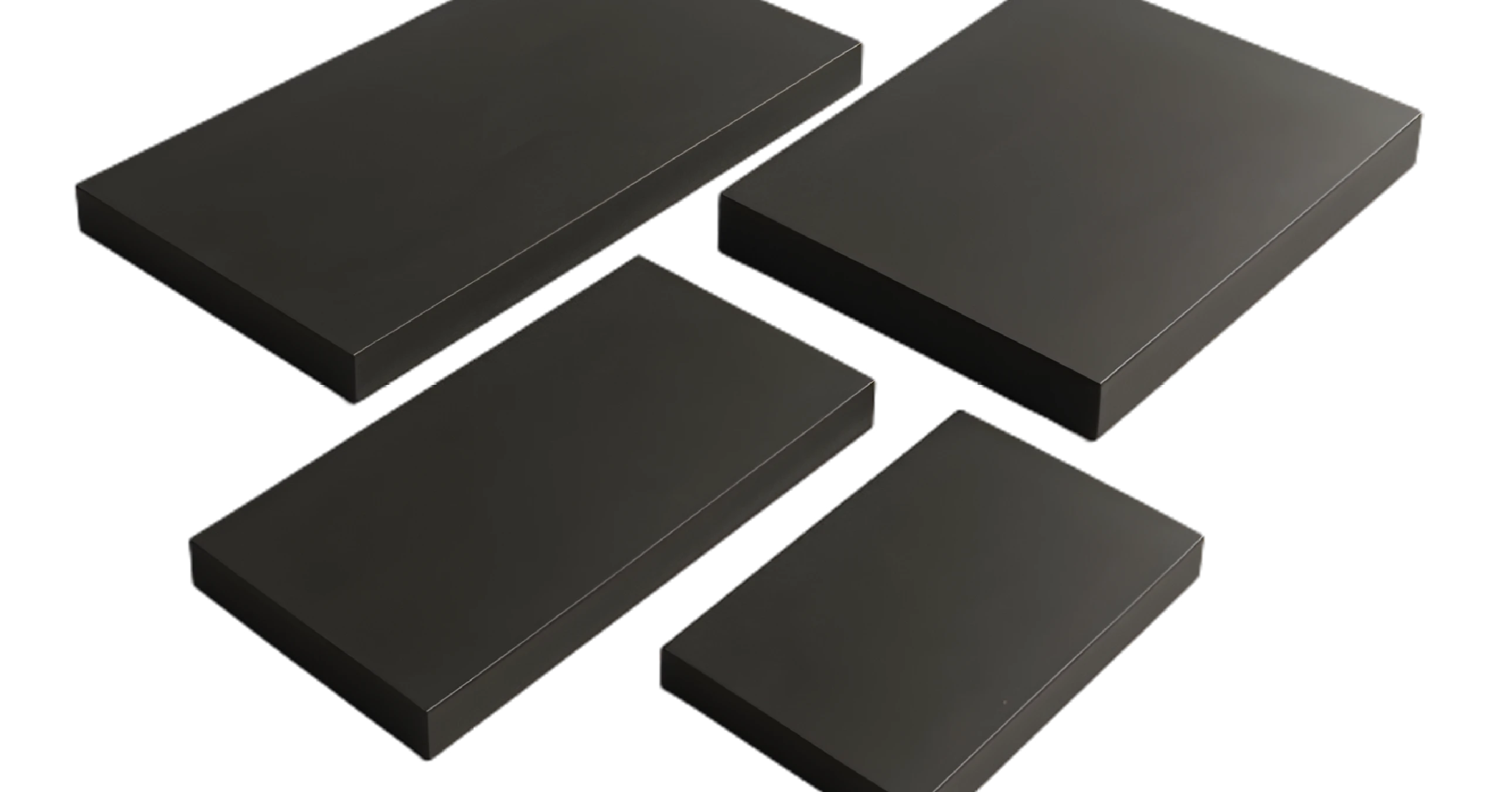

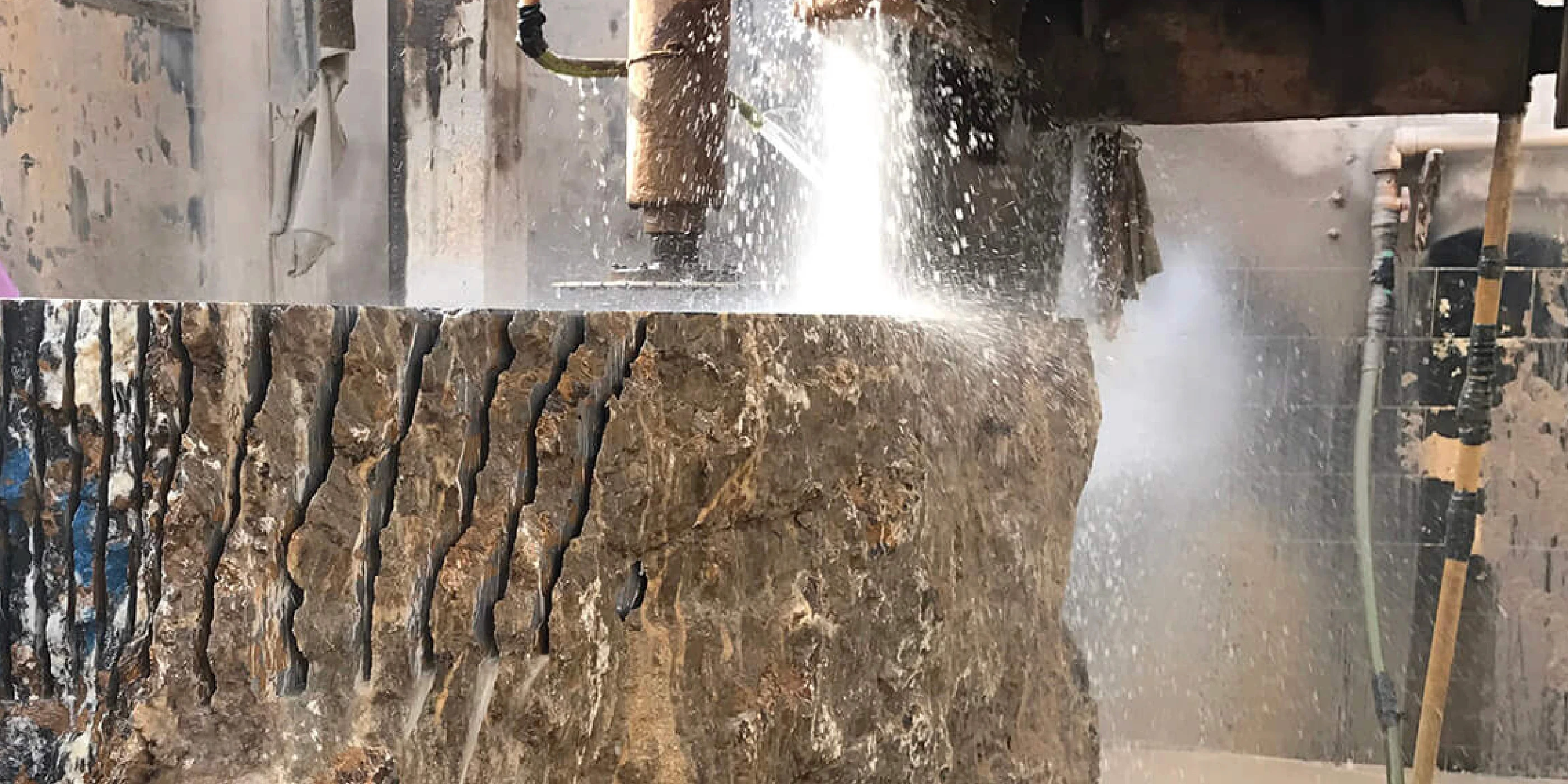

2. Slab Production and Root Processing

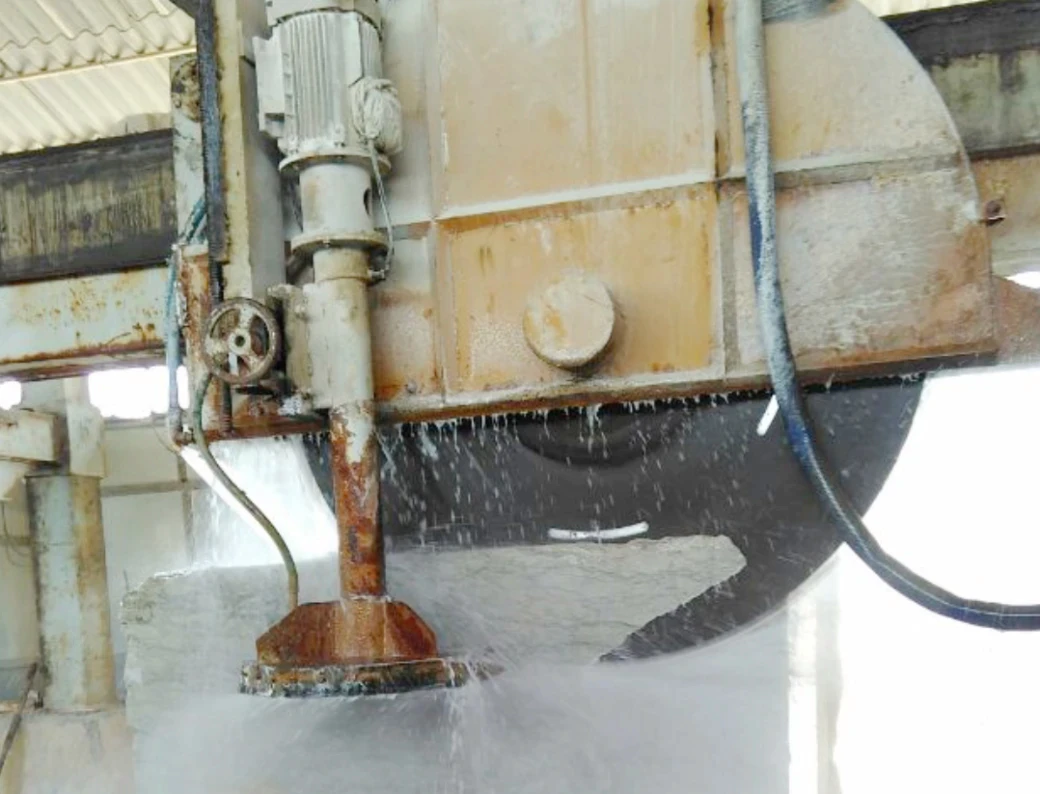

   • The horizontal blade handles slab root cutting directly after vertical splitting, reducing manual steps and improving production speed. It is ideal for preparing slabs for subsequent processing with stone bridge saw.

3. High-Hardness Stone Cutting

   • Efficiently processes high-hardness materials such as granite while maintaining precision.

4. Raw Block Shaping and Trimming

   • In addition to its cutting capabilities, the machine trims and shapes irregular stone blocks to standard sizes, preparing them for further processing.

5. Customizable and Multi-Purpose Applications

   • Available in customizable configurations to meet various production needs, making it a versatile solution for stone factories and architectural projects.

Customer Case Studies

1. Case 1: African Granite Processor

   • A granite processing company in Africa uses this machine for block cutting and slab production. The horizontal blade reduced manual labor costs by 30%, while production efficiency increased by 25%.

2. Case 2: Eastern European Marble Supplier

   • A marble supplier in Eastern Europe utilizes this machine for producing high-quality slabs. The precise cutting process and seamless workflow have improved their market competitiveness and shortened delivery times.

3. Case 3: Middle Eastern Decorative Stone Factory

   • A decorative stone processing factory in the Middle East uses the machine for sandstone cutting and shaping. The smooth slab surface and consistent thickness have earned high customer satisfaction.
