Diamond Saw Blade for Dekton & Sintered Stone

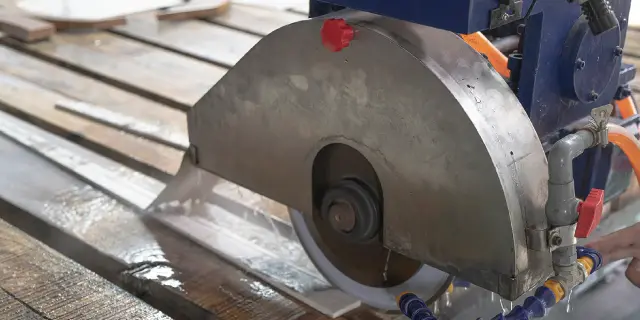

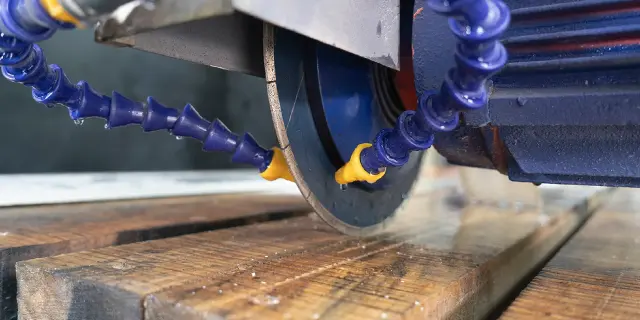

The material sets the rate, and ultra-compact surfaces are among the most abrasive materials a bridge saw meets. They are pressed at extreme density with very high mineral content — the bond wears against a body that attacks it continuously, so diamond consumption per square meter is structurally higher than on any marble or most granites. A blade delivering normal life on granite will wear predictably faster here: this is material physics, not a blade defect, and the honest management is to compare blades within the Dekton/sintered class, not against natural-stone life numbers. What you control: full continuous water at the cut (heat accelerates bond breakdown), feed within the material supplier's limits (over-feeding micro-fractures diamonds), and blade inventory planned around the shorter cycle. Track square meters per blade on this material as its own baseline — it is a different number from every other material on the saw, and it is the correct one.

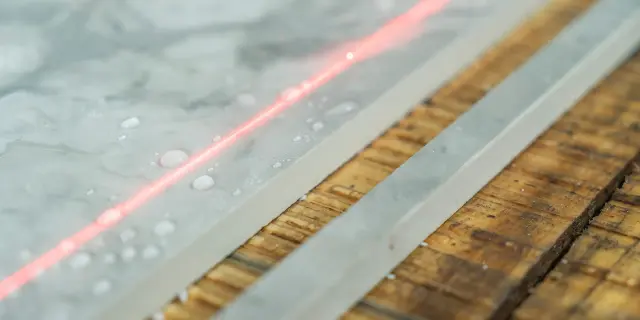

Edge chipping on large formats is a cut-dynamics problem, and the fixes are operational before they are tooling. Support the slab fully, especially along the exit line — an unsupported offcut drops and tears the edge in the last millimeters, the single most common cause on big panels. Manage entry and exit: start the cut at reduced feed until the kerf is established, and slow through the final 20 mm or step-cut the last strip. Match feed to the blade's working condition — forcing a worn blade hammers instead of cuts. Keep water continuous across the full cut; heat checks micro-fracture the surface and show up later as chips. And maintain the blade: a glazed or out-of-true blade chips edges that a fresh blade passes cleanly. For miter faces specifically, cut in a single continuous pass where the saw allows — stopping mid-face restarts the cut dynamics and often marks the face. If chips persist after these checks on one material brand, send the details for a bond review: that is a specification question, not an operator question.

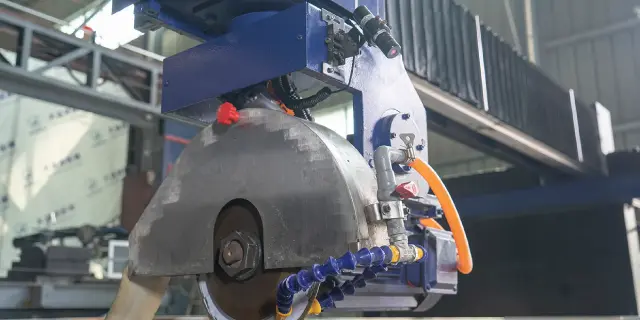

Occasional compatibility is not production optimization. A quartz blade can physically cut selected sintered slabs — that is compatibility. But Dekton and ultra-compact surfaces differ from engineered quartz in the properties that decide blade design: far higher abrasiveness, which consumes bonds at a different rate; full-body density, which loads the cut differently; and miter faces that are finished surfaces, which punish edge damage that quartz programs can absorb. The dedicated blade answers these with a controlled-wear bond engineered for extreme abrasiveness and 41/43 mm long segment geometry for full-depth stability — design decisions a general engineered-stone blade does not make. The difference shows up in production: miter-face quality on visible edges, blade-life predictability per material class, and fewer mid-program blade changes. If ultra-compact material is a regular product line, the dedicated blade is the tooling; if it is an occasional order, the quartz blade covers it with adjusted expectations.

The material sets the rate, and ultra-compact surfaces are among the most abrasive materials a bridge saw meets. They are pressed at extreme density with very high mineral content — the bond wears against a body that attacks it continuously, so diamond consumption per square meter is structurally higher than on any marble or most granites. A blade delivering normal life on granite will wear predictably faster here: this is material physics, not a blade defect, and the honest management is to compare blades within the Dekton/sintered class, not against natural-stone life numbers. What you control: full continuous water at the cut (heat accelerates bond breakdown), feed within the material supplier's limits (over-feeding micro-fractures diamonds), and blade inventory planned around the shorter cycle. Track square meters per blade on this material as its own baseline — it is a different number from every other material on the saw, and it is the correct one.

Edge chipping on large formats is a cut-dynamics problem, and the fixes are operational before they are tooling. Support the slab fully, especially along the exit line — an unsupported offcut drops and tears the edge in the last millimeters, the single most common cause on big panels. Manage entry and exit: start the cut at reduced feed until the kerf is established, and slow through the final 20 mm or step-cut the last strip. Match feed to the blade's working condition — forcing a worn blade hammers instead of cuts. Keep water continuous across the full cut; heat checks micro-fracture the surface and show up later as chips. And maintain the blade: a glazed or out-of-true blade chips edges that a fresh blade passes cleanly. For miter faces specifically, cut in a single continuous pass where the saw allows — stopping mid-face restarts the cut dynamics and often marks the face. If chips persist after these checks on one material brand, send the details for a bond review: that is a specification question, not an operator question.
