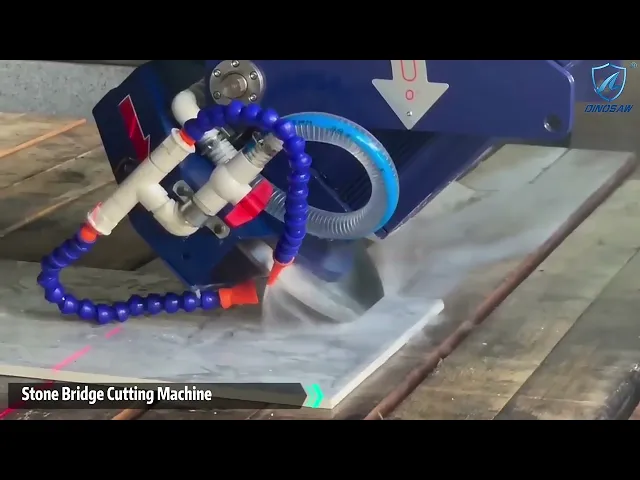

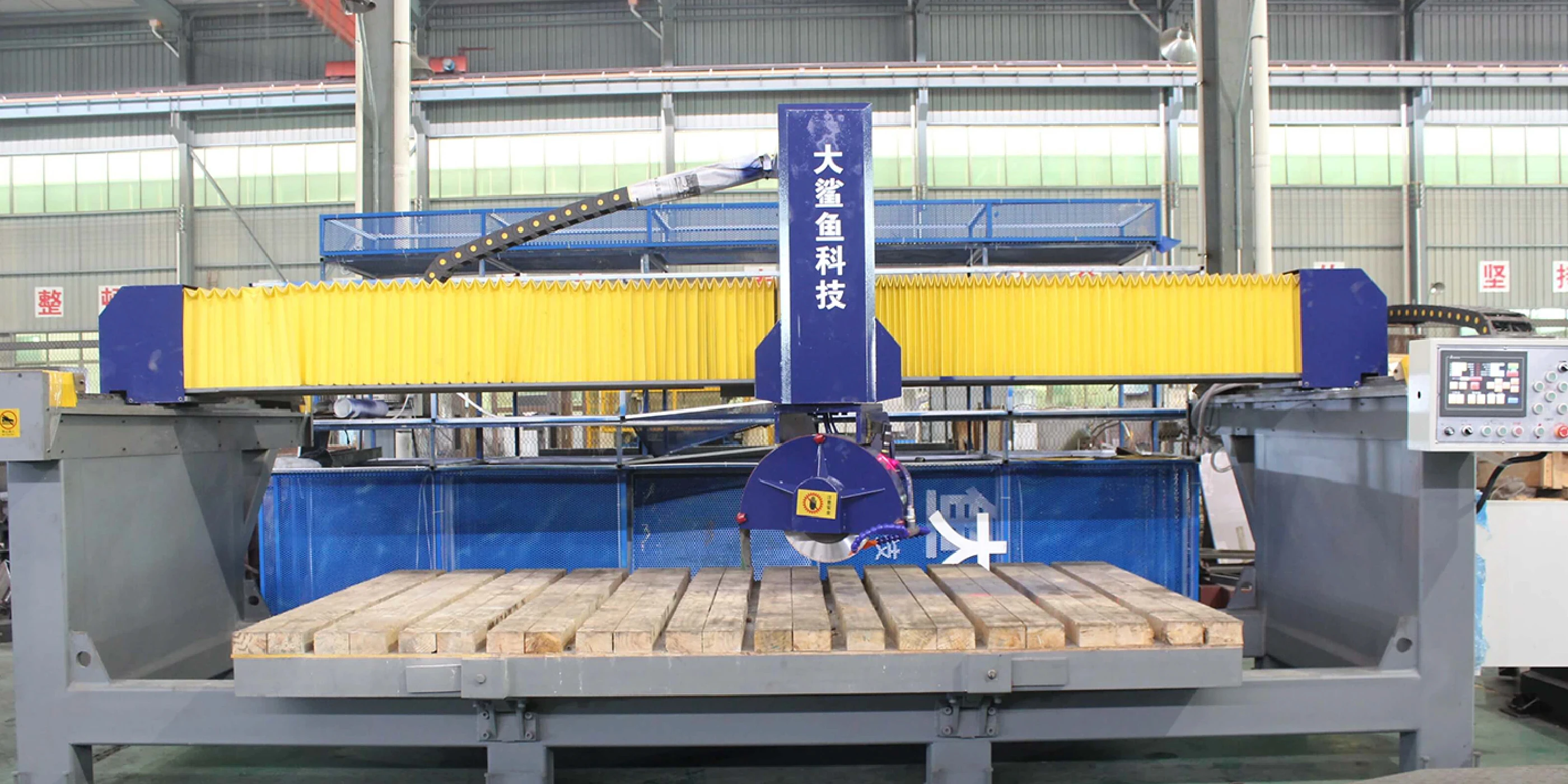

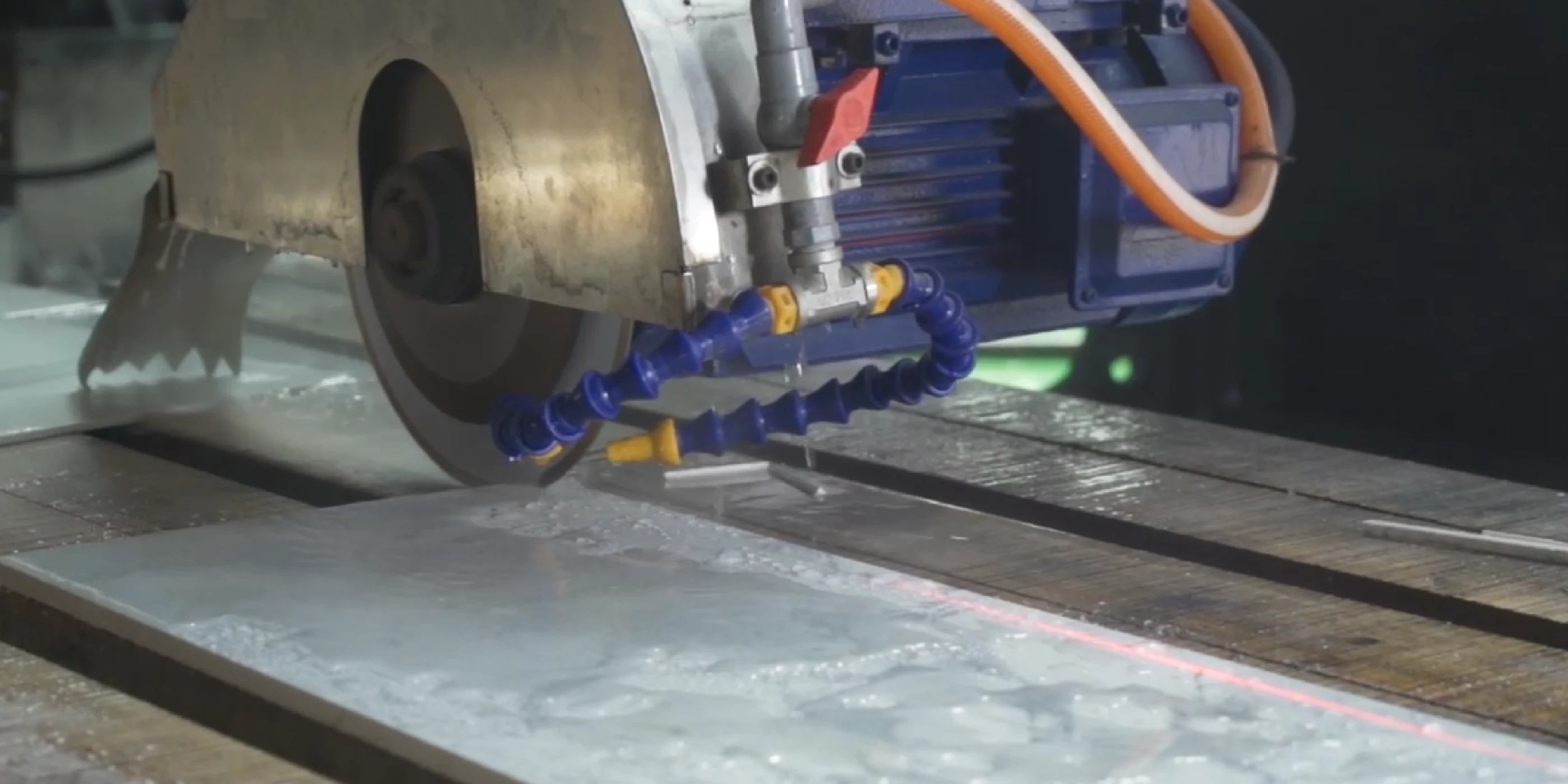

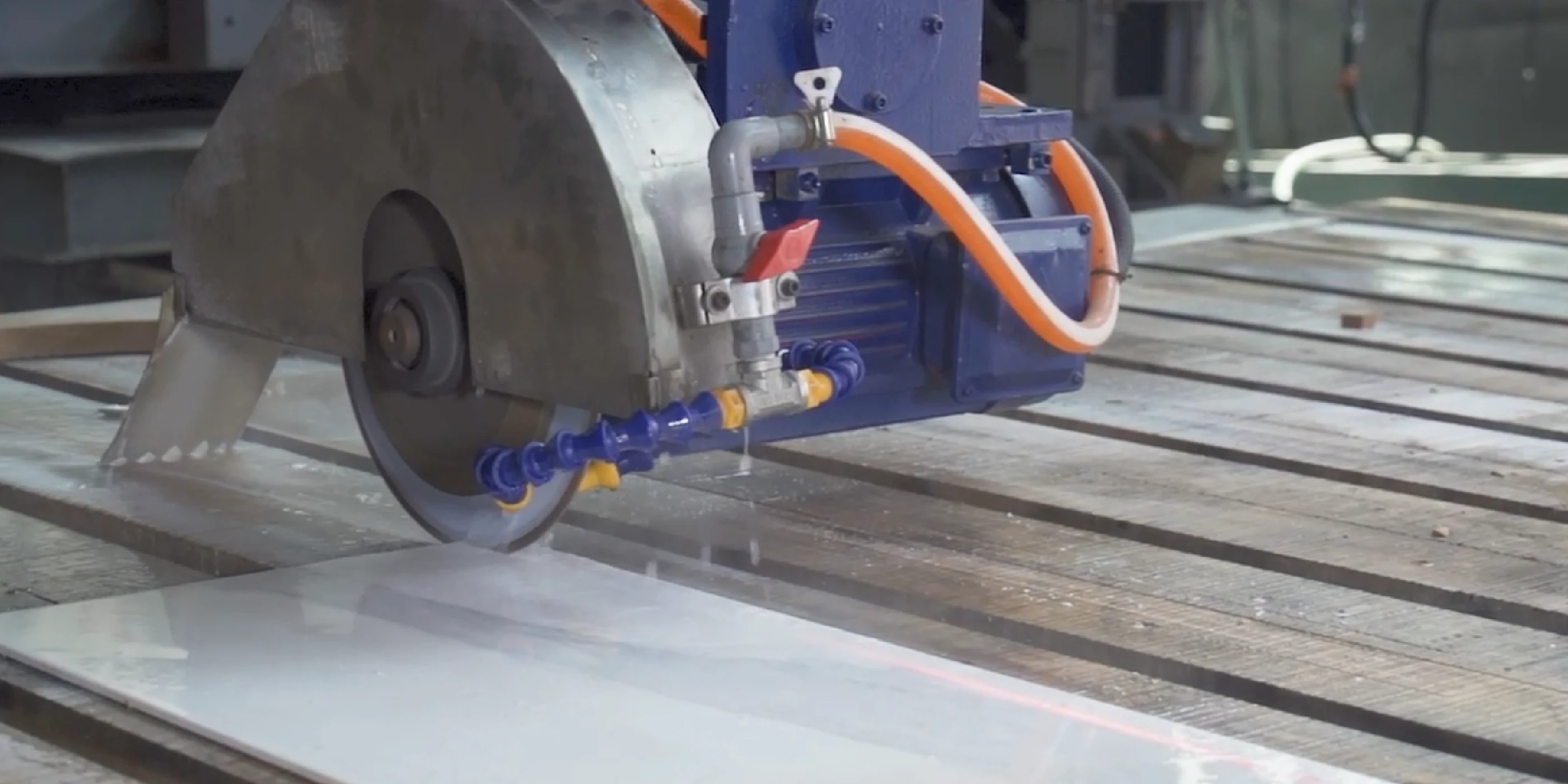

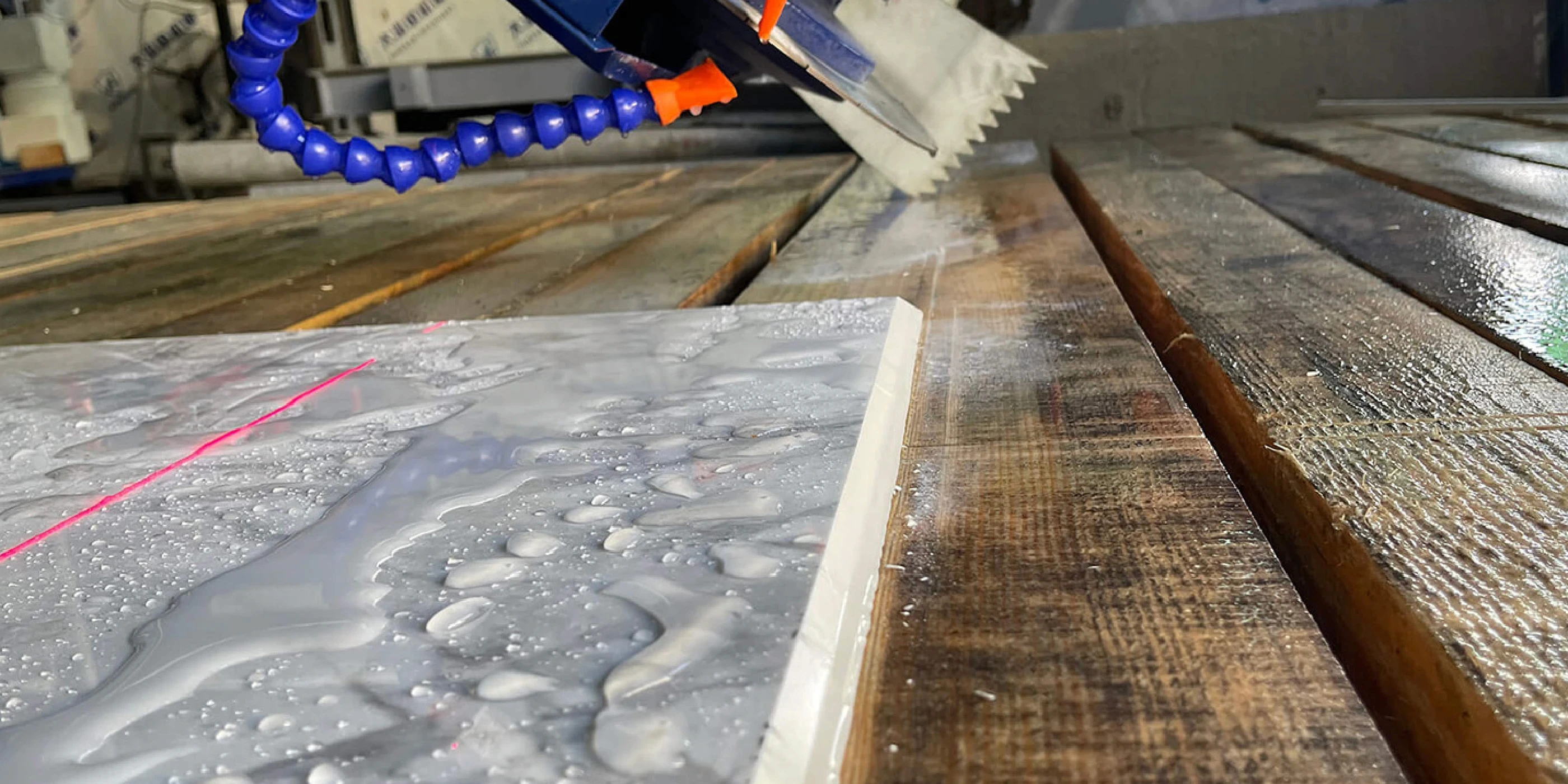

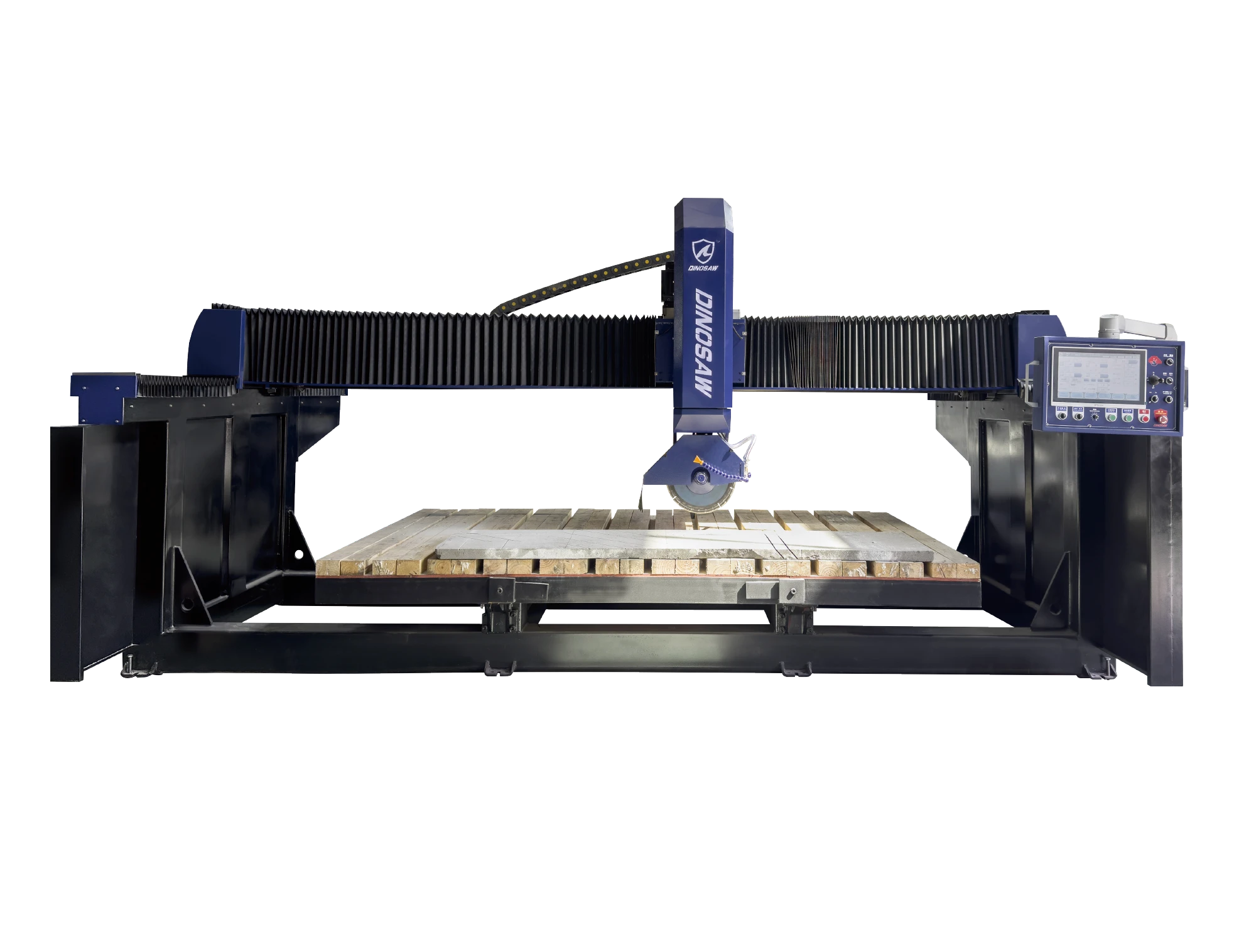

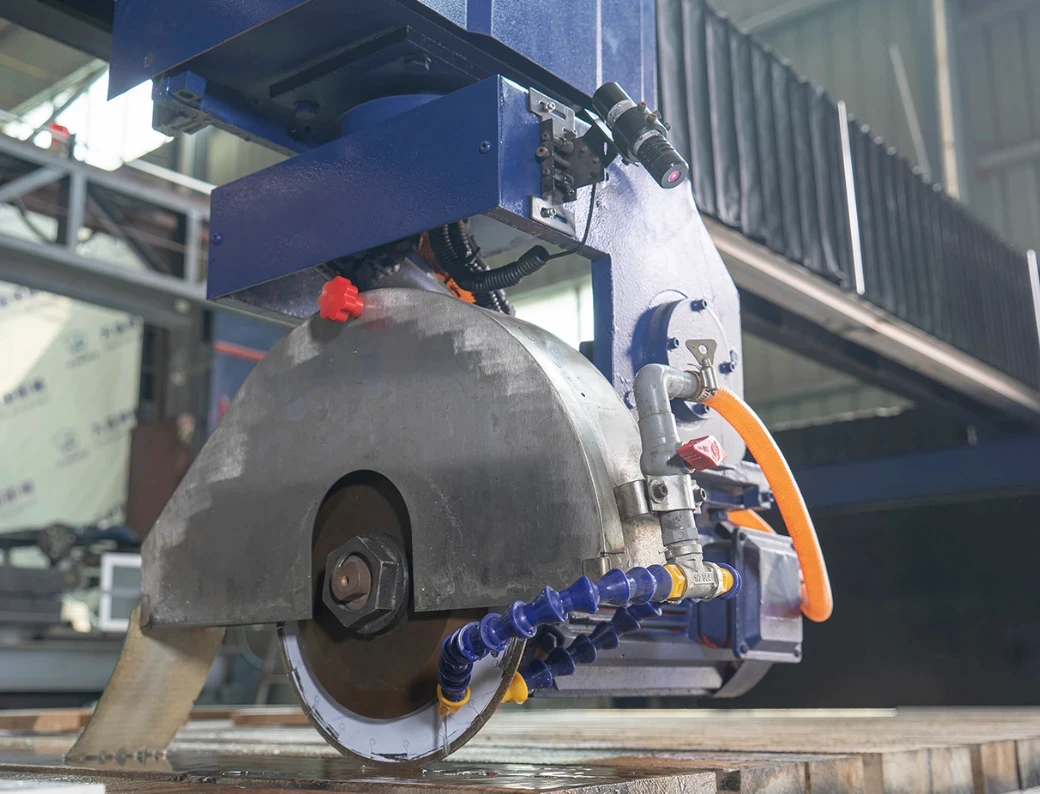

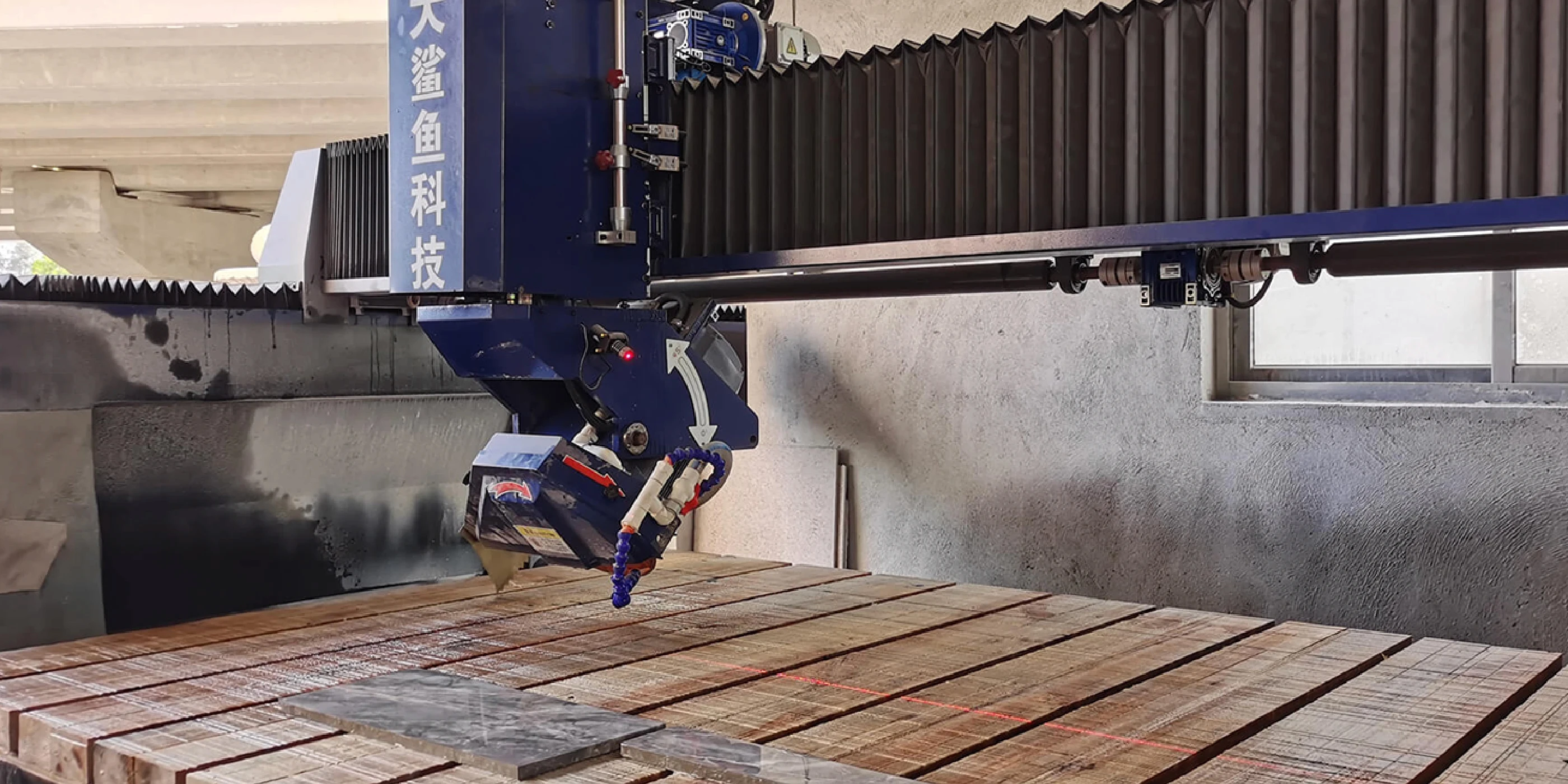

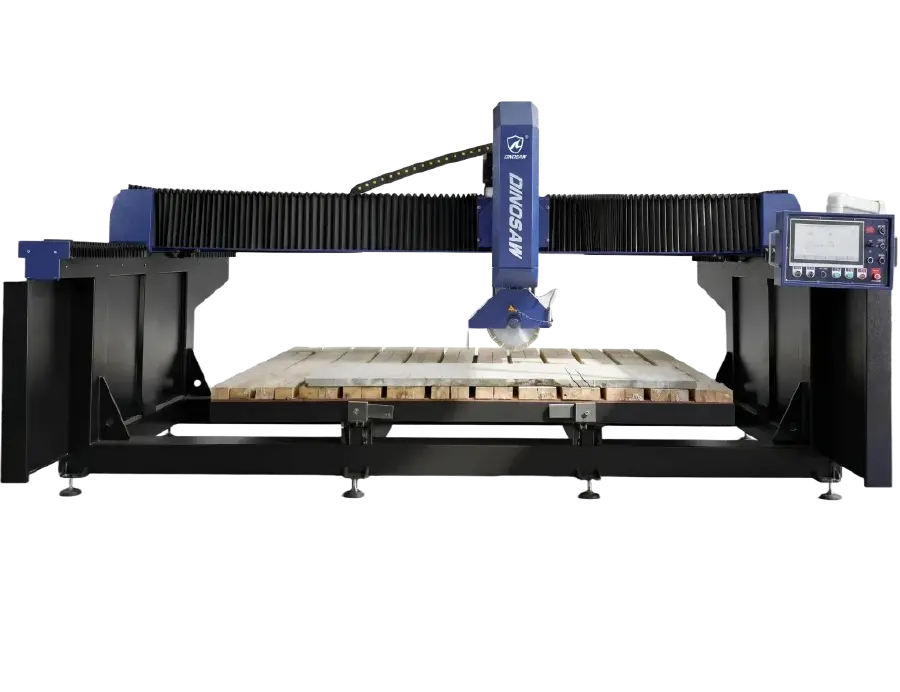

Monoblock Bridge Saw CNC Stone Cutter

Comprehensive Material Compatibility:The YTQJ-600 handles diverse stone materials with its 18.5kW motor power and 350-600mm blade diameter range:

Natural Stones:

• Granite (all hardness levels)
• Marble and limestone
• Sandstone and travertine
• Slate and quartzite

Engineered Materials:

• Quartz composites and engineered stone
• Ceramic and porcelain slabs
• Ultra-compact surfaces (Dekton, Neolith)
• Sintered stone materials

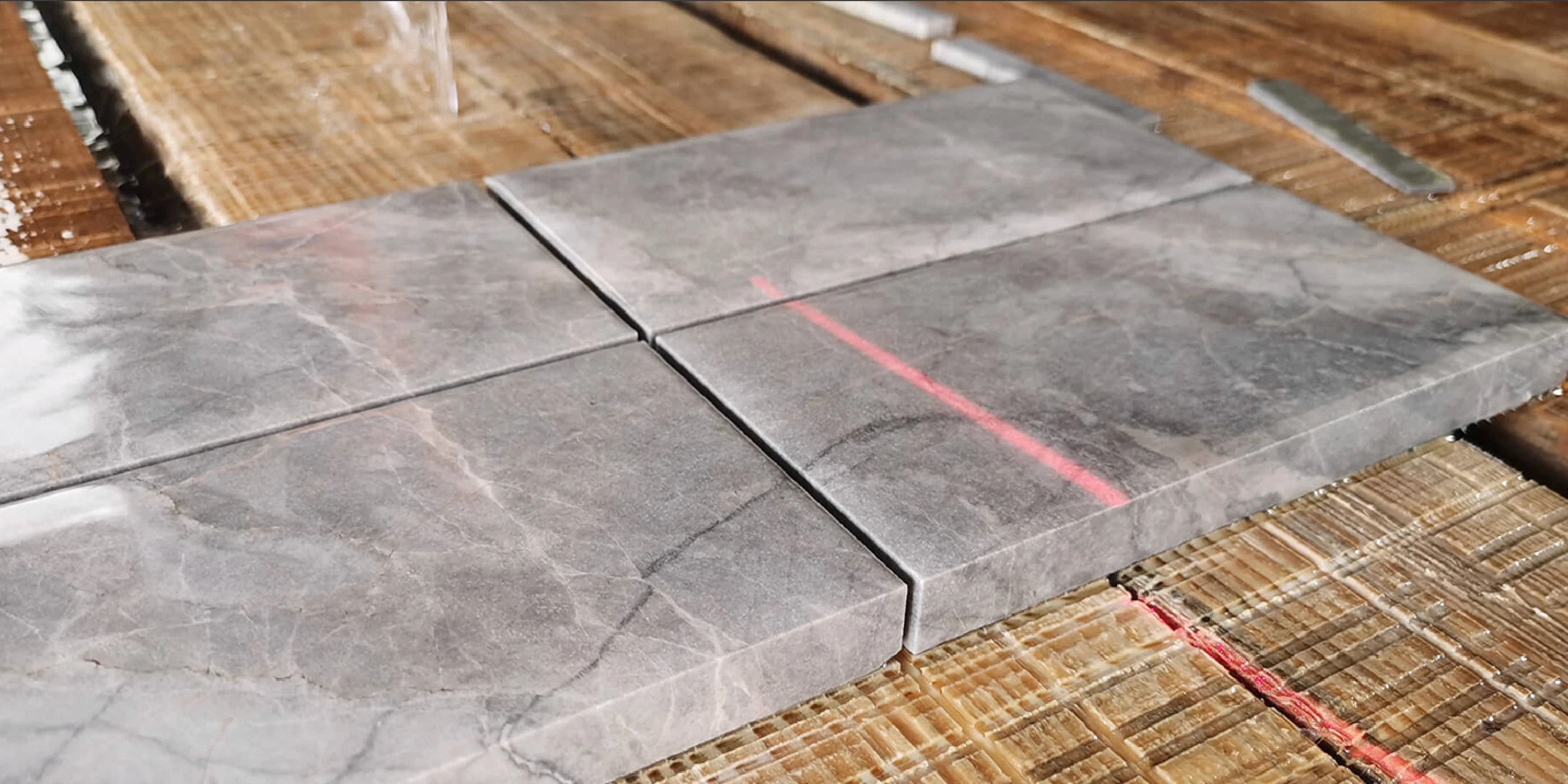

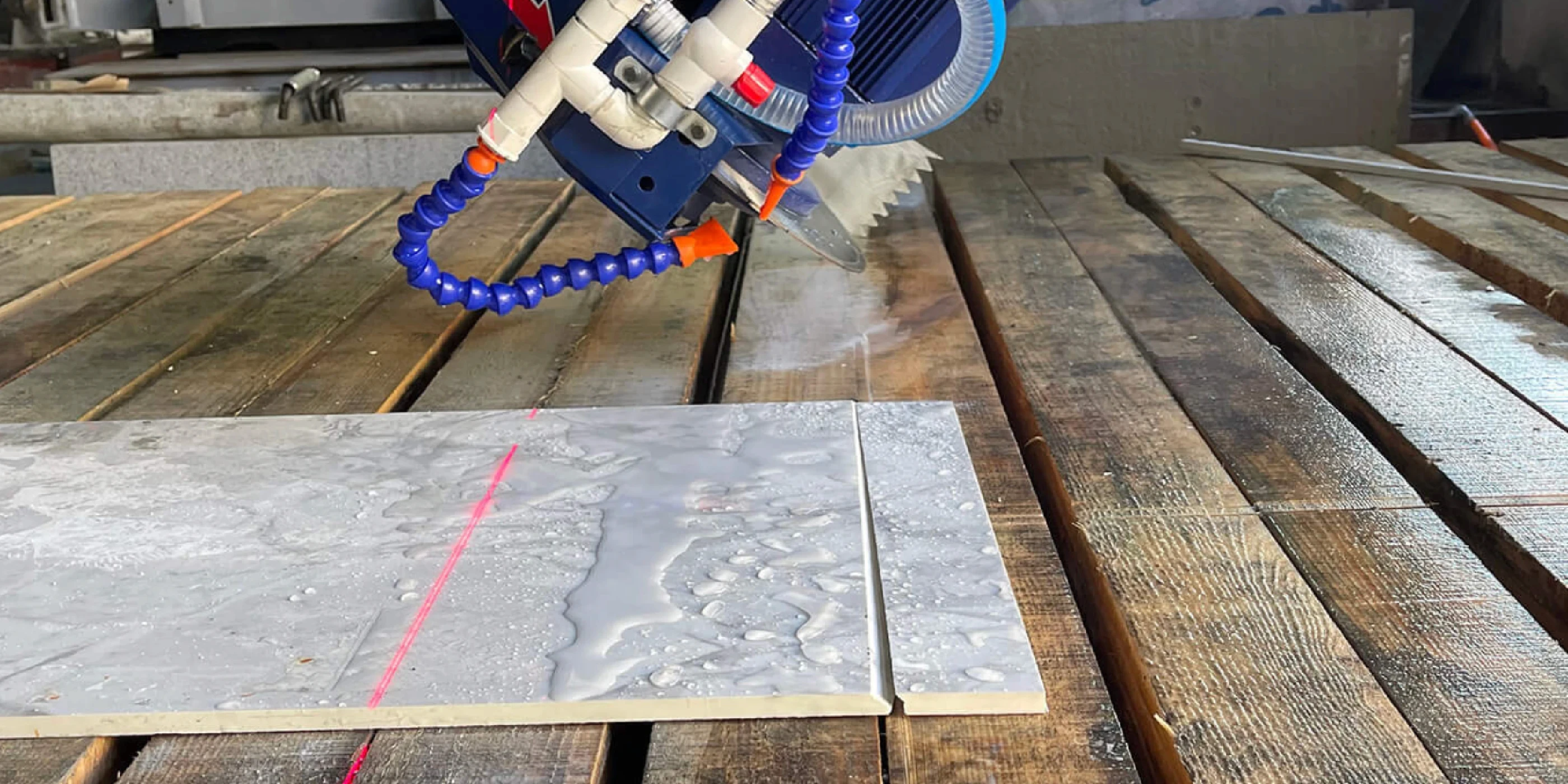

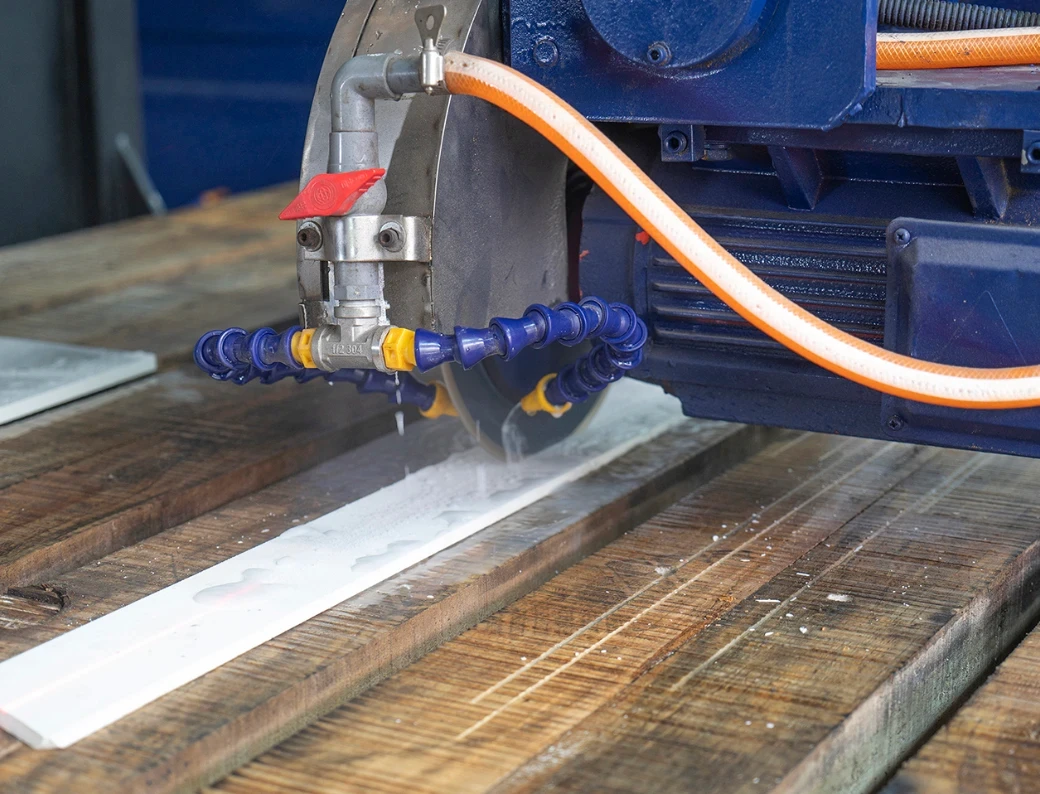

The machine's variable speed control optimizes cutting performance across different material densities, ensuring clean cuts and minimal chipping regardless of material type.

Precision Specifications and Technology:

The YTQJ-600 achieves industry-leading cutting accuracy through advanced control systems:

Precision Specifications:

• Cutting accuracy: ±0.5mm (demonstrated in laboratory conditions)
• Maximum blade diameter: 600mm for optimal cutting depth
• Working dimensions: 3200×2000×180mm capacity

Precision Technology:

1. Ultra-high precision rotary encoder positioning
2. Servo motor control with closed-loop feedback
3. Linear slide guidance system
4. Robust monoblock construction eliminating vibration

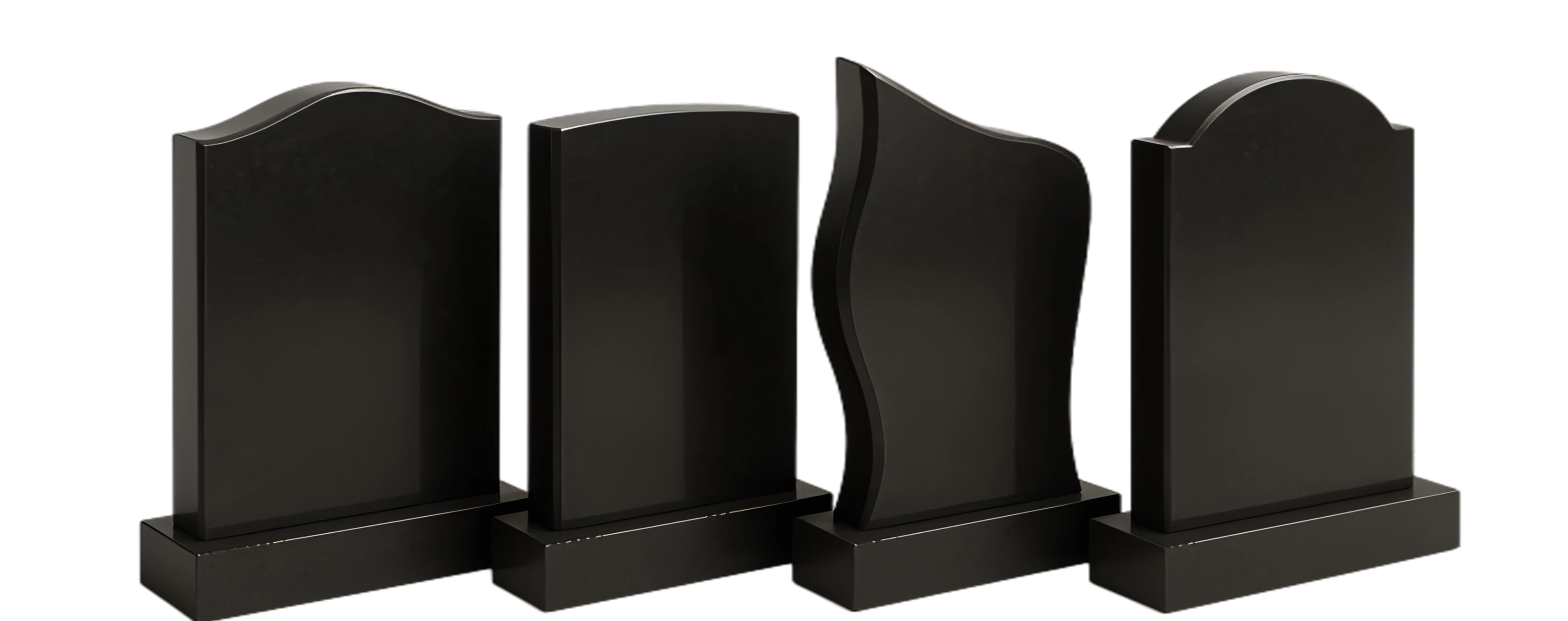

This precision level makes the YTQJ-600 ideal for demanding applications including luxury countertops, architectural elements, and precision monument work.

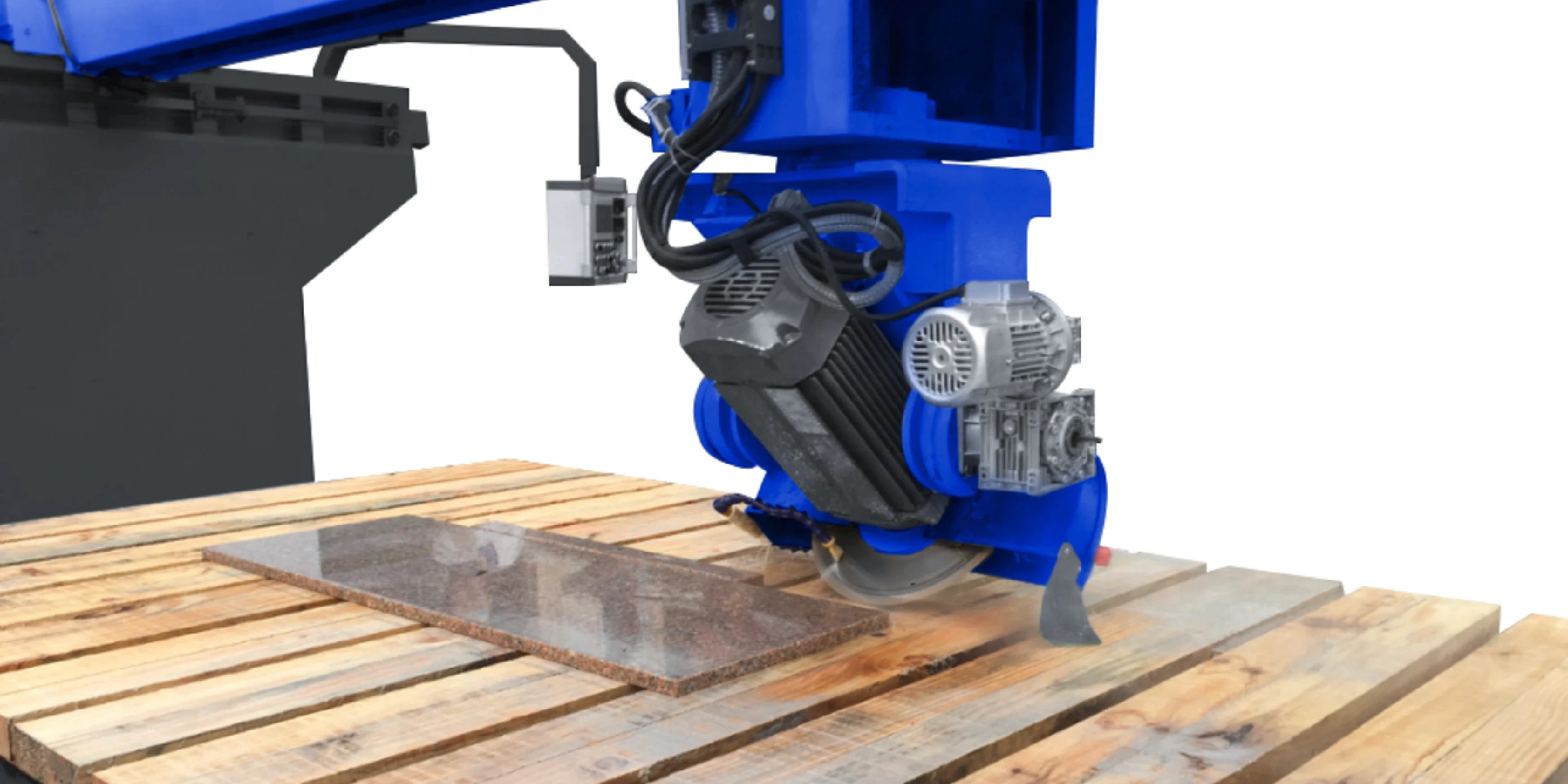

Multi-Axis Capabilities and Benefits:

5-axis operation transforms stone fabrication possibilities through advanced movement control:

Axis Capabilities:

• X-Y axes: Horizontal movement across work surface
• Z-axis: Vertical blade positioning and depth control
• A-axis: Blade can rotate 90 degrees and tilt 45 degree while worktable can rotate 360 degrees and tilt 85 degrees
• C-axis: Continuous 360° head rotation capability

Operational Advantages:

1. Complex geometries: Cut curves, bevels, and intricate shapes without repositioning
2. Time efficiency: Reduces setup time by 60% compared to manual repositionin
3. Quality consistency: Eliminates human error in angle adjustments
4. Advanced fabrication: Enables previously impossible geometric cuts
5. Reduced waste: Optimal material utilization through precise positioning

This multi-axis capability significantly enhances productivity while enabling complex stone fabrication projects that define modern architectural design.

Advanced CNC Control System Features:

The YTQJ-600's CNC control system revolutionizes stone cutting through intelligent automation:

Control Interface:

• 12" touchscreen display: Cnc axes control unit with 12'' touchscreen colour display for cuts programming
• Human-machine interface: Intuitive programming and operation
• Multi-language support: Operator-friendly interface design
• Real-time monitoring: Live cutting parameters and status display

Automated Functions:

1. Automatic execution: Allow the automatic execution of cutting, drilling and milling cycles without manual intervention
2. Parametric programming: Parametric geometric shape generation function to facilitate the creation of the most common cutting programs
3. Error prevention: Built-in safety checks and collision avoidance
4. Precision control: Exact parameter control reduces operator error
5. Consistent results: Repeatable quality across production runs

This advanced control system transforms complex stone fabrication into simplified, automated processes while maintaining exceptional precision and quality.

Comprehensive Maintenance Schedule:The YTQJ-600's robust construction minimizes maintenance requirements while ensuring optimal performance:

Daily Maintenance (5-10 minutes):

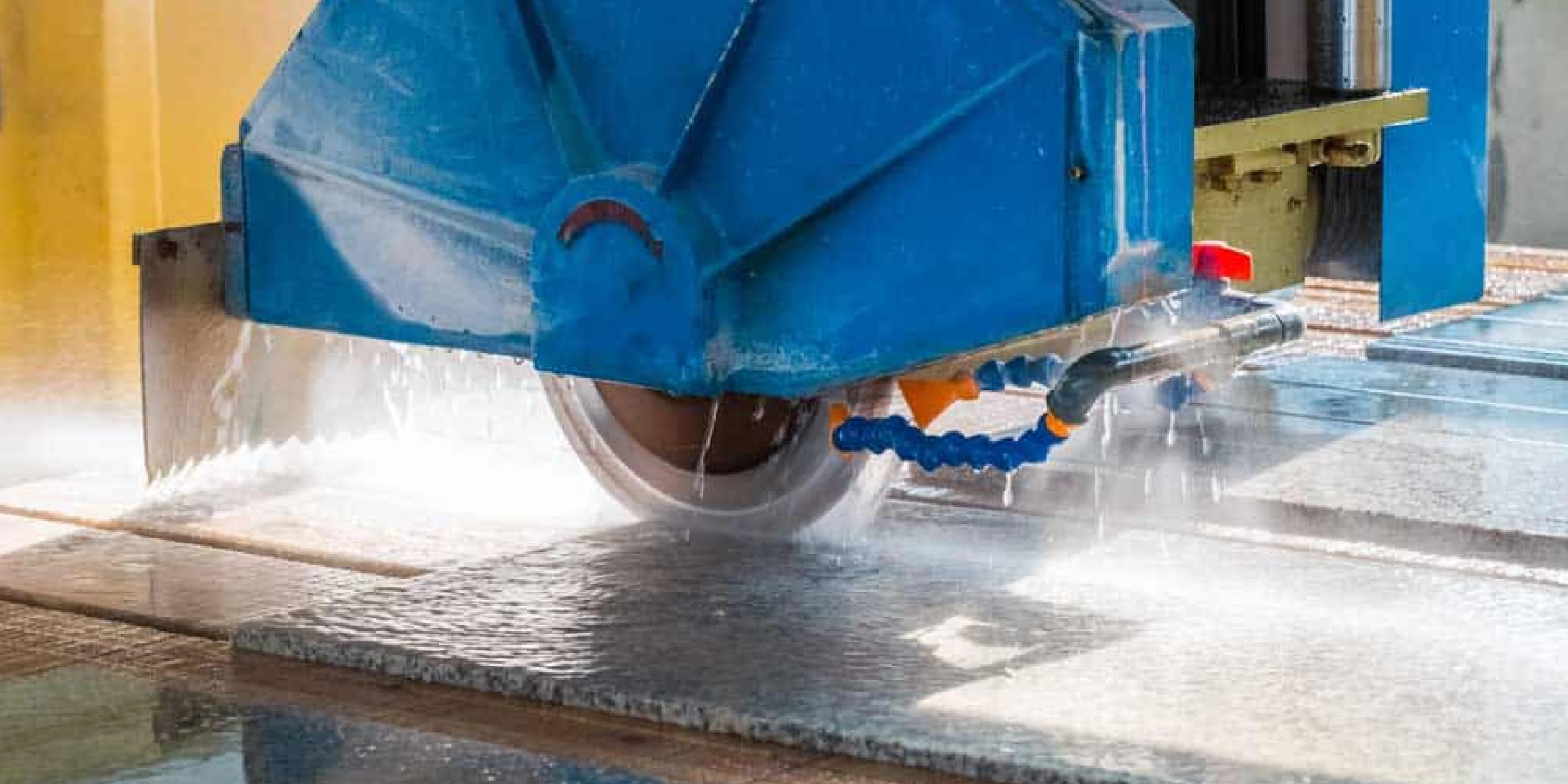

• Water flow system verification and pressure check
• Work surface cleaning and debris removal
• Visual blade inspection for wear or damage
• Coolant level and quality assessment

Weekly Maintenance (30 minutes):

• Linear guide lubrication and cleaning
• Servo motor alignment verification
• Water filtration system cleaning
• Safety system function testing

Monthly Maintenance (2 hours):

• Encoder calibration and positioning accuracy check
• Spindle bearing inspection and lubrication
• Electrical connection tightening and inspection
• Complete system diagnostic and performance review

Durability Features: The galvanized frame construction and quality components significantly extend service intervals and reduce overall maintenance costs.

Large Slab Processing Capabilities:The YTQJ-600 is specifically designed for efficient processing of large-format stone materials:

Physical Specifications:

• Working dimensions: 3200×2000×180mm (L×W×H)
• Maximum slab size: Accommodates industry-standard 3200×2000mm slabs
• Load capacity: 2000 lbs (approximately 900kg) table capacity
• Material thickness: Up to 180mm cutting capability

Handling Features:

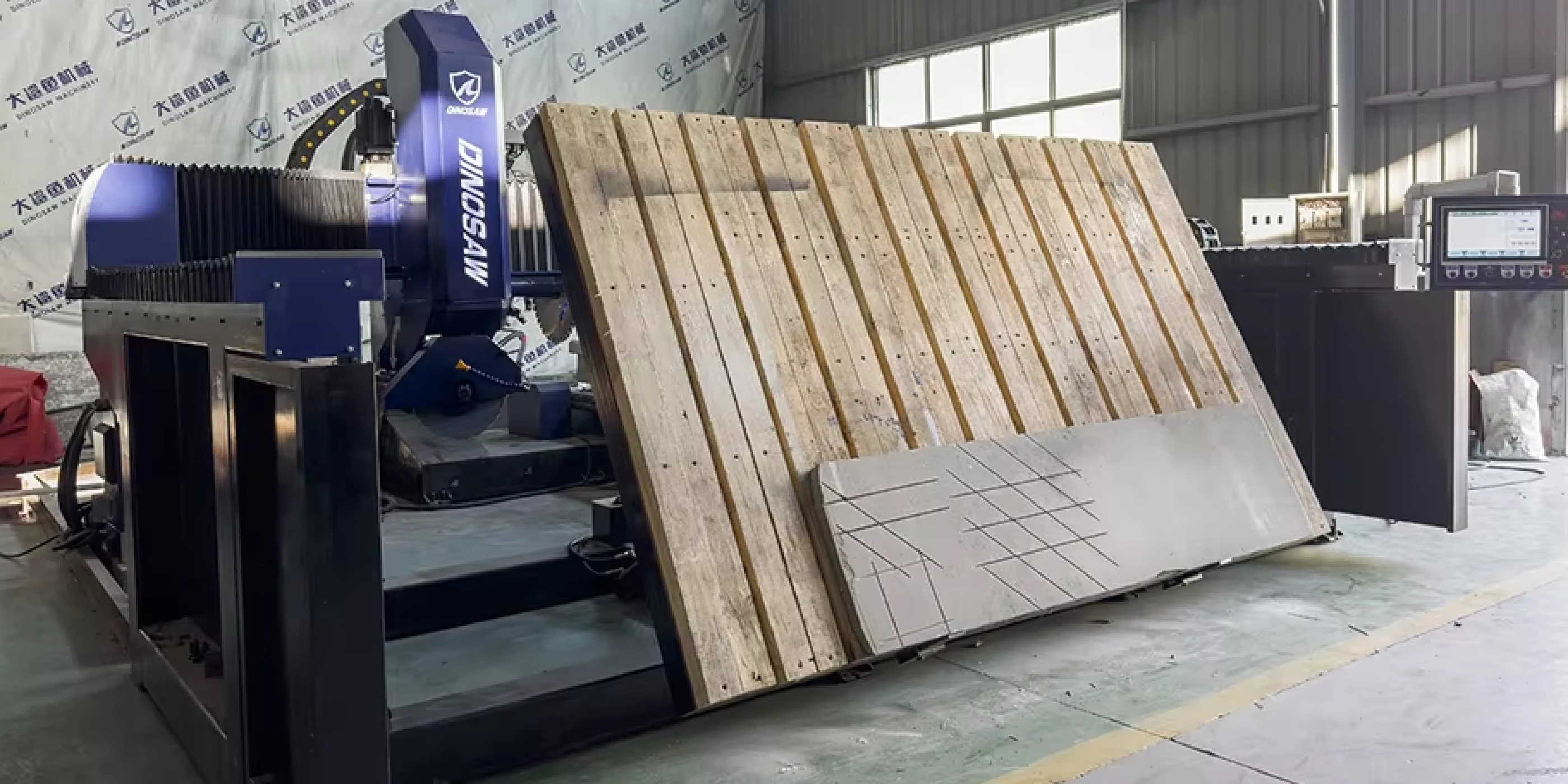

• Hydraulic tilting: Optional system for easier material loading and positioning
• Extended travel: 3200mm horizontal running travel eliminates repositioning needs
• Vacuum system: Secure slab holding during cutting operations
• Support structure: Reinforced frame handles maximum loads safely

Productivity Benefits: Full-size slab processing capability improves material yield, reduces handling time, and maintains consistent cut quality across large workpieces, making it ideal for commercial countertop and architectural applications.

For slab cutting, countertops and standard monument programs, ±0.5 mm encoder positioning is within the tolerance these products require. If your orders include complex contour profiles, sink cutouts with tight tolerances or 3D shapes, consider the five-axis WZQJ-5N (±0.05 mm) instead — the practical rule is to match the machine to your tightest recurring tolerance, not to buy precision you rarely use.

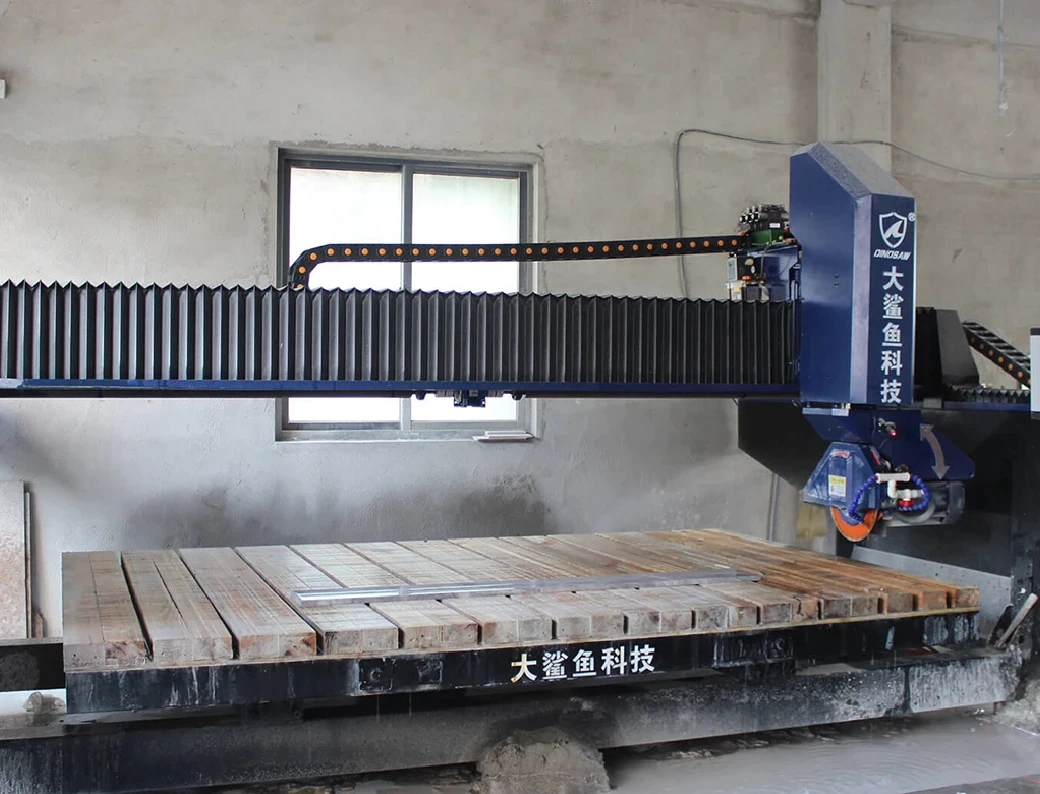

Yes — relocation is one of the monoblock's design advantages. The 5.5-ton single-piece body needs no foundation, so moving it means unfixing, transporting and re-leveling at the new site rather than the decommission-and-rebuild cycle of a foundation-mounted machine. Rented workshops and factories that expect to expand or move within a few years typically recover this flexibility many times over.

Match the axis count to your product mix. Three axes cover straight slab cutting for countertops and vanities; a four-axis configuration adds angled and bevel work; five axes opens complex contours and shaped parts. If your current orders are rectangular slabs with occasional bevels, 3–4 axes is the economical choice — you can treat five-axis capability as an upgrade path rather than a day-one requirement.
