Granite Diamond Blade for Fast Cutting | Long Life

Our granite diamond saw blades are designed for all types of granite. Featuring various segment designs like M-shape or multi-layer, and available in standard or silent core options, these blades are built for versatility. The blade segments are securely attached using laser welded or hot-pressed technology for maximum durability. Engineered for a long life, these fast-cutting segments help you complete projects cost-effectively. The blades provide smooth, chip-free cuts that reduce material waste and secondary finishing.

250–3000 mmFrom bridge-saw slab cutting to large-diameter block production

Hardness-MatchedM-shape and multi-layer segment configurations matched to soft, medium and hard abrasive granite

Silent Core OptionNoise-reduced blade cores for workshops and noise-sensitive cutting environments

Applicable Materials

All granite types, from soft commercial granites to hard abrasive varieties

Certifications & Credentials

CE Certified · ISO 9001:2015 · Industry Standard Drafting Participant · 120+ Countries & Regions Served

Get a Custom Quote

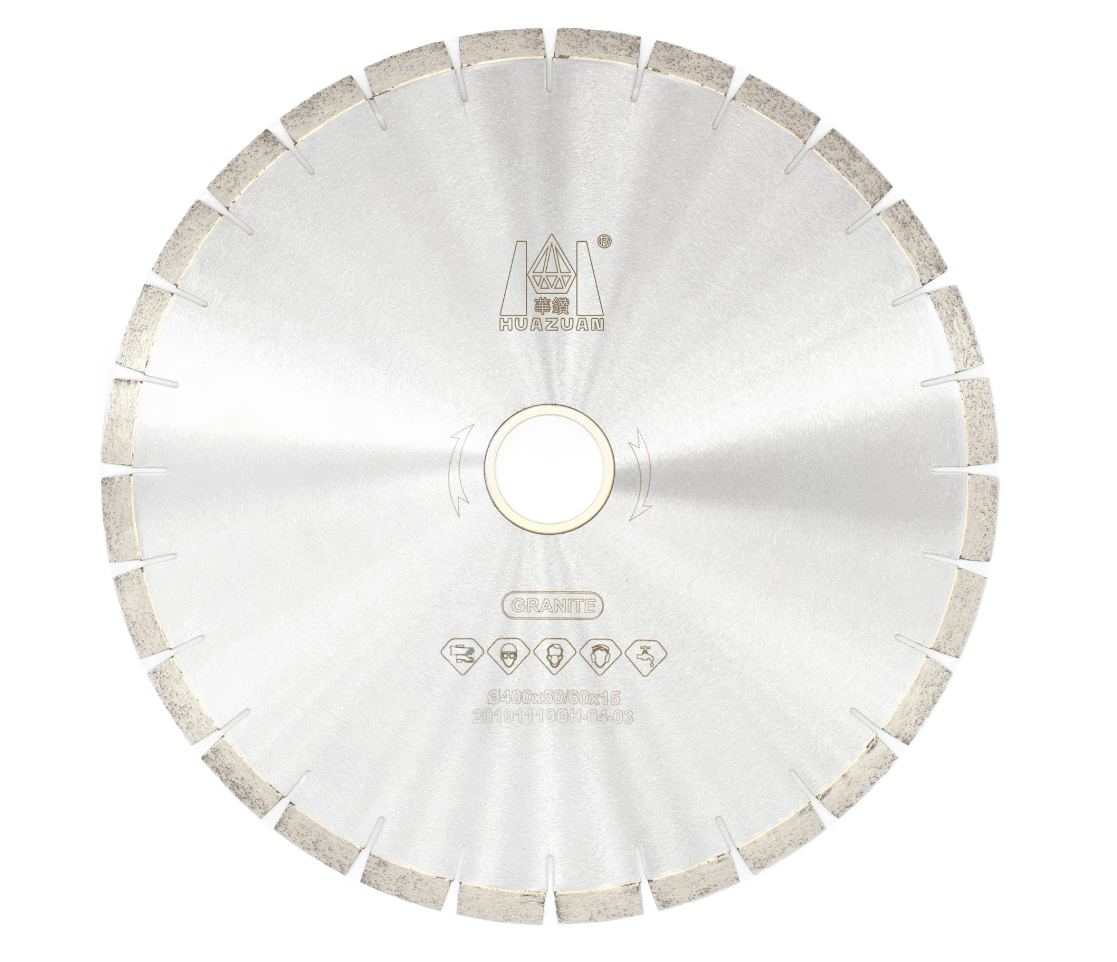

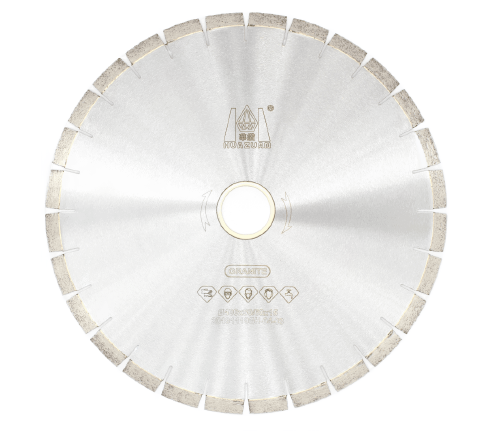

Dinosaw machine Diamond Saw Blade for Granite

Applications Performance Specs Technology Comparison Manufacturing Support FAQ

Compatible Materials & Products

Precision Cutting for Natural Stone Slabs and Countertops

Granite Blocks > Segments for Block Cutting

Cutting large granite blocks requires blades with high efficiency segments to maintain straight cuts over long distances. The main challenge is handling the material's high abrasiveness, which demands long life segments. These blades feature a robust, tensioned steel core and wear-resistant bond. The hot-pressed or laser welded segments are formulated for cutting hard granite, ensuring consistent performance and long tool life in demanding factory environments. The key benefit is high efficiency and yield, producing uniformly thick slabs while reducing downtime.

Granite Pavers > Sizing for Patios

Sizing granite pavers for patios requires consistent, fast cutting segments to keep projects on schedule. The work often involves repeatedly cutting dense, thick material. With an aggressive segment design like M-shape or multi-layer segments, our blades deliver rapid cutting speeds. The formulation is optimized for various granite types, making it a reliable tool for landscaping and construction. This provides installers with an efficient way to achieve clean, uniform pavers, speeding up installation time.

Bridge Saw > Blade Segments for Bridge Saw

Bridge saws are the workhorses of stone fabrication, requiring blade segments that offer a balance of speed and precision for applications from countertop making to architectural cutting. Our blade segments for bridge saws, such as 400mm or 600mm blade segments, provide stable and precise cutting. The combination of a strong steel core and optimized diamond segments allows for clean cuts, reducing the need for extensive secondary finishing. This enables workshops to achieve crisp edges and accurate shapes, boosting overall productivity and quality.

Real Cutting Performance & Key Metrics

DINOSAW granite diamond saw blades are a hardness-matched blade system spanning bridge saws and multi-blade block cutters — 250 to 3000 mm, with M-shape and multi-layer segment configurations, silent core options and large-diameter core stability engineered per machine class.

250–3000 mm

Full Diameter Range

Bridge saw blades at the small end, large block-cutting blades at the upper end — one blade family across the granite cutting floor.

15 / 20 mm

Segment Height Options

Two segment heights match blade duty and re-grinding economics: taller segments serve heavy block cutting, standard heights cover bridge saw production.

M-Shape / Multi-Layer

Segment Configurations

Two segment architectures cover different granite programs: M-shape for free-cutting behavior, multi-layer for controlled wear in demanding abrasive stone.

Standard / Silent

Core Options

Standard cores for conventional cutting, silent cores for noise-regulated workshops and urban cutting environments — the core is a configuration choice, not an afterthought.

Applicable materials: All granite types, from soft commercial granites to hard abrasive varieties.

Typical machines: Bridge saws, multi-blade block cutters and gantry cutting lines.

Actual blade life and cutting speed vary with granite hardness, machine parameters and water supply.

Specs and options

Standard diameters from 250 to 3000 mm with segment heights of 15/20 mm, in M-shape and multi-layer configurations on standard or silent cores. Arbor specifications configure per machine; segment count follows the diameter class per the specification table.

Diameter		Segment Specification (Length/Width/Height)			Teeth No.
Inches	mm	Length/mm	Thickness/mm	Height/mm	pcs
10"	250	40	3	15	17
12"	300	40	3	15	21
14"	350	40	3.2	15/20	24
16"	400	40	3.4	15/20	28
18"	450	40	4	15/20	32
20"	500	40	4.2	15/20	36
24"	600	40	4.8	15/20	42
28"	700	40	5.2	15/20	42
32"	800	40	5.6	15/20	46
36"	900	24	6/7	15/20	64
40"	1000	24	6.5/7.5	15/20	70
48"	1200	24	6.5/7.5	15/20	80
51"	1300	24	7.5/8	15/20	88
56"	1400	24	8.5/8.5	15/20	92
64"	1600	24	8.4/9.2	15/20	108
72"	1800	24	9.5/10.5	15/20	120
80"	2000	24	9.5/10.5	20/30	128
88"	2200	24	10.5/11.5	20/30	132
100"	2500	24	11.5/12.5	20/30	140
120"	3000	24	11.5/12.5	20/30	160

Core Technology & Blade Structure

Four engineering decisions behind the granite blade system. The numbered points on the blade diagram correspond to the systems below.

Granite Blade Specification Workflow

DINOSAW specifies the blade from seven inputs: stone name, photo or sample for hardness class; blade diameter; machine model; spindle power and RPM; arbor specification; cutting depth; and current feed speed or expected output. The response comes back as a matched formulation, segment configuration and core option — trial cutting on your granite confirms it before production orders.

Granite-Specific Formulation

Granite is not one cutting condition: diamond grade, concentration and bond hardness are selected around the stone's hardness and abrasiveness, so soft commercial granite and hard abrasive granite do not run on the same compromise formulation. DINOSAW matches the formulation to your granite class — sample evaluation settles the specification before production orders.

M-Shape vs. Multi-Layer Selection

M-shape segments prioritize free cutting and kerf opening; multi-layer designs distribute diamond and bond structure through the wear zone for controlled life in demanding programs. The choice follows the granite class and production targets — trial cuts on your stone confirm the configuration rather than a fixed formula.

Steel Core Flatness & Tension

The segment can only cut as straight as the steel core runs: core flatness and factory tensioning keep large-diameter blades tracking through long cuts instead of wandering, heating unevenly or loading the spindle — the foundation of cut quality on 2000–3000 mm blades.

Diameter-Scaled Blade Engineering

Blade engineering scales with diameter: segment count, core thickness and tensioning follow the rim speed and load class of each size, so cutting behavior stays predictable from the Φ250 bridge saw blade to the largest block cutter blade.

Silent Core Construction

Silent-core construction damps steel-disc resonance during cutting, reducing the characteristic blade-ring noise of large circular saws — measurable noise reduction where workshops sit near offices, housing or noise-regulated zones.

Retention-Engineered Segments

Weld and segment-seat design are engineered for retention at the blade's rated operating speed: segment attachment is a safety-critical part of blade manufacture, controlled in production and verified before dispatch.

Granite Blade Configuration Selector

A selection table for granite blade buyers.

Configuration	Best For
M-shape segment	Fast / free-cutting programs
Multi-layer segment	Long-life demanding granite programs
Standard core	Conventional factory cutting
Silent core	Noise-sensitive workshop / urban environment
250–600 mm	Bridge saw
Large diameter	Block cutter / multi-blade

Note: conventional equipment varies by brand and model; actual performance depends on the specific machine, material and working conditions.

The Manufacturer Behind the Blade System

DINOSAW is a manufacturer of CNC stone processing machinery, specializing in diamond wire saw machines and CNC stone cutting equipment. With more than 20 years of R&D and manufacturing experience, DINOSAW contributes to industry standards including T/CMES 41001-2025 for CNC wire saw machines, holds 100+ technical patents, and supplies equipment and technical support to customers in 120+ countries and regions. Its manufacturing and management systems are certified to ISO 9001, ISO 14001 and ISO 45001, with CE-compliant machinery for international markets.

DINOSAW CNC stone machinery manufacturing workshop

DINOSAW R&D & ManufacturingMechanical Design · CNC Control Development · Assembly · Testing · Commissioning · Global Delivery

Industry Standard Drafting

DINOSAW contributes to industry standards for stone machinery, including T/CMES 41001-2025 for CNC wire saw machines, as well as standards covering multi-wire saws, combined wire saw machines and five-axis bridge cutting equipment. This work reflects the company’s long-term involvement in machine design, manufacturing, testing and quality control.

20+Years of Stone Machinery R&D & Manufacturing Experience

100+Technical Patents — Covering machine structures, CNC control, cutting systems and stone processing technologies

120+Countries & Regions Served — Equipment, installation and technical support worldwide

CE Compliance & ISO Management Systems

CE: Stone cutting machinery assessed against Machinery Directive 2006/42/EC and relevant EN standards.
ISO: Management systems certified to ISO 9001, ISO 14001 and ISO 45001.

Ordering Requirements & After-Sales Support

DINOSAW provides blade specification from stone and machine data, trial cutting on sample granite and consistent batch supply for production lines.

Machine FitArbor & flange per machine model

Provide machine model, spindle power and RPM when ordering.

Water SupplyContinuous at the cut

Adequate water extends segment life and cut quality.

Trial CuttingSample stone evaluation

Trial cuts verify the formulation on your granite class.

01 · Pre-Shipment & DeliveryMachine configuration, packaging and transport requirements confirmed before dispatch, with factory inspection and documents verified.

02 · Installation & CommissioningOn-site utilities and foundation check, machine positioning, commissioning and acceptance.

03 · Operator TrainingHands-on training covering routine CNC operation and daily checks of blades, spindles, cooling and lubrication.

04 · After-Sales SupportRemote technical assistance, maintenance support and spare parts coordination throughout the machine's service life.

Granite Saw Blade Selection & Use FAQ

Common Questions About Diamond Granite Saw Blades

Lead with the stone, not the diameter. Hard, dense, abrasive granite consumes bonds quickly and needs a formulation that releases diamond progressively — typically multi-layer segment structures with the bond tuned to the stone's abrasion rate. Soft commercial granite behaves oppositely: it cannot wear a hard bond fast enough, so free-cutting M-shape configurations keep the segment face open and the feed rate high. The practical route is sample-based: send the stone name, a photo of the fresh cut surface, or a sample block, and DINOSAW returns a formulation recommendation — confirmed by trial cutting before you commit to production quantity. Between the classes, expect different blade life baselines: track square meters per blade on your stone class, and judge blades against that number, not against another factory's different granite.

Need is environmental, not technical. If your saws run in a workshop hall where operators work multiple machines, near offices or housing where noise complaints arrive before blades wear out, or on urban cutting sites under local noise limits, the silent core's resonance damping earns its price difference in decibels and in reduced hearing-protection pressure. In open yards, quarries or isolated plants with no noise constraints, a standard core delivers the same cutting performance at lower cost. The decision checklist: measure the current blade ring noise at the operator position, check local noise regulations, and ask whether complaints or monitoring already exist. If any answer is yes, specify silent cores at order — retrofitting blade inventories later costs more than choosing correctly once.

The formulation logic transfers, the blade does not. Bridge saws and multi-blade block cutters load blades differently: rim speed, cutting depth, arbor and flange systems, and core stiffness requirements all differ by machine class. A blade specified for a bridge saw runs the correct rim speed and core tension for that machine; mounting it on a block cutter exposes it to loads it was not engineered for — and the same applies in reverse. What transfers is the formulation: the bond and segment configuration matched to your granite class carries across machine classes, with diameter, core and arbor re-specified per machine. Factories running both machine types standardize on one formulation program with per-machine blade specifications — one stone data set serves the whole blade fleet.
