Applicable Materials
Marble, limestone, sandstone and soft natural stone
Certifications & Credentials
CE Certified · ISO 9001:2015 · Industry Standard Drafting Participant · 120+ Countries & Regions Served
Soft-stone focus: marble, limestone, sandstone slab cutting
Limestone cuts easily yet may smear when bonds are too soft, affecting surface quality. Balanced bond hardness and diamond concentration curb clogging; match feed rate and stroke on the frame gangsaw and maintain coolant to prevent paste buildup and keep the kerf steady. Clean faces reduce rework and finishing cost, improving line efficiency and consistency.
Sandstone is abrasive and accelerates segment wear during panel cutting. Slightly harder bonds with strong diamond retention extend segment life; steady coolant evacuation removes grit and preserves cutting speed and kerf stability. Longer tool life with consistent panels lowers downtime and total cutting cost across batches.
Bookmatching prep requires straight, smooth kerfs to achieve mirrored seams and clean aesthetics. Tuned segment geometry minimizes deflection; verify frame alignment and tension on the gangsaw to keep cuts true and maintain kerf stability. Cleaner seams reduce finishing steps and deliver superior visual results for premium installations.

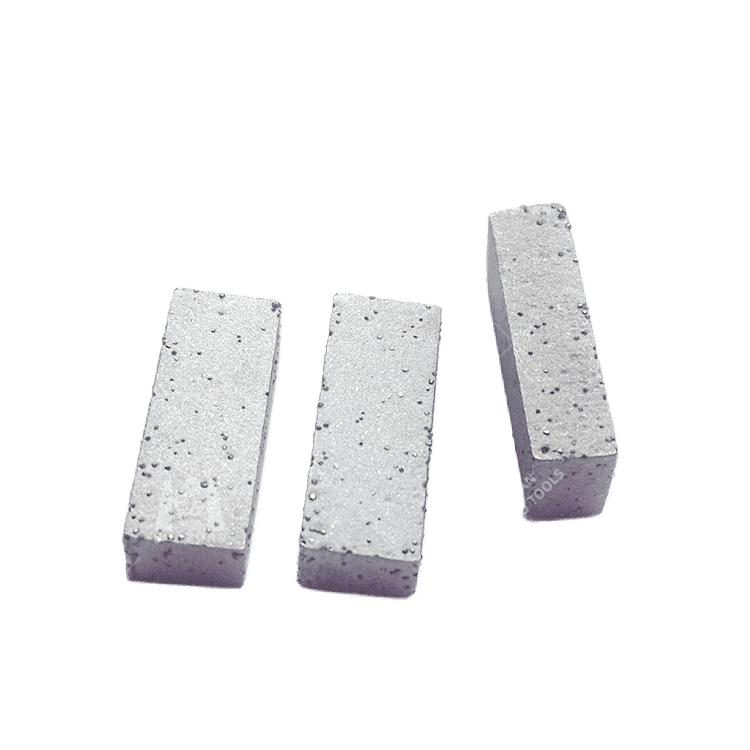

DINOSAW diamond gang saw segments are blade-thickness-matched cutting components for frame saws: thin steel blades from 2 to 4 mm carry width-paired segments through soft stone in multi-blade packs, where penetration rate and frame-wide thickness consistency decide the line's economics.
The program covers gang saw blade bodies from 2 to 4 mm — the thin steel bands that give frame sawing its kerf economy.
Width pairs track each blade thickness without creating unnecessary kerf: the segment clears the blade body cleanly at every size in the range.
The 20 mm length is the frame saw program standard — sized for the blade's stroke geometry and seat design.
8 mm working height fits the frame saw's cutting regime while leaving re-grinding margin across the blade program.
Applicable materials: Marble, limestone, sandstone and soft natural stone.
Typical applications: Frame gang saw slab production — limestone slab cutting, sandstone panel cutting, marble bookmatch preparation and bulk soft stone programs.
Actual segment life varies with stone abrasiveness, frame saw parameters and slurry conditions.
Gang saw segments are specified by blade thickness: 20 mm length with width pairs (3.2/3.7, 3.7/4.2, 4.2/4.5, 4.8/5.3, 5.0/5.5 mm) matched to 2, 2.5, 3, 3.5 and 4 mm blade bodies, 8 mm height standard. Segment quantity per blade follows the frame's blade specification.
| Gangsaw Blade Thickness | Segment Dimension | ||
|---|---|---|---|
| mm | Length/mm | Width/mm | Height/mm |
| 2 | 20 | 3.2/3.7 | 8 |
| 2.5 | 20 | 3.7/4.2 | 8 |
| 3 | 20 | 4.2/4.5 | 8 |
| 3.5 | 20 | 4.8/5.3 | 8 |
| 4 | 20 | 5.0/5.5 | 8 |
| Gangsaw Blade Specification | Segment Qty | ||
| Length/mm | Width/mm | pcs | |
| 2000 | 180 | 14-16 | |
| 2500 | 180 | 17-19 | |
| 2700 | 180 | 20-22 | |
| 3000 | 180 | 21-23 | |
| 3100 | 180 | 26-28 | |
| 3500 | 180 | 27-29 | |
| 3800 | 180 | 28-30 | |
| 3950 | 180 | 30-32 | |
| 4300 | 180 | 32-35 | |
| 4500 | 180 | 34-37 | |
Four engineering decisions behind the gang saw segment program. The numbered points on the segment diagram correspond to the systems below.
Blade preparation follows four steps: select the segment specification per blade thickness, braze segments along the blade at frame spacing, mount blades on the frame at even tension, then run the frame and verify slab thickness across the pack — segment consistency shows up as thickness spread.
Gang saw steel bodies are much thinner than circular saw cores: segment width must clear the blade body without creating unnecessary kerf, so each 2–4 mm blade thickness is matched with its own segment width pair — kerf economy is the machine's reason to exist, and the segment protects it.
Frame saw economics depend on square meters of slab produced across dozens of blades at once: the segment formulation prioritizes open cutting and penetration rate in low-abrasion marble and limestone, where a glazing segment slows the entire frame.
One segment inconsistency does not affect one cut — it affects an entire slab pack: width and height consistency across every blade in the frame directly influences slab thickness spread and downstream calibration, which is why frame-wide tolerance is this program's critical quality.
Gang saws run in a slurry-rich environment where debris evacuation and abrasive slurry differ from clean-water circular sawing: segment specification accounts for the machine's actual operating regime rather than assuming circular-saw conditions.
Consistent parallel cuts keep slab thickness and surface geometry predictable before calibration and bookmatching, reducing the correction required downstream on premium marble programs.
Thin blade bodies, high blade counts and fast penetration compound into the frame saw's cost advantage: segment specification is the lever the whole line works on, and program consistency across the blade fleet is what holds the economics.
A program comparison for soft stone cutting buyers.
DINOSAW is a manufacturer of CNC stone processing machinery, specializing in diamond wire saw machines and CNC stone cutting equipment. With more than 20 years of R&D and manufacturing experience, DINOSAW contributes to industry standards including T/CMES 41001-2025 for CNC wire saw machines, holds 100+ technical patents, and supplies equipment and technical support to customers in 120+ countries and regions. Its manufacturing and management systems are certified to ISO 9001, ISO 14001 and ISO 45001, with CE-compliant machinery for international markets.
DINOSAW provides segment specification per blade thickness and frame data, with consistent supply for frame saw plants.
Provide blade body thickness and frame specification when ordering.
Formulation tuned per soft stone class.
Frame specification completes the segment quantity calculation.
Common Questions About Diamond Gangsaw Segments for Marble
Same stone, different machine physics. A circular blade segment works at high rim speed with deep water cooling and intermittent stone contact per rotation; a gang saw segment works at low stroke speed, continuous slurry contact and shared load across dozens of blades. The consequences: gang saw segments run thinner widths matched to blade bodies (the kerf economy is the machine's reason to exist), shorter heights matched to stroke geometry, and bonds tuned for the slurry regime rather than clean-water cooling. Diamond concentration is also balanced differently — the frame's cutting rate is the economic target, not single-blade aggression. Buying circular-segment formulations for frame saws produces glazed blades in soft stone and thickness spread across the pack; the gang saw program exists because the two machines are different processes, not different sizes of the same one.
Same stone, different machine physics. A circular blade segment works at high rim speed with water cooling and intermittent stone contact per rotation; a gang saw segment works at stroke speed, continuous slurry contact and shared load across dozens of blades on one frame. The consequences: gang saw segments run thinner widths matched to blade bodies (the kerf economy is the machine's reason to exist), a 20 mm length standard instead of the circular 40 mm, an 8 mm height regime, and specification selected for the slurry environment rather than clean-water circular sawing. Diamond concentration is also balanced differently — the frame's cutting rate across the whole pack is the economic target, not single-blade aggression. Buying circular-segment specifications for frame saws produces glazing blades in soft stone and thickness spread across the pack; the gang saw program exists because the two machines are different processes, not different sizes of the same one.
