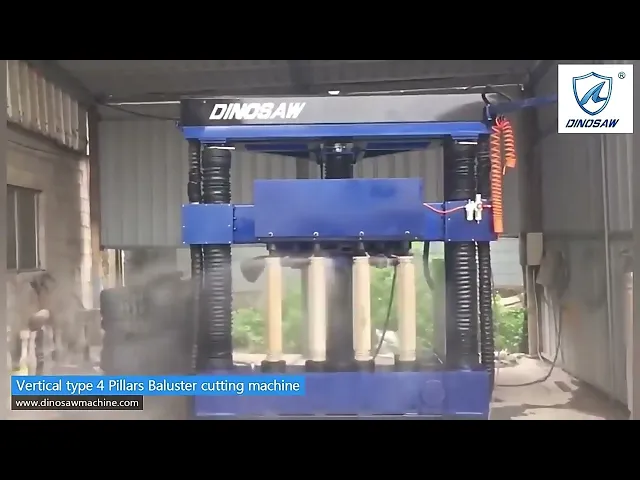

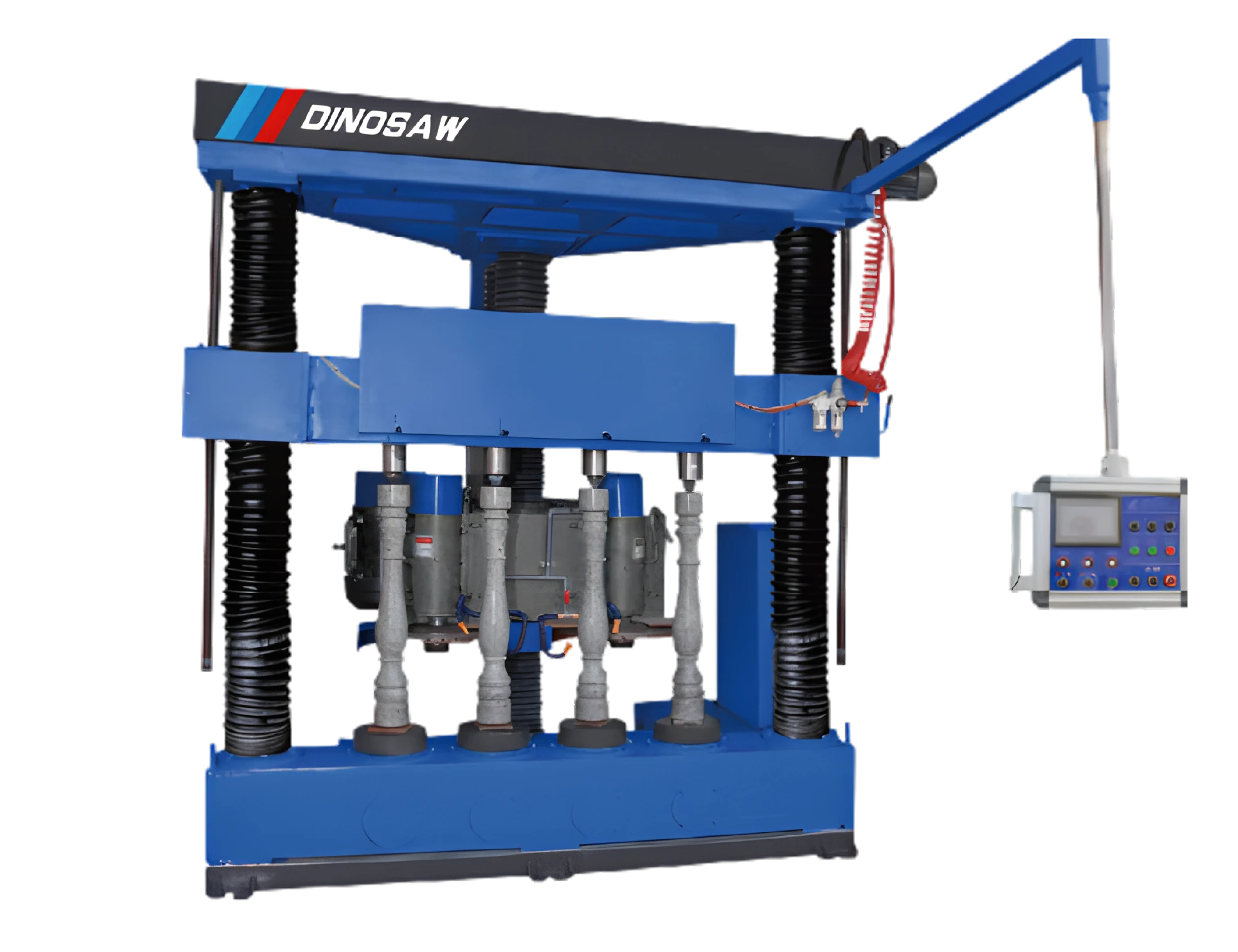

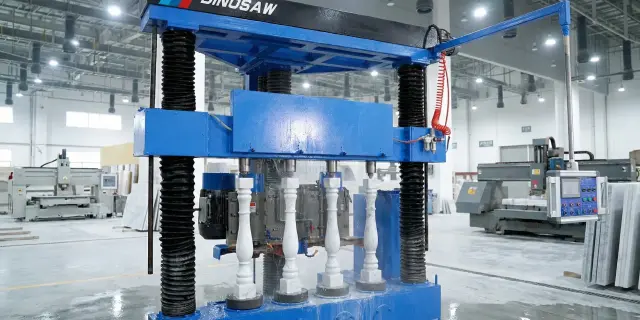

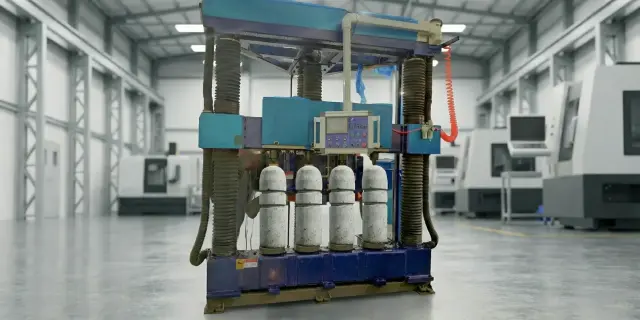

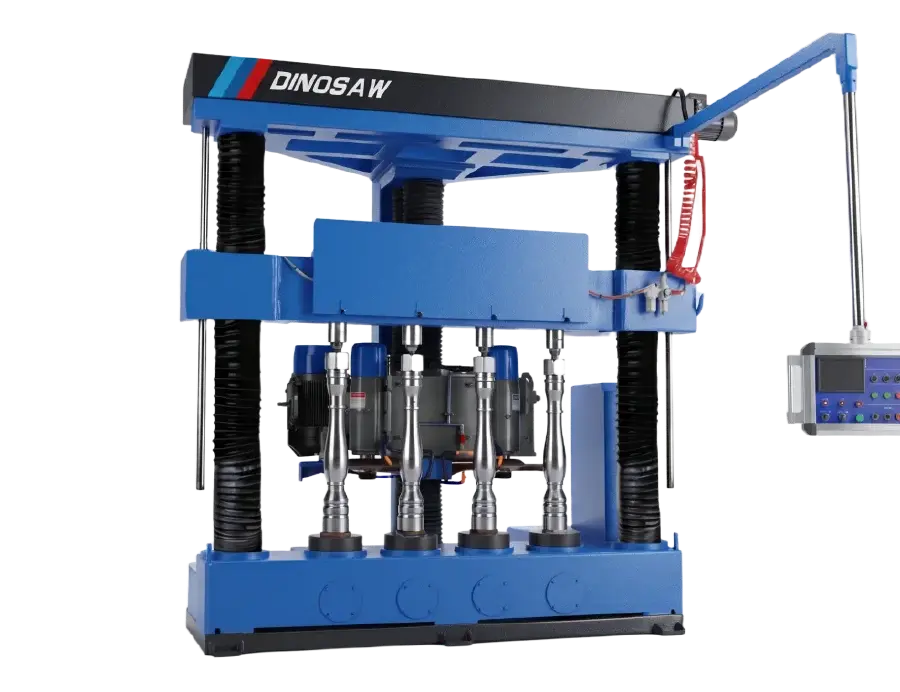

Vertical 4-Workpiece Baluster Profiling Machine

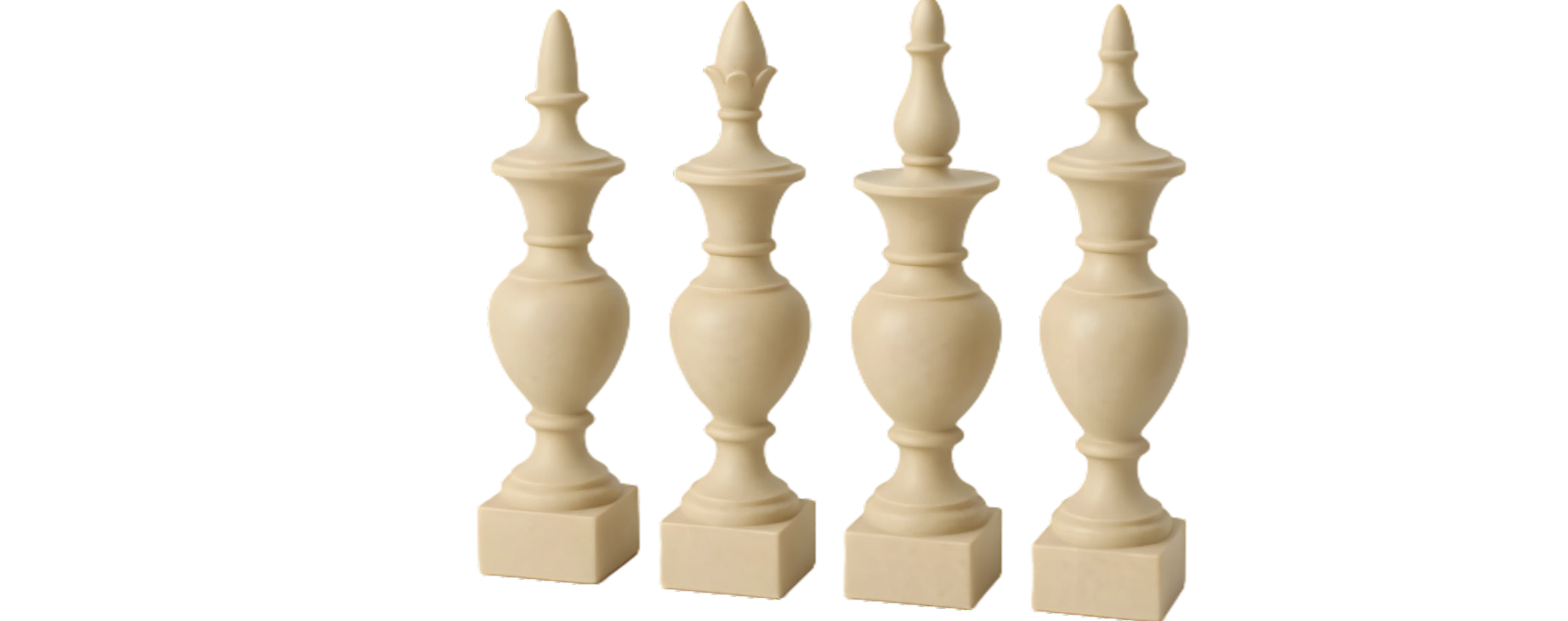

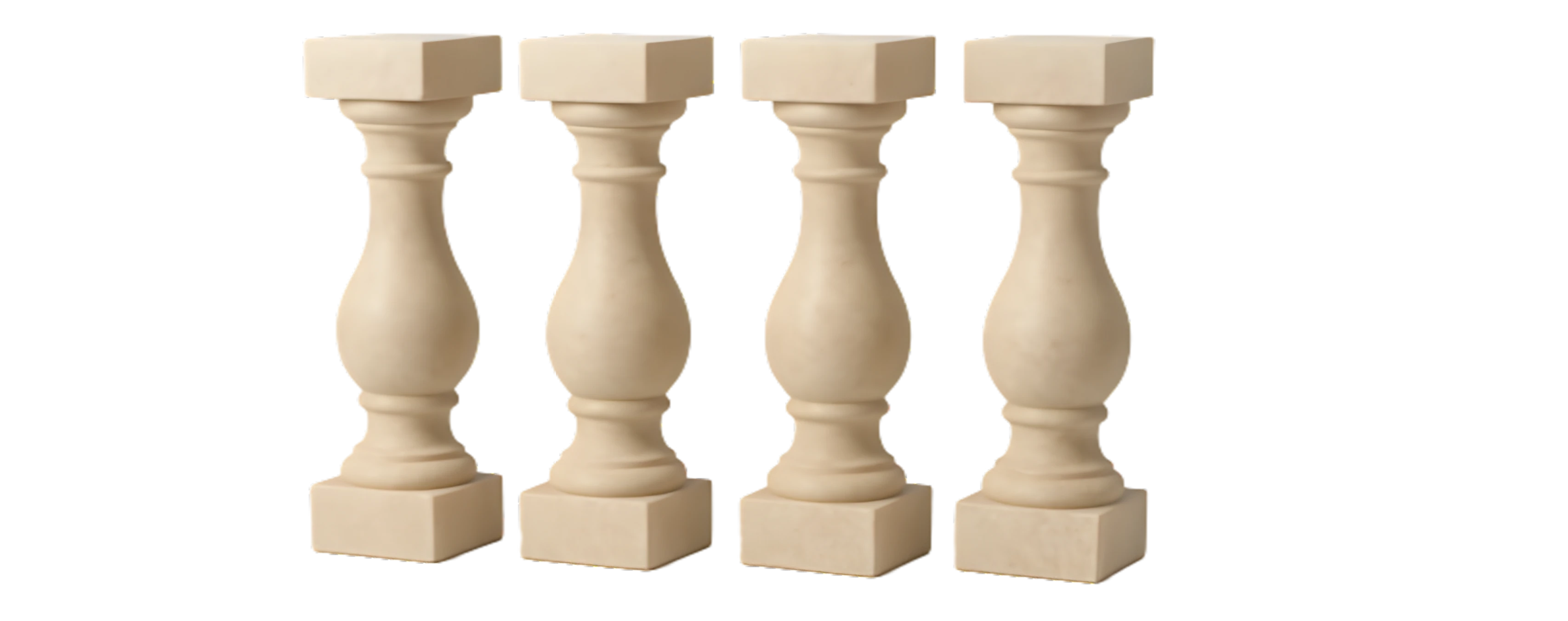

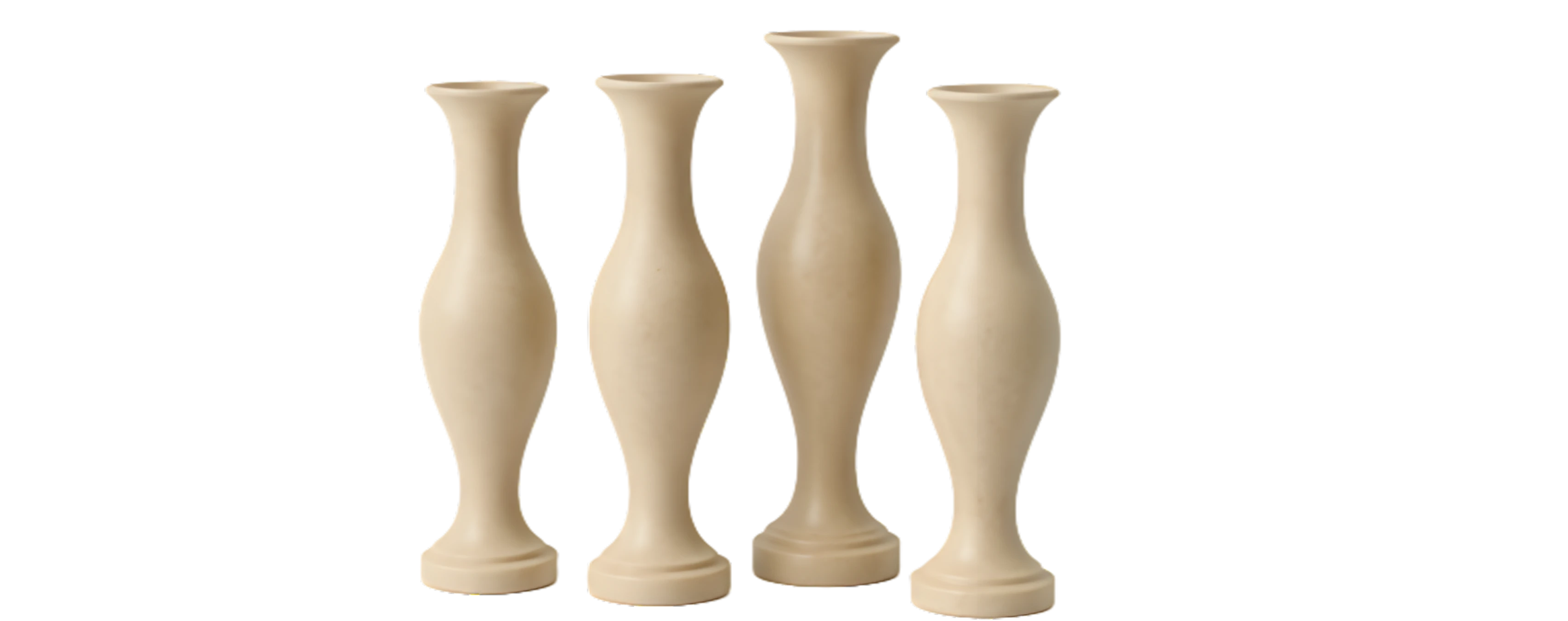

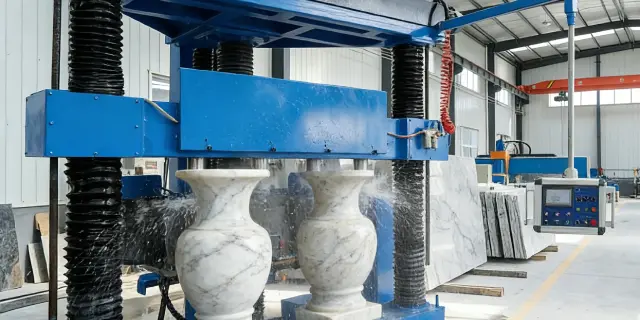

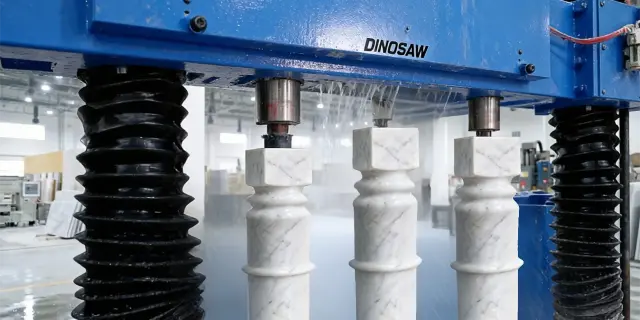

The DINOSAW Vertical 4-Workpiece Stone Cutting Machine creates revolving stone elements up to 1.2m long. It excels at producing balusters, handrail spindles, newel posts, slender vases, and fountain center columns.

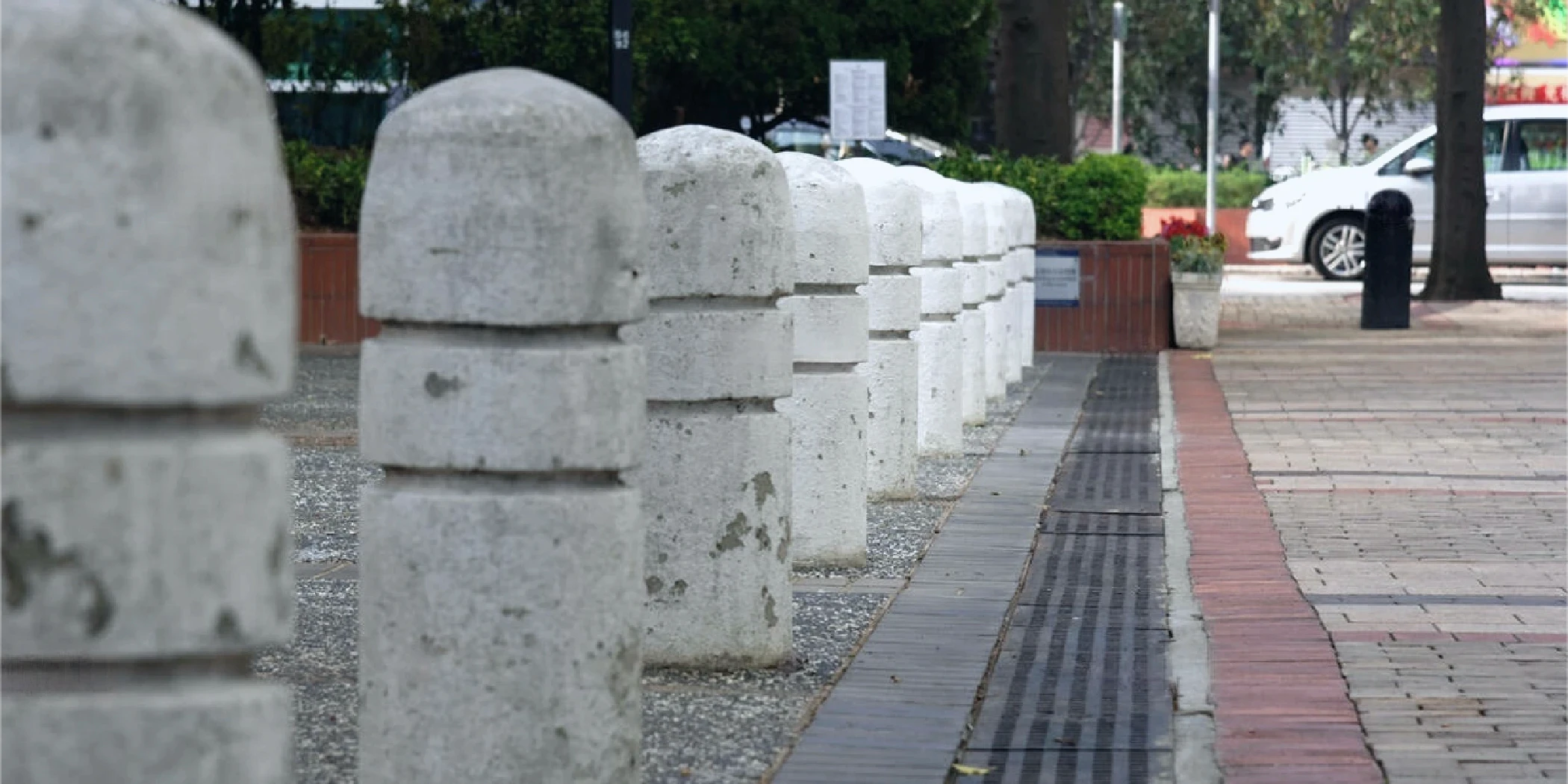

The machine performs best with symmetrical profiles requiring consistent dimensions across multiple identical pieces. Its multi-workpiece capability makes it ideal for balustrade systems, stair components, fence posts, and thin ornamental elements that need precise contours.

Unlike larger column profiling machines, this equipment specializes in smaller diameter revolving elements with greater precision. For full-height columns, column bases/caps, or spherical elements, we recommend our specialized column profiling machines designed specifically for those applications.

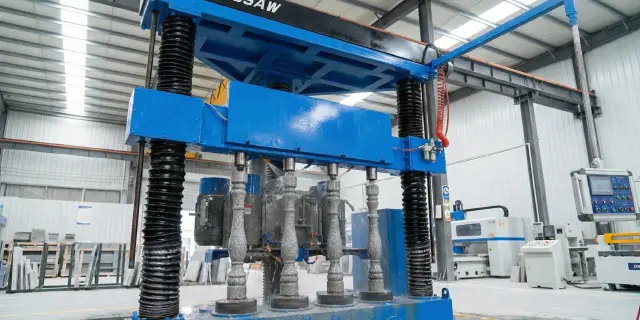

Our Vertical 4-Pillars Stone Cutting Machine achieves precision through several integrated systems. The patented isosceles trapezoid structure creates a stable foundation that reduces vibration, while synchronous lifting and walking mechanisms ensure alignment during complex cutting.

For template operations, the optical fiber probe system tracks templates with ±0.5mm accuracy. This system continuously monitors the cutting path and automatically adjusts blade position to maintain exact replication across all workpieces simultaneously.

With CNC control, pre-programmed cutting paths ensure consistent replication across production runs. The PLC system constantly monitors machine parameters, making adjustments to maintain dimensional consistency regardless of material variations. This approach ensures all pieces in a batch maintain uniform dimensions, essential for components like balusters that must match exactly when installed.

Our machine comes with a one-year warranty covering all mechanical and electrical components (excluding consumables like diamond blades). This warranty provides investment protection with quick response to any manufacturing defects or unexpected issues.

Our after-sales support extends throughout the entire lifecycle of your machine - not just during warranty. We offer lifetime technical support with a 24/7 technical team available for operational questions and troubleshooting. For internet-connected machines, we provide remote diagnostics, allowing our engineers to access your control system (with permission) to identify issues, adjust parameters, or update software without on-site visits.

For installation and training, we provide comprehensive video guides making setup straightforward. When needed, our engineers can travel to assist with installation, calibration, and operator training. With DINOSAW, you receive complete peace of mind with full lifecycle support that keeps your equipment operating at peak performance year after year.

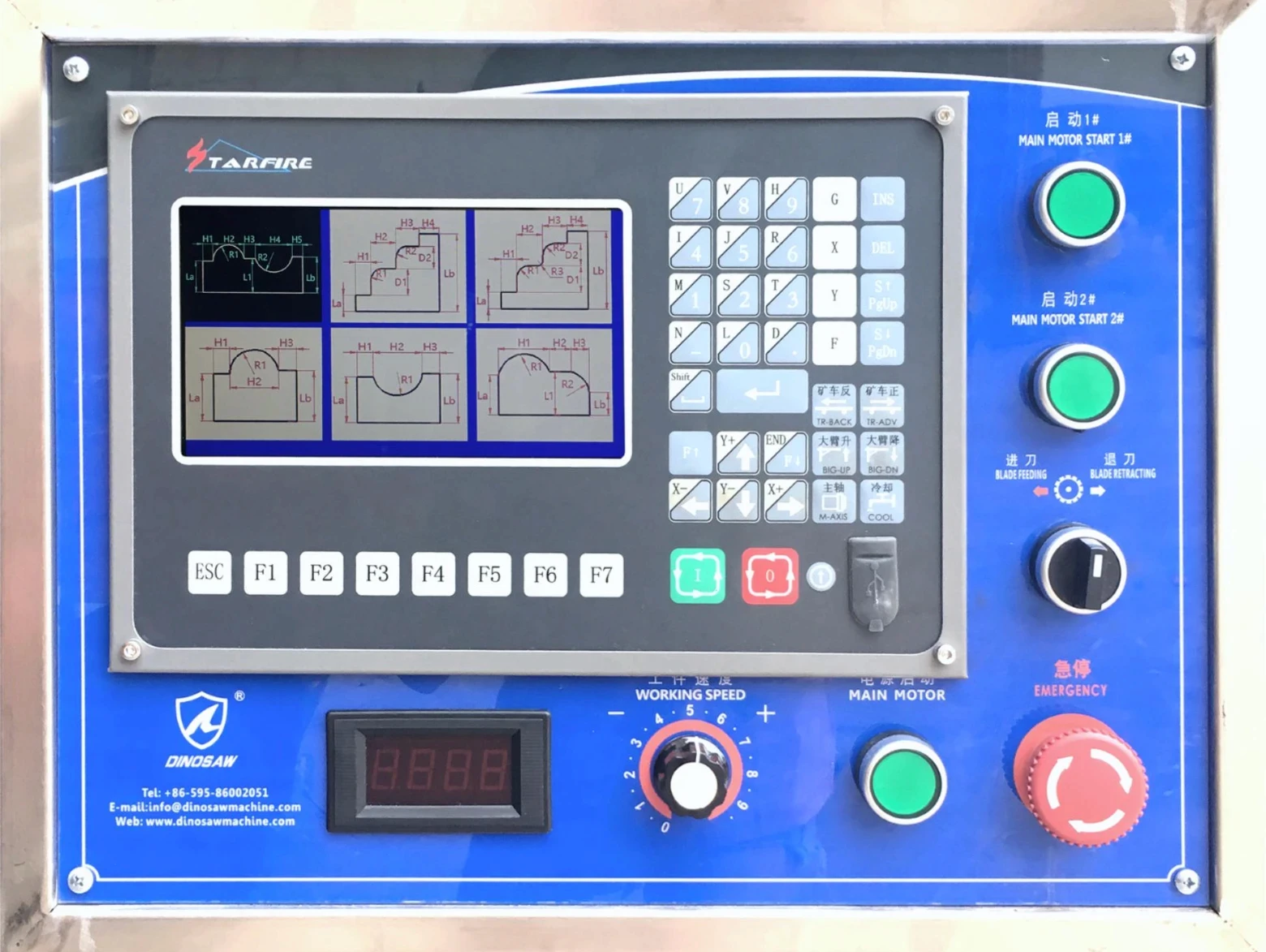

Our Vertical 4-Pillars Stone Cutting Machine offers a choice between PLC (Programmable Logic Controller) or CNC (Computer Numerical Control) systems, letting customers select the option that best fits their production needs.

The PLC system excels at template-following operations, tracking physical templates to reproduce designs. It's ideal for existing designs, custom one-off pieces, or working from physical models. The intuitive operation allows operators with limited technical background to quickly become proficient.

The CNC system uses programmed cutting paths designed in CAD/CAM software, perfect for consistent reproduction of standardized designs. It stores cutting profiles in memory for quick switching between product lines. G-code programming enables complex cutting operations difficult to achieve with templates alone.

Customers choose based on their production requirements - PLC for custom work with its simplicity and adaptability, or CNC for production runs with its precision and repeatability. This approach ensures the machine matches your specific manufacturing needs.

Our stone profiling equipment includes specialized machines for different applications. The Vertical 4-Workpiece Stone Cutting Machine excels at processing smaller revolving elements up to 1.2m long, including balusters, spindles, decorative vases, and fountain columns.

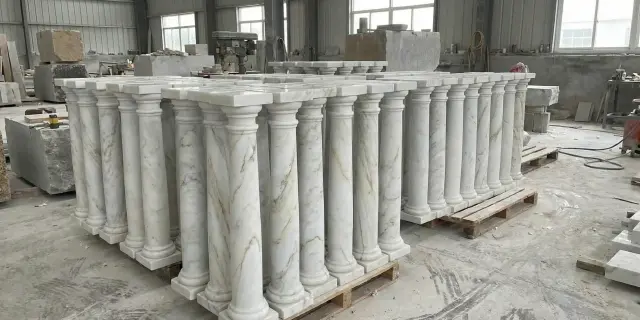

The Column Cup & Base Profiling Machine specializes in larger spherical elements, decorative caps, column bases, and large vases. Our Column Profiling Machine is designed for tall columns exceeding 1.2m, with specialized fixtures for safely handling extended workpieces.

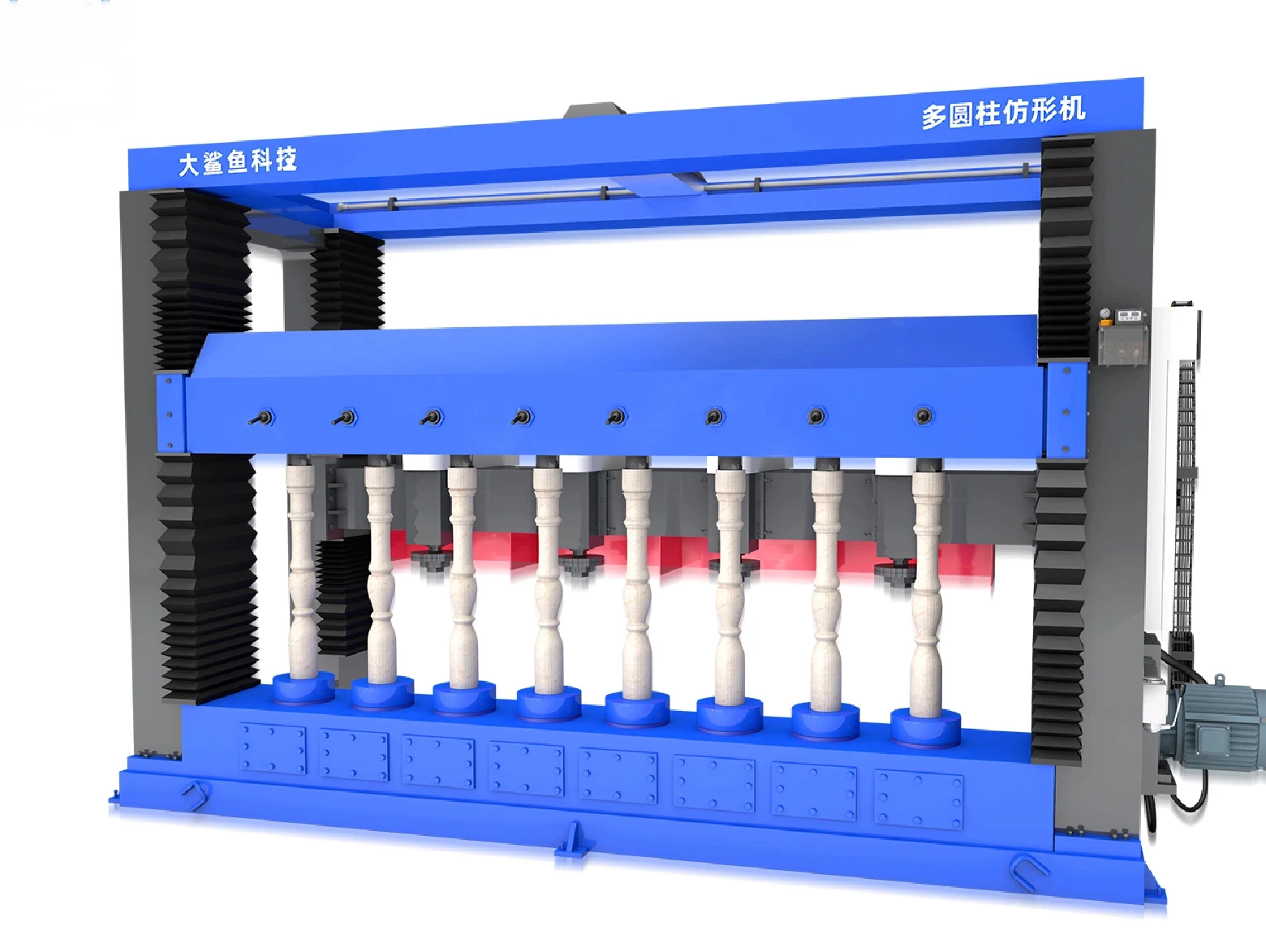

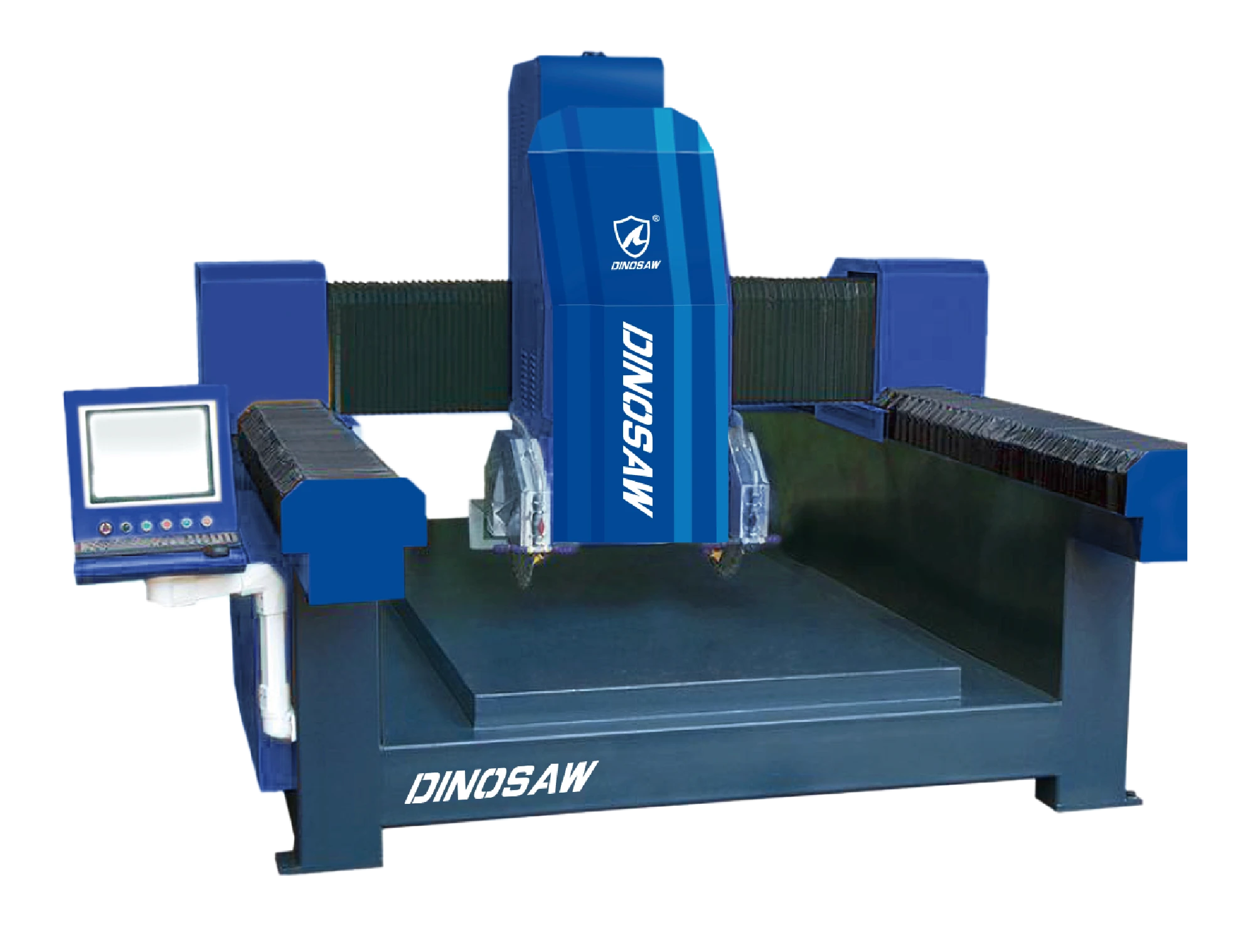

For high-volume production, we offer an 8-Workpiece Baluster Profiling Machine for mass production of small decorative elements (typically under 150mm diameter). Additionally, our Integrated CNC Bridge Profiling Machine creates square balusters, window frames, door casings, and decorative moldings in a single setup, combining cutting and grinding operations for finished products that require no manual refinishing.

Our machine efficiently processes a wide range of materials including granite, marble, limestone, sandstone, travertine, engineered stone, terrazzo, and concrete. The powerful dual 11kW motors provide consistent cutting performance across these varied materials.

The cutting parameters can be easily adjusted based on material hardness and density, ensuring optimal results for each specific type. For harder materials like granite, the machine maintains precision while extending tool life through optimized cutting speeds. For softer materials like limestone or sandstone, the system prevents chipping and ensures clean edge finishes.

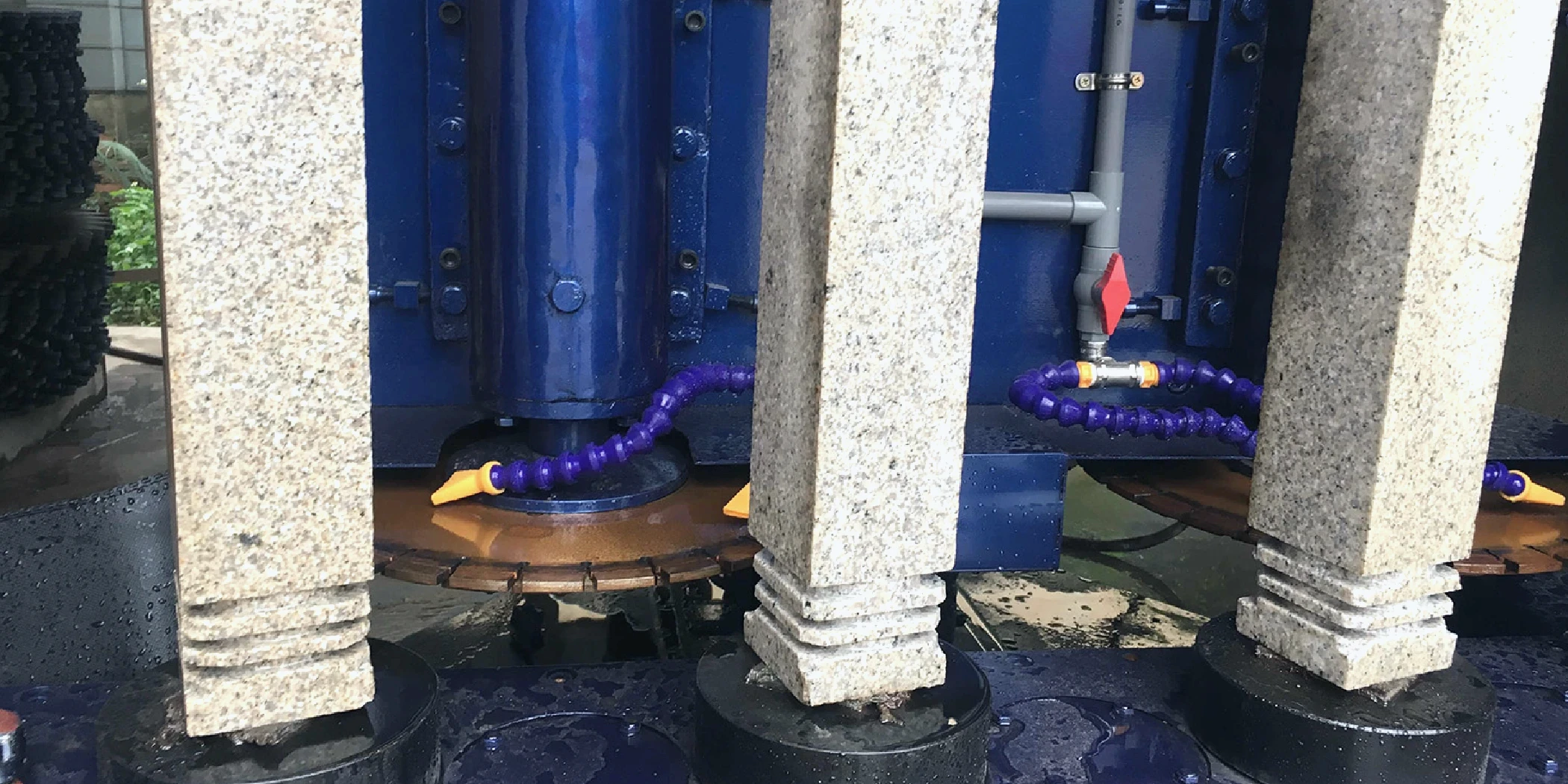

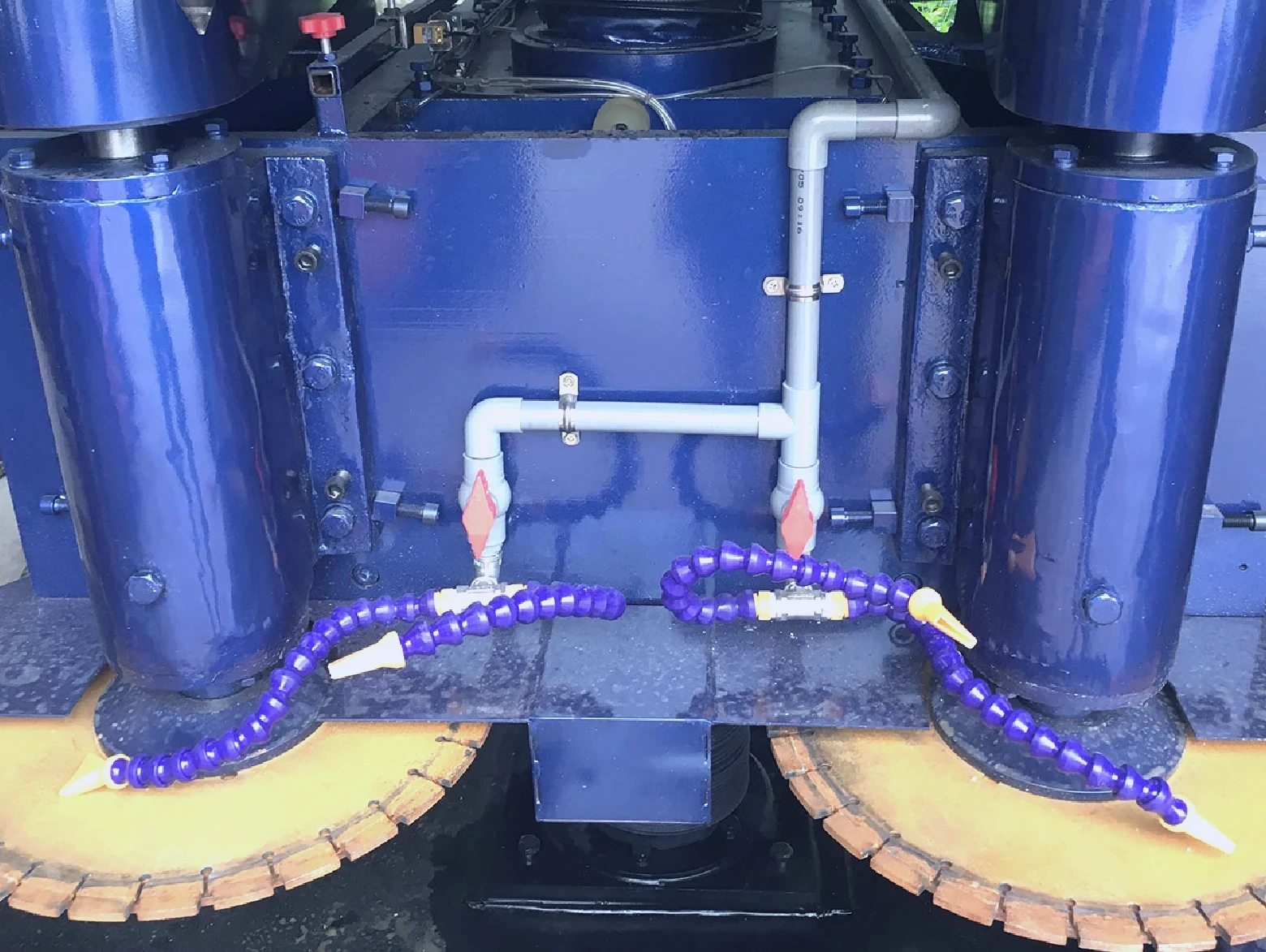

Additionally, the machine handles lightweight building materials effectively, making it versatile for various architectural and decorative applications. Water cooling systems are automatically adjusted based on material type to maintain ideal cutting conditions and maximize surface finish quality.

When one profile repeats in volume. The horizontal LGFX lathe wins on flexibility — mixed diameters, long columns up to 4 m, frequent profile changes loaded from CAD files. The LS4 wins on per-piece economics: four stations cut up to eight identical balusters per cycle, and one operator supervises the machine or even runs two. The rule is changeover frequency — if profile changes are weekly or daily, stay horizontal; if the same baluster runs for months of export orders, the LS4's multi-workpiece cycles repay the difference quickly. Many volume producers run both: LS4 for the repeating core product, a horizontal lathe for custom and long-column work.

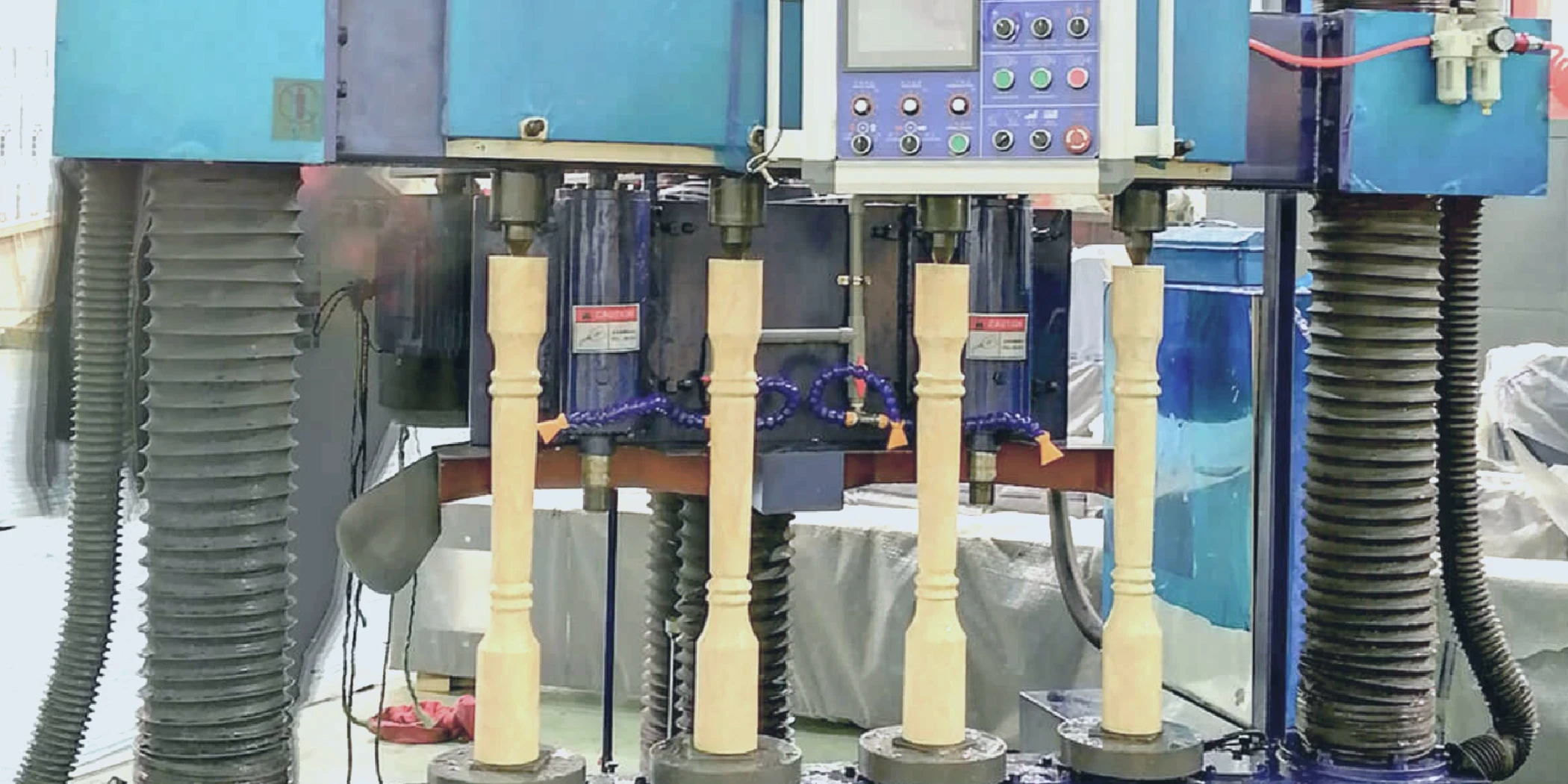

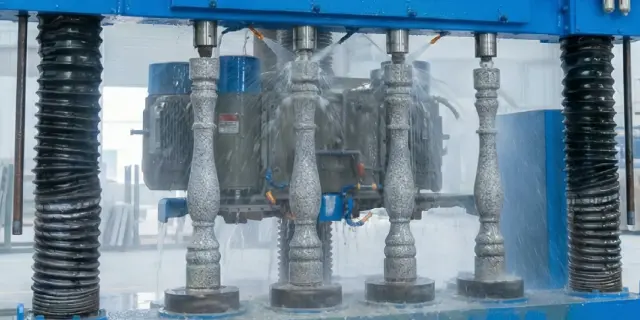

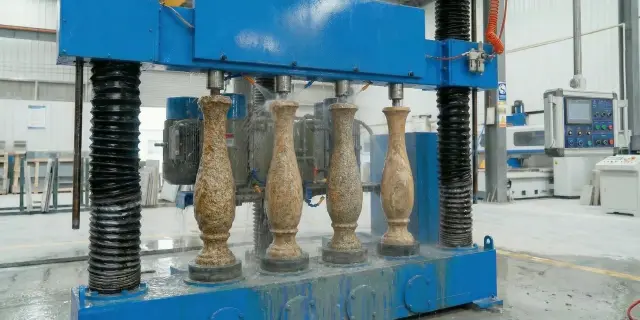

Three mechanisms work together. First, all stations cut in the same cycle under the same program — identical spindle speeds, feeds and paths by construction. Second, the isosceles-trapezoid frame distributes cutting reaction forces symmetrically, so no station vibrates more than another — this is what eliminates the surface ripple that plagues asymmetric multi-head designs. Third, the PLC/CNC program holds depth and path parameters digitally, removing the operator-dependent variation of manual template work. The result is batch consistency measured across hundreds of pieces, which is exactly what export baluster orders with pre-drilled handrail fittings require.

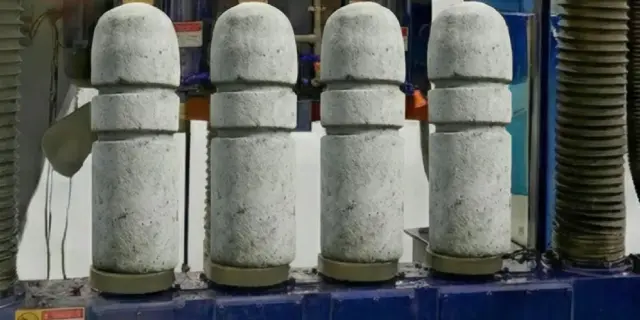

No — the piece count depends on workpiece diameter and fixture layout. Small Ø220 mm class pieces can run four per station group and reach the higher batch counts, while larger Ø300 mm pieces run fewer positions per cycle; the machine's stated capacity is Ø300 mm two-piece or Ø220 mm four-piece per station configuration. Size the expectation against your actual product diameters — the batch economics still hold because every position in a cycle shares the same program and cycle time. DINOSAW can confirm the achievable batch layout for your specific baluster dimensions.

Match the control to your product stability. Choose PLC when the machine will run the same or a few repeat profiles for long periods: one-click cycles, minimal operator input, fastest training — the right system for dedicated baluster production. Choose CNC when your order book changes profiles regularly and you want file-based changeovers with more path flexibility. The LS4 is offered with either system at order stage, so you pay for the control complexity your business model actually uses — and a factory can run one CNC machine for varied work beside PLC machines dedicated to repeat batches.
