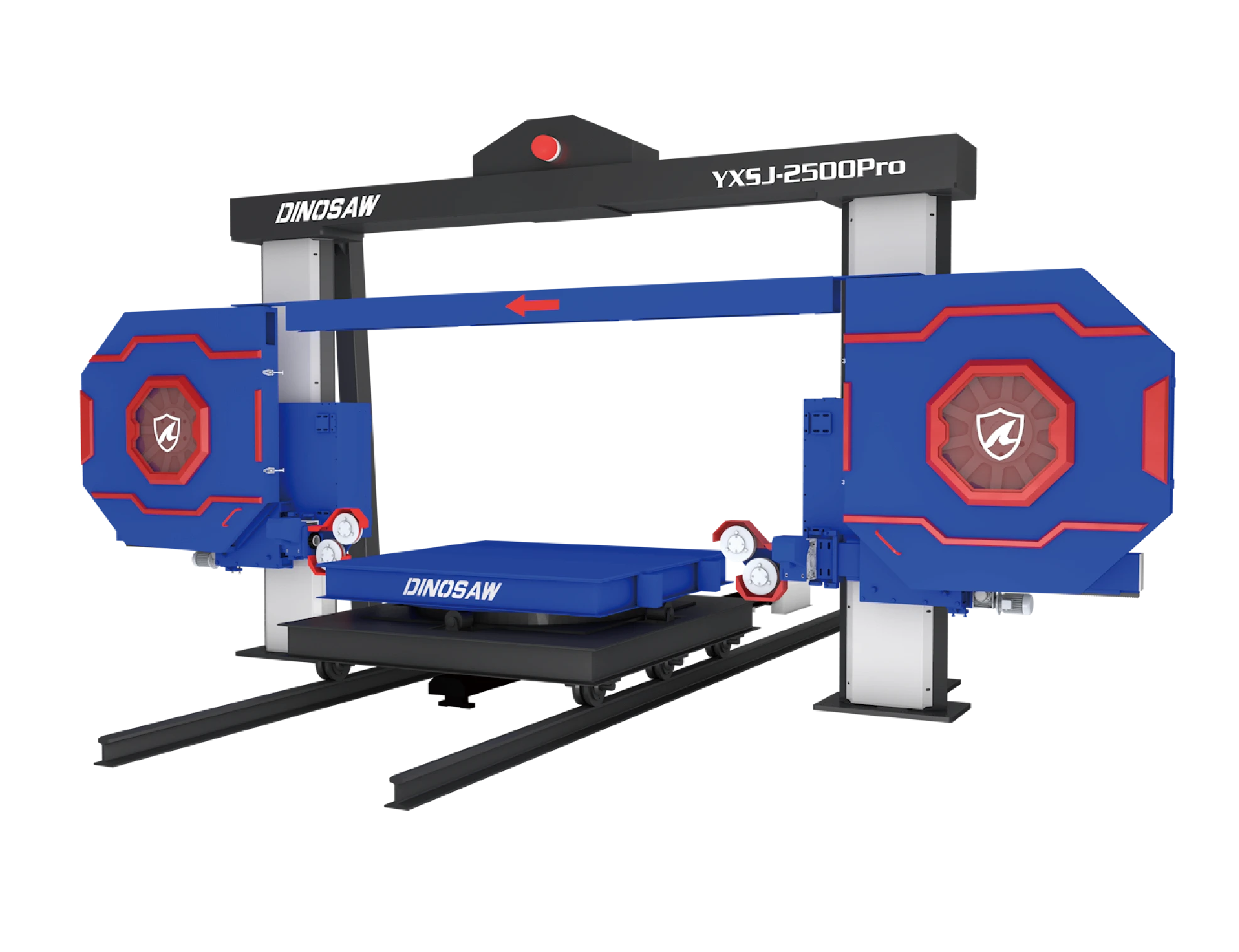

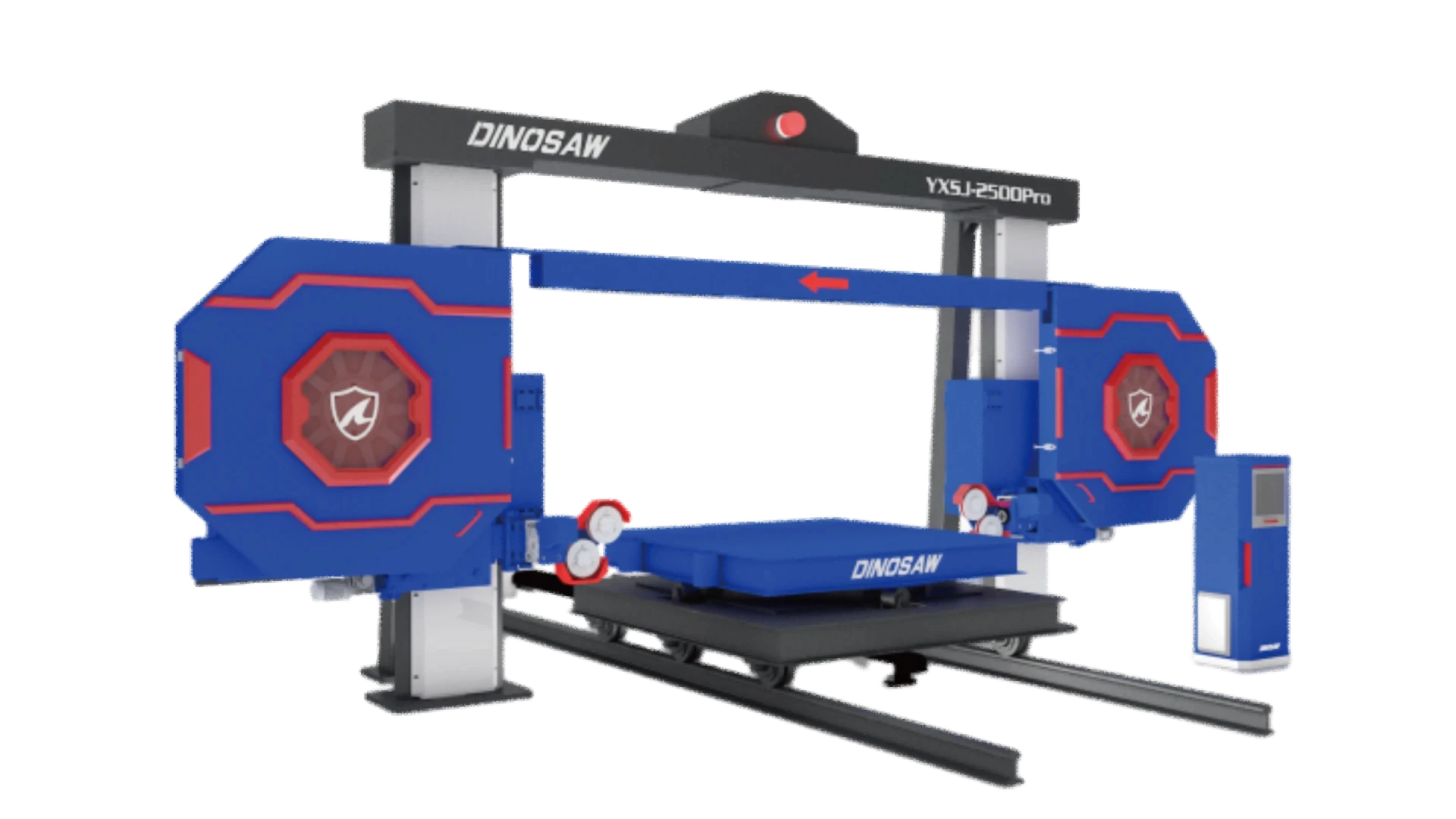

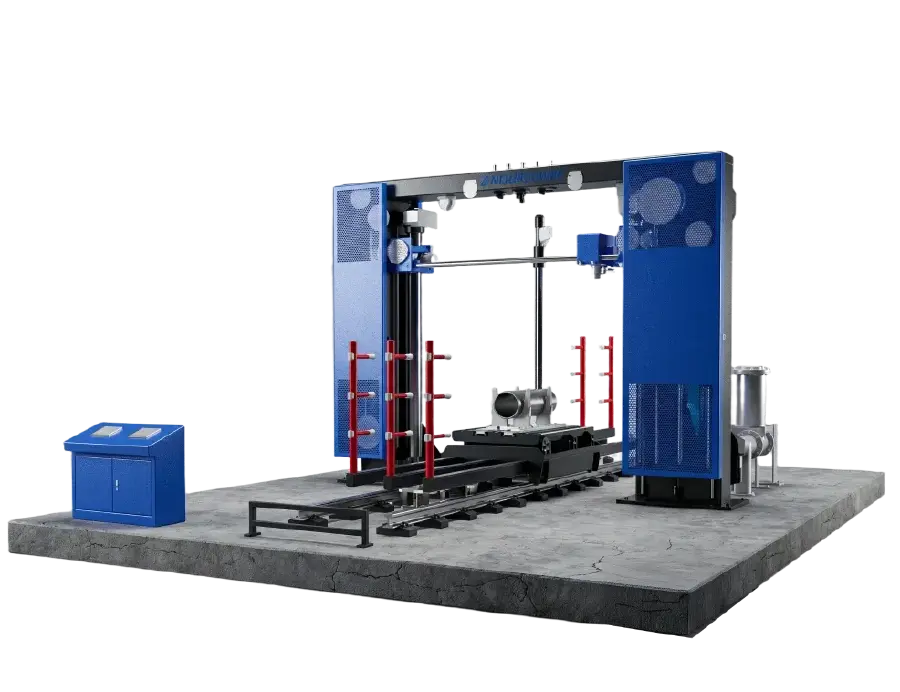

Nuclear Decommissioning Gantry Dry CNC Wire Saw Cutting Machine

Dry cutting eliminates the need for cooling fluids that could become contaminated with radioactive particles during the cutting process. This significantly reduces secondary waste generation and simplifies the decontamination process, resulting in lower cleanup costs.

Our specialized air cooling system efficiently manages cutting temperatures without introducing liquids that could transport radioactive contaminants throughout the work area or into drainage systems. This is particularly critical in controlled environments where containment of radioactive materials is the highest priority.

Additionally, dry cutting provides better visibility of the cutting area and eliminates the need for complex liquid collection and filtration systems, making the overall operation safer, cleaner, and more efficient for nuclear decommissioning projects.

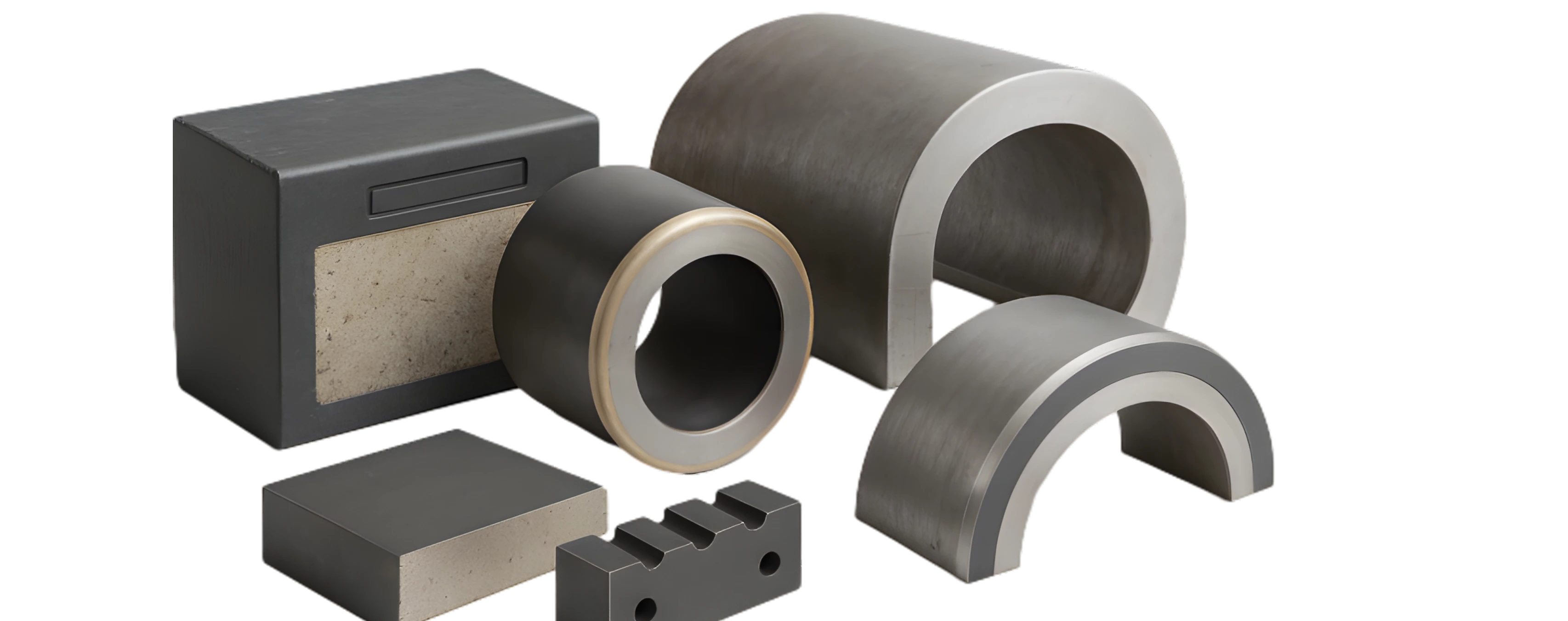

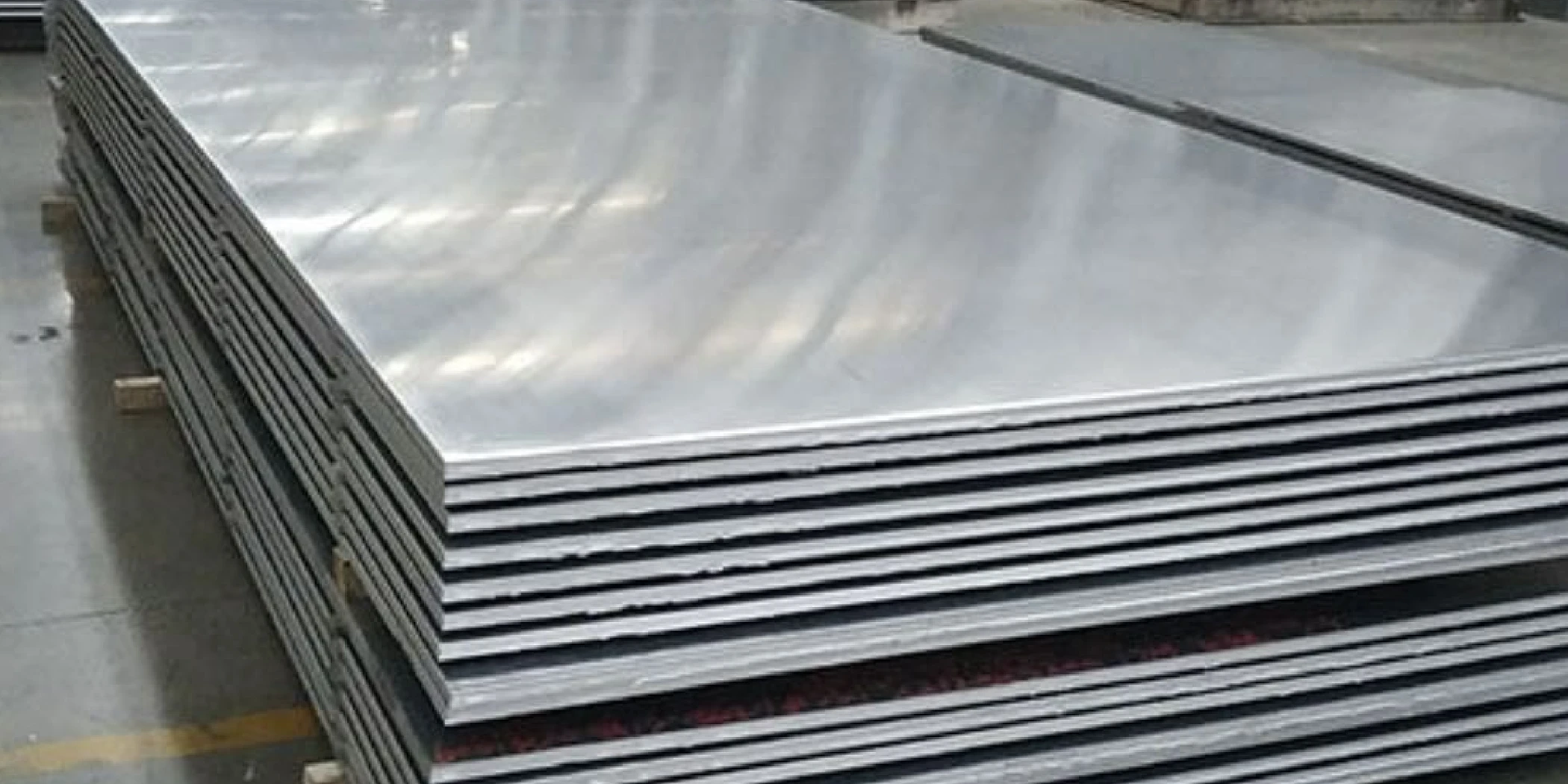

The DINOSAW Gantry Dry Wire Saw Machine effectively cuts through a wide range of metals commonly found in nuclear decommissioning sites, including stainless steel, carbon steel, cast iron, and various specialized alloys. The diamond wire cutting system maintains consistent cutting performance regardless of material composition or thickness variations encountered during dismantling operations.

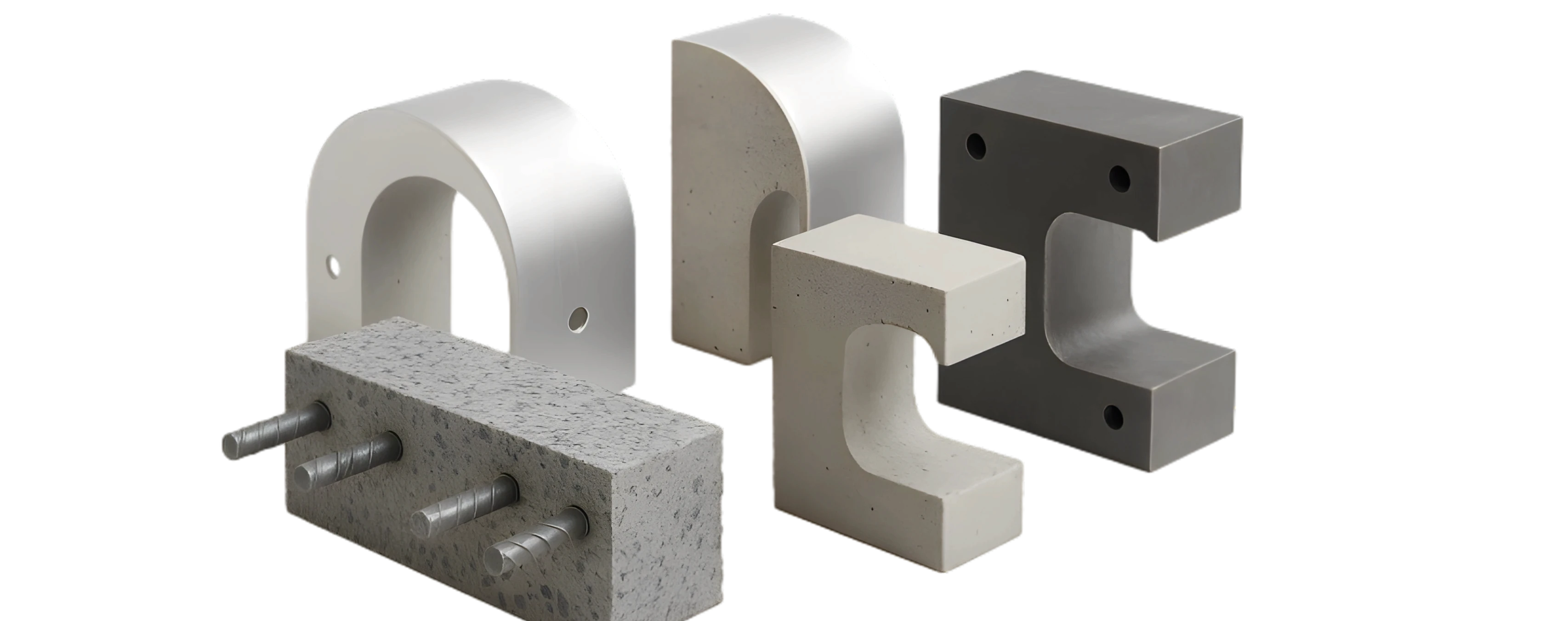

Our diamond wire technology is specifically engineered to handle complex components with mixed materials, such as reinforced concrete structures with embedded steel, composite panels with multiple metal layers, and specialized radiation containment vessels.

The cutting efficiency remains high even when transitioning between different materials within the same component.The system can also process hardened or heat-treated metals, exotic alloys, and materials with irregular geometries that would challenge conventional cutting methods, making it exceptionally versatile for diverse decommissioning scenarios.

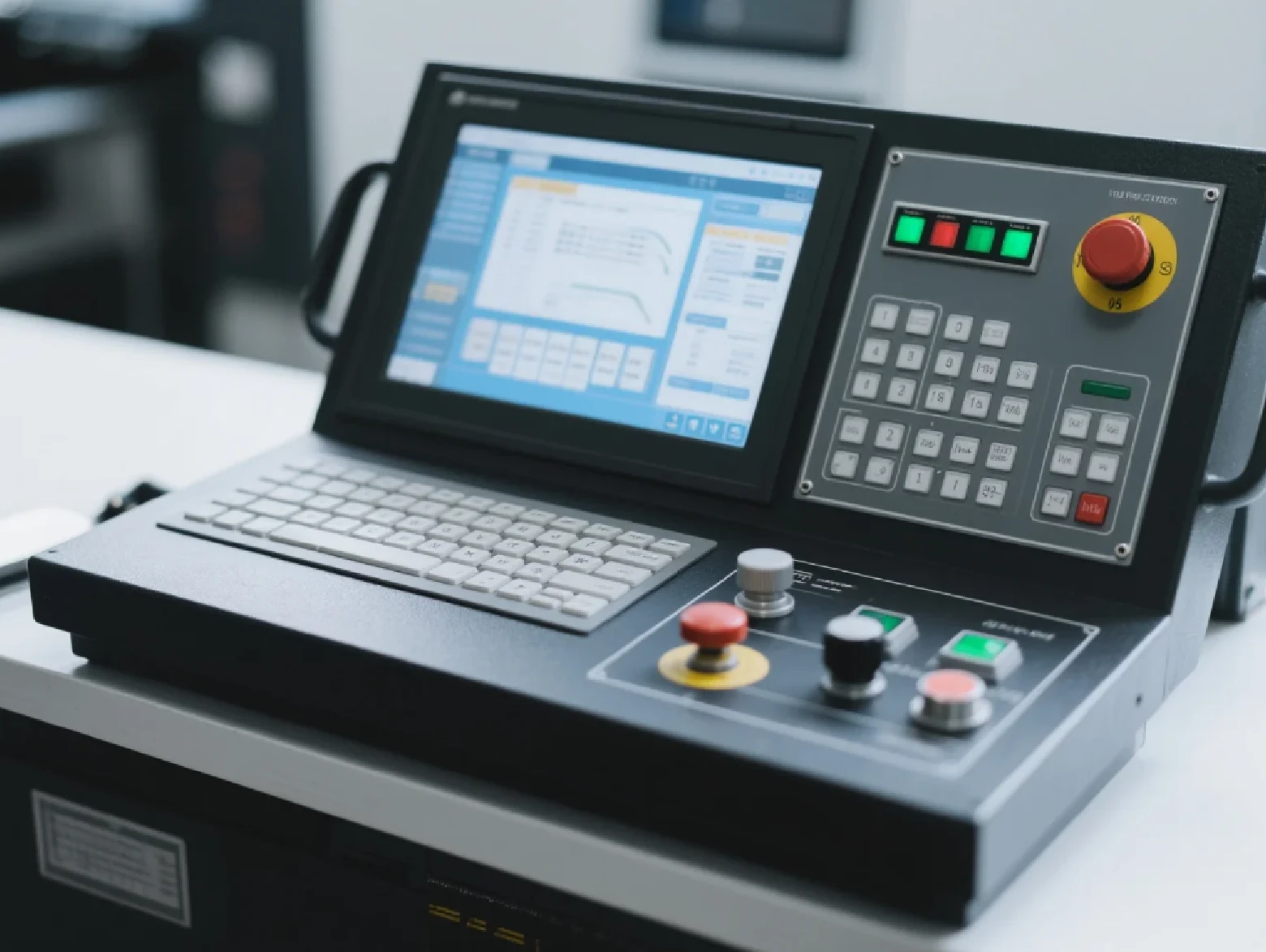

Operator safety is ensured through multiple integrated systems. The primary protection comes from our remote operation technology, which allows personnel to control the cutting process from a safe distance, significantly reducing radiation exposure compared to conventional methods.

Our comprehensive safety features include integrated emergency stop systems accessible from multiple control points, and redundant communication networks that maintain operational control even in case of primary system failure.

Additionally, the system's waterless cutting technology eliminates contamination spread through liquids. All operations are continuously monitored through multiple high-definition cameras with recording capabilities for safety verification and training purposes.

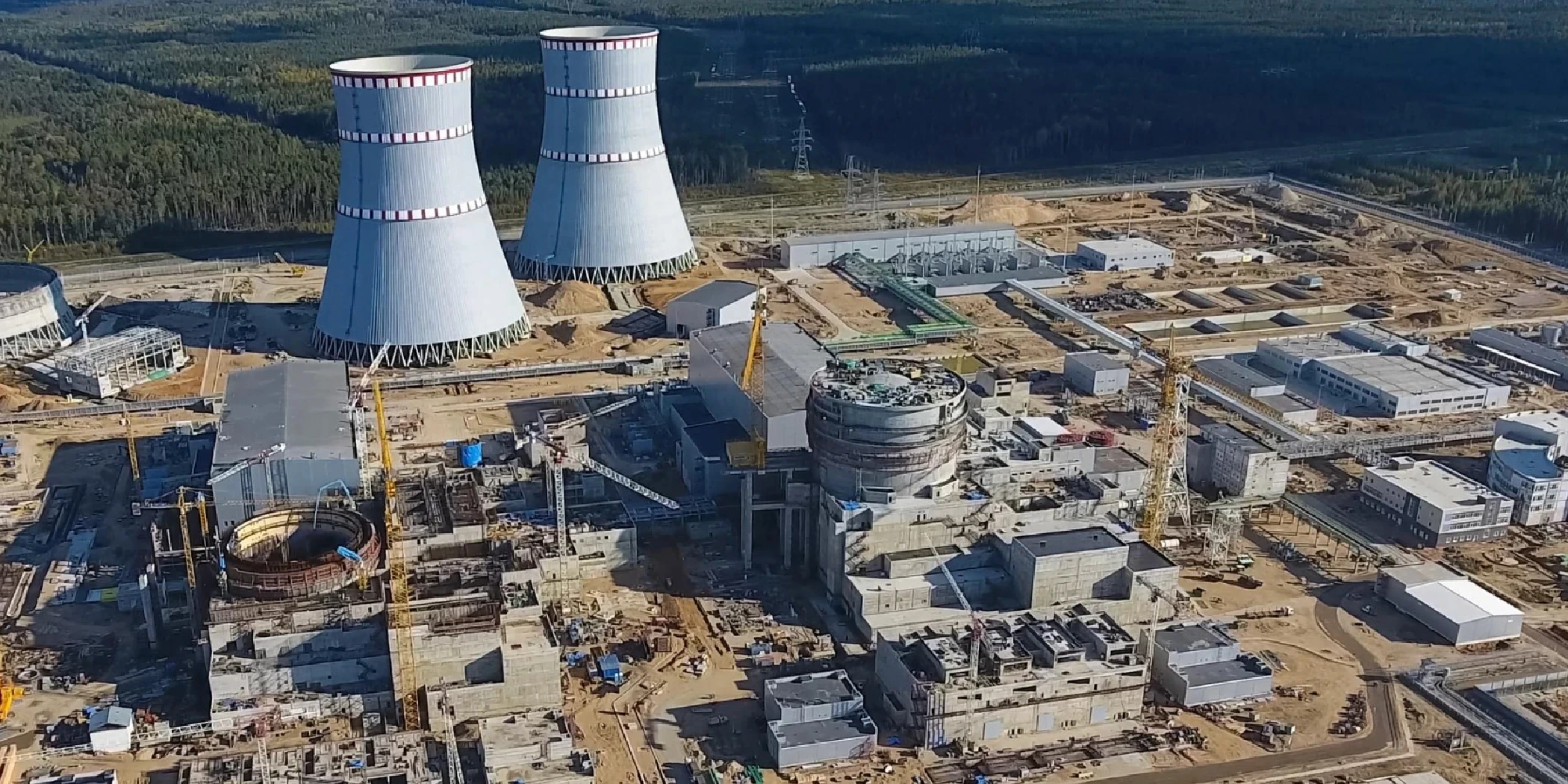

The DINOSAW Gantry Dry Wire Saw Machine offers several significant advantages over traditional cutting methods used in nuclear power plant decommissioning. Compared to mechanical saws, plasma cutters, or oxy-fuel systems, our diamond wire technology generates minimal vibration and heat, preventing structural destabilization and reducing the risk of releasing embedded contaminants during the dismantling process.

Our system achieves faster cutting speeds than conventional methods when processing thick materials, while simultaneously reducing secondary waste generation. The remote operation capability dramatically decreases personnel radiation exposure compared to manual cutting approaches that require operators to work in closer proximity to radioactive components.

Unlike traditional methods that often have material or thickness limitations, the DINOSAW system can cut through mixed materials of varying thicknesses in a single operation, eliminating the need for multiple specialized tools and reducing project timelines for complex decommissioning projects.

Yes, the DINOSAW Gantry Dry Wire Saw Machine is designed and manufactured to comply with the most rigorous international nuclear safety standards for decommissioning equipment. Our system meets or exceeds requirements set by the International Atomic Energy Agency (IAEA), the Nuclear Regulatory Commission (NRC), and the European Nuclear Safety Regulators Group (ENSREG) for specialized dismantling tools.

The equipment is certified for use in controlled radiation environments and undergoes comprehensive testing for radiation resistance, electromagnetic compatibility, and operational reliability under extreme conditions. All electronic components are specially shielded to prevent radiation-induced malfunctions, and the control systems implement fail-safe protocols that default to the safest operational state in case of any system anomaly.

Additionally, our quality management system is certified to ISO 9001 and ISO 14001 standards, with specific compliance to nuclear industry requirements such as 10 CFR 50 Appendix B and ASME NQA-1. Each system undergoes rigorous factory acceptance testing and site-specific validation before commissioning for nuclear decommissioning applications.

The DINOSAW Gantry Dry Wire Saw Machine is available in both fixed and mobile configurations to accommodate different nuclear power plant decommissioning project requirements. The fixed installation provides maximum stability and precision for permanent cutting stations within a facility, featuring robust anchoring systems and enhanced rigidity for consistent performance during extended dismantling operations.

The mobile configuration offers strategic deployment flexibility with a self-contained transport system that allows the entire wire saw cutting unit to be relocated between different areas or facilities. This version includes quick-setup stabilization systems, integrated power management, and compact design optimized for movement through standard doorways and corridors while maintaining cutting capabilities for various radiation-controlled environments.

Both configurations utilize identical diamond wire cutting technology and remote operation systems, ensuring consistent performance regardless of setup. The choice between fixed and mobile wire saw equipment depends primarily on project scope, facility layout, and whether the decommissioning operations will be concentrated in one area or distributed across multiple locations during the nuclear power plant dismantling process.

The DINOSAW Gantry Dry Wire Saw Machine features an advanced temperature control system that precisely maintains diamond wire operating temperature between 45-50°C during cutting operations. This temperature range represents the optimal balance between cutting efficiency and safety in nuclear decommissioning environments.

Maintaining this specific temperature window delivers several critical benefits: it prevents overheating that could compromise the diamond wire's structural integrity and cutting performance; it eliminates the risk of thermal expansion in radioactive materials that could release contaminants; and it ensures the cutting process generates minimal heat-induced dust, further reducing airborne contamination risks.

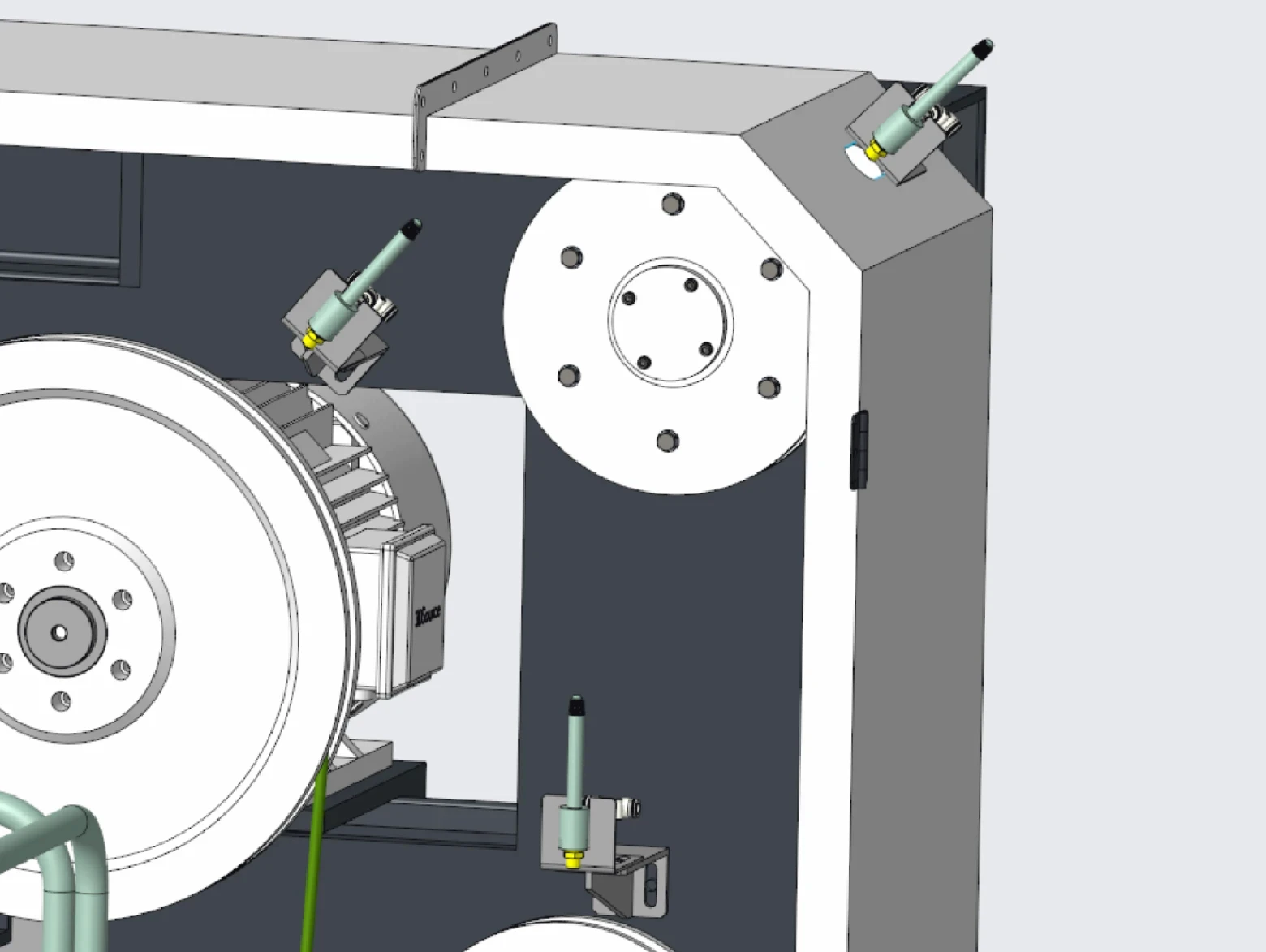

Our proprietary cooling technology achieves this precise temperature control without using liquid coolants, instead employing directed air cooling systems specifically calibrated for different material types and thicknesses. The system continuously monitors wire temperature through multiple thermal sensors and automatically adjusts cooling parameters to maintain optimal operating conditions throughout the cutting process.

Liquid is a liability multiplier in controlled zones. Wet cutting creates a contaminated slurry that must be collected, pumped, stored and disposed of as liquid waste — every liter adds handling steps, exposure events and disposal cost. Dry cutting eliminates the liquid stream at the cut: the waste story is the solid kerf segment plus captured dust, both far easier to contain, measure and package than liquid slurry. The trade-off is heat at the cut — dry cutting has no water cooling — which the MSGQ-SC manages through wire temperature control as a core system function. Where the decommissioning plan budgets liquid waste by the cubic meter, dry cutting is usually the deciding process choice before cutting speed enters the discussion.

Campaign structure decides it. A fixed gantry anchors to the facility for long dismantling campaigns on large structures — reactor internals, shield walls — where the cut volume justifies permanent installation and the gantry's full working envelope serves thousands of meters of cut. A mobile configuration relocates between work zones on rails or skates as the campaign moves through the facility: less installation per position, more moves across the project. The cutting system — CNC paths, dry wire, temperature control, remote operation — is identical in both; the difference is how the gantry serves the dismantling sequence. The facility survey before quotation maps zones, access and cut volumes to the right configuration.

Because removing water removes the coolant, and the heat has to go somewhere. Diamond wire cutting generates friction heat at the segment-rock or segment-metal contact, and in a dry process that heat stays in the wire system. Unchecked, high wire temperature degrades the diamond bond, shortens wire life abruptly, and destabilizes the cut itself. The MSGQ-SC treats temperature as a controlled process variable: the system monitors the wire through the cut and manages operating parameters to hold it in the working range — protecting the wire, the cut quality and the predictability of the sectioning program. This is why dry cutting on this system is an engineered process rather than simply cutting without water — the temperature control is what makes the dry approach technically reliable in thick sections.

Seven data sets configure the system: the materials to cut (carbon steel, cast iron, stainless, alloys, or mixed structures) and their thickness ranges — they set the wire specification and cutting parameters; the target segment sizes and cut locations from the dismantling plan — they set the gantry envelope and CNC path planning; facility layout and access for each work zone — they decide fixed versus mobile configuration; the campaign structure — how many zones, in what sequence; remote-operation requirements per zone; site power infrastructure; and site dust-capture and waste-handling procedures. With these, DINOSAW configures the gantry, cutting system and documentation package as a project proposal — the same engineering model as the cathode block line: survey first, configure second, manufacture third.
