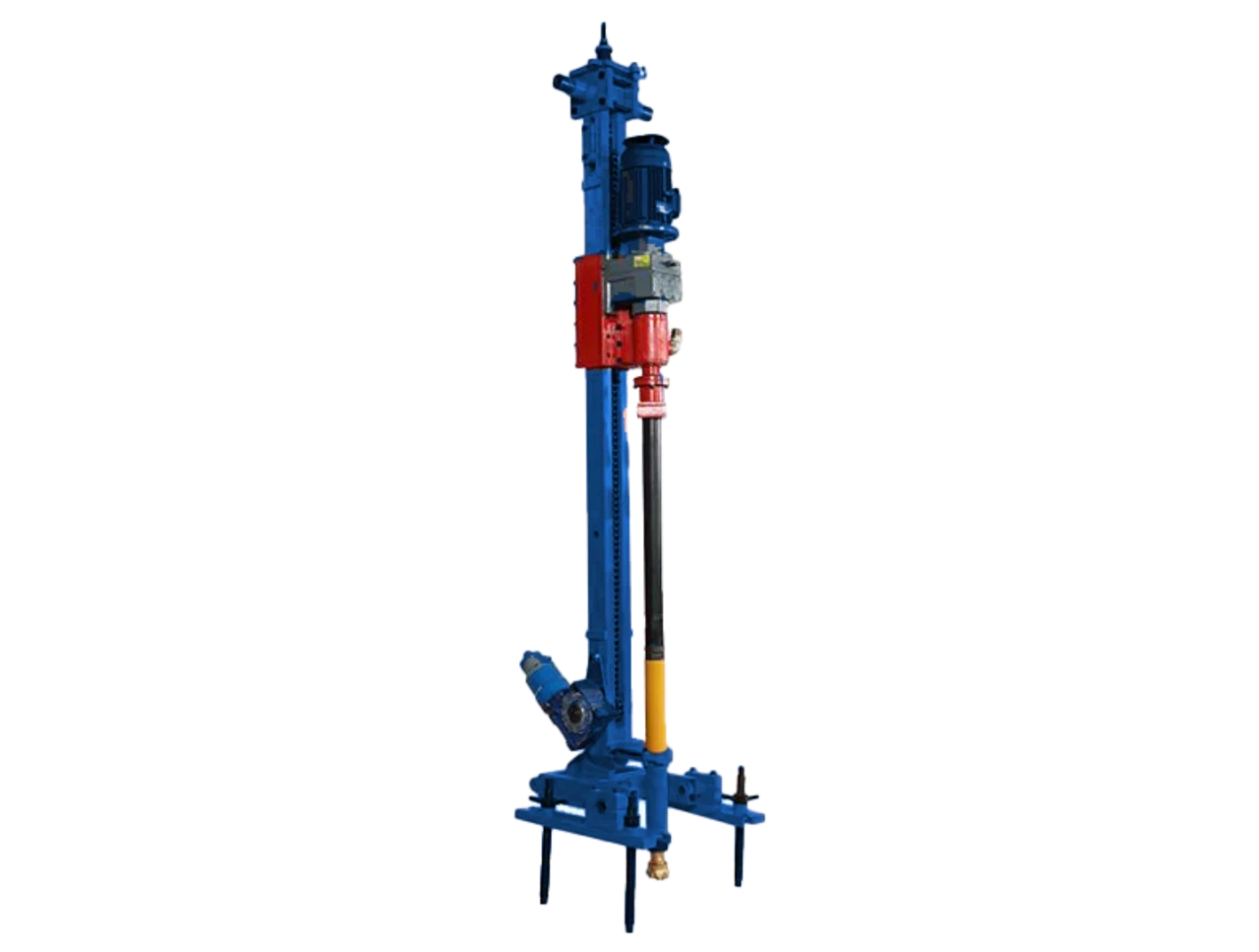

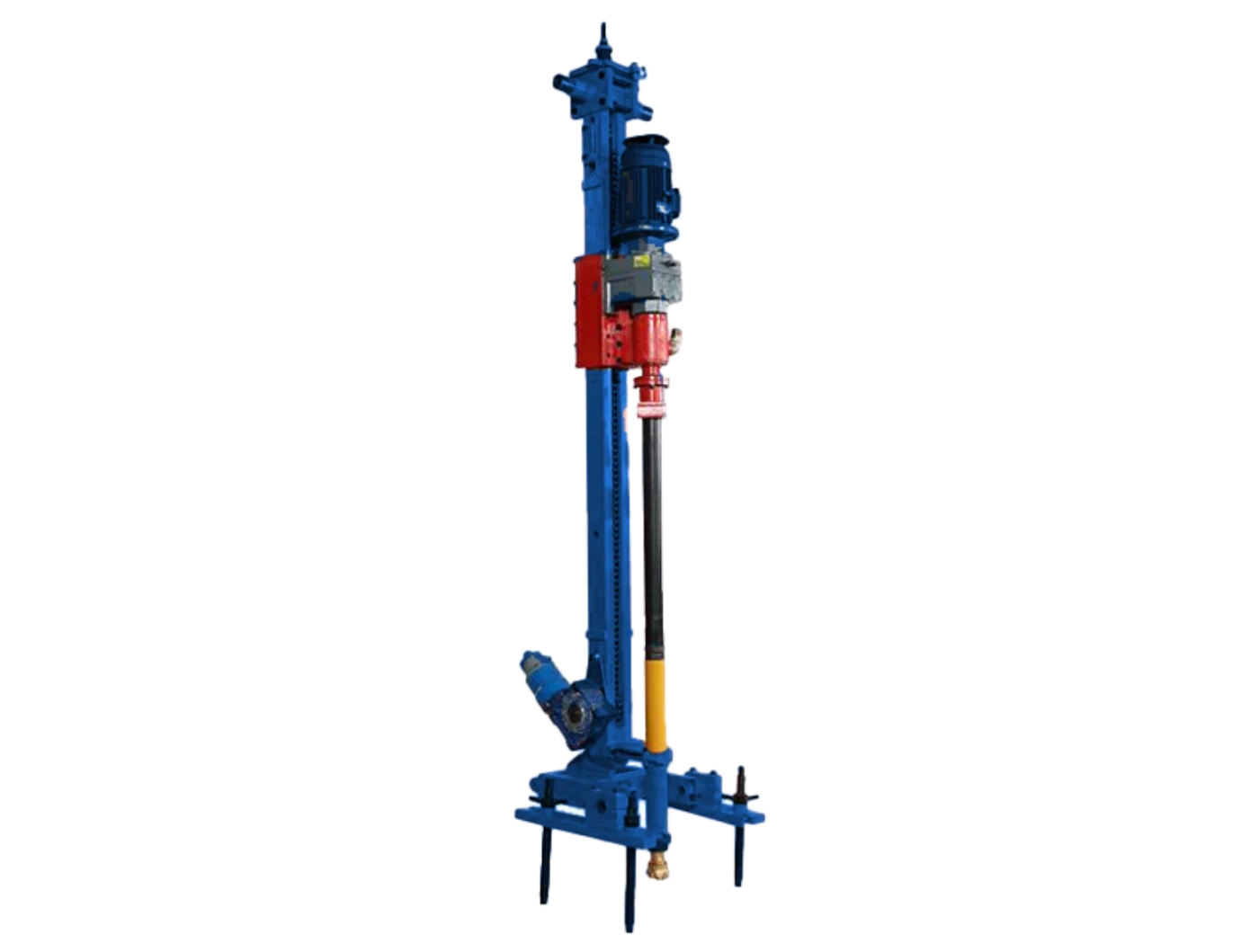

DINOSAW DTH Drilling Machines for Stone Quarrying & Rock Mining

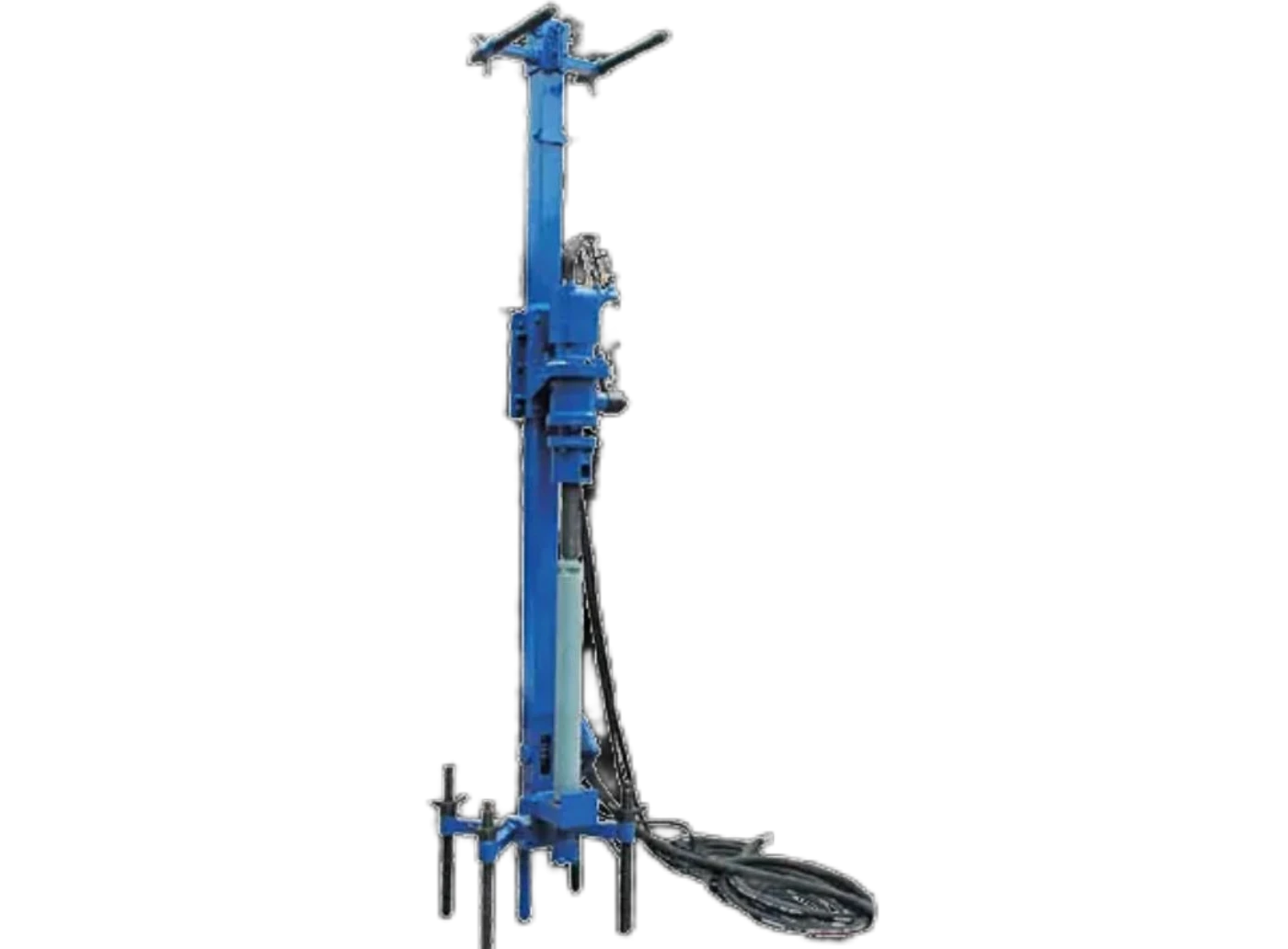

QKZ165-H
DINOSAW DTH drilling machines deliver 6-8m/h speeds, with hole diameters ranging from 65-165mm and depths up to 40m for stone extraction. Available in pneumatic, electric, or hydraulic power options, these machines excel in quarrying operations across diverse environments with minimal setup requirements. These DTH drillers efficiently extract granite, marble, limestone, sandstone, quartzite, basalt, and slate. Their precision ensures clean separation while reducing material waste in challenging terrains.
Compatible Materials & Products
DTH Drilling Performance for Multiple Stone Types
Granite > Quarry Blocks
Marble > Dimensional Stone
Limestone > Construction Materials
Hard Rock > Foundation Engineering

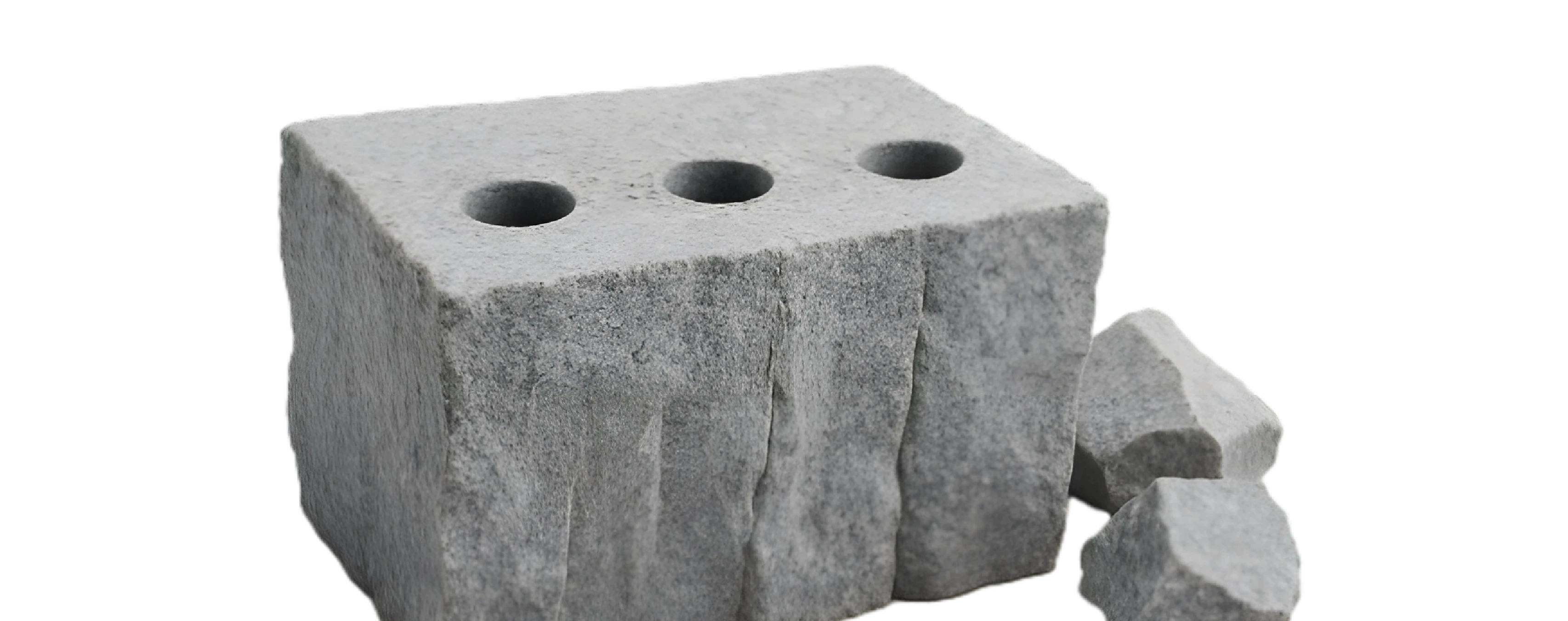

Granite's high hardness (Mohs scale 6-7) makes it one of the most challenging materials to drill, requiring specialized DTH equipment for efficient extraction.
DINOSAW DTH drilling machines excel in granite quarrying through percussion technology that delivers direct impact energy to the drill bit. This enables penetration rates of 6-8 m/h in hard granite formations. Our pneumatic and hydraulic systems maintain consistent power delivery throughout the drilling process, with adjustable air pressure control (0.5-0.7 MPa) for optimizing drilling parameters.
The 65-90mm hole diameter range of our QKZ90 series creates precise holes with minimal deviation, ensuring clean block separation. Our QKZ165-H model handles larger diameters up to 165mm for commercial-scale operations while maintaining the same precision standards.
The result is higher-quality granite blocks with minimal fracturing, maximizing material yield and reducing extraction costs for quarry operators. This efficiency advantage translates directly to increased production capacity and improved profit margins.
Granite > Quarry Blocks
Marble > Dimensional Stone
Limestone > Construction Materials
Hard Rock > Foundation Engineering
Granite's high hardness (Mohs scale 6-7) makes it one of the most challenging materials to drill, requiring specialized DTH equipment for efficient extraction.
DINOSAW DTH drilling machines excel in granite quarrying through percussion technology that delivers direct impact energy to the drill bit. This enables penetration rates of 6-8 m/h in hard granite formations. Our pneumatic and hydraulic systems maintain consistent power delivery throughout the drilling process, with adjustable air pressure control (0.5-0.7 MPa) for optimizing drilling parameters.
The 65-90mm hole diameter range of our QKZ90 series creates precise holes with minimal deviation, ensuring clean block separation. Our QKZ165-H model handles larger diameters up to 165mm for commercial-scale operations while maintaining the same precision standards.
The result is higher-quality granite blocks with minimal fracturing, maximizing material yield and reducing extraction costs for quarry operators. This efficiency advantage translates directly to increased production capacity and improved profit margins.
Consult DINOSAW Material Expert →

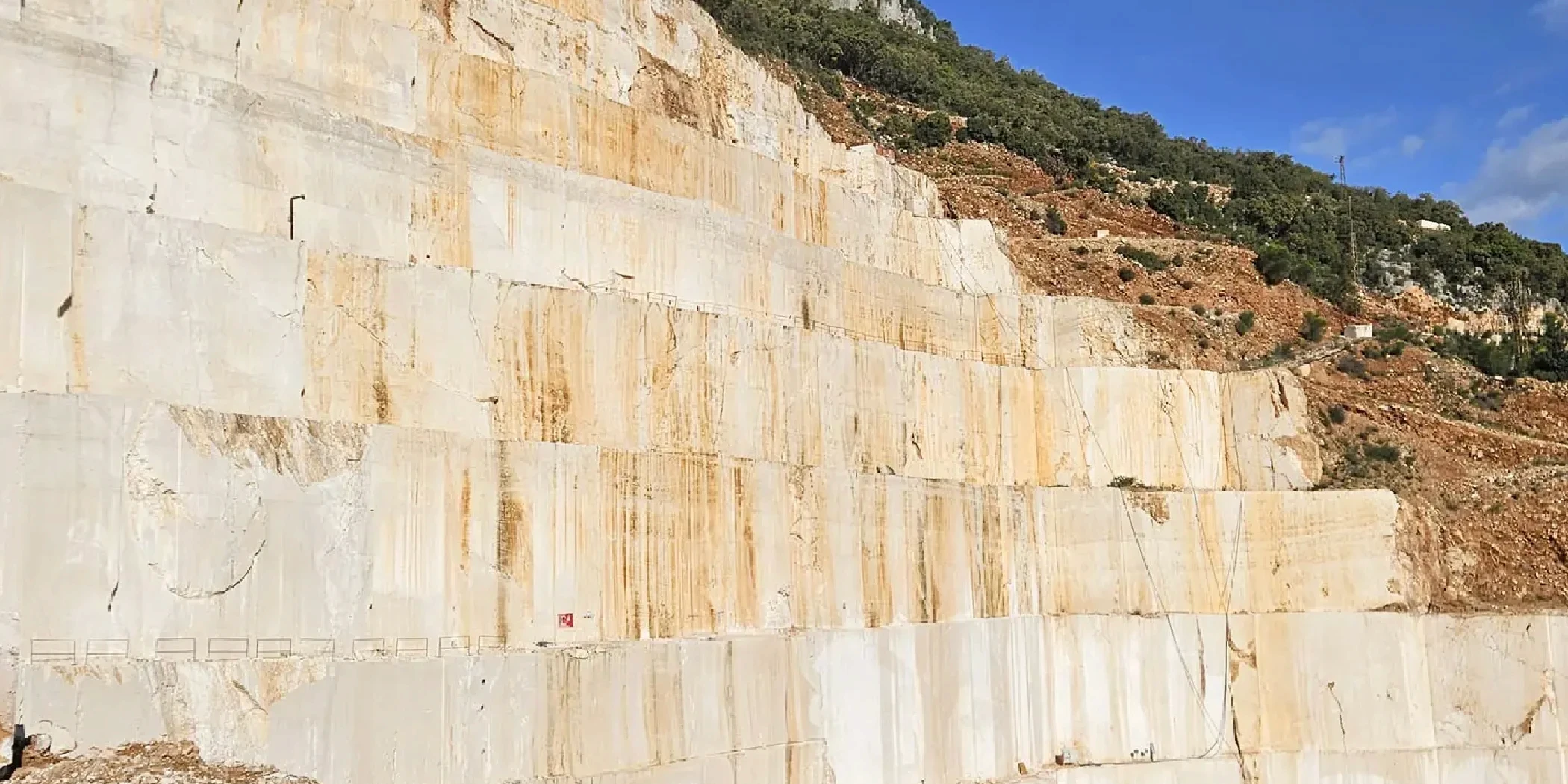

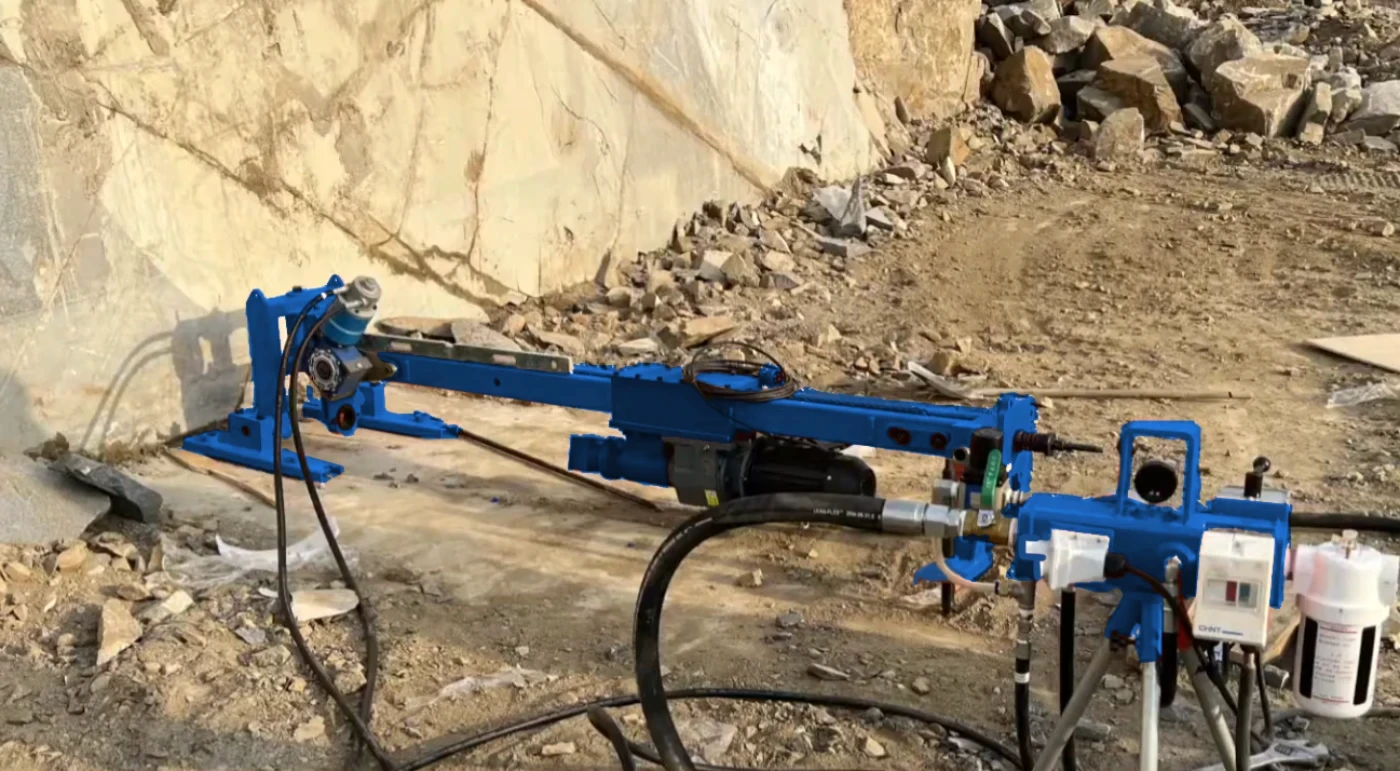

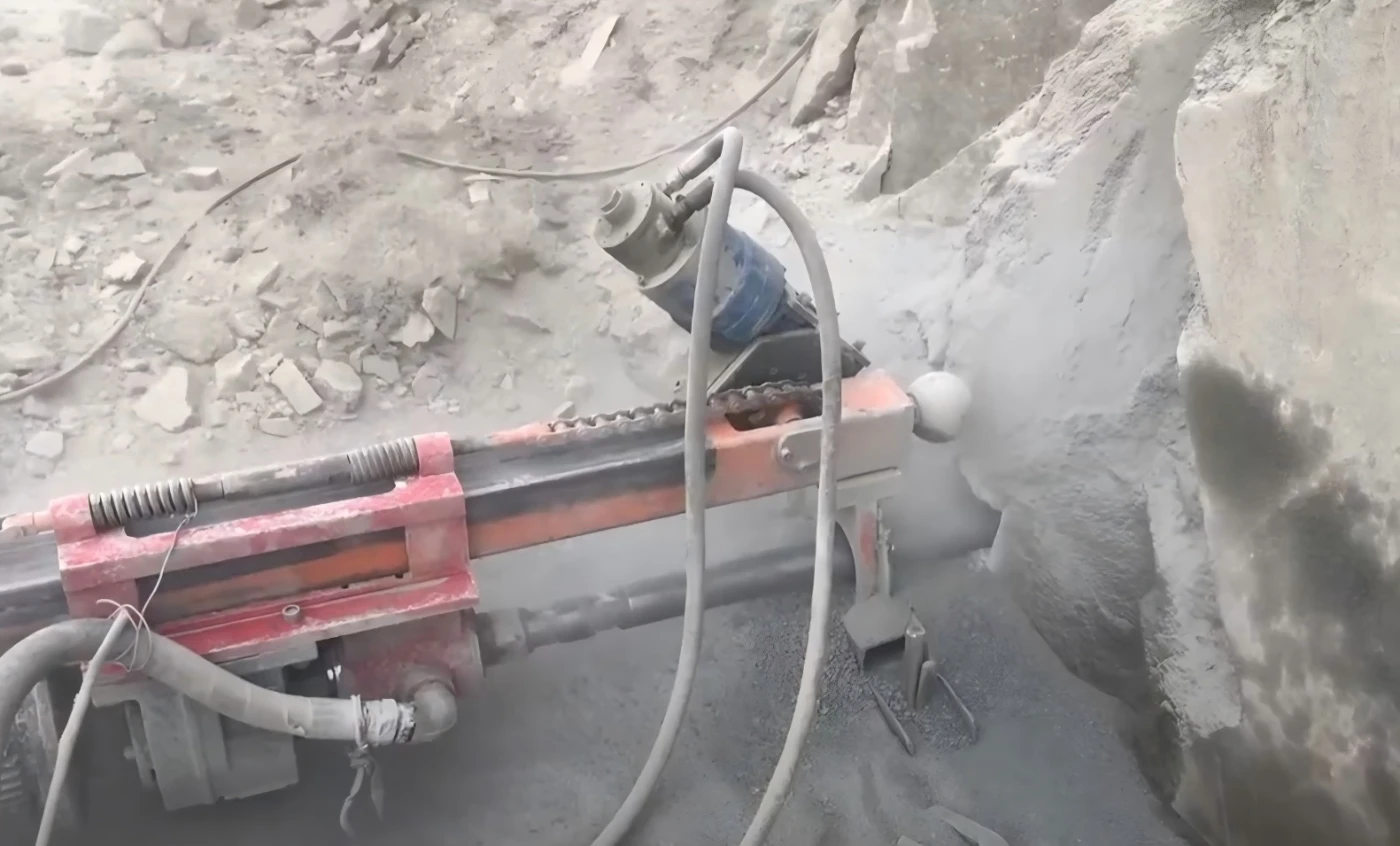

Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →

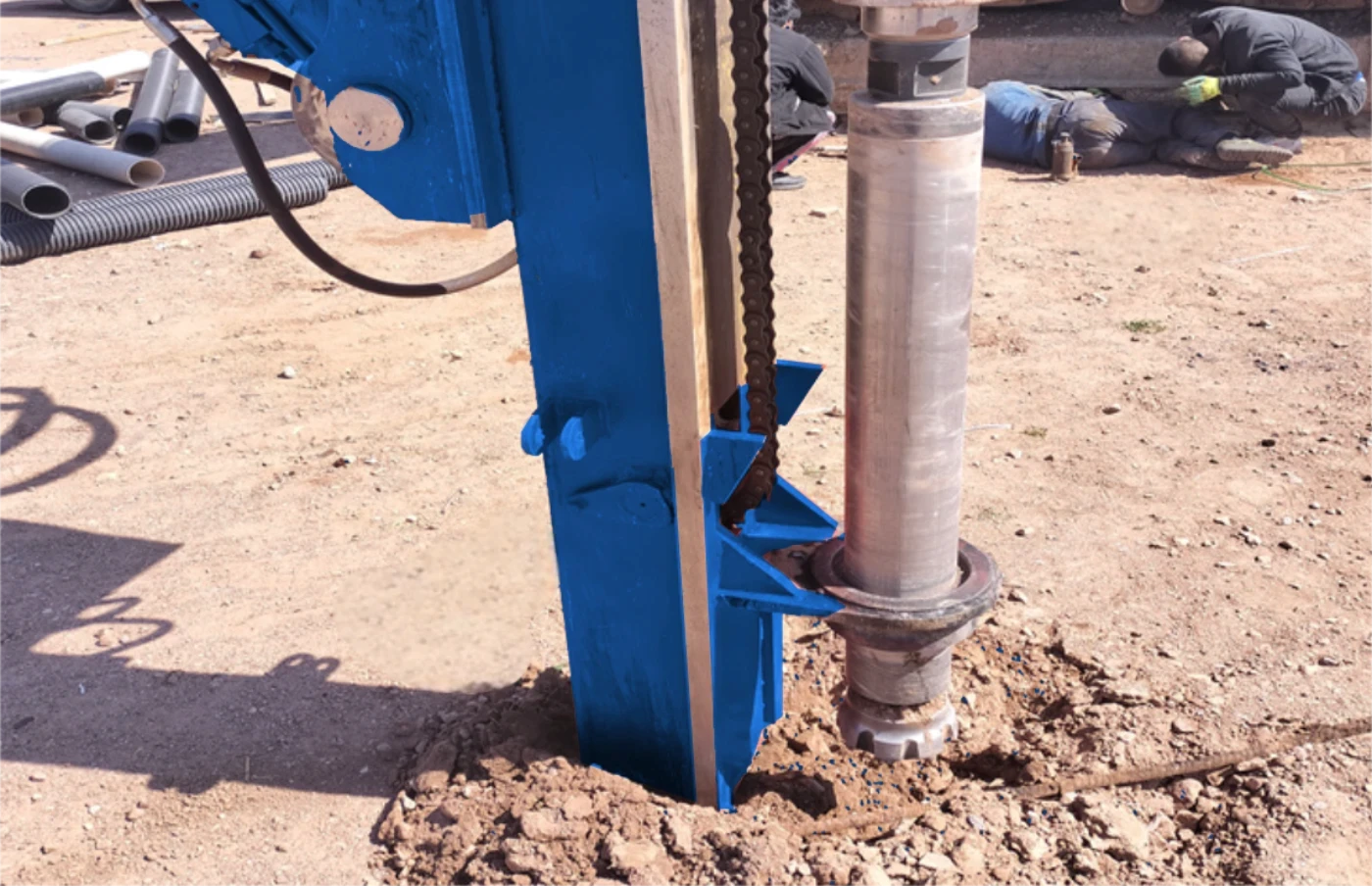

Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Accelerate your foundation projects →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Accelerate your foundation projects →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Accelerate your foundation projects →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Accelerate your foundation projects →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Specs and options
Specifications customizable upon request.
Product model | QKZ90 - P | QKZ90 - E | QKZ165 - H |
Hole diameter (mm) | Φ65 - 90 | Φ65 - 90 | Φ90 - 165 |
Drilling depth (m) | Max.35 | Max.40 | Max.30 |
Feed rate (m/h) | 6 - 8 | 6 - 8 | 6 - 8 / 2 - 4 |
Stroke (m) | 1 | 1 | 1.5 |
Air consumption (m³/min) | 12 - 14 | 7 - 9 | 7 - 12 |
Working air pressure (Mpa) | 0.5 - 0.7 | 0.5 - 0.7 | 0.5 - 0.7 |
Rotary power source | Pneumatic | Electric | Hydraulic |
Feed power source | Pneumatic | Pneumatic | Hydraulic |
Equipped drill rod (mm) | Φ73*1000 | Φ73*1000 | Φ76*1500 |
Adjustable height of base (mm) | 220 | 220 | 400 |
Total weight (kg) | 500 | 520 | 700 |
Contact DINOSAW technical team for details →
DTH drilling technology for maximum stone quarrying efficiency
DTH Drilling for Efficient Stone Quarrying
Hard Rock Drilling Speed
Unique slide guide design ensures fast feed rates of 6-8 m/h in granite, marble and limestone quarrying

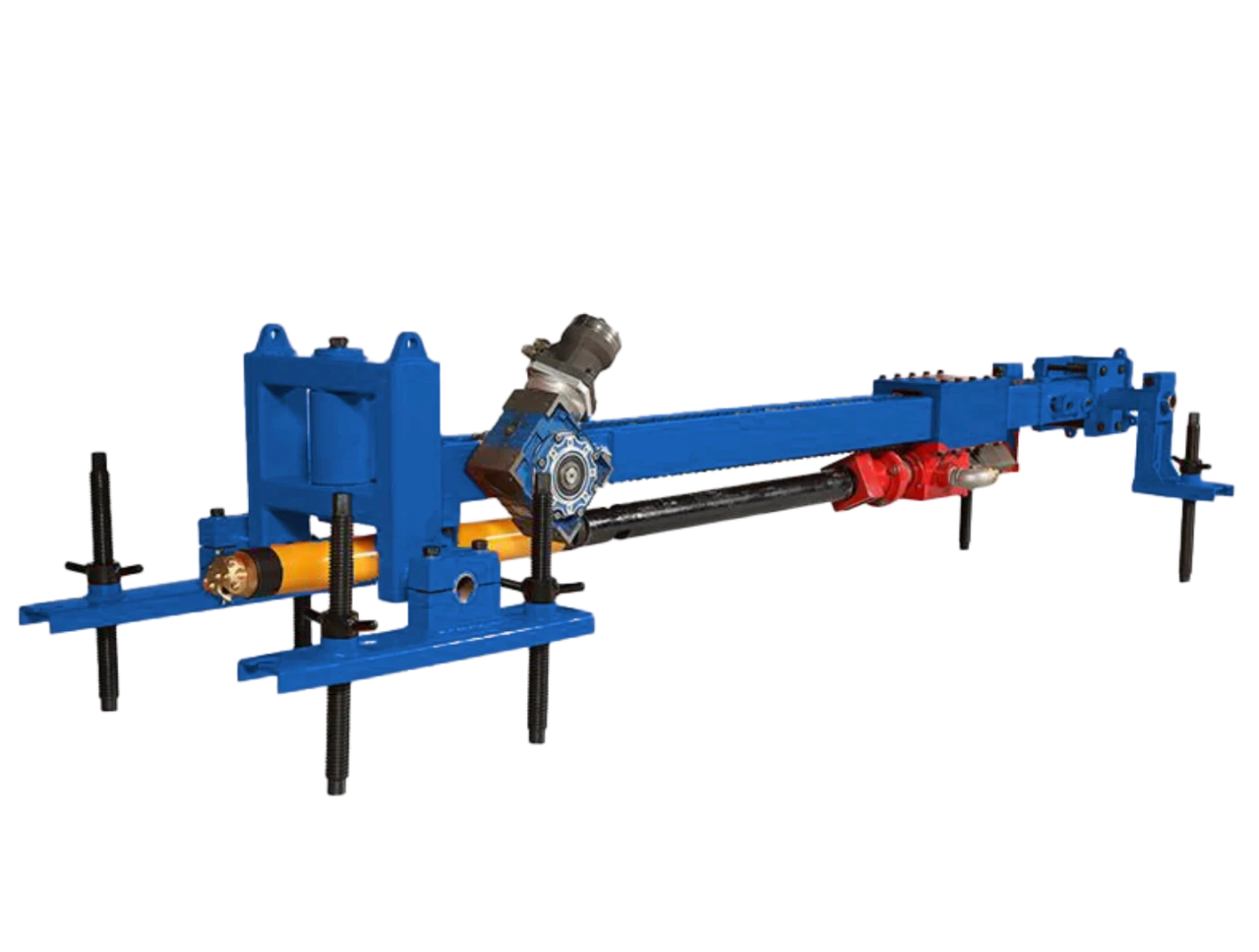

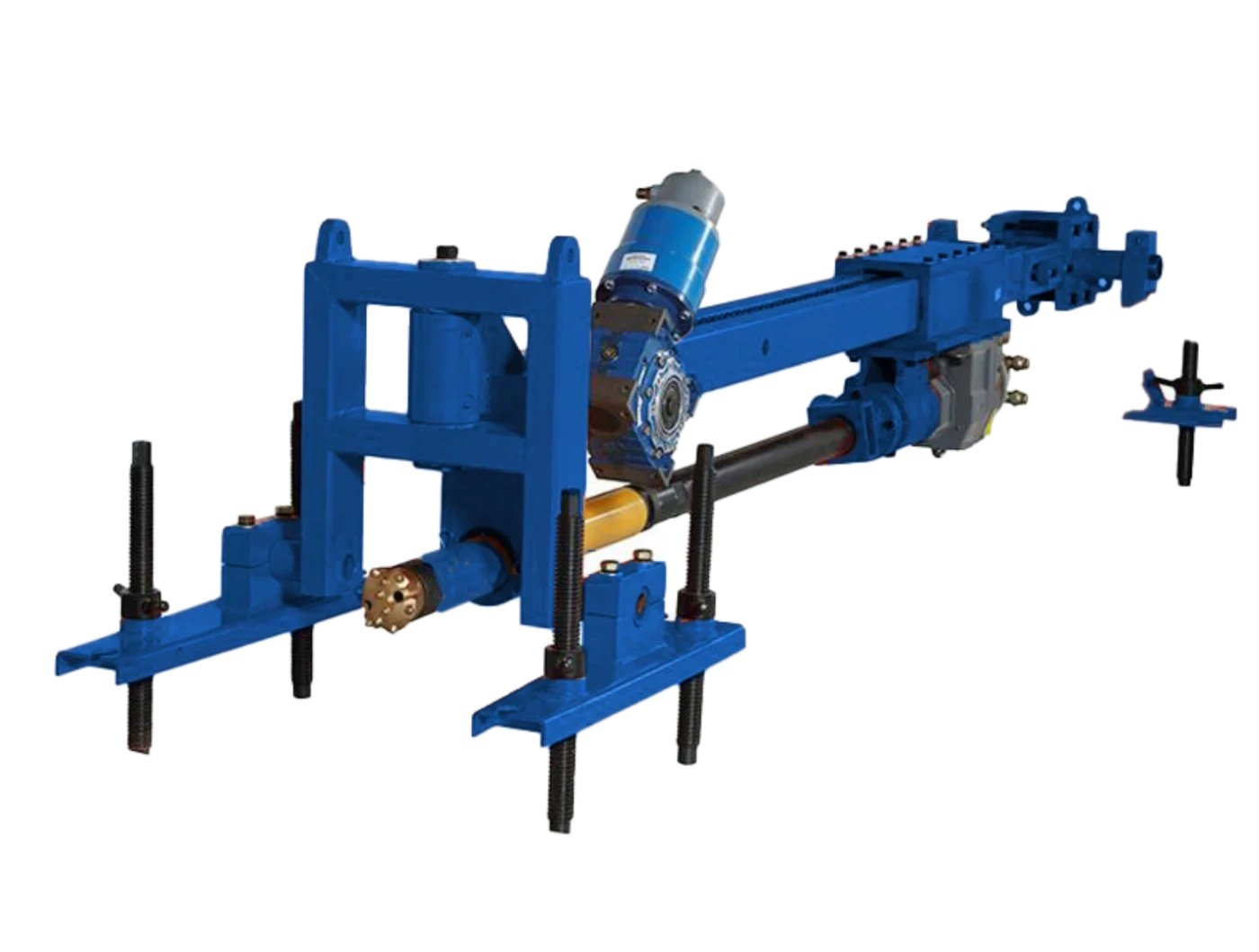

Multi-Angle Drilling Capability
Universal ball joint between headpiece and main frame enables vertical, horizontal or inclined holes
Precise Hole Alignment
Propulsion design guarantees straight holes at depths up to 40m for clean stone block separation
Inqury for Details →
Hard Rock Drilling Speed
Unique slide guide design ensures fast feed rates of 6-8 m/h in granite, marble and limestone quarrying
Multi-Angle Drilling Capability
Universal ball joint between headpiece and main frame enables vertical, horizontal or inclined holes
Precise Hole Alignment
Propulsion design guarantees straight holes at depths up to 40m for clean stone block separation
Inqury for Details →

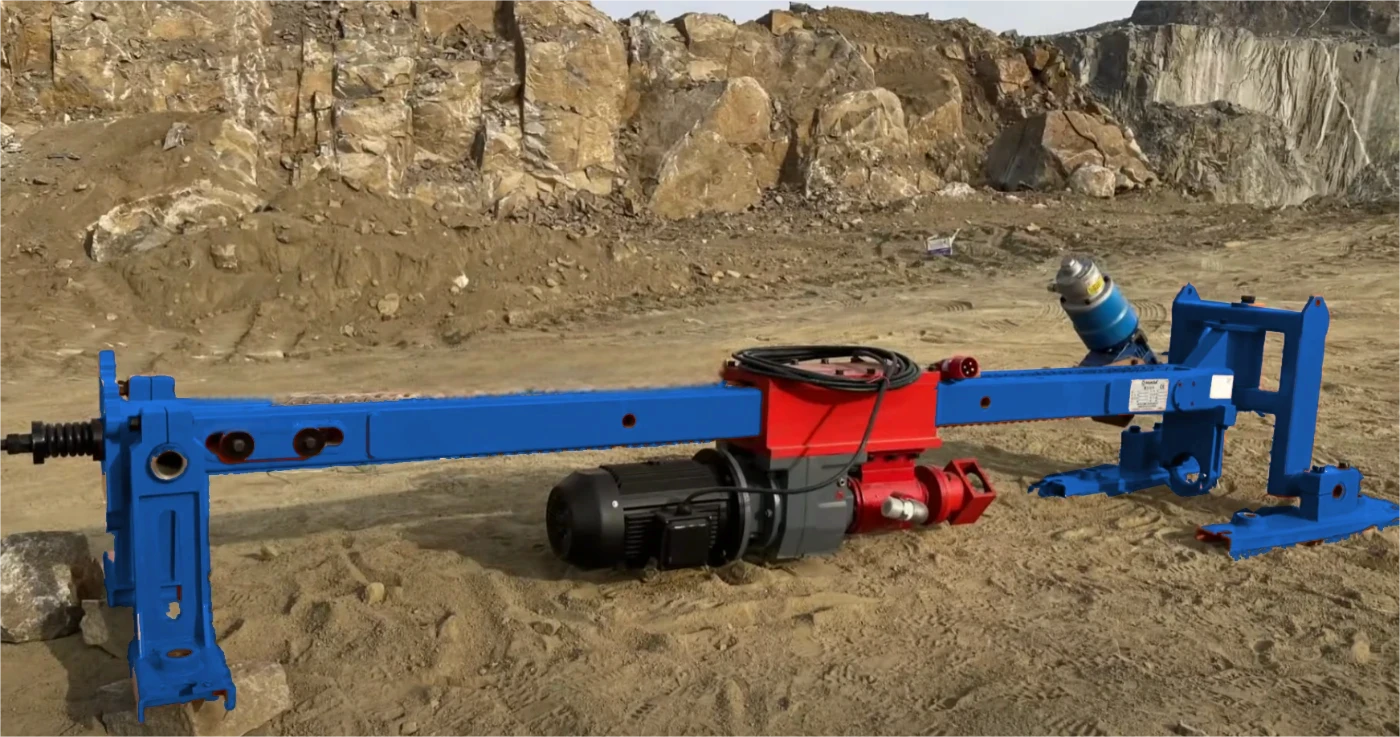

Fast Relocation in Narrow Spaces
Multiple fastening points enable quick repositioning for efficient drilling in confined quarry areas

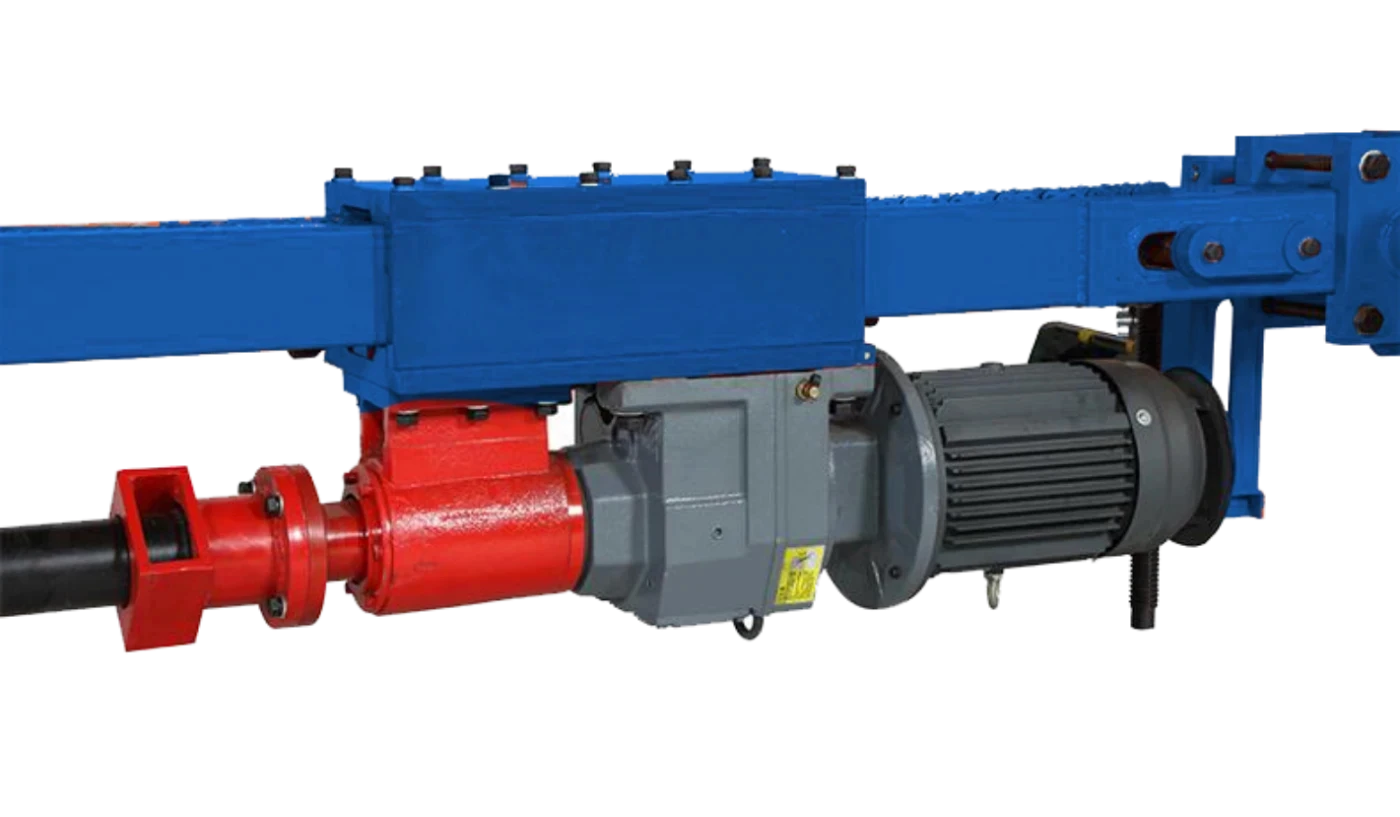

Versatile Power Options
Choose pneumatic, pneumatic-electric or pneumatic-hydraulic systems for different quarry conditions

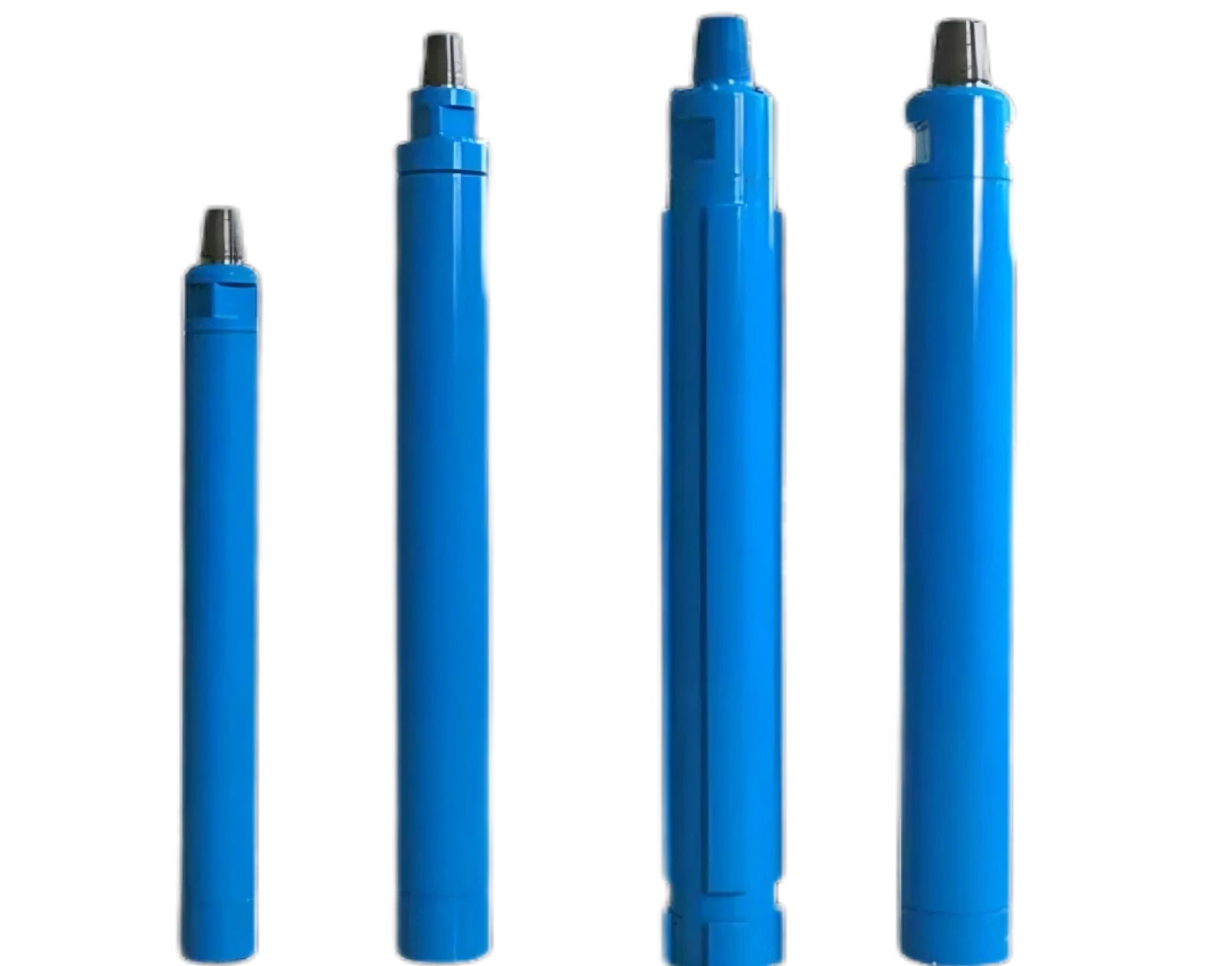

Quick-Change Drilling System
Various hammer specifications with quick-release drill rods for efficient stone hardness adaptation
FAQs
Common Questions About DINOSAW DTH Drilling Machines
What is the difference between DTH drilling and rotary drilling?
What is the difference between DTH drilling and rotary drilling?
What sizes of holes can DINOSAW DTH machines drill?
What sizes of holes can DINOSAW DTH machines drill?
How deep can these DTH machines drill?
How deep can these DTH machines drill?
What power sources do DINOSAW DTH machines use?
What power sources do DINOSAW DTH machines use?
How do I troubleshoot common DTH drilling problems?
How do I troubleshoot common DTH drilling problems?
Need more assistance? Click to contact DINOSAW →
Certifications & Standards
Global Leader in Industrial Machinery & Diamond Tools Manufacturing
CE Certification
100+ Tech Patents
ISO 9001:2015
DINOSAW product lines fully comply with international engineering standards, passing rigorous third-party quality certifications to ensure exceptional performance and durability for all industrial equipment operating in high-load environments.
Expertise & Applications
75+
Countries Served Worldwide
20+
Industry machinery expertise
DINOSAW delivers lifecycle quality traceability and technical support for machinery equipment and diamond tools, covering cutting, drilling, engraving, polishing, and processing requirements for precision machining across industries.
Our products serve traditional industries (mining, stone processing, building materials), high-precision manufacturing (quartz glass, semiconductor), advanced materials (graphite, carbon fiber composites), and specialized applications (nuclear decommissioning, railway construction machinery).
Complete Production Solutions & Equipments
Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

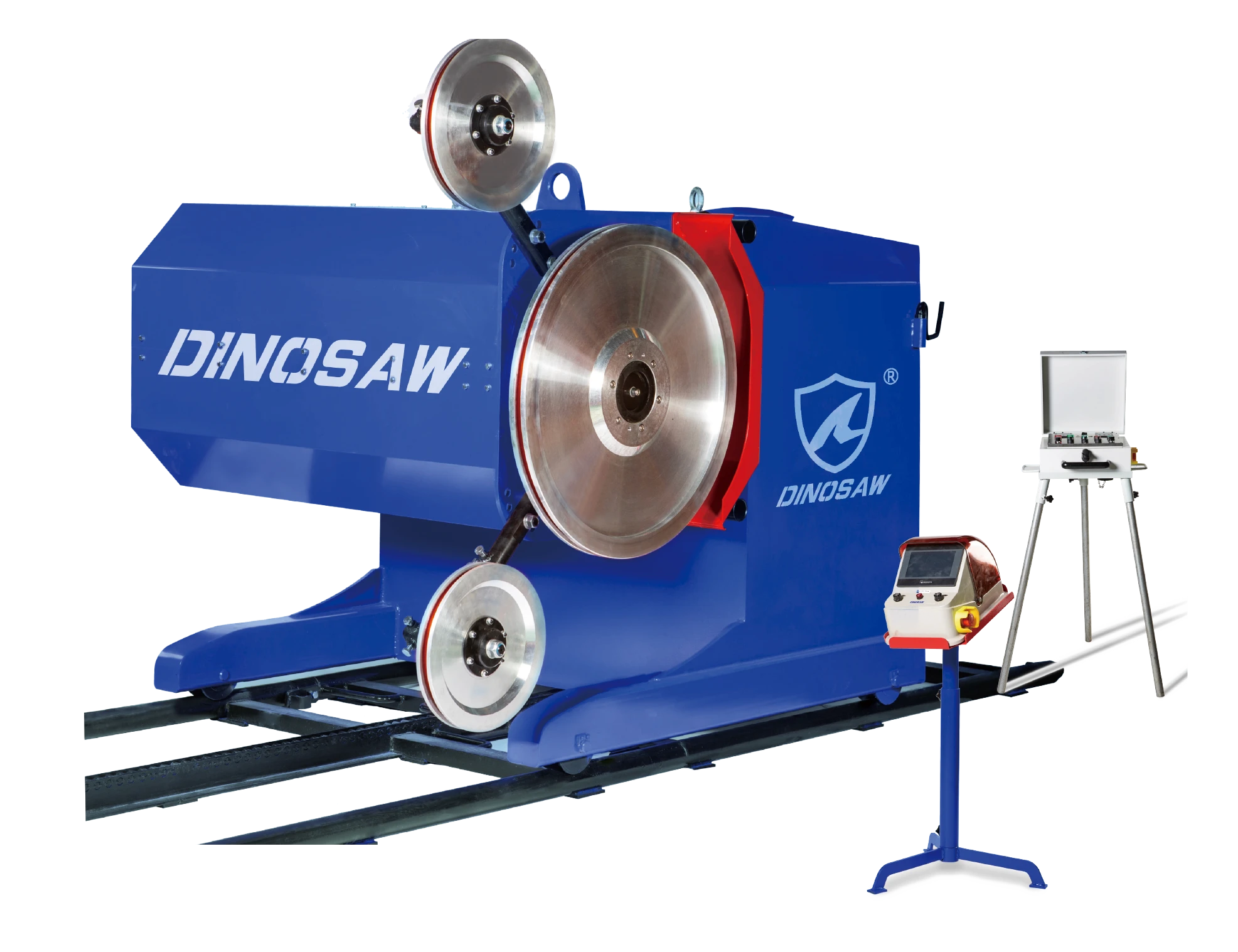

Diamond Wire Saw Machines for Quarry Blocks
Complete your extraction workflow with our diamond wire saw machines. After creating drill holes with DTH , our wire saws separate stone blocks along planned cutting lines. This integrated solution reduces material waste, creates clean cut surfaces, and lowers extraction costs - improving your quarry productivity.
Optimize your complete stone extraction process →

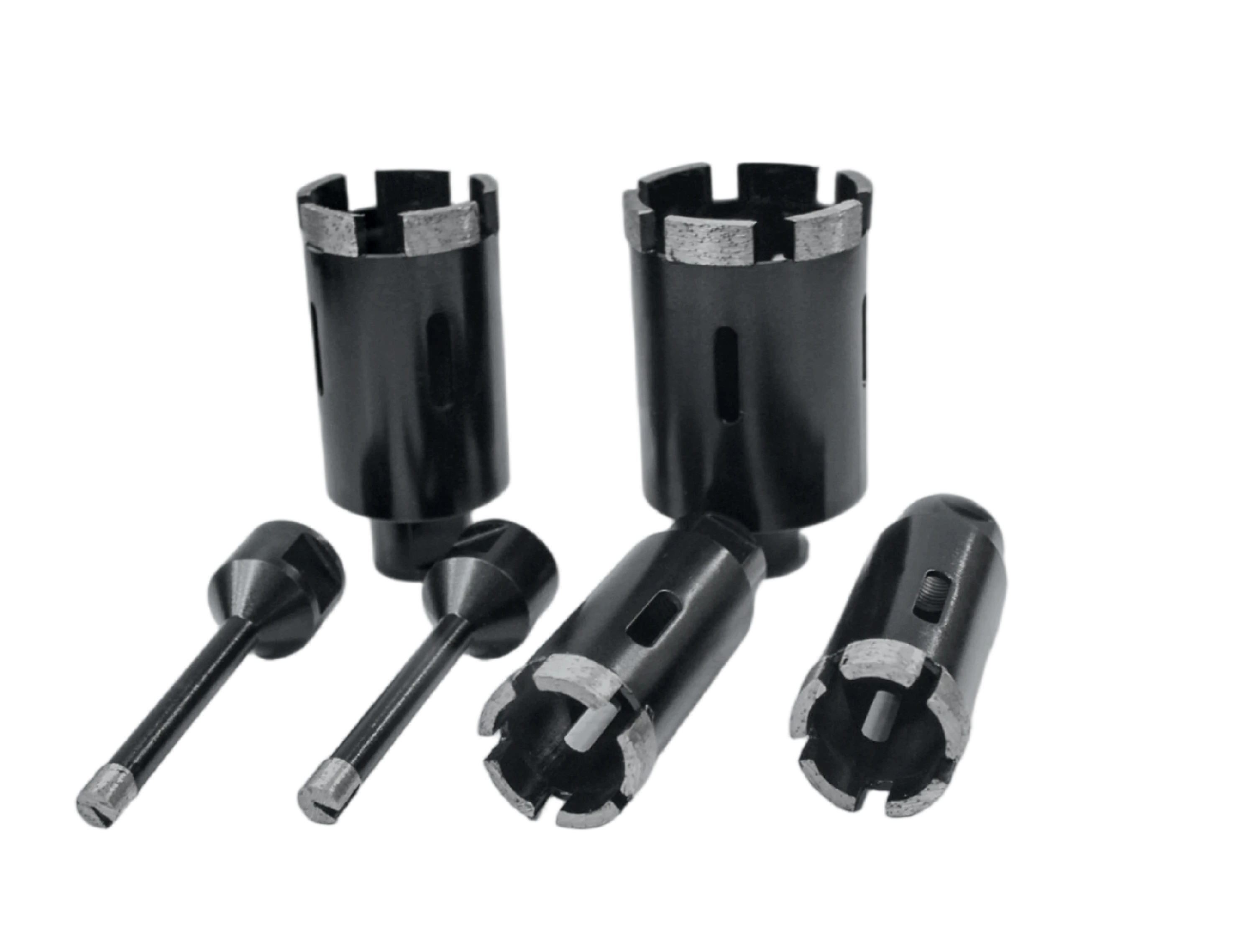

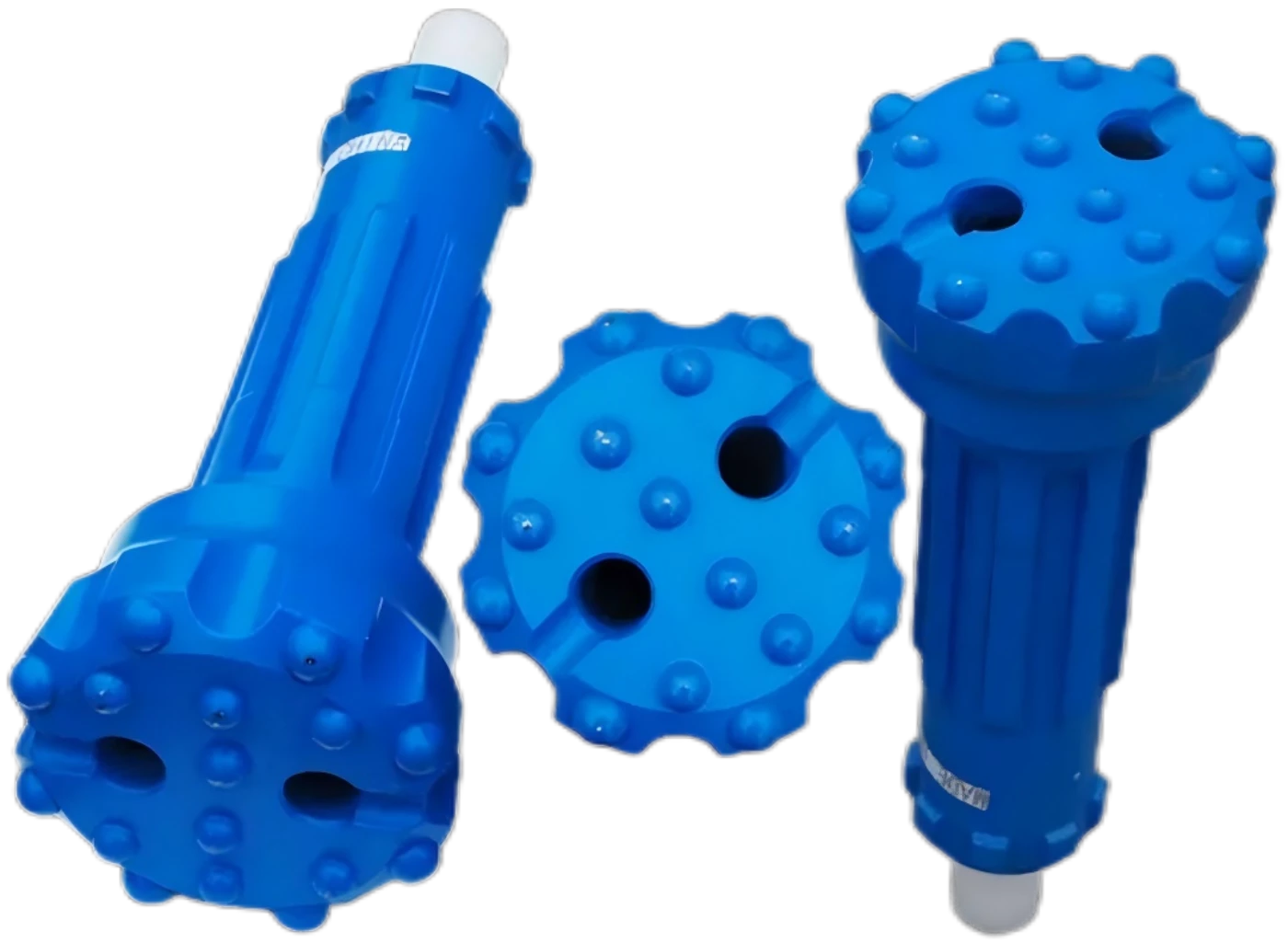

Diamond Drill Bits for Maximum Durability
Enhance your DTH drilling machine's performance with diamond drill bits engineered for stone quarrying. Designed for hard stone like granite and marble, compatible with all DTH models and industry standards, they ensure consistent hole quality while reducing bit replacement frequency.
Extend your drilling performance with premium bits →

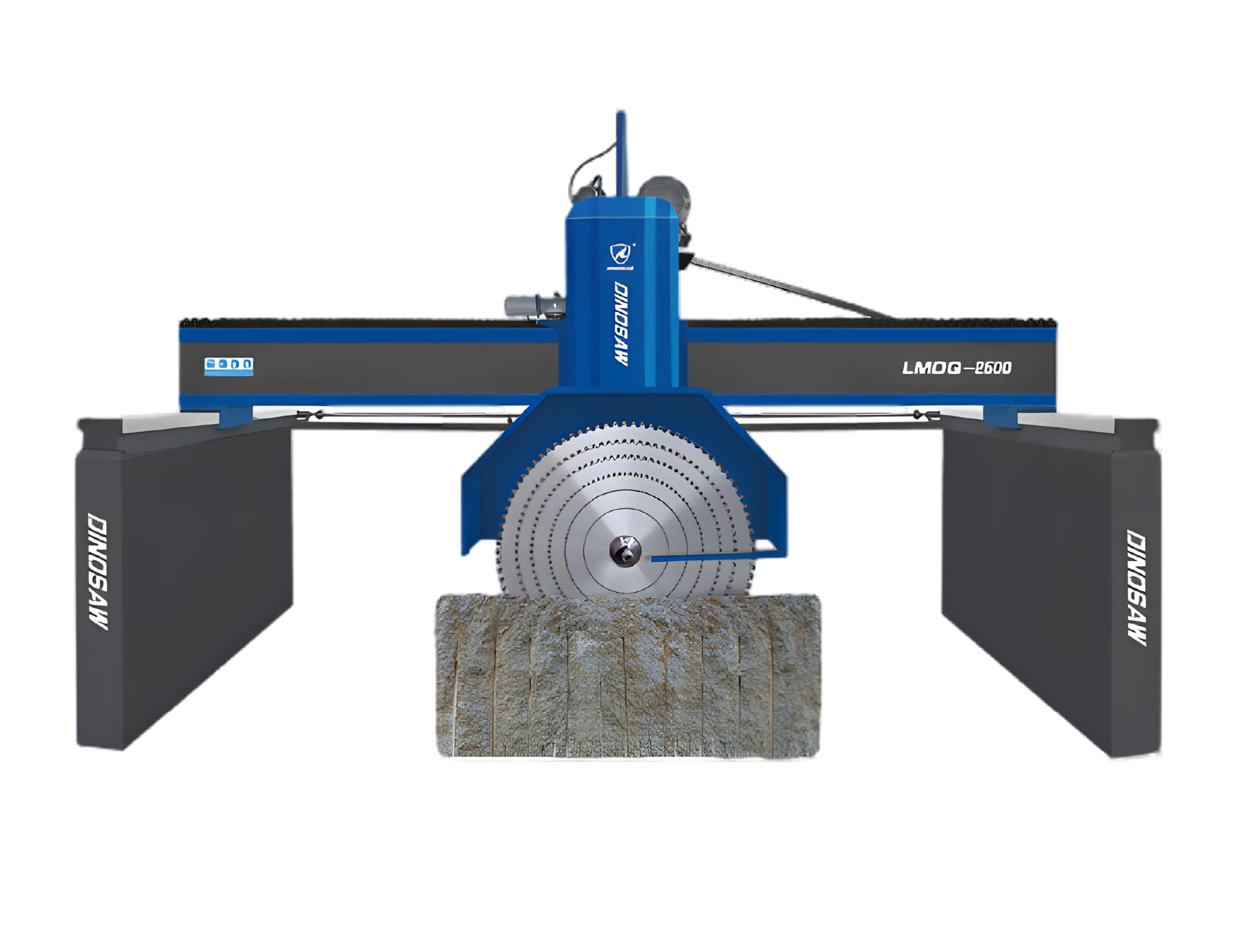

Multi-Blade Stone Block Cutting Machine
Transform quarry blocks into marketable slabs with our multi-blade stone cutting machine. Featuring adjustable blade spacing and cutting depth control, this machine processes granite, marble and limestone blocks with precision.
Maximize your stone processing efficiency →
Get a Custom Solution
Ready to improve your stone quarrying productivity?
Contact DINOSAW today to discover how our DTH drilling machines can transform your quarrying operations
Contact DINOSAW
Connect with DINOSAW experts to find the perfect processing solution for your specific material and production needs.
Get A Quote
DINOSAW: Trustworthy DTH Drilling Machine Manufacturer
Discover how DINOSAW can accelerate your projects. Our tailored product line, cutting-edge R&D, robust manufacturing, end-to-end service, global support, and industry certifications are at your service.
Other Machines or Tools
Are you looking for more new information machines or tools?
DINOSAW DTH Drilling Machines for Stone Quarrying & Rock Mining
QKZ165-H
DINOSAW DTH drilling machines deliver 6-8m/h speeds, with hole diameters ranging from 65-165mm and depths up to 40m for stone extraction. Available in pneumatic, electric, or hydraulic power options, these machines excel in quarrying operations across diverse environments with minimal setup requirements. These DTH drillers efficiently extract granite, marble, limestone, sandstone, quartzite, basalt, and slate. Their precision ensures clean separation while reducing material waste in challenging terrains.
Compatible Materials & Products
DTH Drilling Performance for Multiple Stone Types
Granite > Quarry Blocks
Marble > Dimensional Stone
Limestone > Construction Materials
Hard Rock > Foundation Engineering
Granite's high hardness (Mohs scale 6-7) makes it one of the most challenging materials to drill, requiring specialized DTH equipment for efficient extraction.
DINOSAW DTH drilling machines excel in granite quarrying through percussion technology that delivers direct impact energy to the drill bit. This enables penetration rates of 6-8 m/h in hard granite formations. Our pneumatic and hydraulic systems maintain consistent power delivery throughout the drilling process, with adjustable air pressure control (0.5-0.7 MPa) for optimizing drilling parameters.
The 65-90mm hole diameter range of our QKZ90 series creates precise holes with minimal deviation, ensuring clean block separation. Our QKZ165-H model handles larger diameters up to 165mm for commercial-scale operations while maintaining the same precision standards.
The result is higher-quality granite blocks with minimal fracturing, maximizing material yield and reducing extraction costs for quarry operators. This efficiency advantage translates directly to increased production capacity and improved profit margins.
Granite > Quarry Blocks
Marble > Dimensional Stone
Limestone > Construction Materials
Hard Rock > Foundation Engineering
Granite's high hardness (Mohs scale 6-7) makes it one of the most challenging materials to drill, requiring specialized DTH equipment for efficient extraction.
DINOSAW DTH drilling machines excel in granite quarrying through percussion technology that delivers direct impact energy to the drill bit. This enables penetration rates of 6-8 m/h in hard granite formations. Our pneumatic and hydraulic systems maintain consistent power delivery throughout the drilling process, with adjustable air pressure control (0.5-0.7 MPa) for optimizing drilling parameters.
The 65-90mm hole diameter range of our QKZ90 series creates precise holes with minimal deviation, ensuring clean block separation. Our QKZ165-H model handles larger diameters up to 165mm for commercial-scale operations while maintaining the same precision standards.
The result is higher-quality granite blocks with minimal fracturing, maximizing material yield and reducing extraction costs for quarry operators. This efficiency advantage translates directly to increased production capacity and improved profit margins.
Consult DINOSAW Material Expert →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Enhance your stone recovery →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Enhance your stone recovery →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Enhance your stone recovery →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Enhance your stone recovery →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Enhance your stone recovery →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Enhance your stone recovery →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Enhance your stone recovery →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Granite Quarrying
Maximizing Extraction Efficiency in Hard Stone
A major granite quarry struggled with slow drilling speeds and inconsistent hole quality. After implementing DINOSAW's percussive drilling equipment, their drilling speed increased to 6-7m/h. This improved blasting effectiveness and block quality, increasing production by 28%.
Transform your granite quarrying →
Construction Foundation Work
Overcoming Challenging Geological Conditions
A construction firm encountered dense basalt during a commercial building foundation project. DINOSAW's down-the-hole drill penetrated at 4.8m/h - over 3x faster. The precise hole placement ensured proper anchor bolt installation, allowing the project to proceed on schedule and reducing foundation completion time by 42%.
Enhance your stone recovery →
Marble Quarry Operation
Precision Drilling for Premium Block Recovery
A high-end marble producer needed to maximize recovery rates of premium white marble while minimizing waste. DINOSAW's DTH hammer delivered precise hole placement. The electric system eliminated diesel contamination risks. This improved accuracy resulted in 22% less waste and 15% higher premium-grade recovery.
Enhance your stone recovery →
Specs and options
Specifications customizable upon request.
Contact DINOSAW technical team for details
Product model | QKZ90 - P | QKZ90 - E | QKZ165 - H |
Hole diameter (mm) | Φ65 - 90 | Φ65 - 90 | Φ90 - 165 |
Drilling depth (m) | Max.35 | Max.40 | Max.30 |
Feed rate (m/h) | 6 - 8 | 6 - 8 | 6 - 8 / 2 - 4 |
Stroke (m) | 1 | 1 | 1.5 |
Air consumption (m³/min) | 12 - 14 | 7 - 9 | 7 - 12 |
Working air pressure (Mpa) | 0.5 - 0.7 | 0.5 - 0.7 | 0.5 - 0.7 |
Rotary power source | Pneumatic | Electric | Hydraulic |
Feed power source | Pneumatic | Pneumatic | Hydraulic |
Equipped drill rod (mm) | Φ73*1000 | Φ73*1000 | Φ76*1500 |
Adjustable height of base (mm) | 220 | 220 | 400 |
Total weight (kg) | 500 | 520 | 700 |
Contact DINOSAW technical team for details →
DTH drilling technology for maximum stone quarrying efficiency
DTH Drilling for Efficient Stone Quarrying
Hard Rock Drilling Speed
Unique slide guide design ensures fast feed rates of 6-8 m/h in granite, marble and limestone quarrying
Multi-Angle Drilling Capability

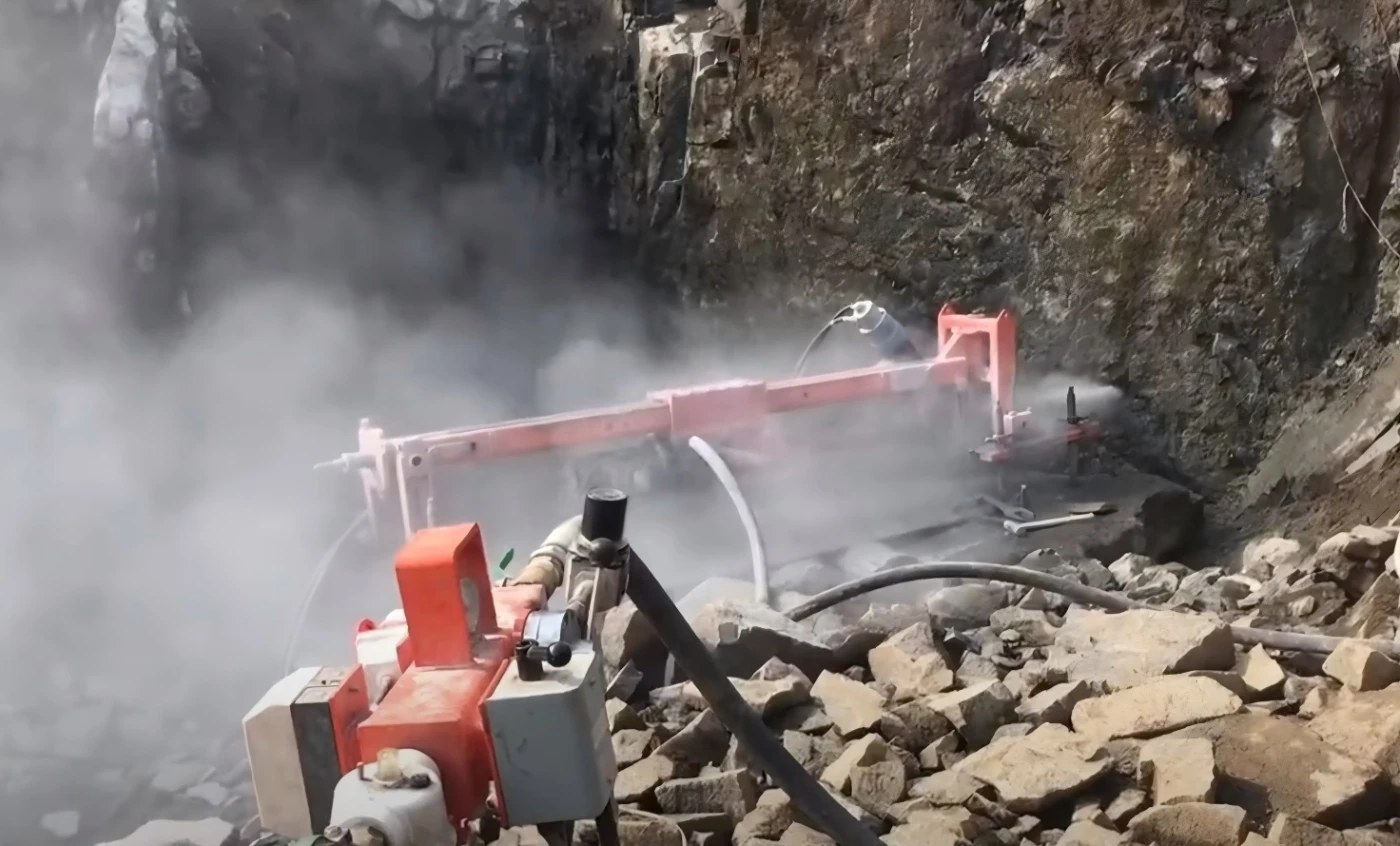

Universal ball joint between headpiece and main frame enables vertical, horizontal or inclined holes
Precise Hole Alignment
Propulsion design guarantees straight holes at depths up to 40m for clean stone block separation
Inqury for Details →
Hard Rock Drilling Speed
Unique slide guide design ensures fast feed rates of 6-8 m/h in granite, marble and limestone quarrying
Multi-Angle Drilling Capability
Universal ball joint between headpiece and main frame enables vertical, horizontal or inclined holes
Precise Hole Alignment
Propulsion design guarantees straight holes at depths up to 40m for clean stone block separation
Inqury for Details →
Fast Relocation in Narrow Spaces
Multiple fastening points enable quick repositioning for efficient drilling in confined quarry areas
Versatile Power Options
Choose pneumatic, pneumatic-electric or pneumatic-hydraulic systems for different quarry conditions
Quick-Change Drilling System
Various hammer specifications with quick-release drill rods for efficient stone hardness adaptation
Complete Production Solutions
&
Equipments
Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.
Diamond Wire Saw Machines for Quarry Blocks
Complete your extraction workflow with our diamond wire saw machines. After creating drill holes with DTH , our wire saws separate stone blocks along planned cutting lines. This integrated solution reduces material waste, creates clean cut surfaces, and lowers extraction costs - improving your quarry productivity.
Optimize your complete stone extraction process →
Diamond Drill Bits for Maximum Durability
Enhance your DTH drilling machine's performance with diamond drill bits engineered for stone quarrying. Designed for hard stone like granite and marble, compatible with all DTH models and industry standards, they ensure consistent hole quality while reducing bit replacement frequency.
Extend your drilling performance with premium bits →
Multi-Blade Stone Block Cutting Machine
Transform quarry blocks into marketable slabs with our multi-blade stone cutting machine. Featuring adjustable blade spacing and cutting depth control, this machine processes granite, marble and limestone blocks with precision.
Maximize your stone processing efficiency →
Get a Custom Solution →
FAQs
Common Questions About DINOSAW DTH Drilling Machines
What is the difference between DTH drilling and rotary drilling?
What is the difference between DTH drilling and rotary drilling?
What sizes of holes can DINOSAW DTH machines drill?
What sizes of holes can DINOSAW DTH machines drill?
How deep can these DTH machines drill?
How deep can these DTH machines drill?
What power sources do DINOSAW DTH machines use?
What power sources do DINOSAW DTH machines use?
Need more assistance? Contact DINOSAW →
Global Leader in Industrial
Machinery & Diamond Tools
Manufacturing
Certifications & Standards
CE Certification
100+ Tech Patents
ISO 9001:2015
DINOSAW product lines fully comply with international engineering standards, passing rigorous third-party quality certifications to ensure exceptional performance and durability for all industrial equipment operating in high-load environments.
Expertise & Applications
DINOSAW delivers lifecycle quality traceability and technical support for machinery equipment and diamond tools, covering cutting, drilling, engraving, polishing, and processing requirements for precision machining across industries.
Our products serve traditional industries (mining, stone processing, building materials), high-precision manufacturing (quartz glass, semiconductor), advanced materials (graphite, carbon fiber composites), and specialized applications (nuclear decommissioning, railway construction machinery).
75+
Countries Served Worldwide
20+
Industry machinery expertise
Ready to improve your stone quarrying productivity?
DTH Drilling Technology for Professional Stone Quarrying
Contact DINOSAW
Connect with DINOSAW experts to find the perfect processing solution for your specific material and production needs.
Get A Quote
DINOSAW: Trustworthy DTH Drilling Machine Manufacturer
Discover how DINOSAW can accelerate your projects. Our tailored product line, cutting-edge R&D, robust manufacturing, end-to-end service, global support, and industry certifications are at your service.
Other Machines or Tools
Are you looking for more new information machines or tools?
CONTINUOUSLY IMPROVE PRODUCTIVITY FOR USER
Customer first | Teamwork | Embrace change | Integrity | Passion | Commitment
CONTINUOUSLY IMPROVE PRODUCTIVITY FOR USER
Customer first | Teamwork | Embrace change | Integrity | Passion | Commitment
CONTINUOUSLY IMPROVE PRODUCTIVITY FOR USER
Customer first | Teamwork | Embrace change | Integrity | Passion | Commitment
CONTINUOUSLY IMPROVE PRODUCTIVITY FOR USER
Customer first | Teamwork | Embrace change | Integrity | Passion | Commitment
CONTINUOUSLY IMPROVE PRODUCTIVITY FOR USER
Customer first | Teamwork | Embrace change | Integrity | Passion | Commitment
Open Hours:
8:30am-20:30pm
Whatsapp:
Hello 👋 How can we help?
Hello 👋 How can we help?
Hello 👋 How can we help?
Hello 👋 How can we help?
