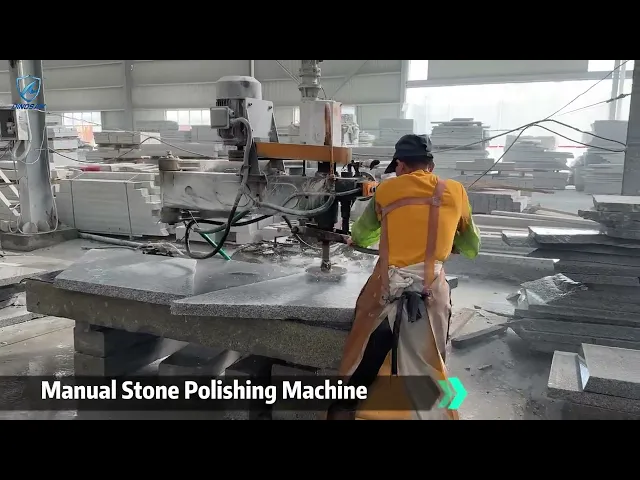

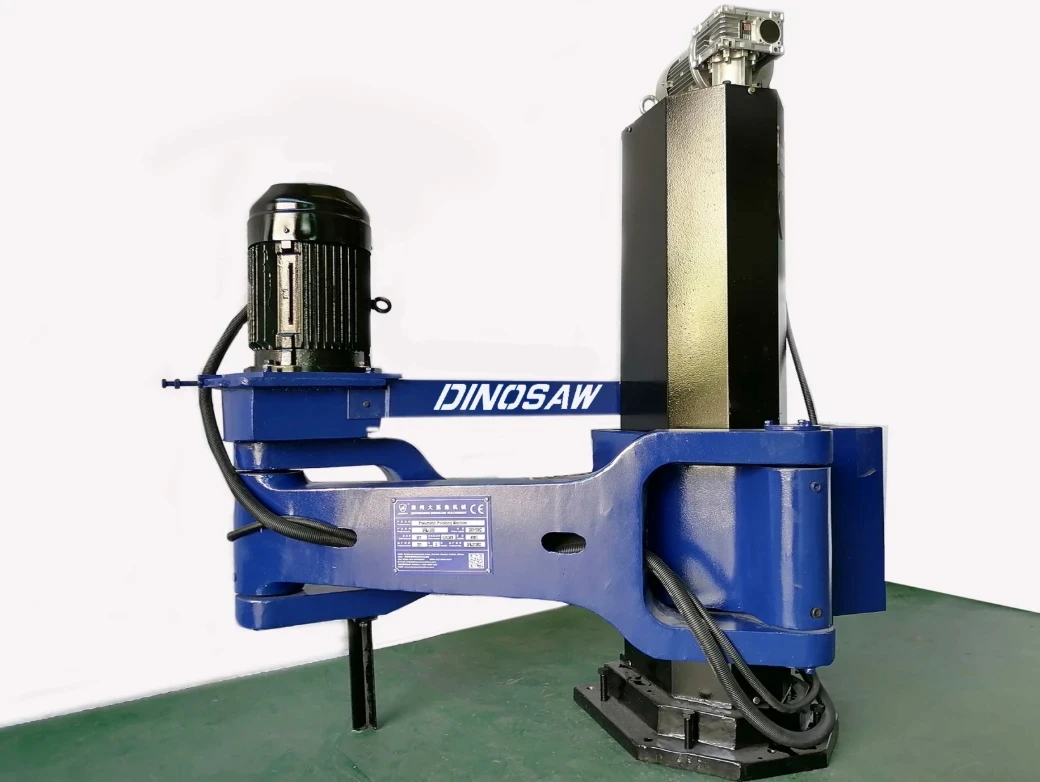

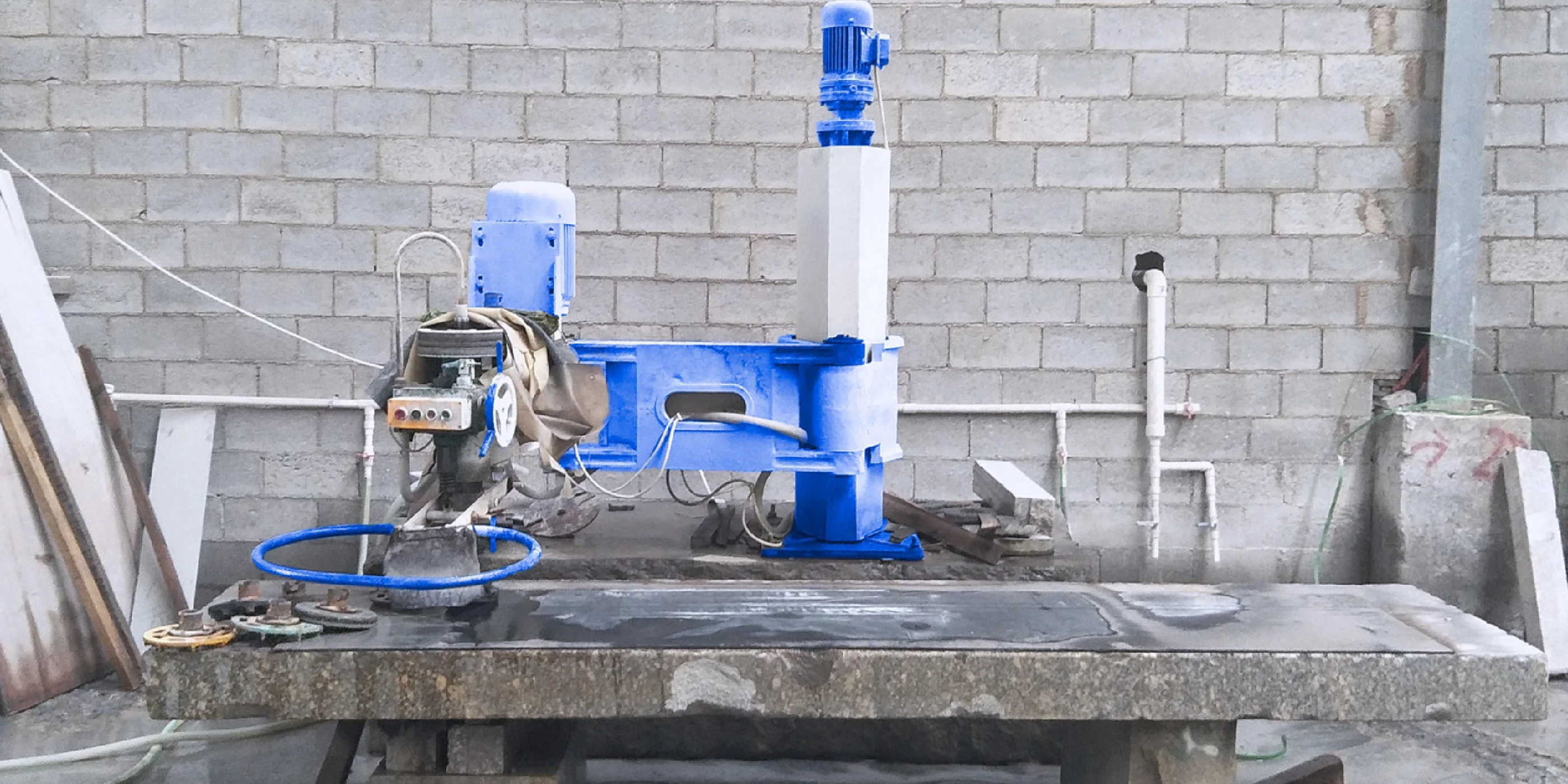

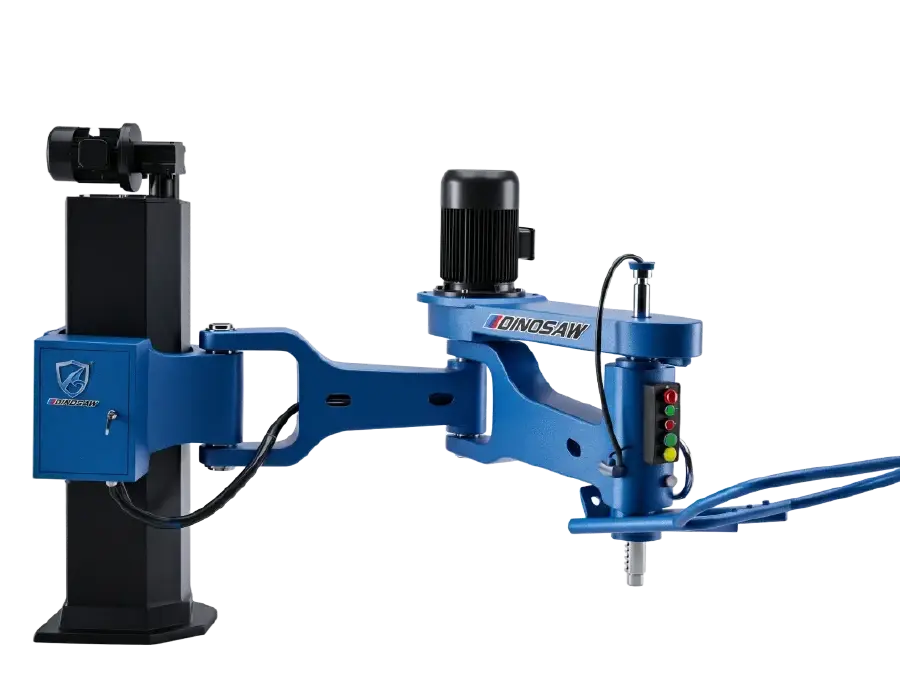

Manual Stone Polishing Machine for Granite & Marble

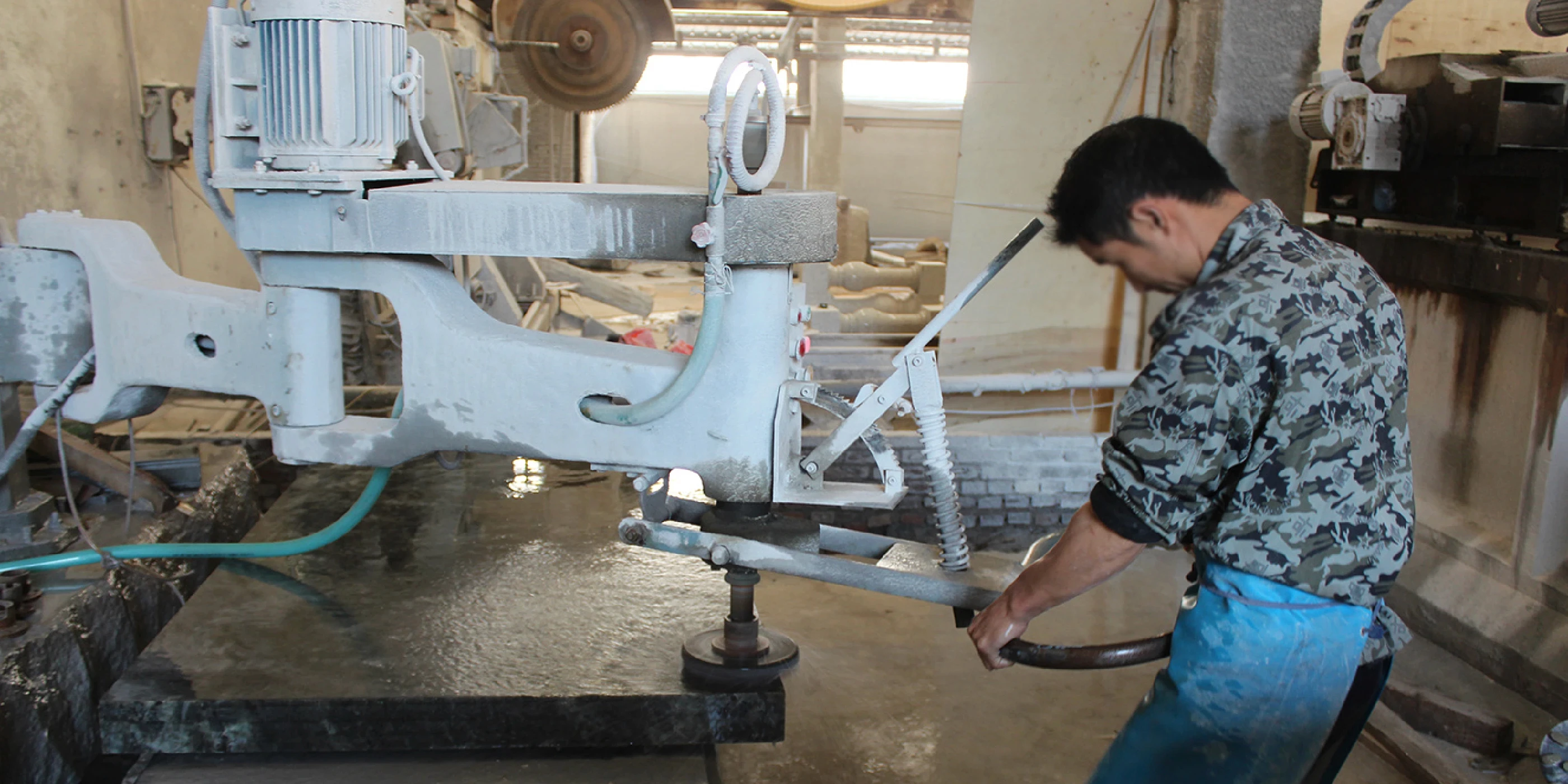

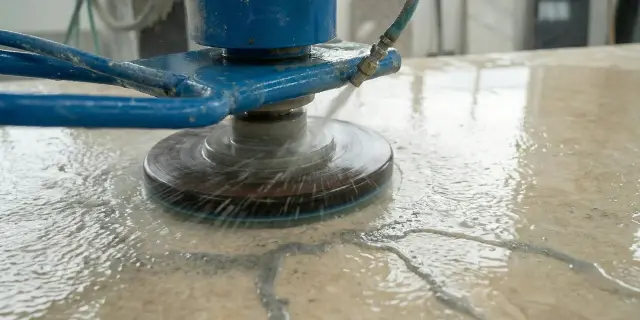

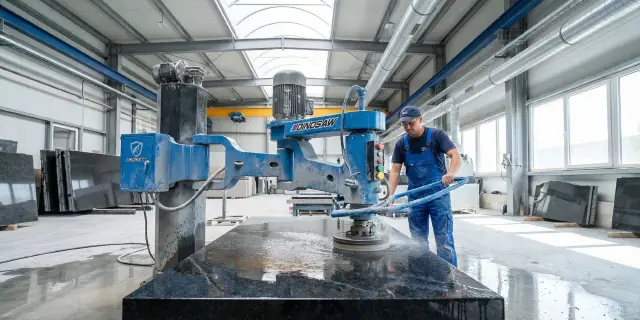

The pneumatic pressure assistance system provides consistent force support while maintaining complete operator control.

This innovative design eliminates operator fatigue during extended polishing sessions, ensuring uniform material removal across large stone surfaces. The system assists with pressure application but operators retain full manual control over processing speed, pressure intensity, and movement patterns.

This allows instant adaptation to varying stone characteristics and specific surface requirements for optimal polishing results across different materials and applications.

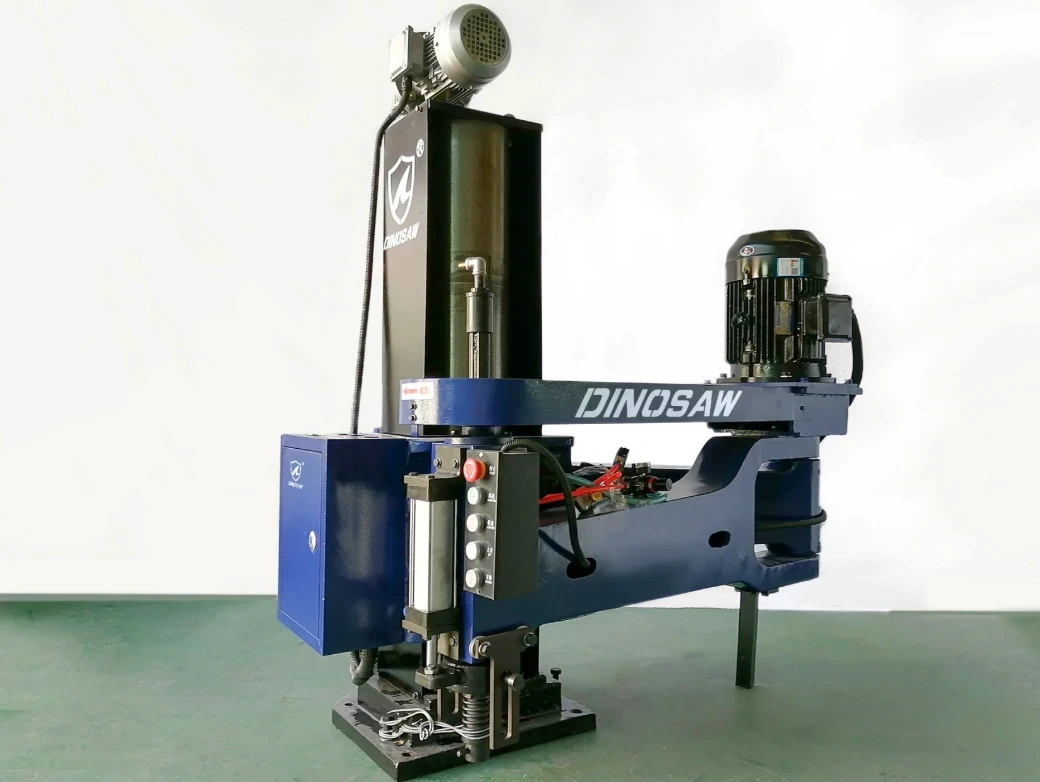

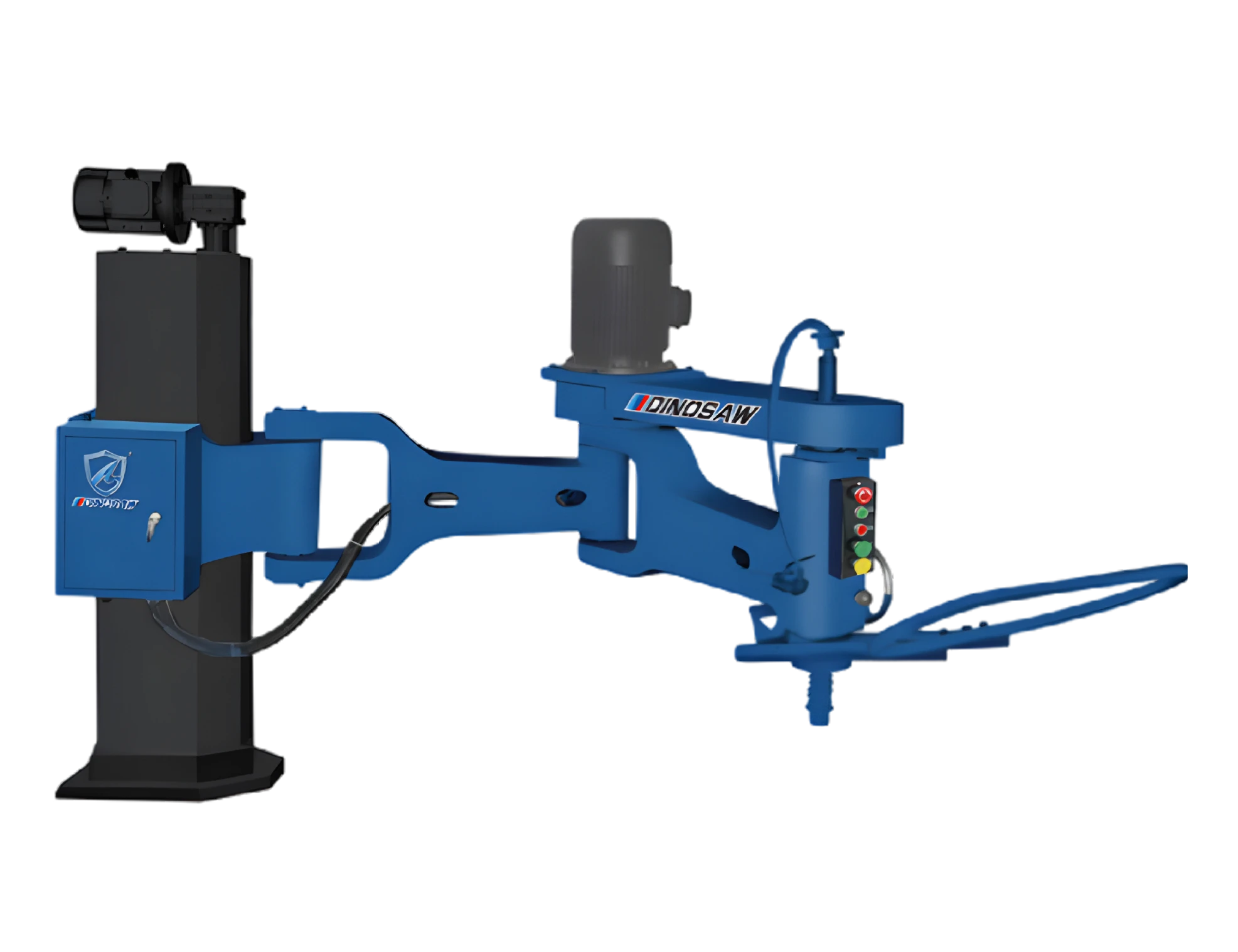

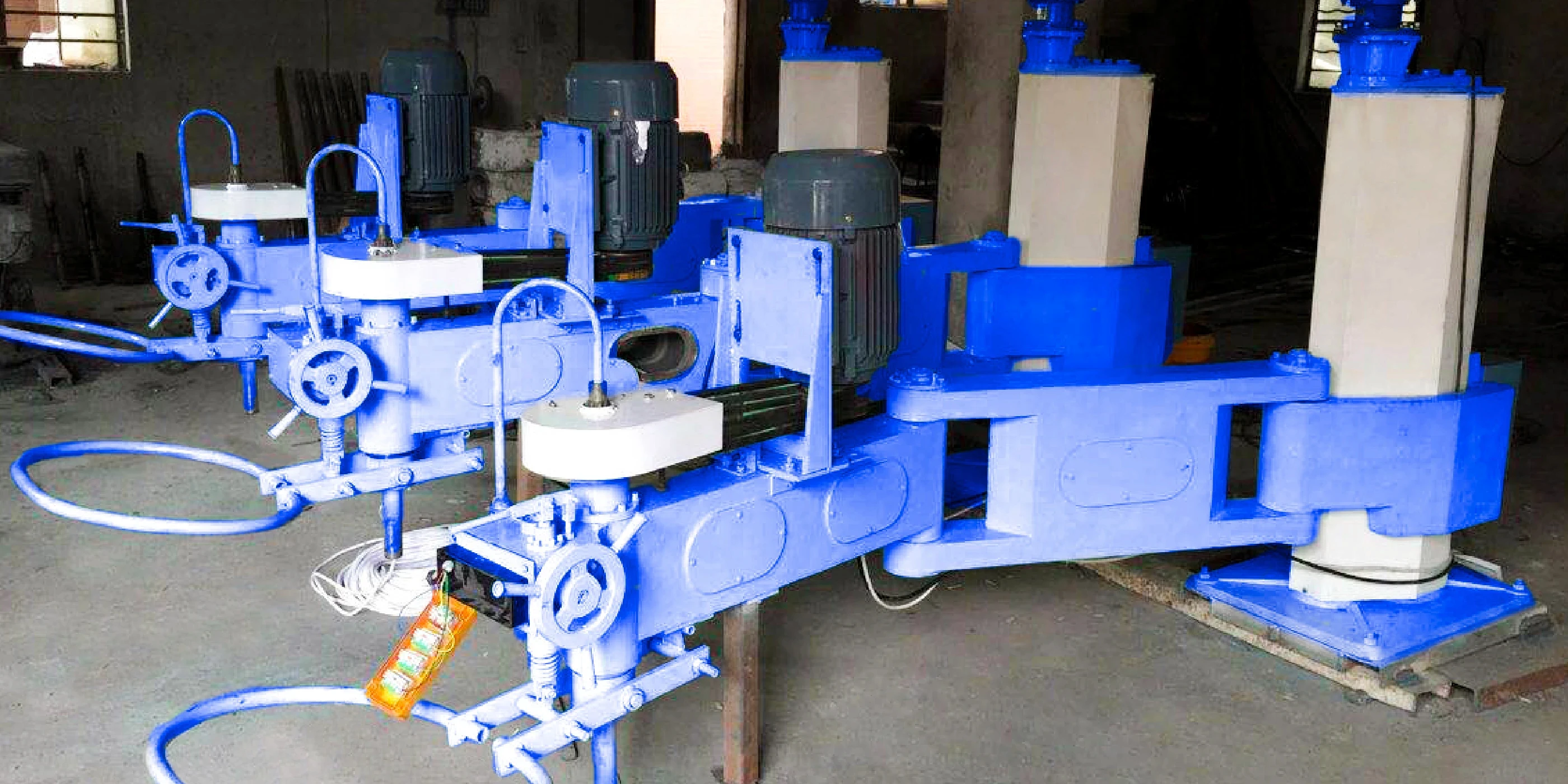

The SFMJ-2600 features a 2600mm gyro radius with 0.7-ton construction, making it ideal for standard stone processing applications and smaller workshop environments.

In contrast, the SFMJ-3000 offers an expanded 3000mm radius with robust 0.9-ton construction, specifically designed for larger stone processing projects and higher production volumes.

Both models maintain identical core specifications: 4.5/5.5kW motor power, 0-800mm vertical stroke capacity, and 3m³/h water consumption, ensuring consistent performance standards across the entire product range.

Manual stone polishing machines offer distinct advantages for specific applications and business models.

They provide superior flexibility for custom stone work, require significantly lower initial investment compared to automated systems, and operate without complex programming requirements.

This makes them perfect for small to medium-sized businesses specializing in memorial work, custom architectural elements, and unique fabrication projects where adaptability and operator control outweigh high-volume production requirements.

Manual machines also enable immediate response to custom specifications and design changes during processing.

Optimal performance requires a structured maintenance approach with regular daily, weekly, and monthly procedures.

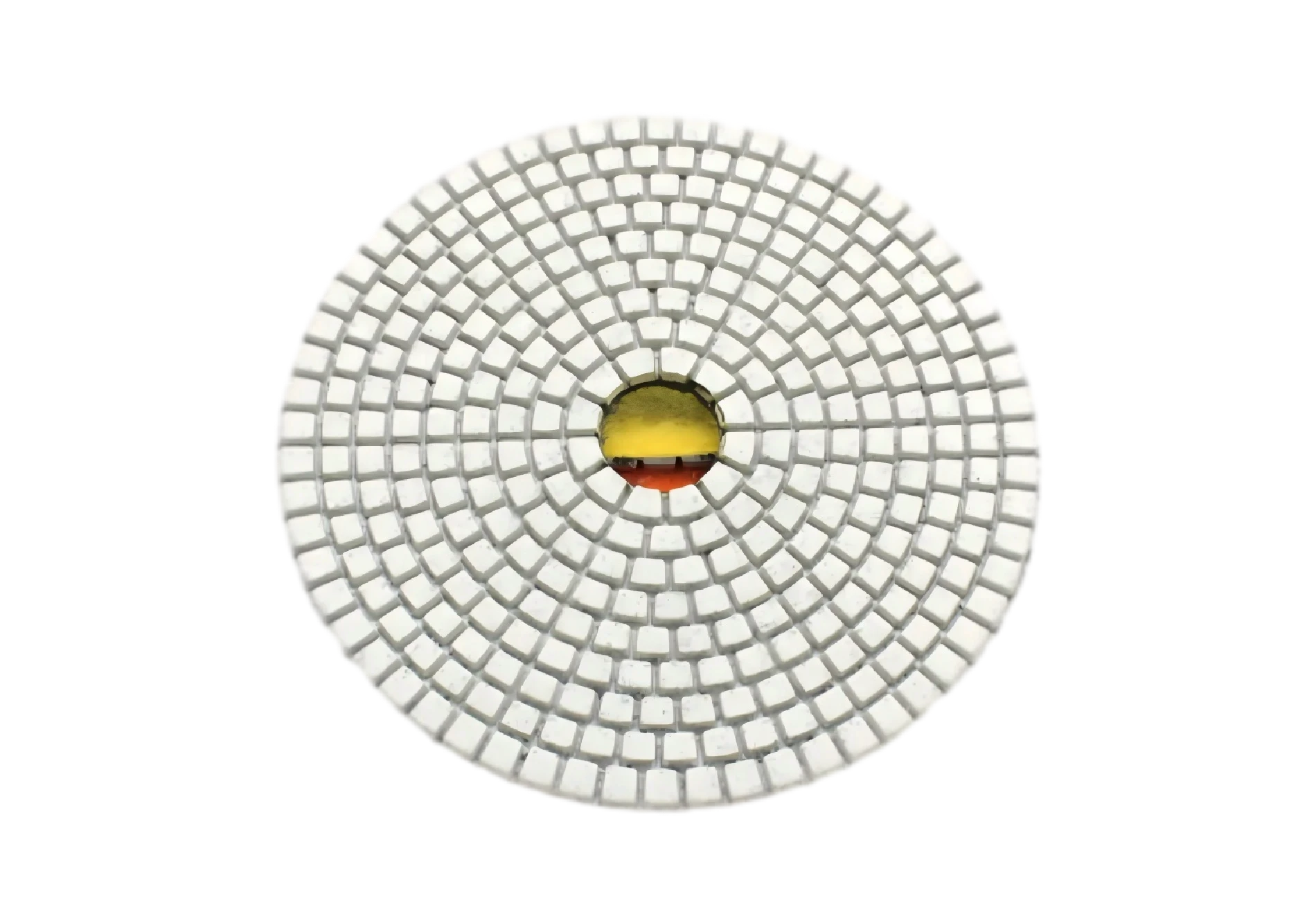

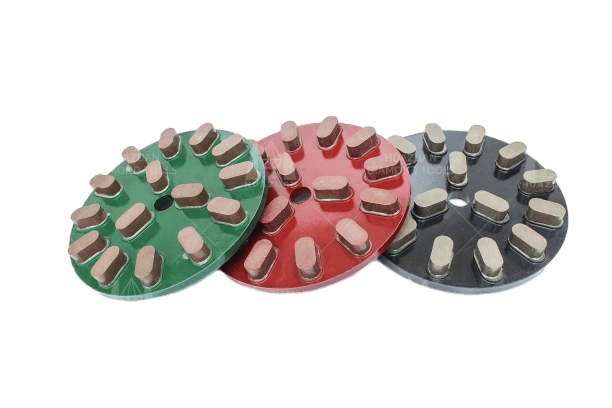

Daily operations should include water system inspection, grinding disc condition assessment, and operational parameter verification.

Weekly maintenance involves thorough lubrication of guide components, pneumatic system pressure checks, and motor performance evaluation.

Monthly procedures include comprehensive pressure system calibration, electrical connection inspection, and grinding wheel alignment verification.

Annual professional servicing addresses internal mechanical components and electrical system diagnostics.This schedule ensures maximum machine lifespan while maintaining consistent stone processing quality standards.

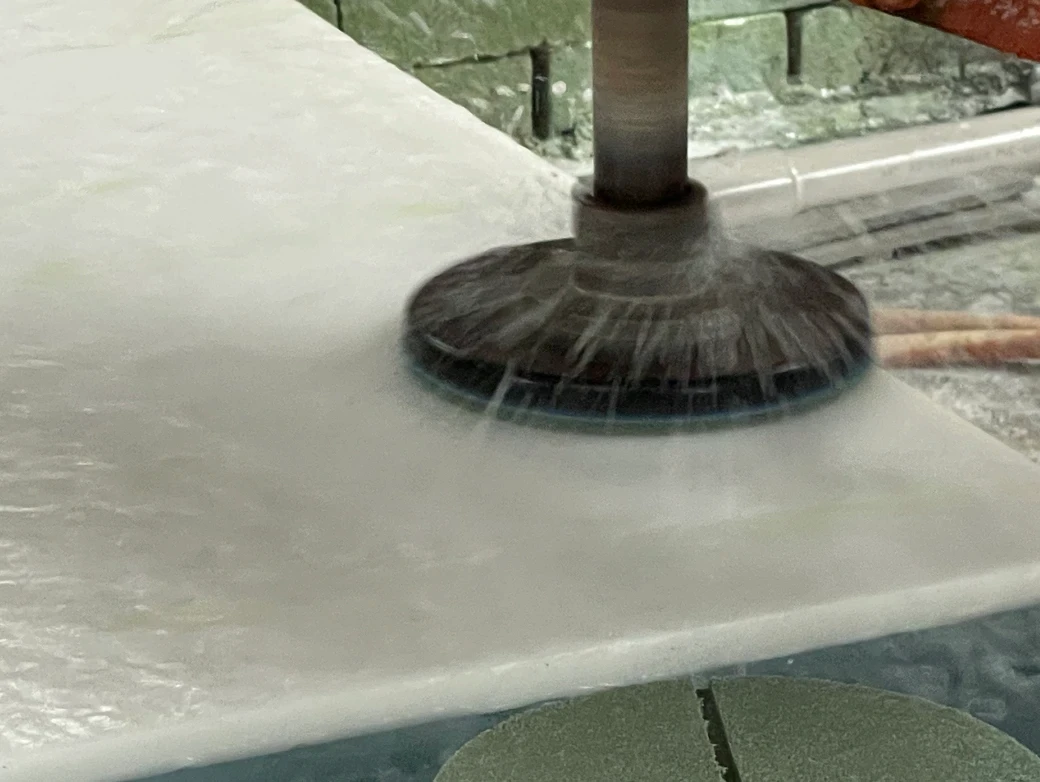

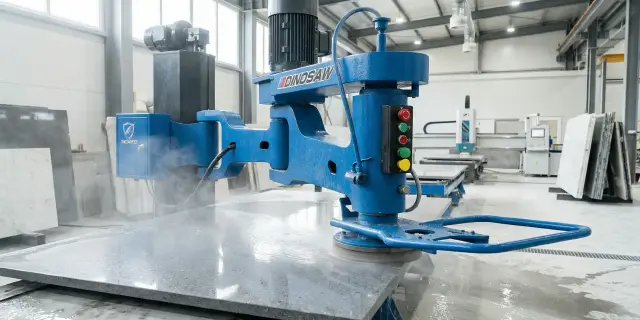

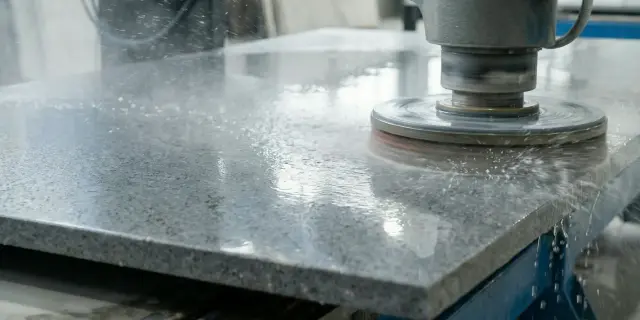

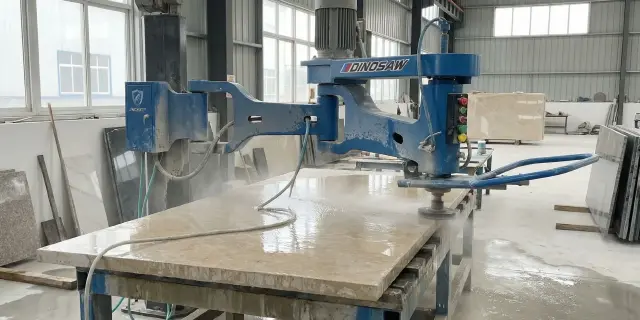

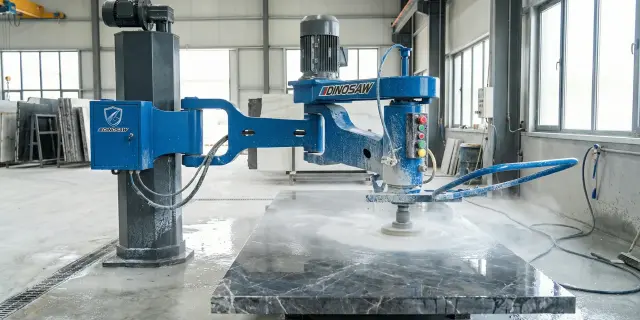

The DINOSAW SFMJ manual stone polishing machine specializes exclusively in flat surface polishing applications, delivering exceptional results across diverse stone materials.

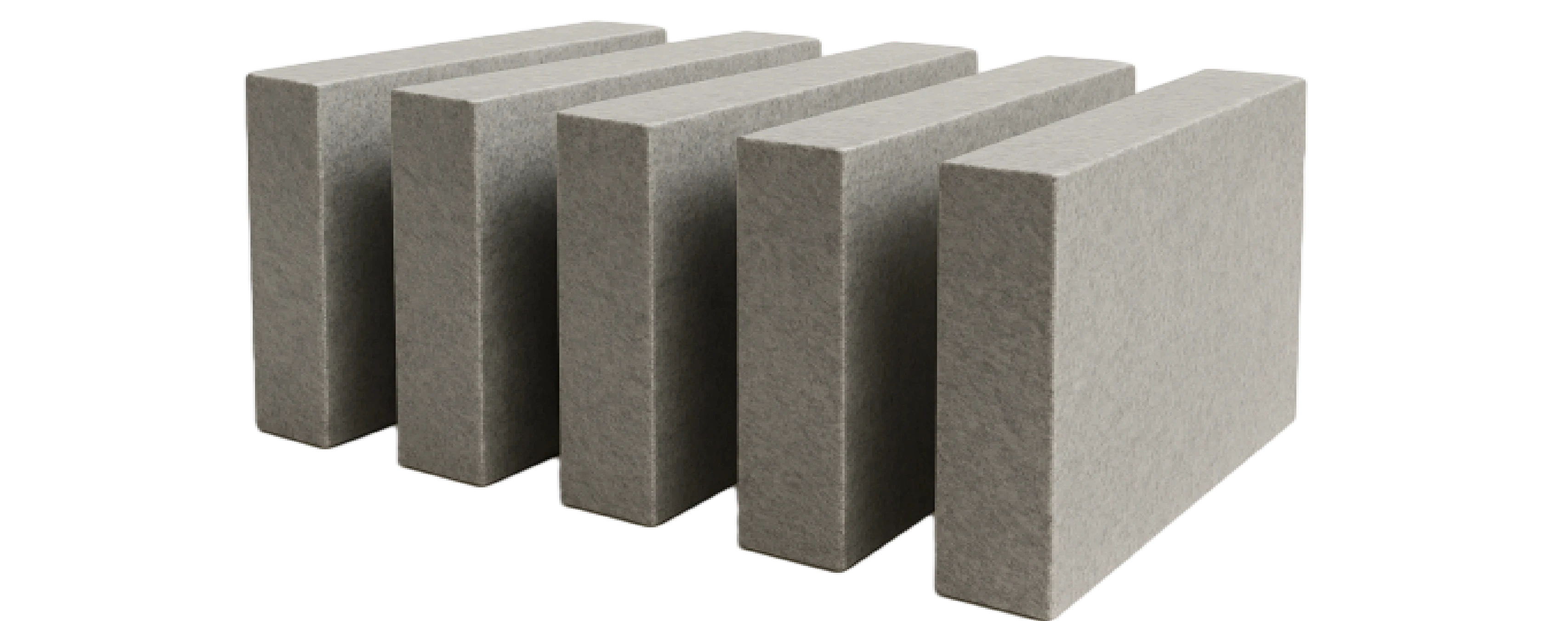

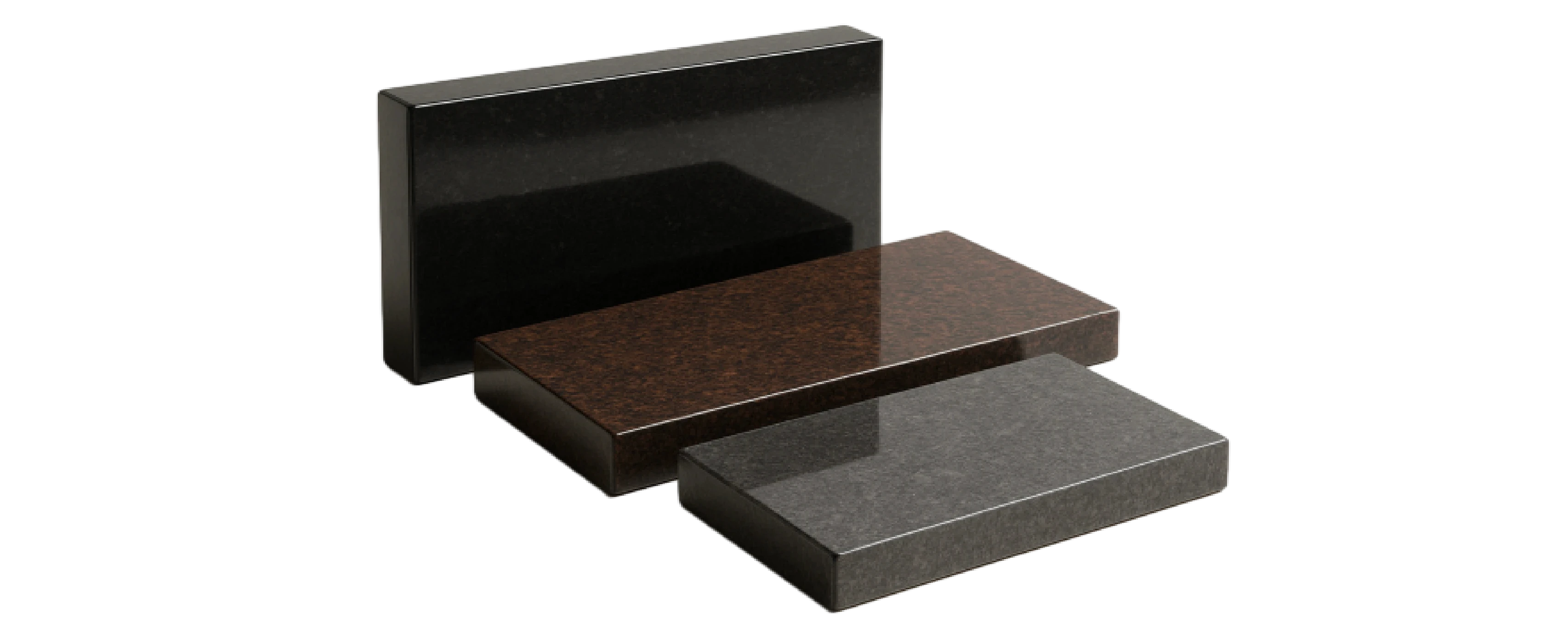

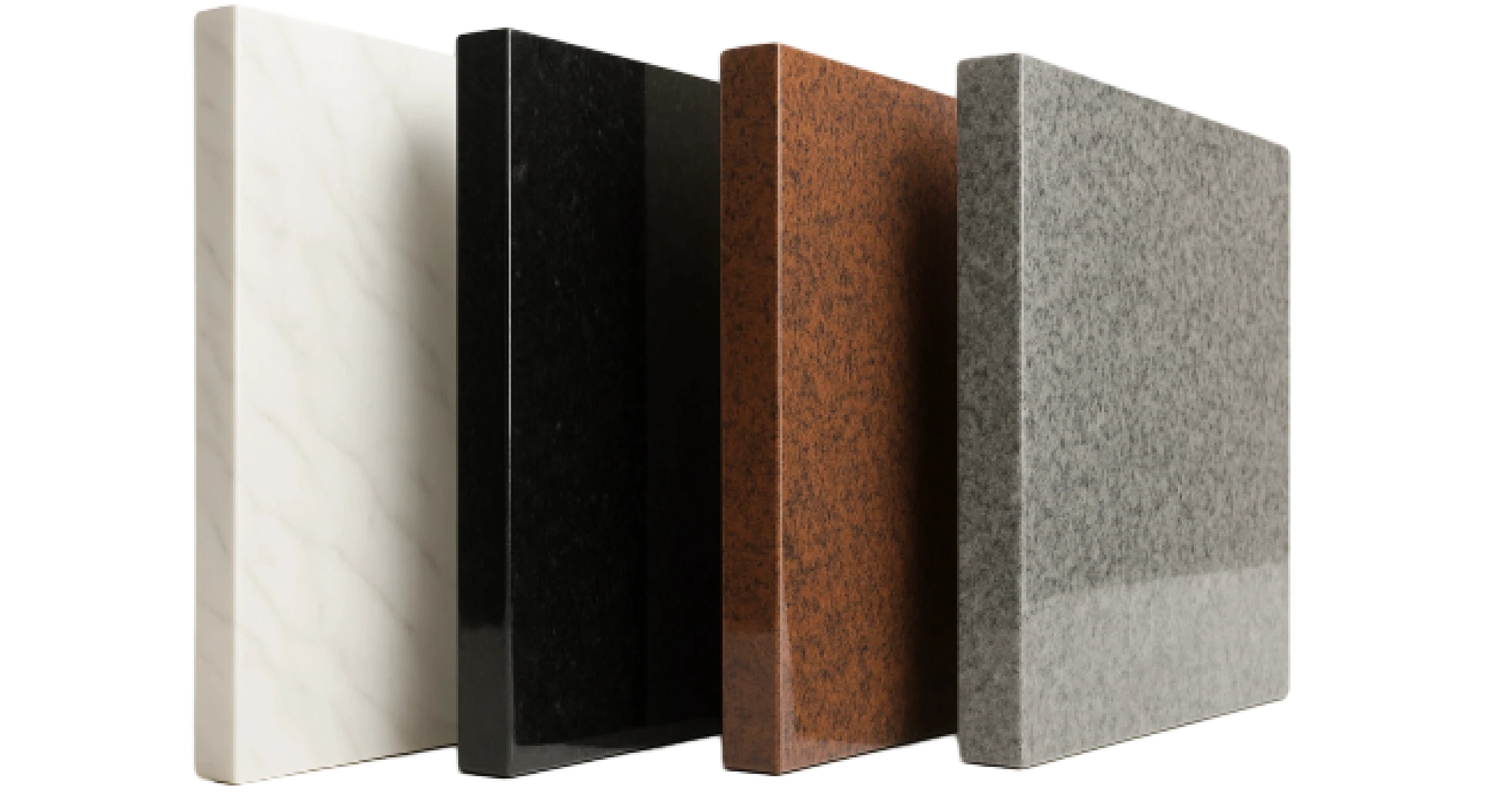

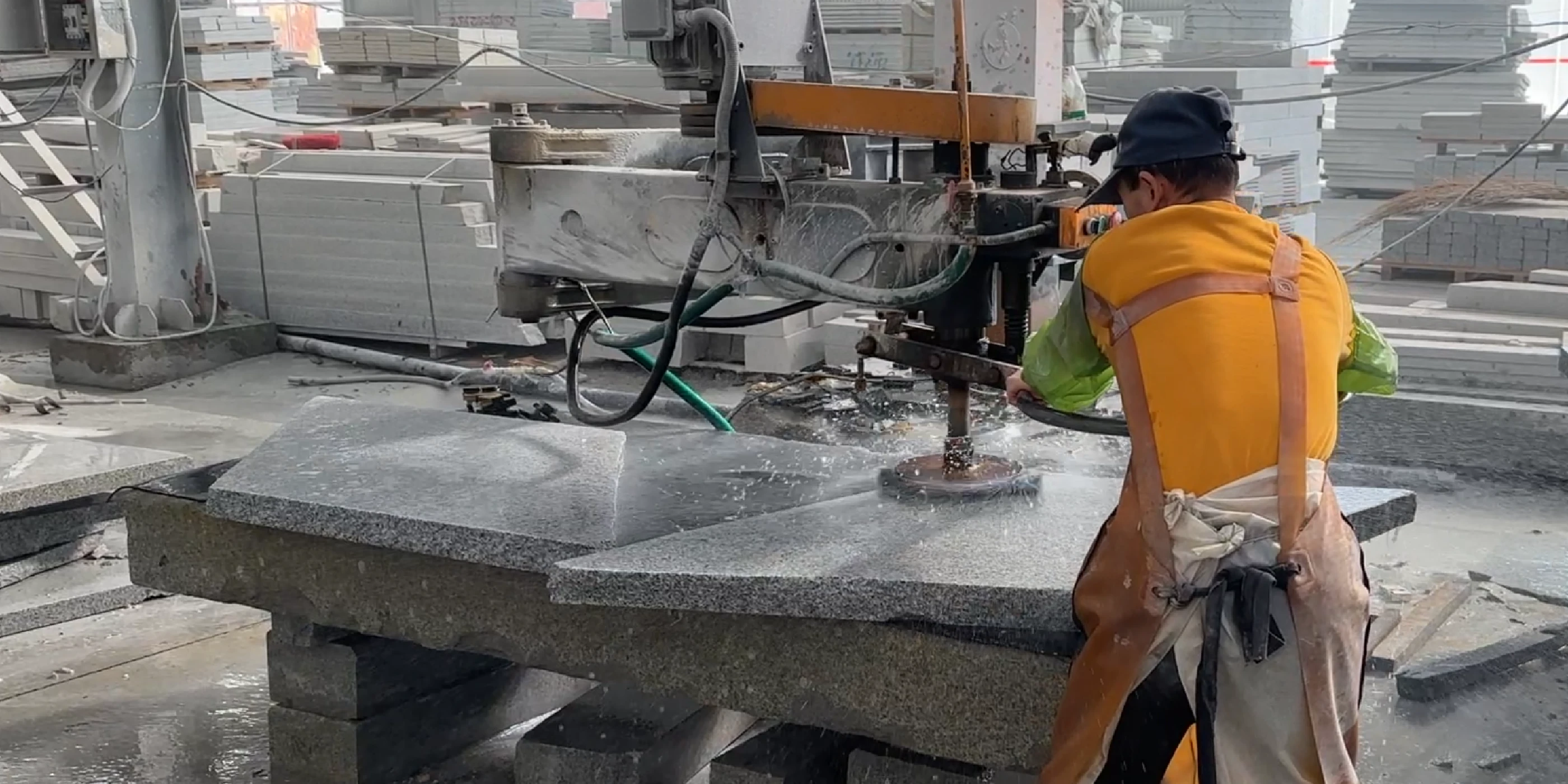

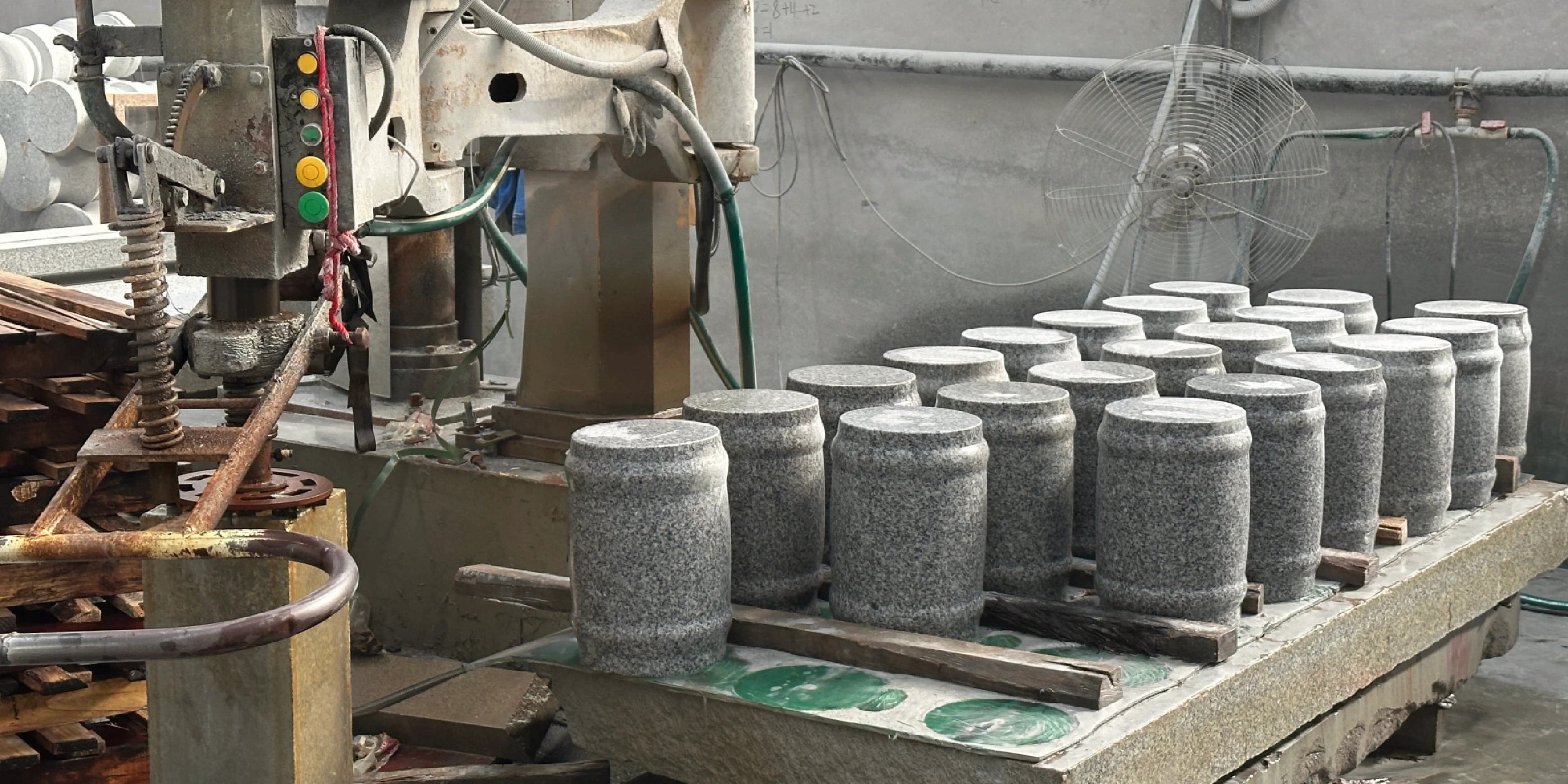

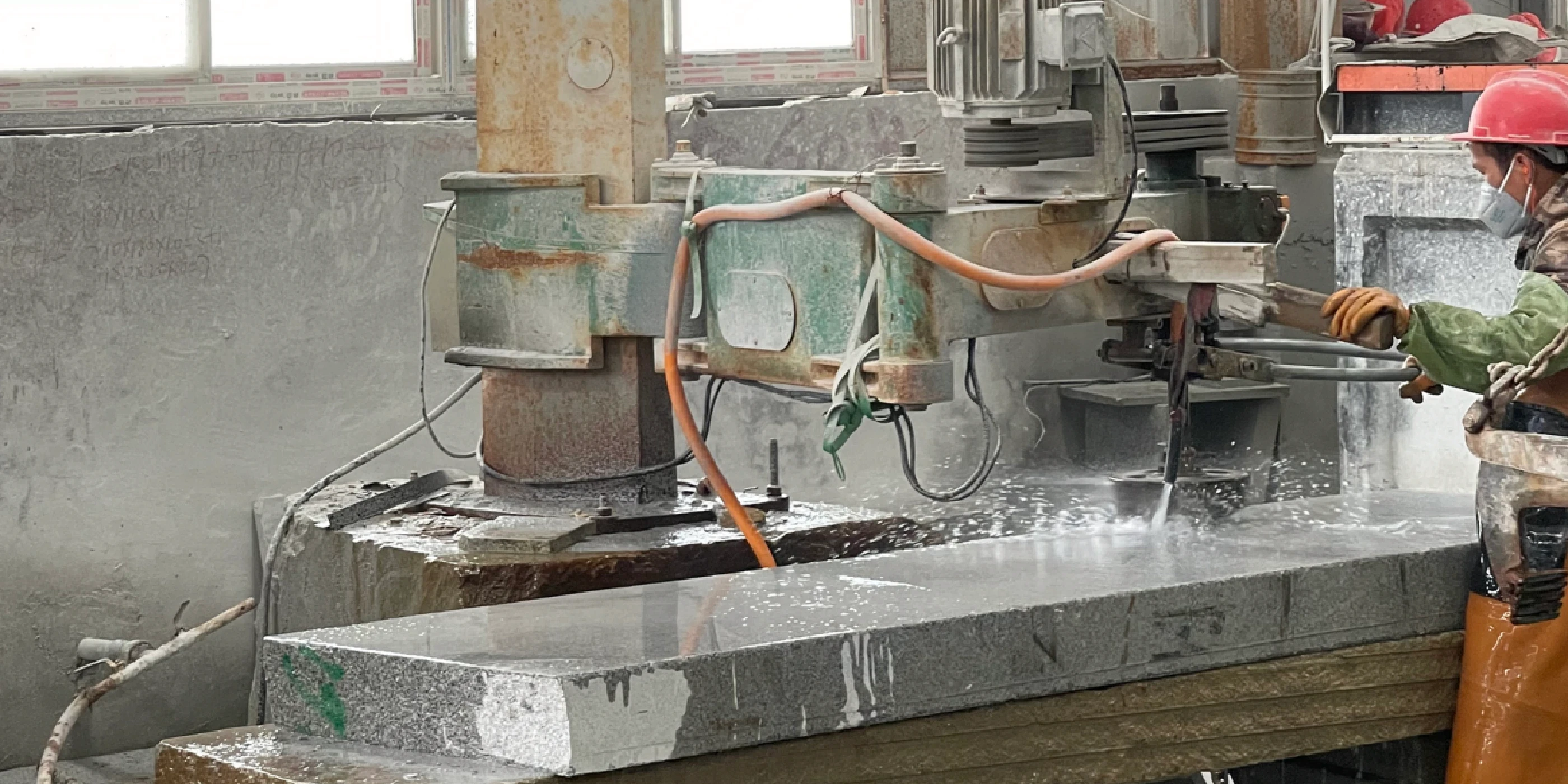

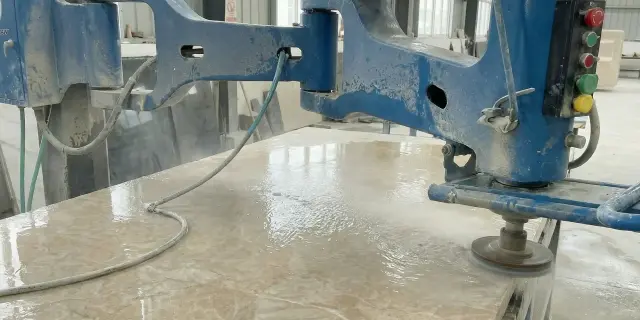

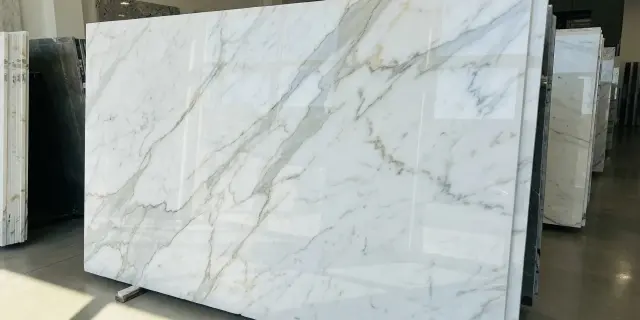

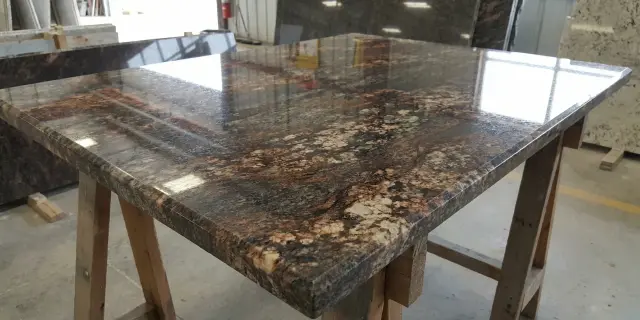

It excels at processing granite tombstones, marble kitchen countertops, limestone curbstones, quartz commercial surfaces, and natural stone floor tiles.

The machine's flat surface processing capabilities make it ideal for memorial monuments, bathroom vanity tops, stair treads, wall panels, door thresholds, and architectural elements requiring smooth, polished flat surfaces.

This focused design ensures superior precision and consistency for all flat stone processing requirements.

Choose by your largest regular workpiece. The SFMJ-2600 (2600 mm radial reach, 0.7 t) covers tombstones, countertops and panels within a 2.6 m sweep in a compact 2600 × 650 mm footprint. The SFMJ-3000 extends the reach to 3000 mm for larger panels and long countertops, at 0.9 t. Both share the same 4.5/5.5 kW dual-speed motor, Ø220 mm wheel, 800 mm vertical stroke and pneumatic assistance — the only real difference is arm reach, so size the machine against the biggest piece you polish weekly, not the biggest piece you have ever polished.

It depends on volume mix, and many shops end up running both. The SFMJ keeps capital cost low and polishes any shape an operator can guide the wheel along — ideal for varied custom work, one-off monuments and start-up volumes. Automatic machines (the QDMJ bridge polisher for slabs, or the DINO-SKS DP-01 with vision positioning and automatic tool change for volume tombstones) repay their cost when daily counts rise and gloss consistency must be measured rather than judged. A practical growth path: start with the SFMJ, add an automatic machine when operators become the bottleneck, and keep the manual machine for shaped and repair work where flexibility matters more than rate.

Yes — most automated factories keep one, and use it daily. Automatic lines and bridge polishers excel at standardized slabs and batch products, but repairs, one-off monuments, edge corrections and irregular custom pieces need a human guiding the wheel. The SFMJ serves as the flexible finishing cell beside the automatic equipment: rework a rejected slab, polish a shaped memorial the line cannot fixture, or finish a single custom order without occupying the production machine. Its low investment and small footprint make it an easy permanent companion to an automatic line rather than a predecessor to be discarded.
