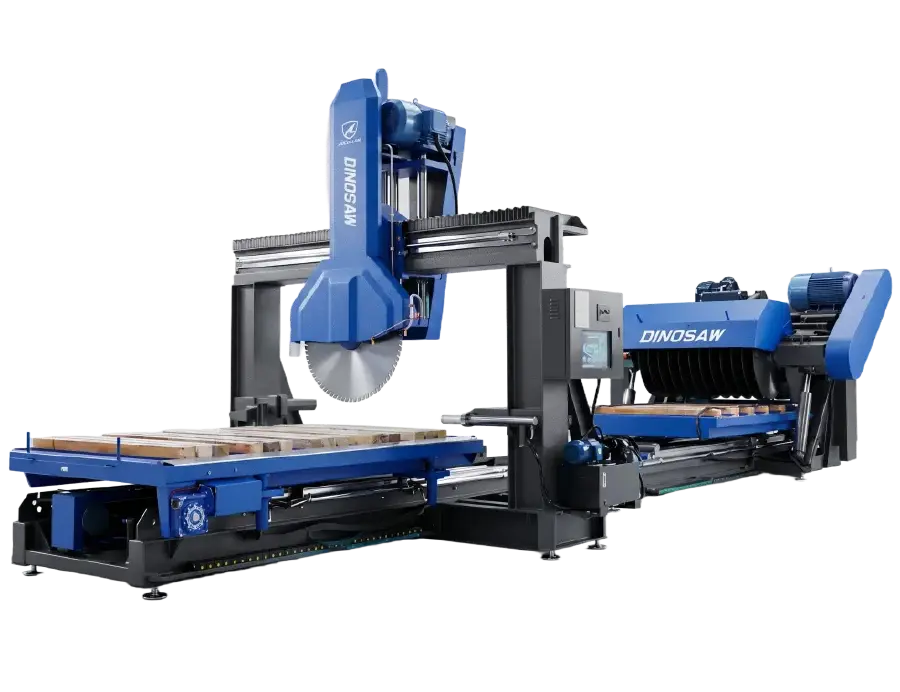

Automatic Curbstone Cutting Machine | Kerbs Production Line

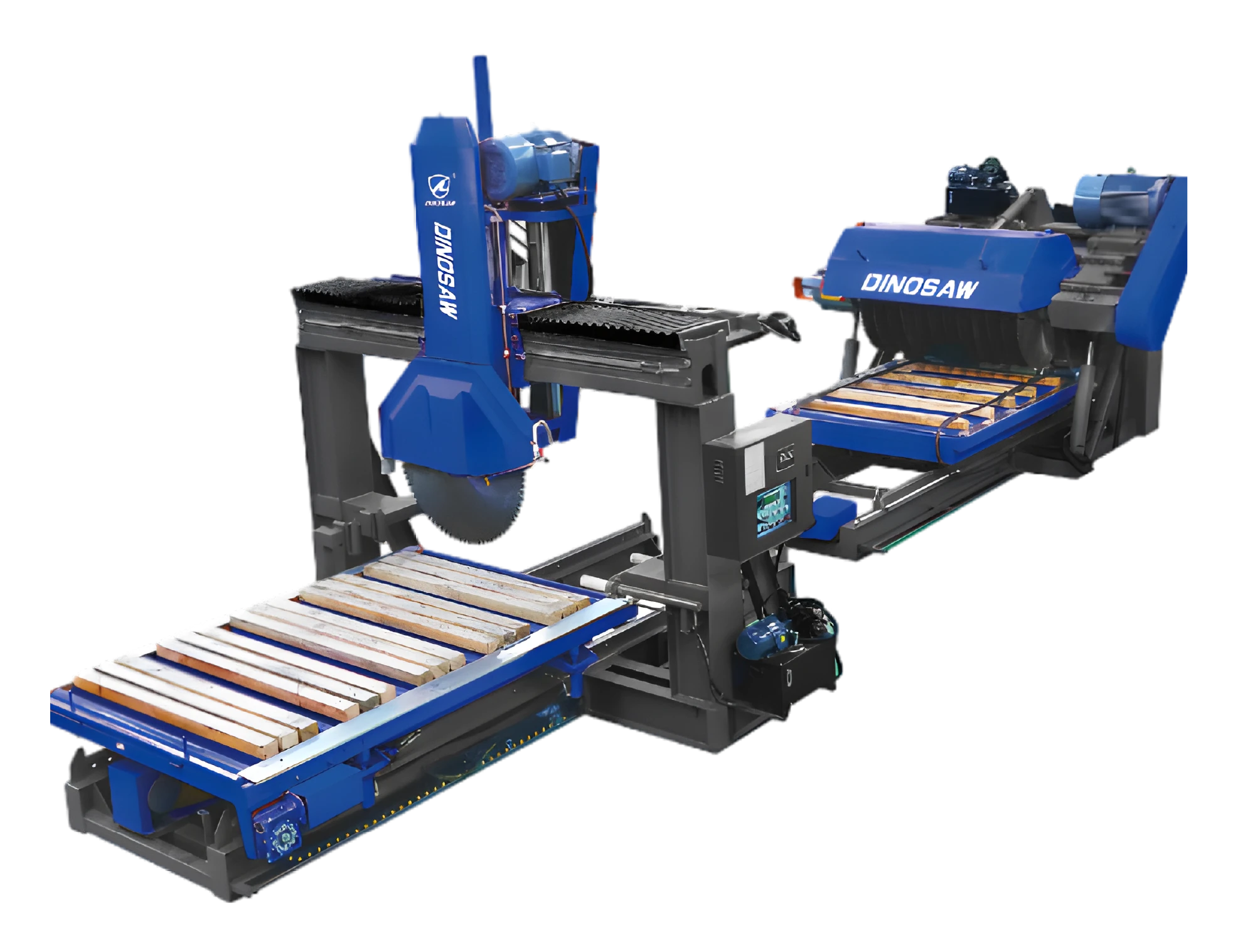

LYFP-1200 & LYQB-1200

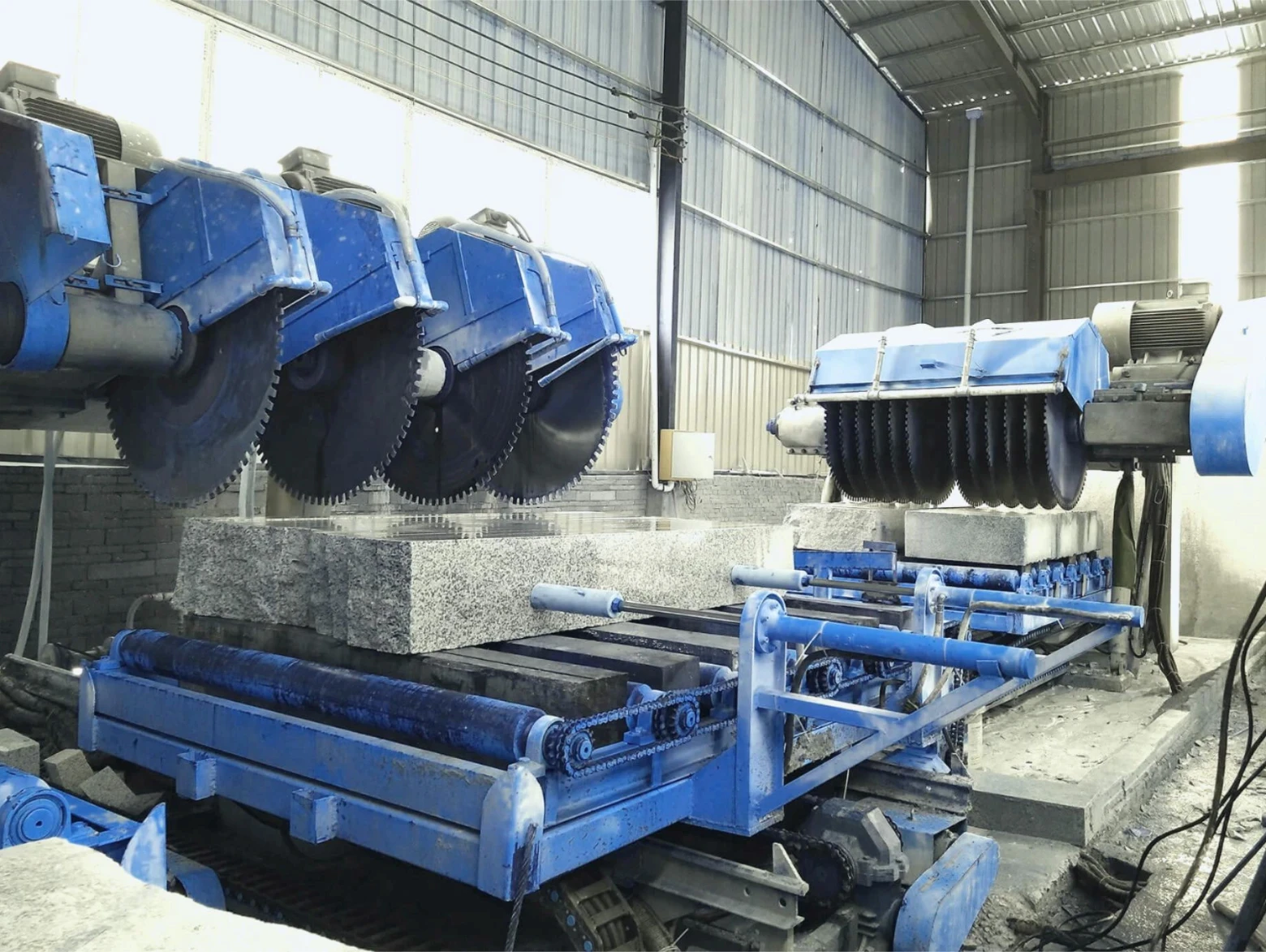

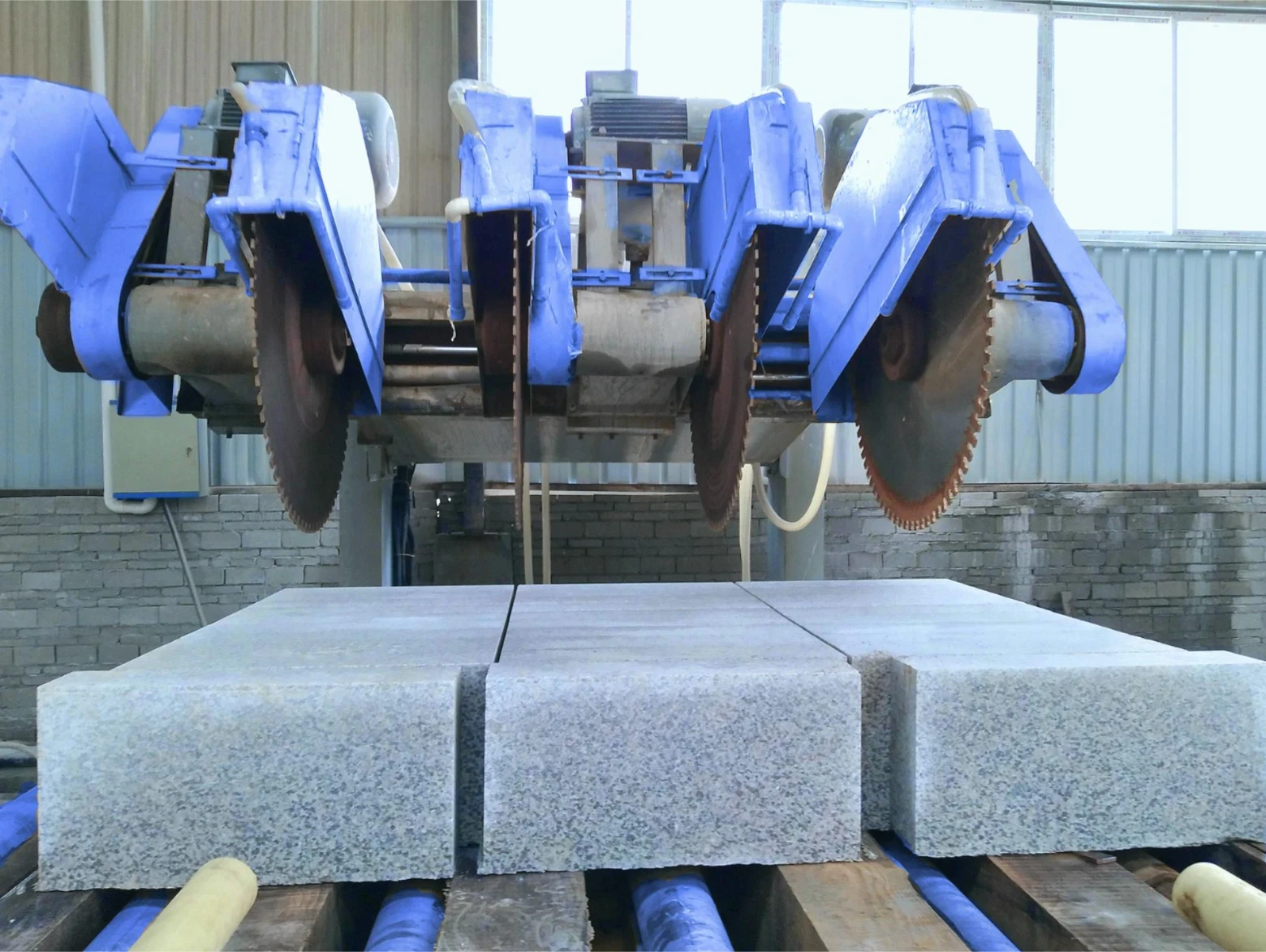

DINOSAW curbstone cutting production line integrates slicing and edge cutting machines through an automated roller conveyor system, enabling 30-35m³ daily output. The multi-blade configuration with 10-14 diamond blades cutting simultaneously increases efficiency, while automated measuring, cutting and material handling needs only one operator. The production line processes various materials including granite, marble, limestone, basalt, sandstone, concrete and cast stone brick. It produces curbstones, pavers, barriers and square-shaped semi-finished products.

Compatible Materials & Products

Advanced Curbstone and Kerbstone Cutting Solutions for Urban Infrastructure

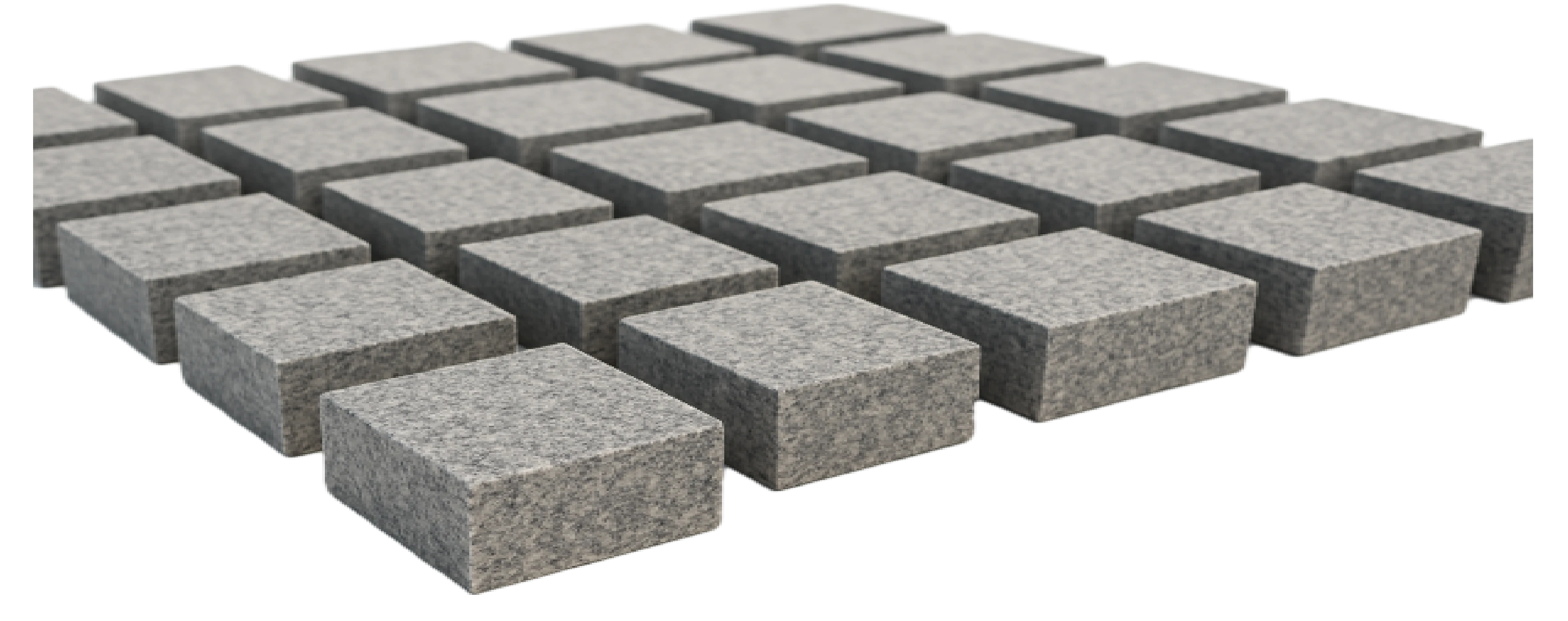

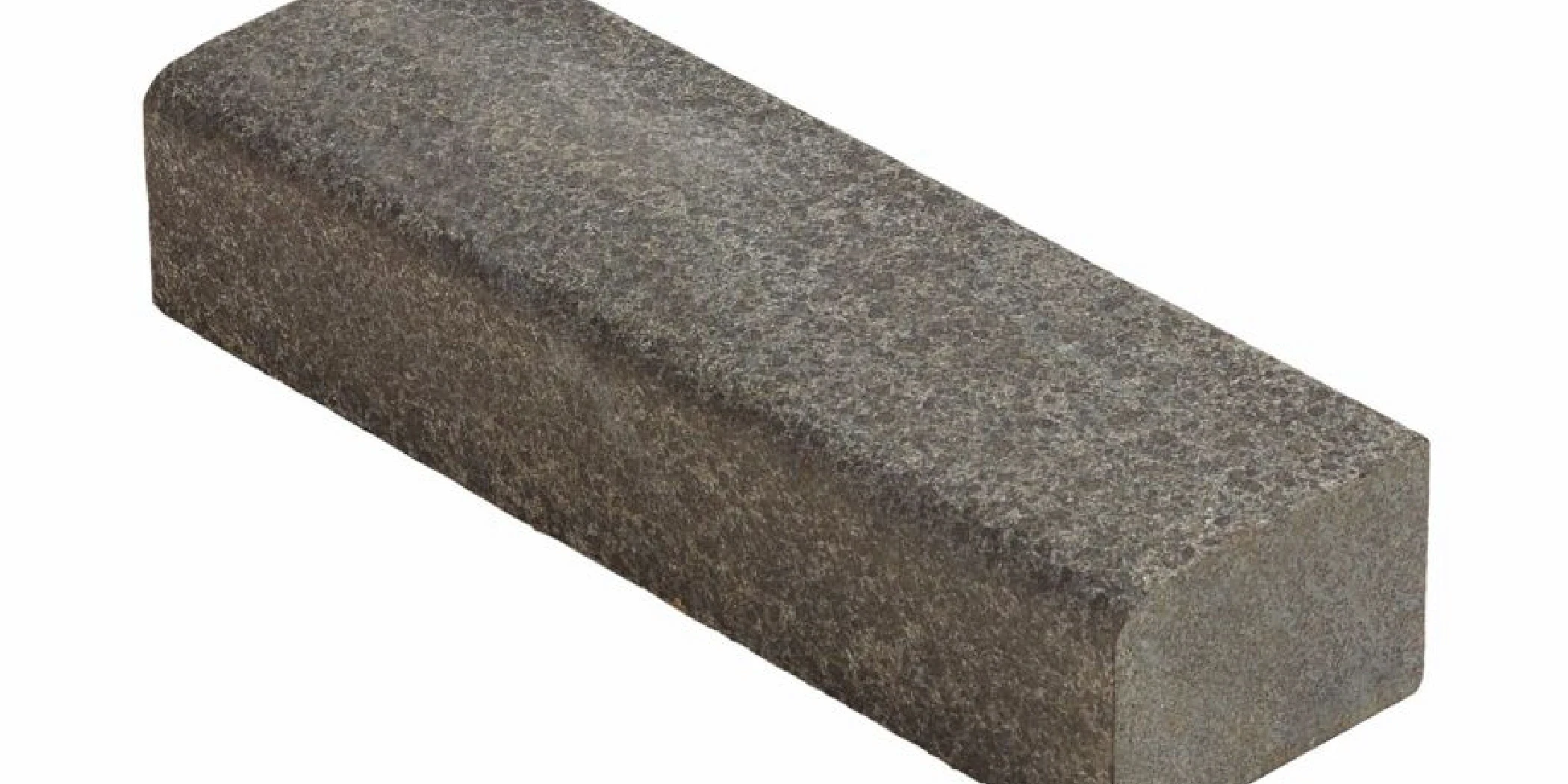

Granite > Urban Road Curbstones

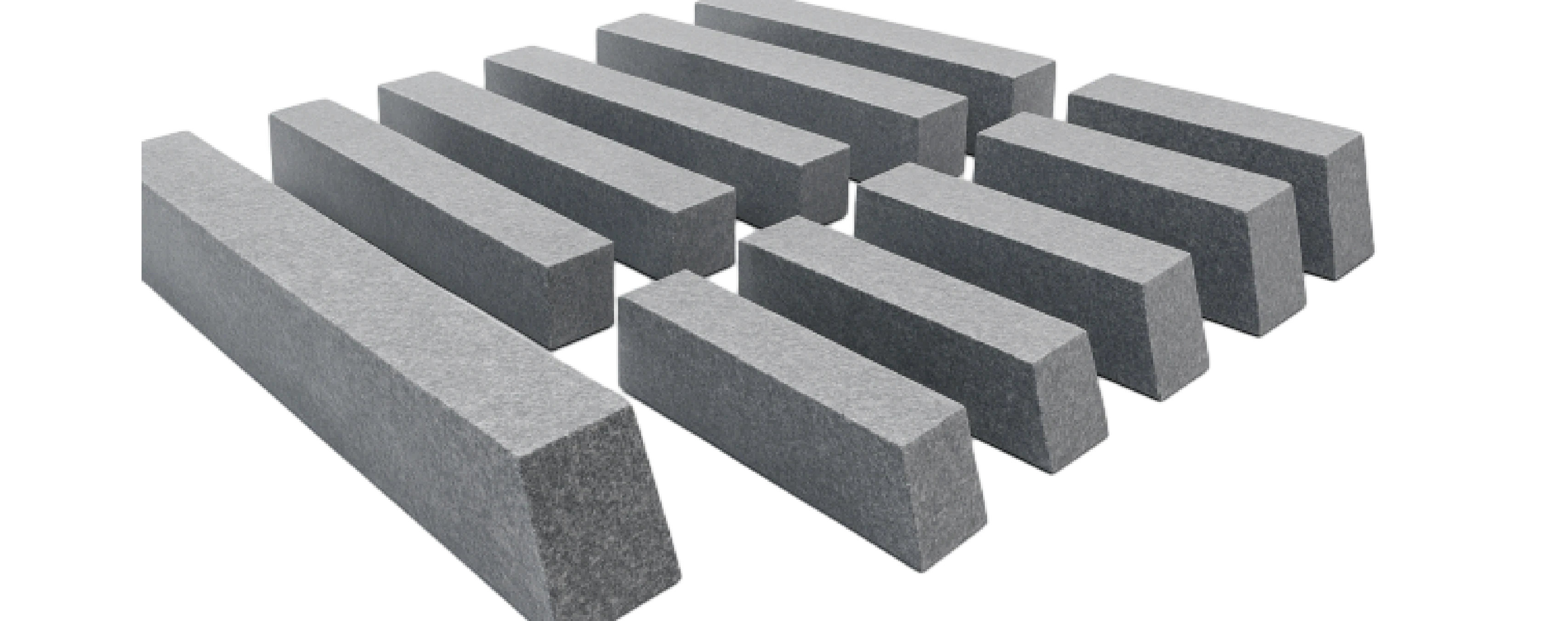

Concrete > Simple Straight Curbs

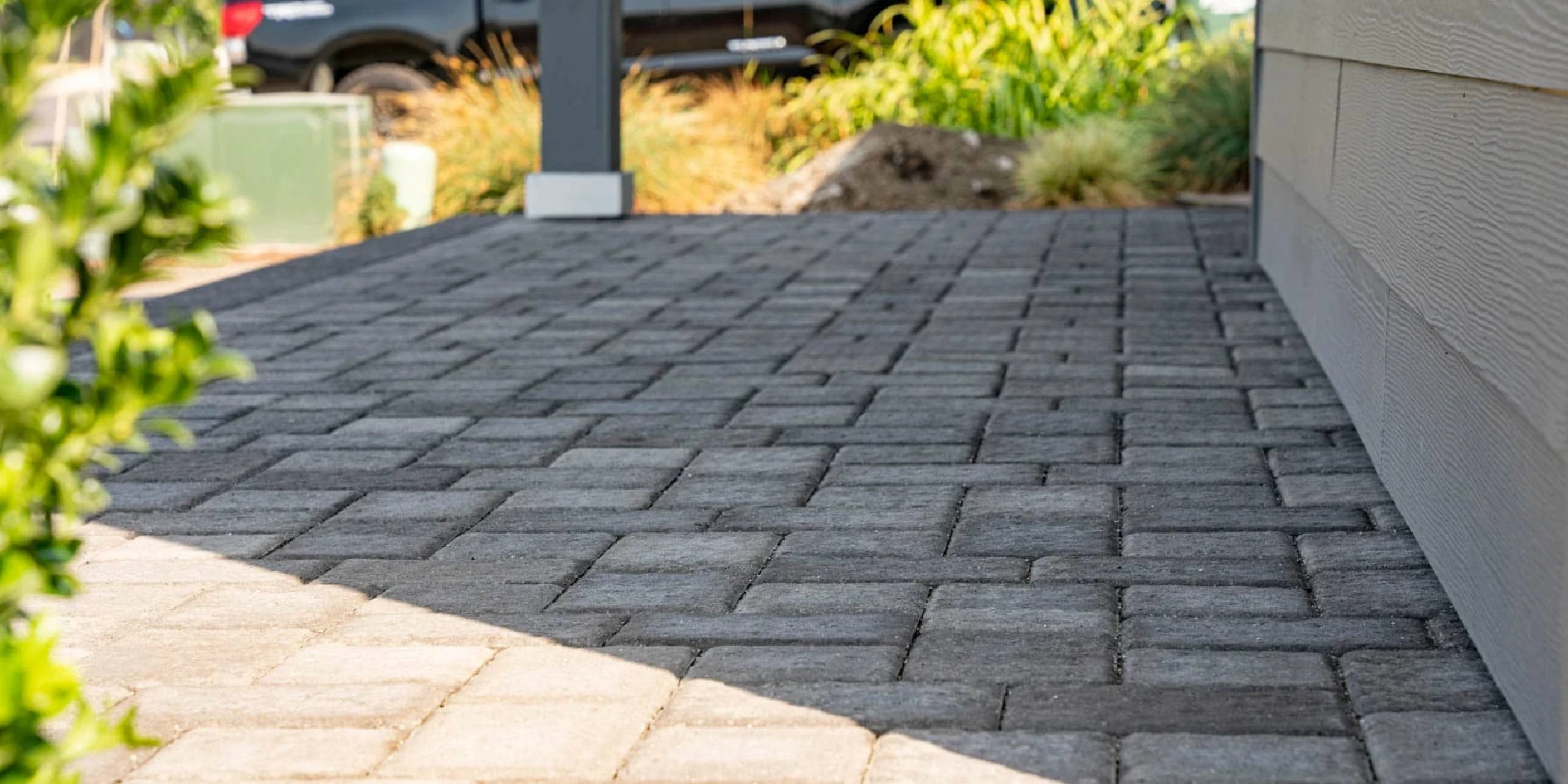

Cast Stone Brick > Pavers

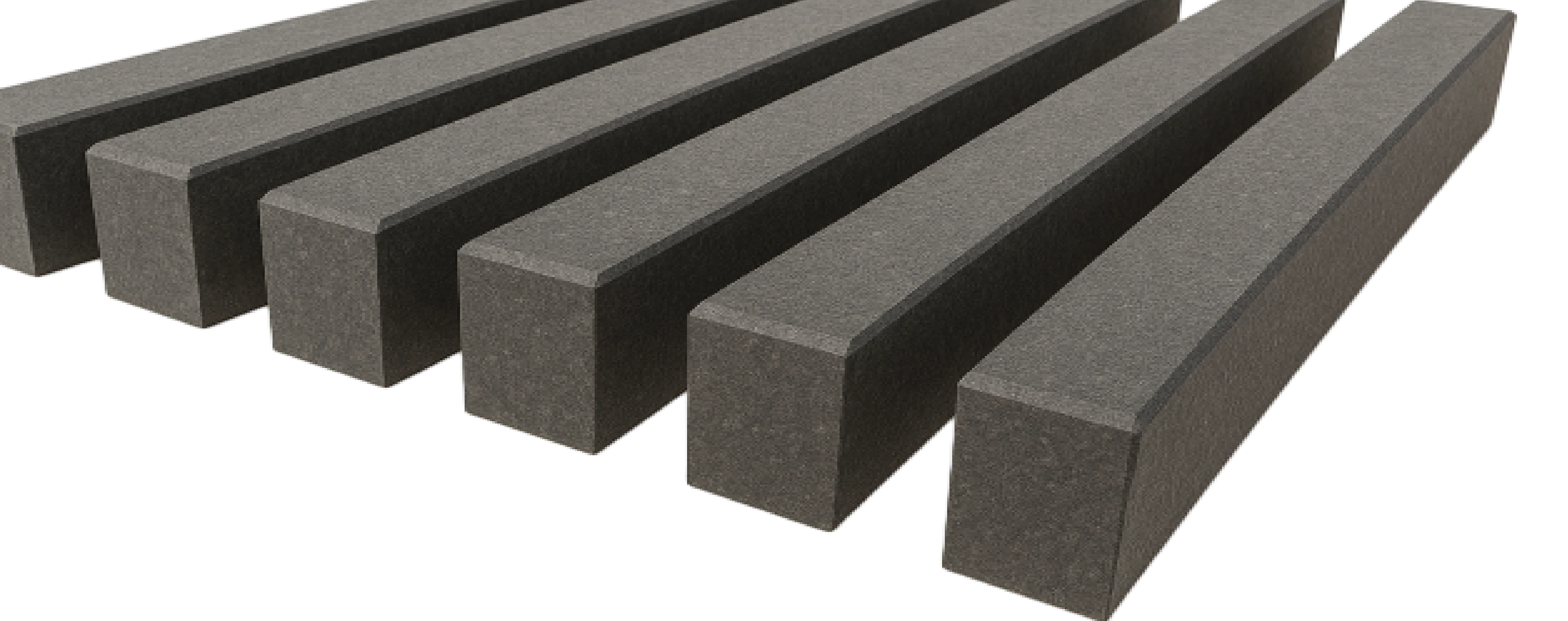

Basalt > Borders

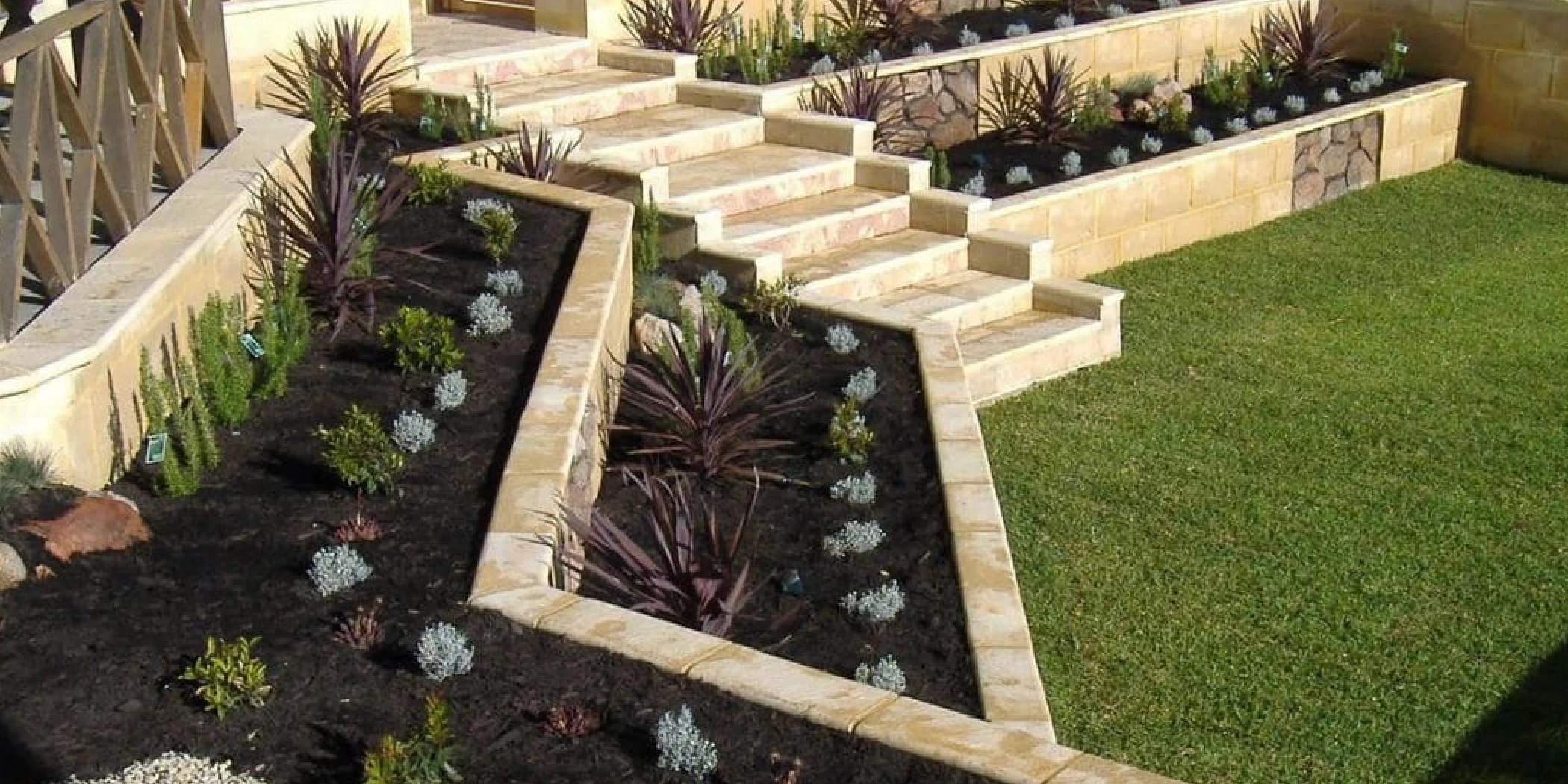

Limestone > Landscape Curbing

Granite curbstones represent the gold standard for urban road infrastructure, offering unmatched durability for high-traffic municipal applications. Their dense crystalline structure withstands decades of weathering, heavy loads, and vehicle impacts, making them ideal for busy city streets and highways where replacement costs are prohibitive. This exceptional longevity delivers lifetime infrastructure cost savings of 35-45% compared to alternative materials.

Municipal engineers specifically choose granite for its proven 50+ year service life in harsh urban environments. Its resistance to freeze-thaw cycles, deicing chemicals, and constant vehicle impacts provides critical performance advantages where road safety and longevity intersect. The minimal edge degradation even after decades of snow plow contact preserves crosswalk alignments and water drainage profiles, key factors in urban planning regulations.

Our production system's precision cutting ensures the dimensional consistency required by municipal specifications, typically ±0.5mm tolerances across thousands of linear feet. This precision eliminates the costly on-site adjustments that plague less accurately manufactured curbstones. The smooth, flat surfaces and perfect 90° edges create tight-fitting joints that prevent water infiltration, extending pavement life and reducing maintenance costs.

Contractors appreciate the reduced installation time resulting from our granite curbstones' consistent dimensions and square edges. The reduced need for field adjustments accelerates project timelines while decreasing labor costs. For city planners, the combination of premium appearance, exceptional durability, and reduced lifecycle costs makes our precision-cut granite curbstones the financially responsible choice for urban infrastructure designed to last generations.

Granite > Urban Road Curbstones

Concrete > Simple Straight Curbs

Cast Stone Brick > Pavers

Basalt > Borders

Limestone > Landscape Curbing

Granite curbstones represent the gold standard for urban road infrastructure, offering unmatched durability for high-traffic municipal applications. Their dense crystalline structure withstands decades of weathering, heavy loads, and vehicle impacts, making them ideal for busy city streets and highways where replacement costs are prohibitive. This exceptional longevity delivers lifetime infrastructure cost savings of 35-45% compared to alternative materials.

Municipal engineers specifically choose granite for its proven 50+ year service life in harsh urban environments. Its resistance to freeze-thaw cycles, deicing chemicals, and constant vehicle impacts provides critical performance advantages where road safety and longevity intersect. The minimal edge degradation even after decades of snow plow contact preserves crosswalk alignments and water drainage profiles, key factors in urban planning regulations.

Our production system's precision cutting ensures the dimensional consistency required by municipal specifications, typically ±0.5mm tolerances across thousands of linear feet. This precision eliminates the costly on-site adjustments that plague less accurately manufactured curbstones. The smooth, flat surfaces and perfect 90° edges create tight-fitting joints that prevent water infiltration, extending pavement life and reducing maintenance costs.

Contractors appreciate the reduced installation time resulting from our granite curbstones' consistent dimensions and square edges. The reduced need for field adjustments accelerates project timelines while decreasing labor costs. For city planners, the combination of premium appearance, exceptional durability, and reduced lifecycle costs makes our precision-cut granite curbstones the financially responsible choice for urban infrastructure designed to last generations.

Consult DINOSAW Material Expert   →

  Specs and options

Specifications customizable upon request.

Machine

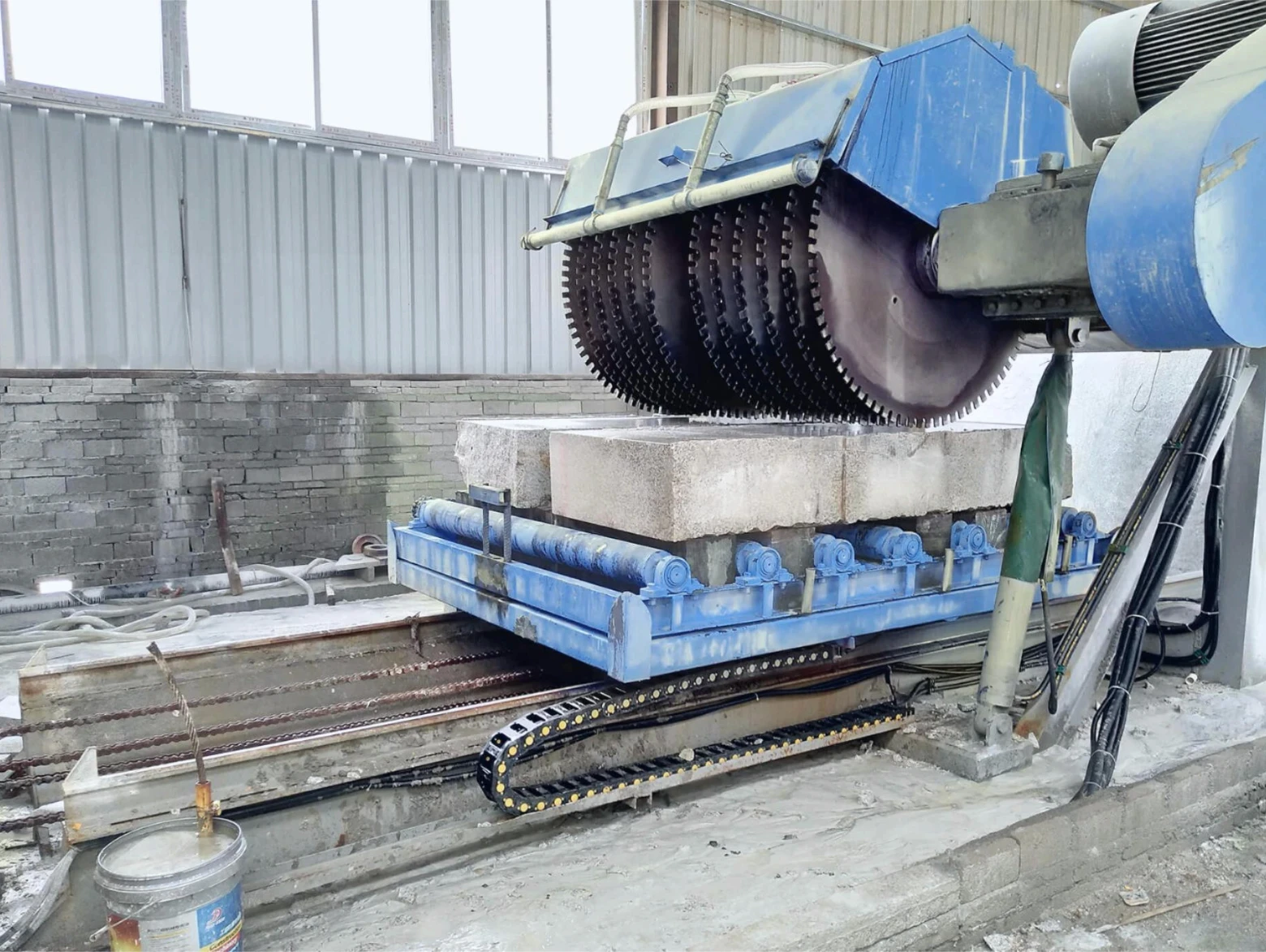

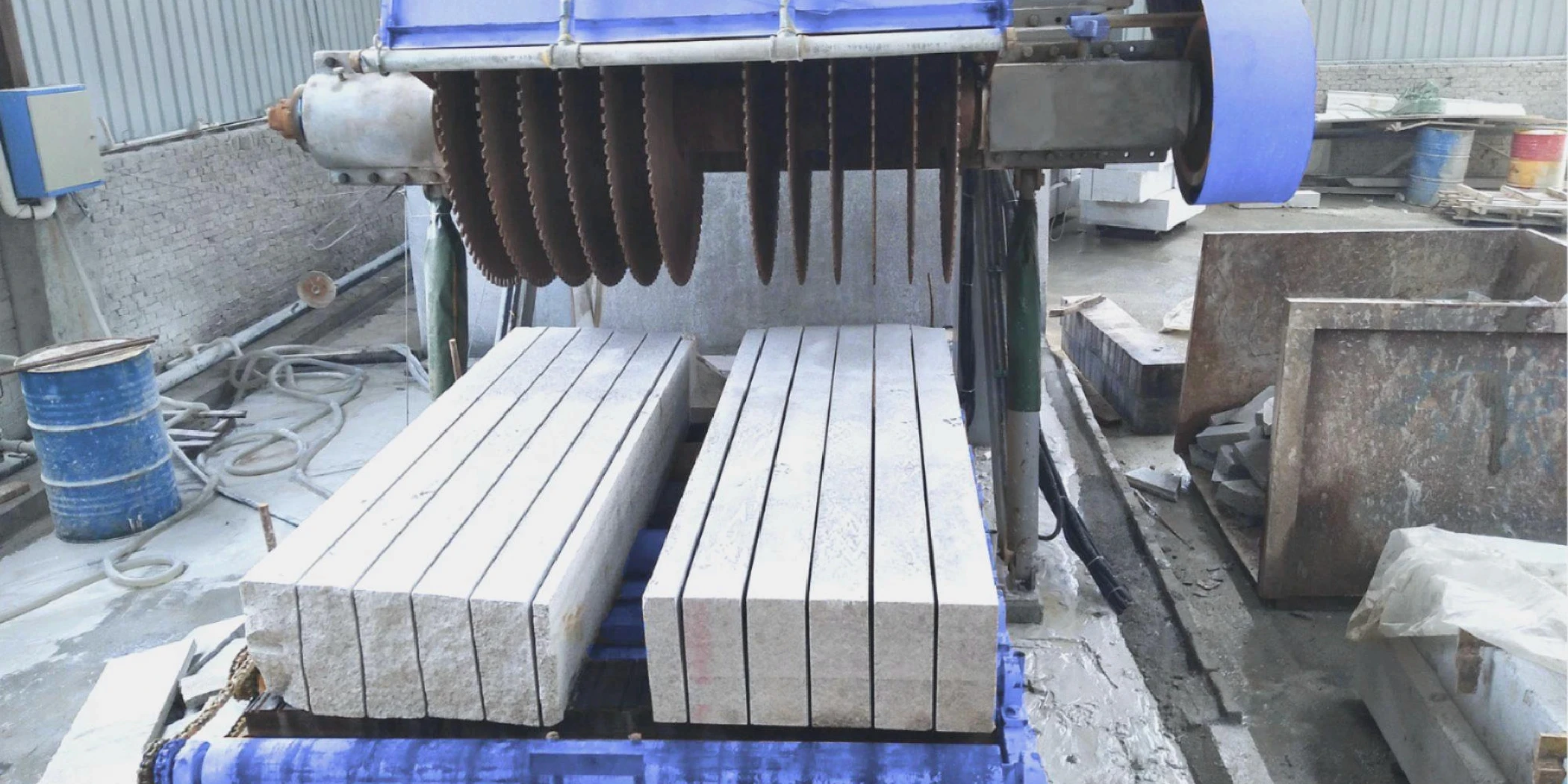

Curbstone Slicing Machine

Curbstone Edge Cutting Machine

Model

LYFP - 1200

LYQB - 1200

Dimension

5500×4000×4500mm

5500×2300×2500mm

Diameter of blade

1200mm

1200mm

Number of blades

12pcs

1pcs

Max.cutting size

2500×1800×450mm

2500×1800×450mm

Worktable size

2500×1800mm

2500×1800mm

Weight

9t

10t

Main motor power

22kw

55-75kw

Chamfering Machine Integration: For customers requiring chamfered curbstones, our optional chamfering machine can be integrated into this production line. The chamfering unit connects seamlessly with the existing workflow, adding precision edge beveling capabilities while maintaining the automated material handling throughout the production process.

Contact DINOSAW technical team for details →

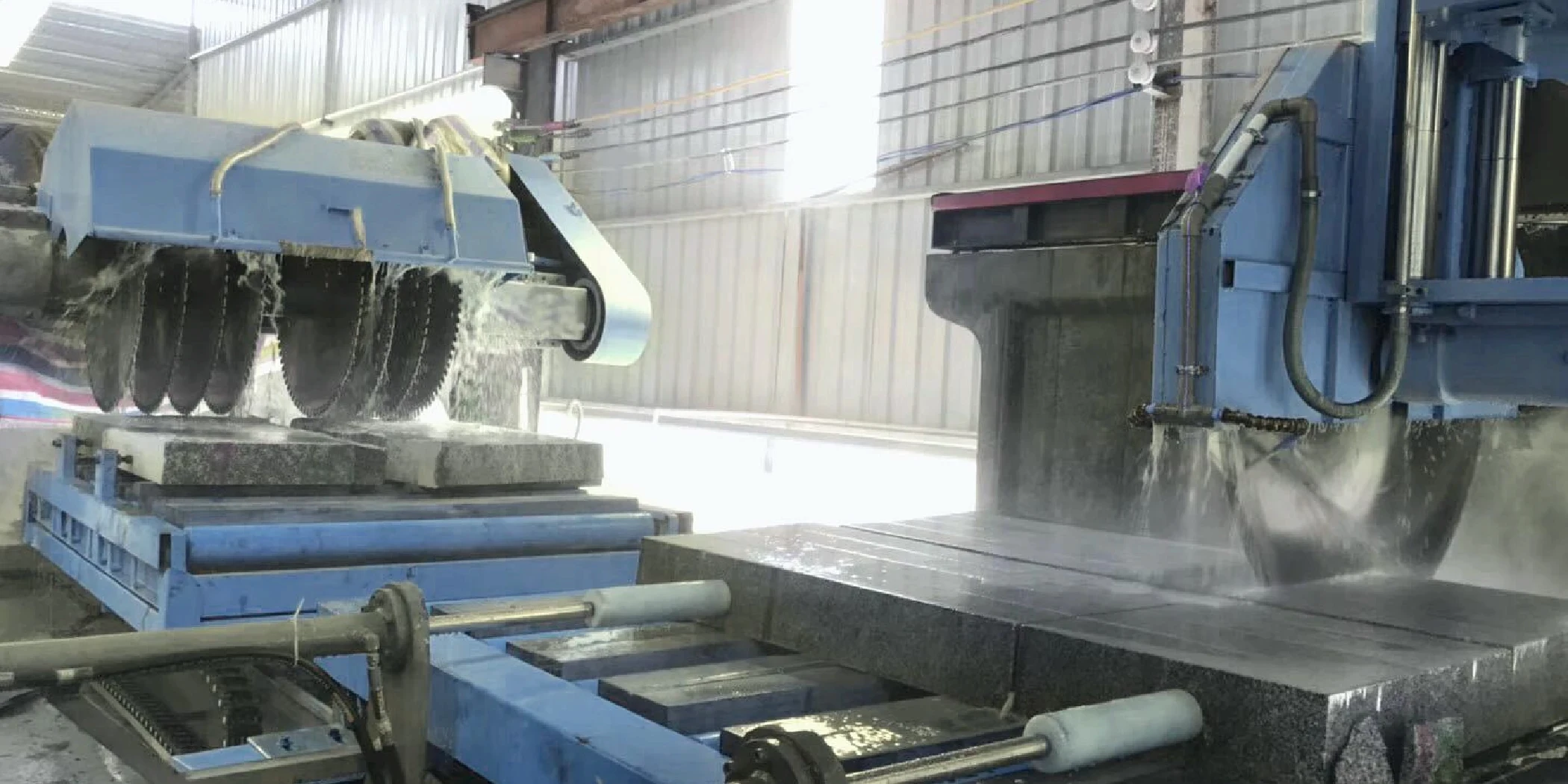

Engineered for batch processing and fully automated roadside stone production

High-Volume Automated Curbstone Production with Maximum Efficiency

Boost Daily Output

30-35m³ daily output with dual-machine system. Continuous operation maximizes production capacity

Cut Labor Costs

One operator manages entire line vs 3-4 workers. Automated transport eliminates manual handling

Consistent Quality Without Skilled Labor

Precise dimensions through hydraulic positioning and automated measurement regardless of operator skill

Inqury for Details →

Boost Daily Output

30-35m³ daily output with dual-machine system. Continuous operation maximizes production capacity

Cut Labor Costs

One operator manages entire line vs 3-4 workers. Automated transport eliminates manual handling

Consistent Quality Without Skilled Labor

Precise dimensions through hydraulic positioning and automated measurement regardless of operator skill

Inqury for Details →

Operate From Anywhere

Control operations remotely with integrated PLC system for improved workplace safety and flexibility

Reduce Blade Costs by 40%

3-5mm precision cutting depth extends diamond blade life, reducing consumable costs by 40%

Maximize Your Workshop Space

High production capacity in compact 12×5m footprint. Saves valuable workshop space for other operations

Minimize Downtime & Maintenance

Premium components from trusted brands ensure reliable performance with minimal maintenance requirements

FAQs

Frequently Asked Questions About Curbs/Kerbs Cutting Machines

What makes this curbstone cutting production line different from competitors?

What makes this curbstone cutting production line different from competitors?

How long does the curbstone cutting machine installation and setup typically take?

How long does the curbstone cutting machine installation and setup typically take?

What stone types can your roadside stone cutting equipment process?

What stone types can your roadside stone cutting equipment process?

What are the daily production capacity and efficiency rates of your curbstone cutting line?

What are the daily production capacity and efficiency rates of your curbstone cutting line?

What maintenance requirements and operating costs should I expect?

What maintenance requirements and operating costs should I expect?

What makes your curbstone cutting machine suitable for different applications?

What makes your curbstone cutting machine suitable for different applications?

Need more assistance? Click to contact DINOSAW →

Certifications & Standards

Global Leader in Industrial Machinery & Diamond Tools Manufacturing

CE Certification

100+ Tech Patents

ISO 9001:2015

DINOSAW product lines fully comply with international engineering standards, passing rigorous third-party quality certifications to ensure exceptional performance and durability for all industrial equipment operating in high-load environments.

Expertise & Applications

75+

Countries Served Worldwide

20+

Industry machinery expertise

DINOSAW delivers lifecycle quality traceability and technical support for machinery equipment and diamond tools, covering cutting, drilling, engraving, polishing, and processing requirements for precision machining across industries.

Our products serve traditional industries (mining, stone processing, building materials), high-precision manufacturing (quartz glass, semiconductor), advanced materials (graphite, carbon fiber composites), and specialized applications (nuclear decommissioning, railway construction machinery).

Complete Production Solutions & Equipments

  Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.

Get a Custom Solution

Ready to Transform Your Roadside Stone Cutting Operations?

Get expert consultation on curbstone cutting machines, kerbstone production systems, and stone fabrication solutions

Contact DINOSAW

Connect with DINOSAW experts to find the perfect processing solution for your specific material and production needs.

Get A Quote

DINOSAW: Trustworthy Curbstone Cutting Machine Manufacturer

Discover how DINOSAW can accelerate your projects. Our tailored product line, cutting-edge R&D, robust manufacturing, end-to-end service, global support, and industry certifications are at your service.

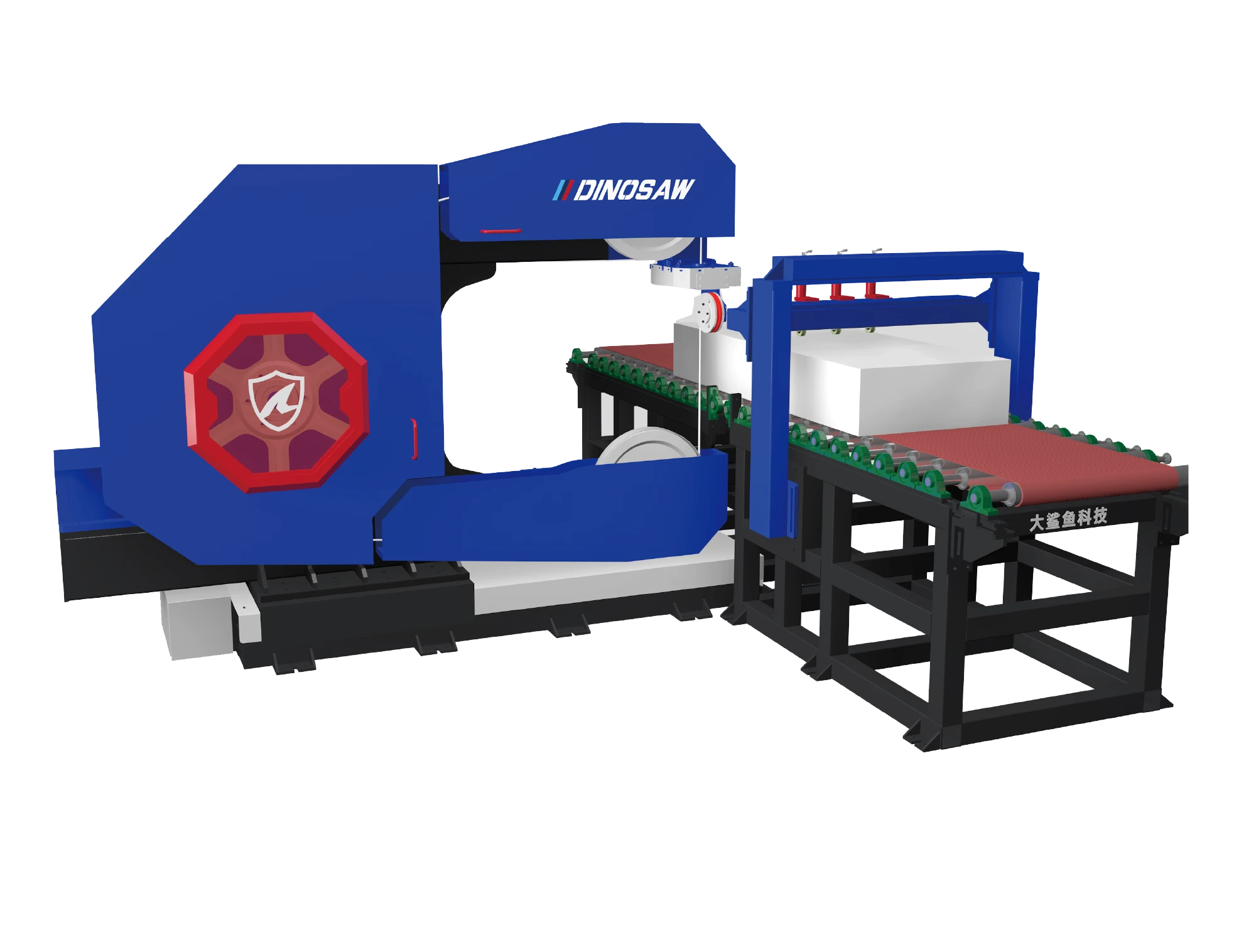

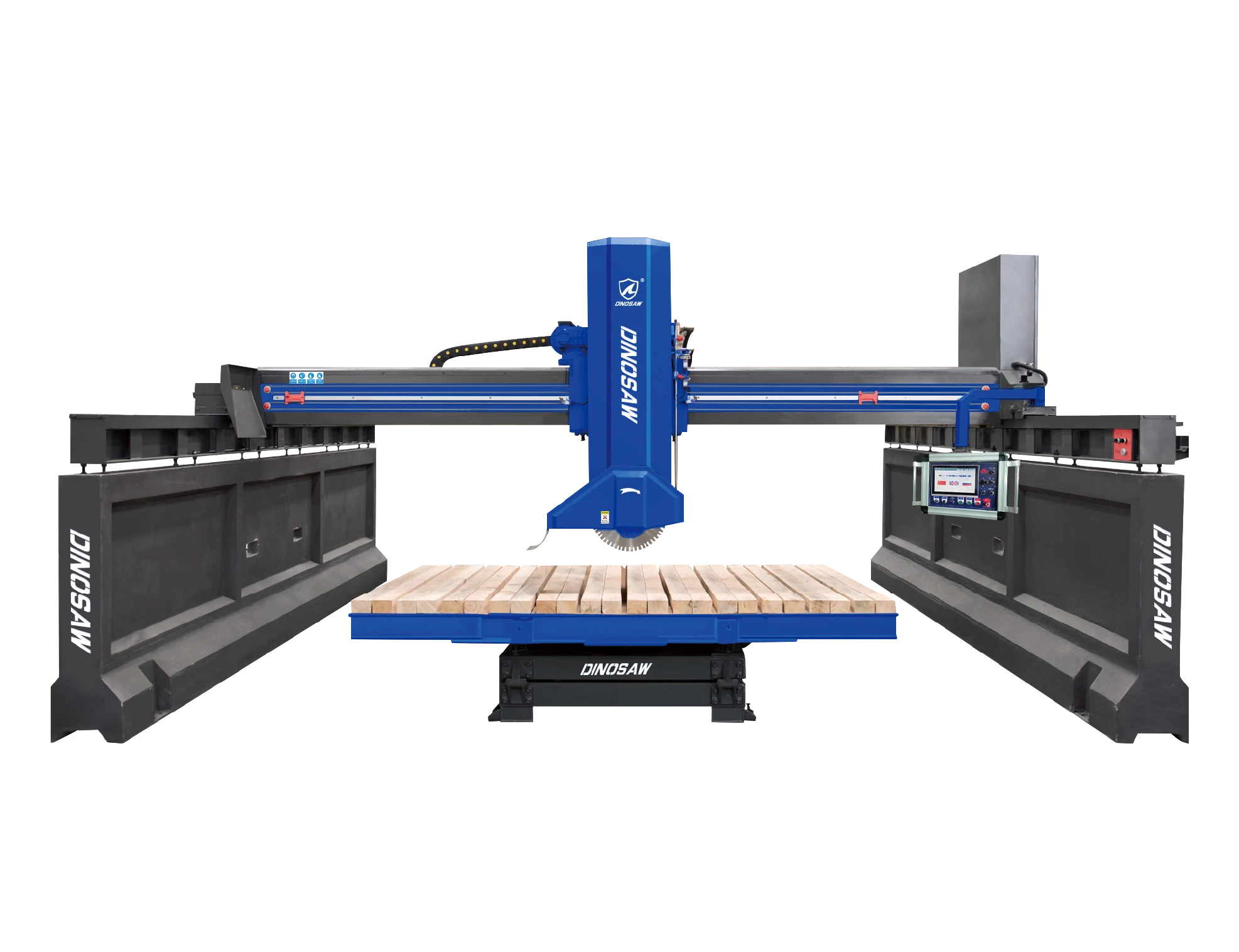

Other Machines or Tools
