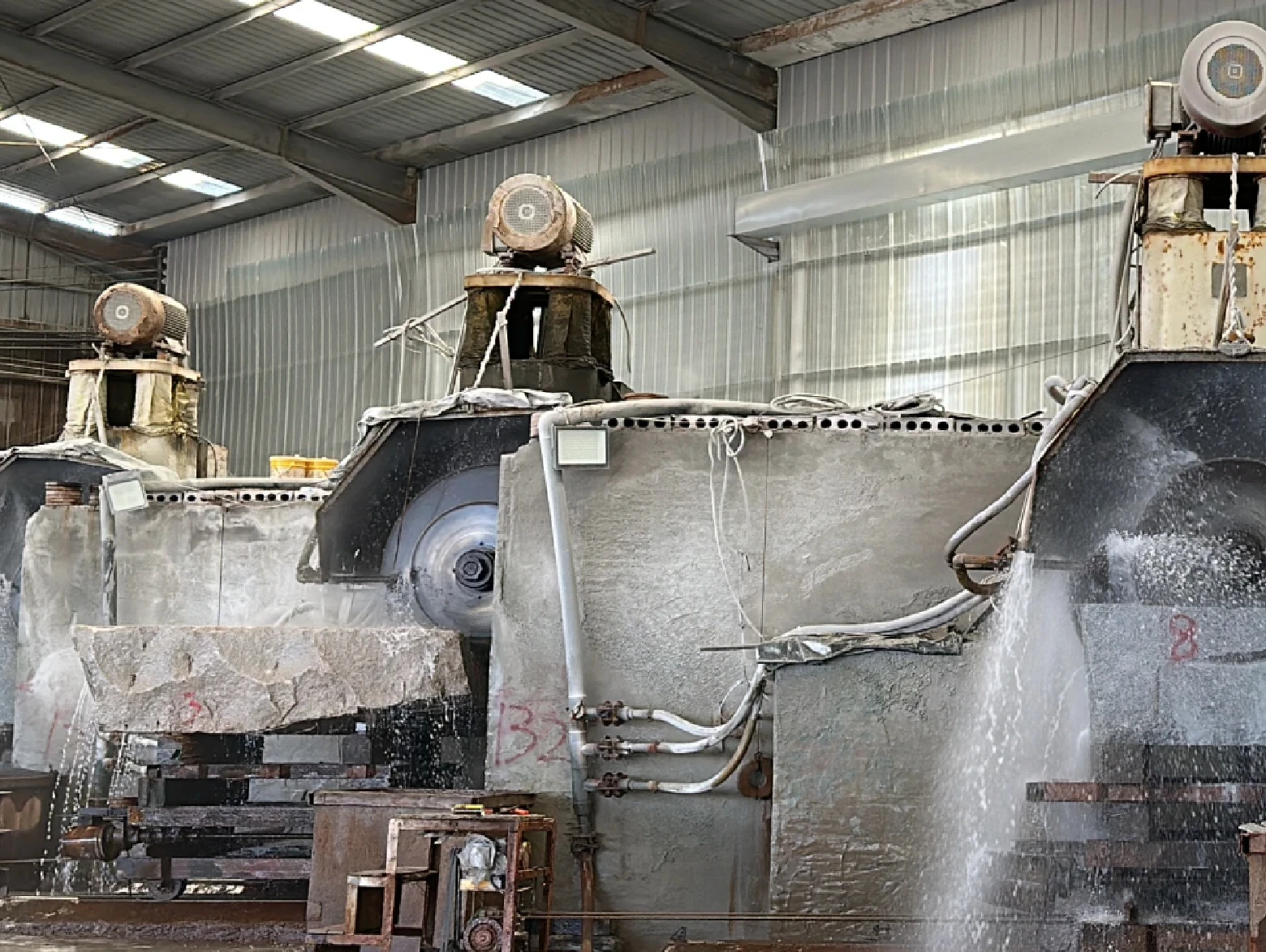

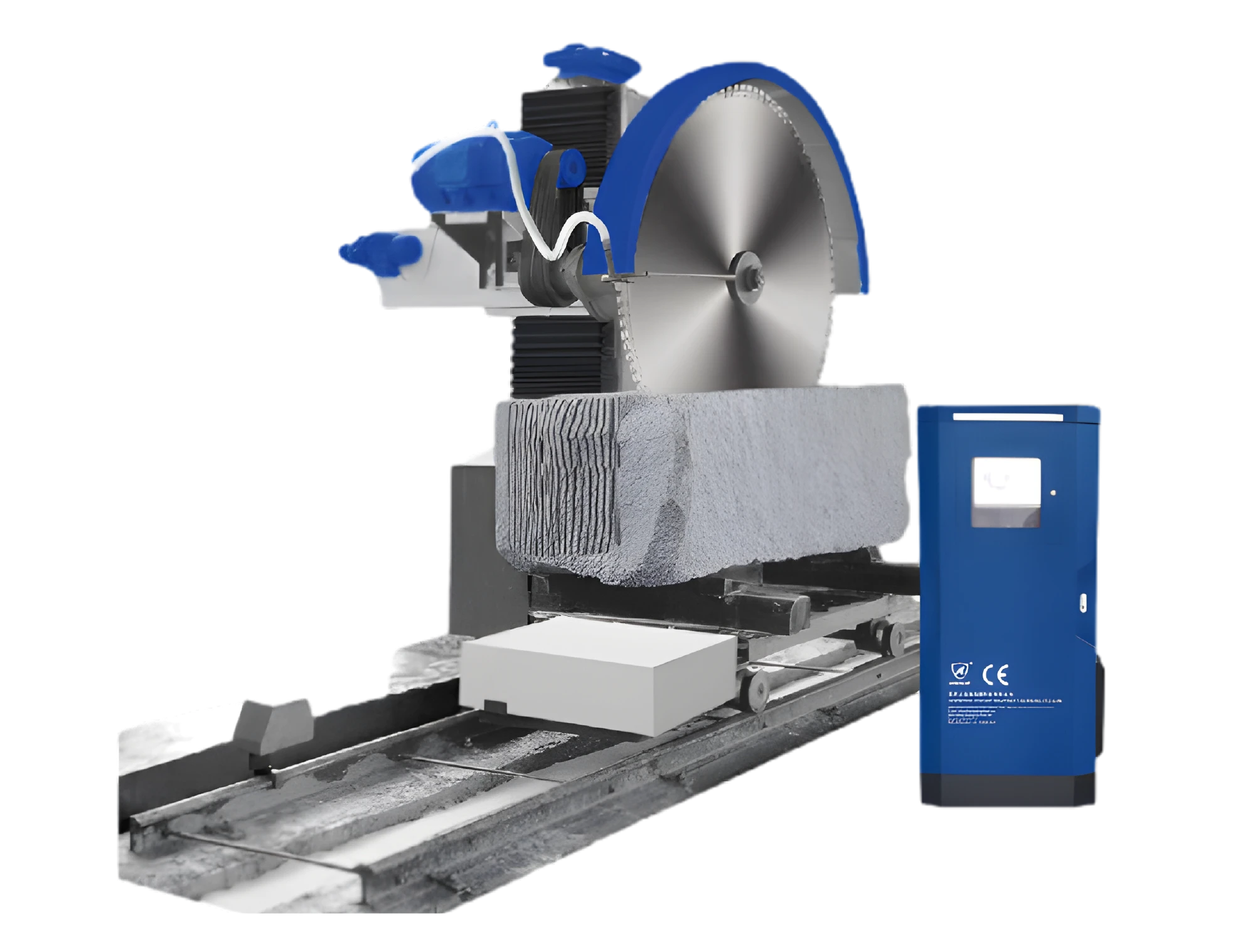

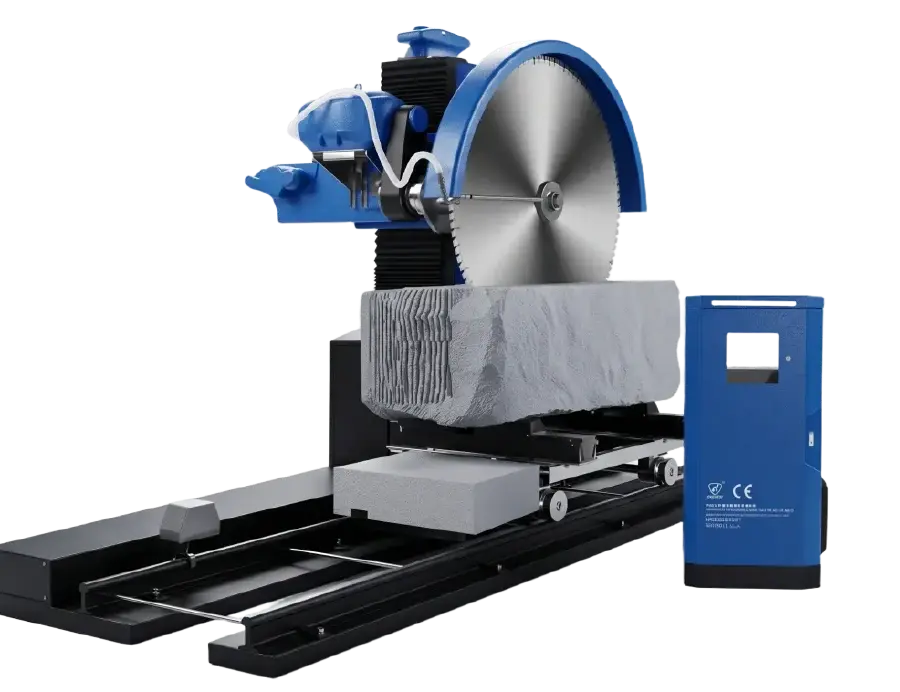

Single Column Compact Stone Block Cutter

The 1 columnstone block cutter saves energy through several innovative design features:

First, its optimized cutting system uses high-efficiency motors that consume up to 25% less electricity than conventional machines while maintaining cutting power. The two-stage variable speed gear system ensures the blade operates at the most efficient speed for each specific stone type.

Second, the PLC control system calculates the optimal cutting path and pressure, eliminating unnecessary movements and reducing power consumption during operation. The automated process also minimizes idle running time.

Third, the precision cutting action reduces waste material that would otherwise require additional energy to process. By combining these technologies, the machine achieves significant energy savings while maintaining high productivity.



The stone block cutter is specifically designed to handle a diverse range of natural stones found worldwide, including:

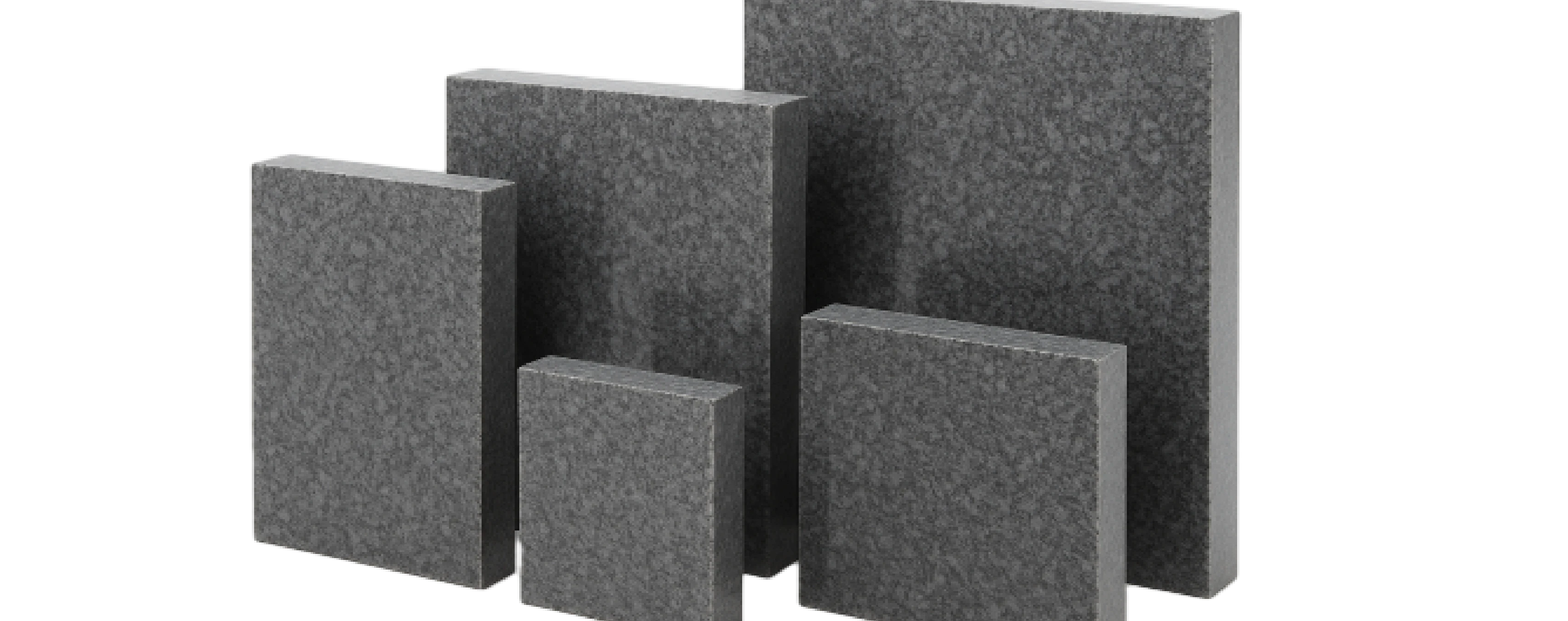

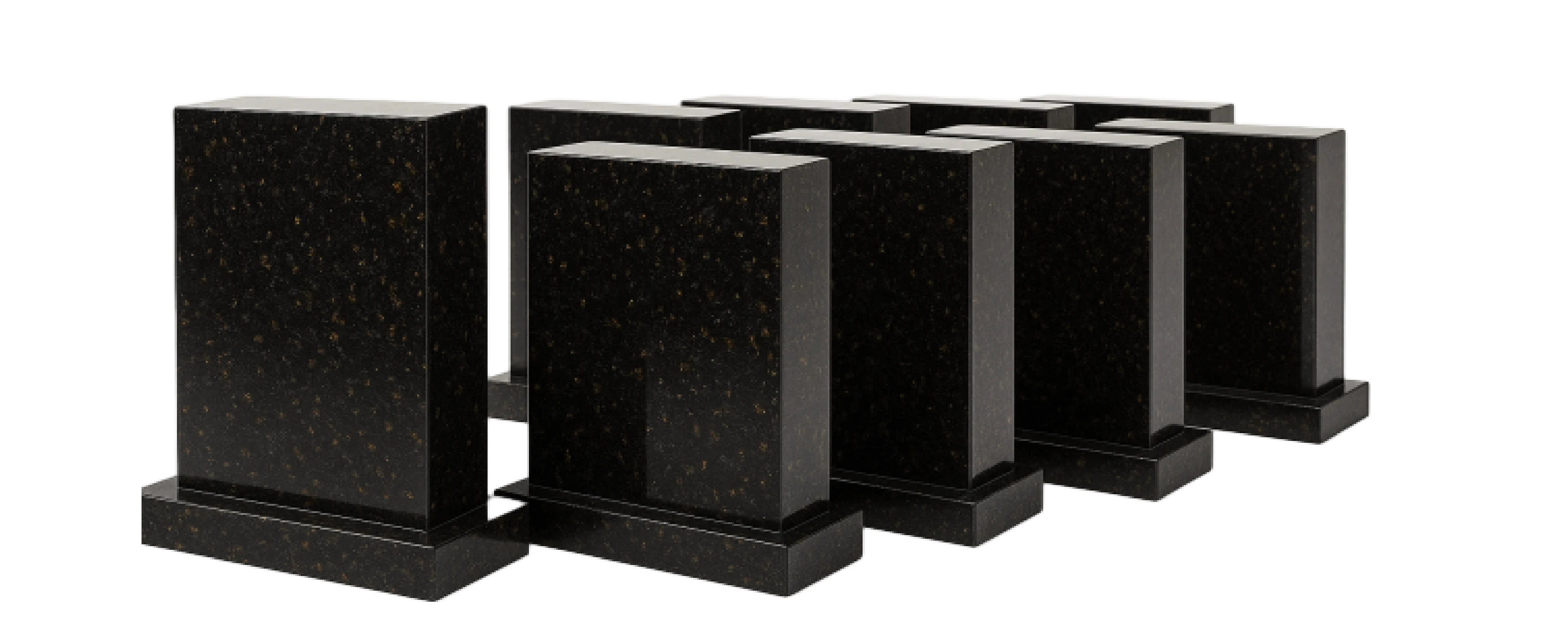

• Granite: Effectively cuts various granite types including South African Black Galaxy granite, Nordic red granite, and other premium granite varieties commonly used for memorial stones and luxury countertops.

• Marble: Efficiently processes multiple marble varieties, including Namibian white marble, Turkish marble, and other decorative marbles used for high-end architectural applications.

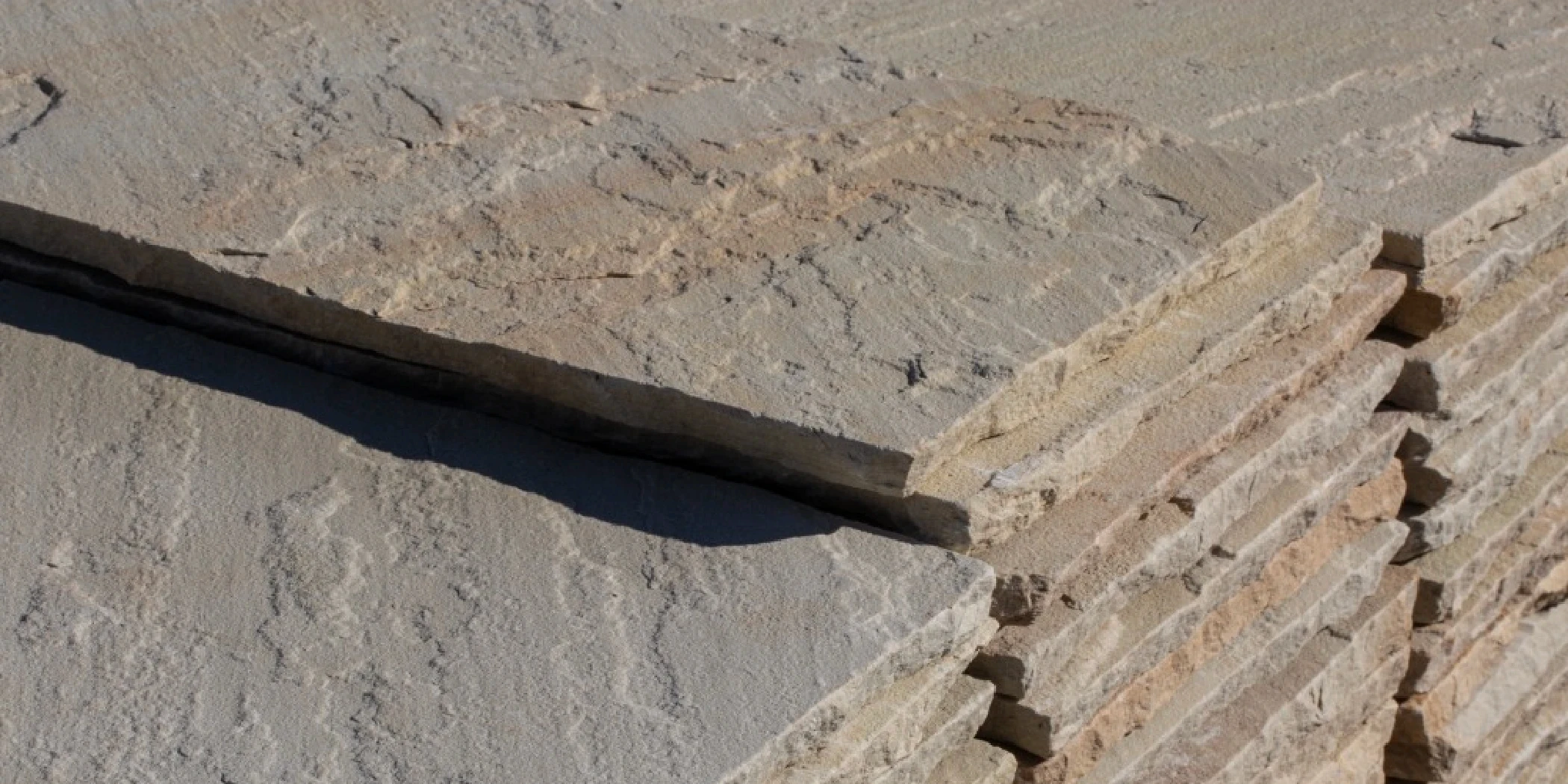

• Sandstone: Cleanly cuts various sandstones such as Ethiopian sandstone, Indian red sandstone, and similar varieties commonly used for decorative wall panels and flooring.

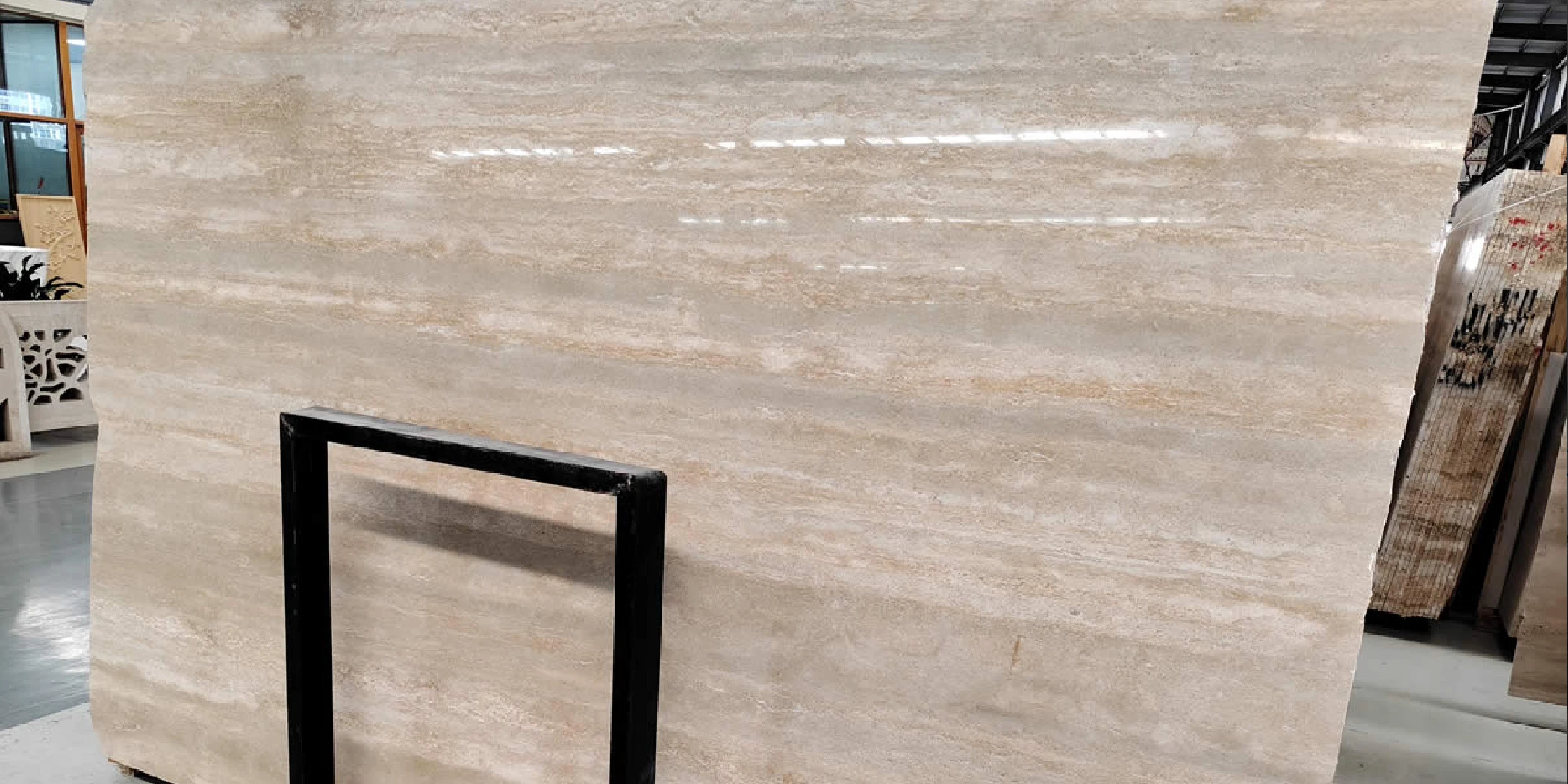

• Travertine: Processes porous stones like Iranian travertine, commonly used in mosque interiors and high-end decorative projects.

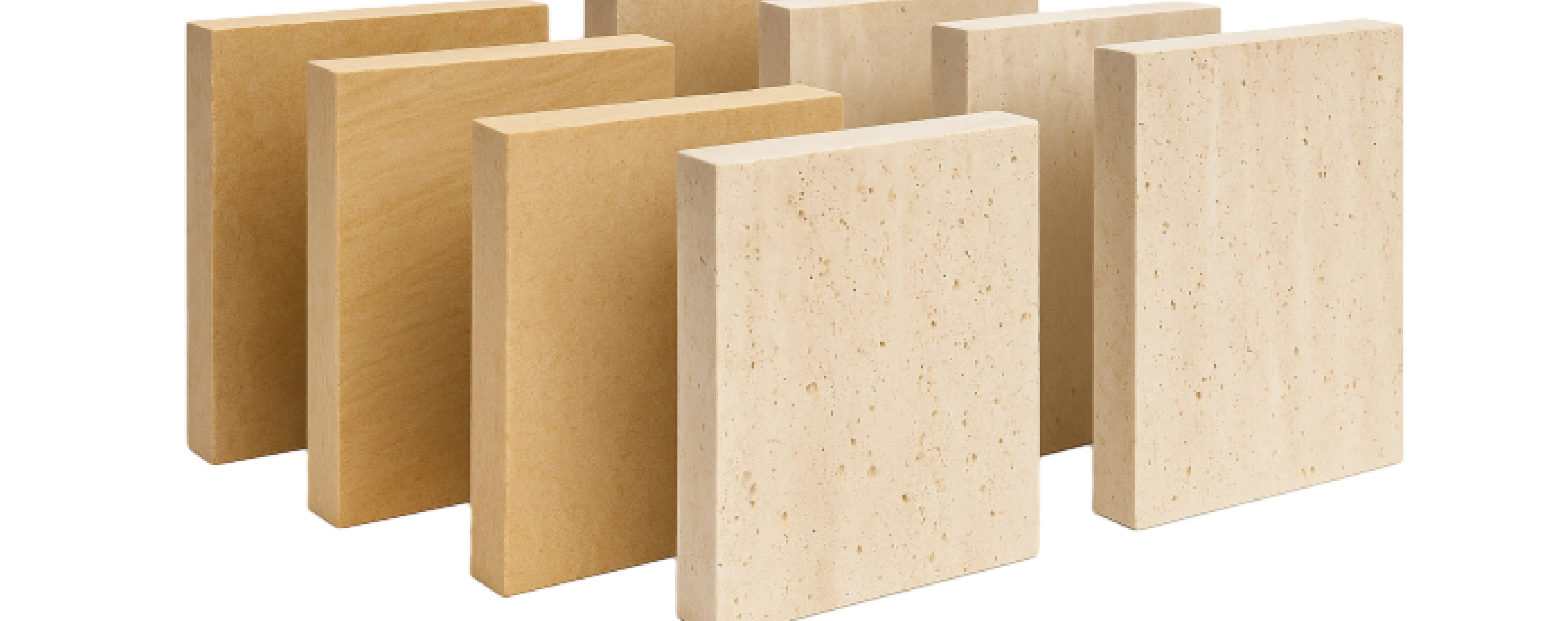

• Limestone: Suitable for cutting limestone of various hardness levels, used for building facades and floor paving.

The machine's adjustable cutting parameters and powerful motor can be optimized for different stone hardness levels, making it suitable for quarries and processors worldwide.

Yes, the stone block cutter is particularly well-suited for small stone processing businesses in Africa for several key reasons:

Its compact single column design requires minimal floor space, making it ideal for workshops with limited area. The machine's installation is straightforward with no need for expensive foundation work or edge beams, reducing setup costs significantly.

The user-friendly PLC interface requires minimal technical training, allowing small businesses to quickly train local staff. Automated cutting functions reduce the need for skilled labor while maintaining high-quality output.

The 1600 model is specifically sized for small to medium operations while delivering professional-grade cutting capability. With lower energy consumption than traditional equipment, operating costs remain manageable for growing businesses.

Many small stone enterprises have successfully used this machine to compete with larger factories by offering precision cutting services with relatively modest investment.

The stone block cutting machine is designed for minimal maintenance, making it ideal for the African market where technical support may be limited. Regular maintenance includes:

Daily checks: Inspect water supply system, clean filters, and check blade condition. Ensure rails and moving parts are clean and free of stone debris.

Weekly maintenance: Lubricate all specified points according to the manual. Check belt tension and adjust if necessary. Inspect electrical connections.

Monthly service: Check alignment of all components. Inspect hydraulic system for leaks. Clean control cabinet cooling vents.

Quarterly maintenance: Replace worn bearings if needed. Perform full system calibration. Clean water recycling system thoroughly.

Most maintenance can be performed by operators after basic training, and common replacement parts are readily available. The machine's simplified design compared to multi-column systems results in fewer potential failure points and easier troubleshooting.

Footprint and installation cost. A bridge or gantry machine spreads its structure across foundation-mounted beams, which means civil works, a fixed layout and a longer commissioning path. The DBZQ concentrates the cutting system on one column and moves the stone on a trolley instead — the machine installs on a level workshop floor with no foundation construction, occupies less space, and relocates if the plant changes. For small and mid-size factories, rented plants or production expansion, that difference in installation cost and deployment speed is often decisive. For permanent high-volume slab production, a larger gantry line remains the higher-output choice.

Choose by product mix. The DBZQ-1600 with the Φ1600 + Φ940 twin-blade combination cuts two planes per pass — the higher-output choice for standardized products like facade blocks, panels and kerbstones where several pieces come from one block. The DBZQ-1800 with a single Φ1800 blade cuts larger sections up to 750 mm high, suiting oversized blocks and thicker products. Both share the same 22 kW platform, PLC cycles and trolley design, so the decision is about section size versus passes per block, not about machine quality.

The operator enters the cutting depth and cycle parameters once per program, then the PLC runs the cycle automatically: blade descent to the preset depth, traverse cut, return and reset. The operator loads and unloads the trolley between cycles instead of hand-feeding each pass — depth stays consistent across repeated cuts, and operator fatigue (a common cause of depth drift in manual machines) drops out of the process. Programs store per product, so repeat jobs recall settings instead of re-entering them.

Yes — that is the trolley design's core benefit. With no foundation beams anchored in concrete, relocation means disconnecting utilities, moving the 3-tonne machine to the new site, leveling it on the new floor and recommissioning. Compare that with a foundation-mounted bridge cutter, where the civil works stay behind and must be rebuilt at the new location. For rented plants or factories expecting to move or expand, the DBZQ's installation model protects the equipment investment across the move.
