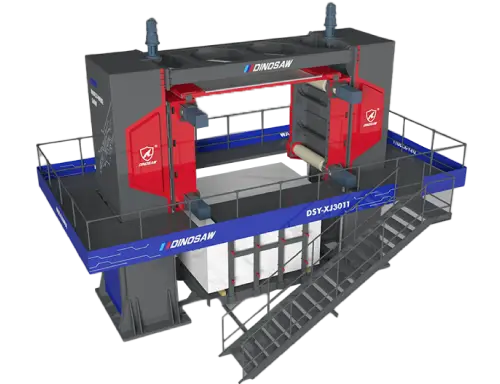

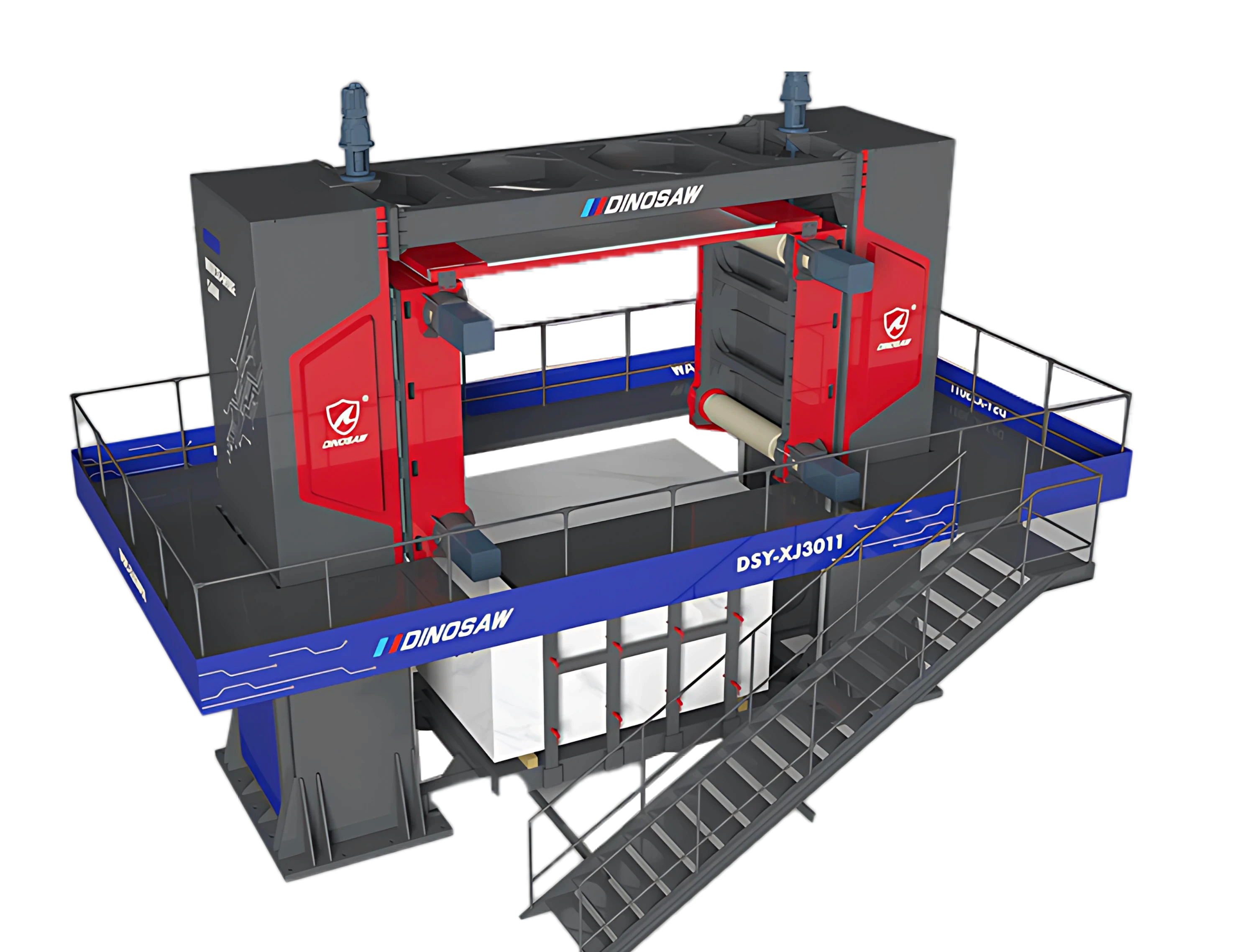

CNC Diamond Thin Multi-Wire Saw Machine
DSY-XY3411/DSY-JS3411/DSY-XY3623/DSY-JS3623
DINOSAW Multi-Wire Saw uses 0.35mm diamond wire, creating 0.5mm kerf width for high material yield. Compared to traditional gang saws, production output increases by up to 30%. Designed for premium stone processing, this machine transforms blocks into thin slabs efficiently. It excels at cutting luxury marble (Calacatta White, Fendi White), premium travertine (Italian Silver Travertine), exotic stone (Prada Green), and rare minerals (Bolivia Blue) for high-end architectural applications.
Compatible Materials & Products
Stone Block Cutting for High-End Interior Applications

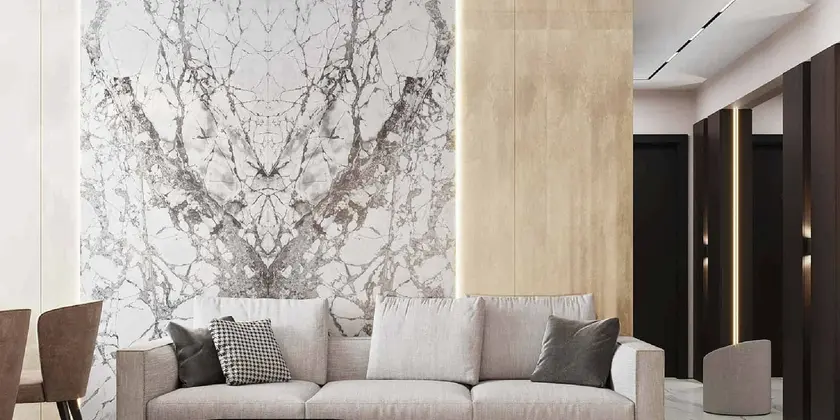

Marble ❯ Feature Walls & Floors

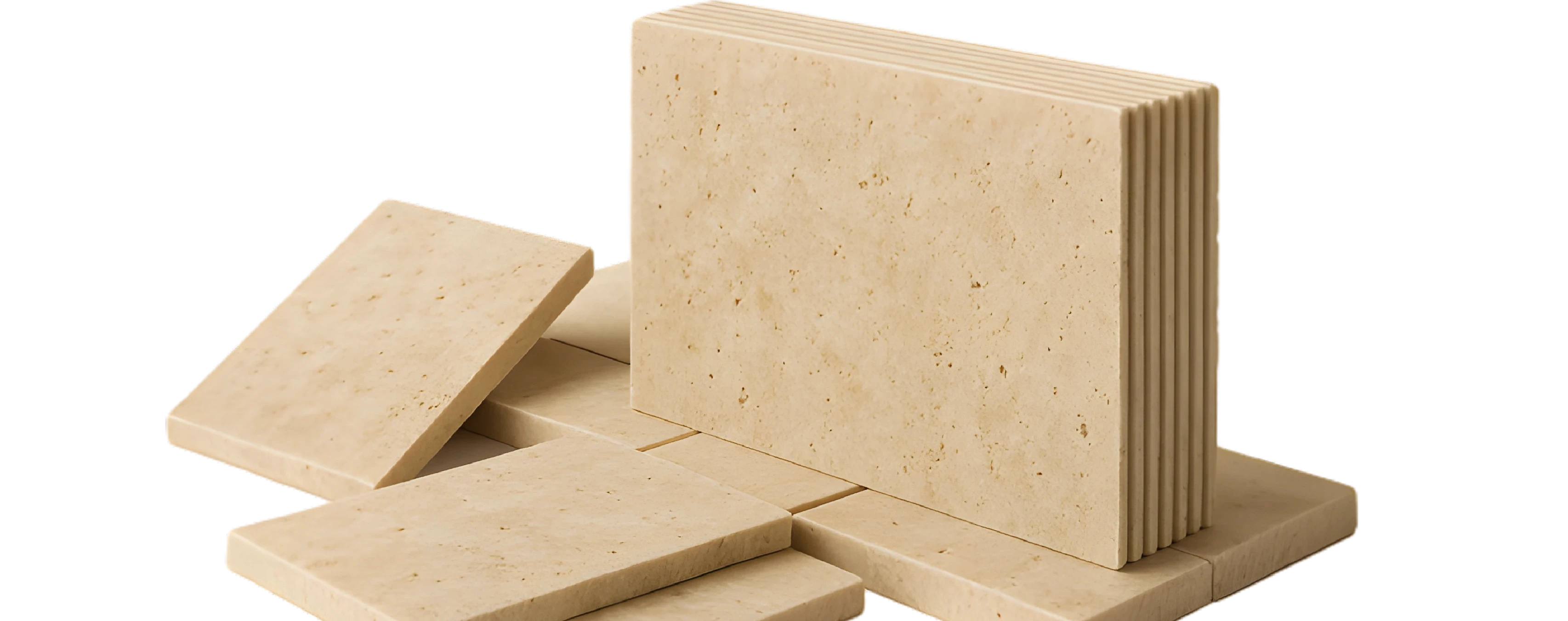

Travertine ❯ Counters & Displays

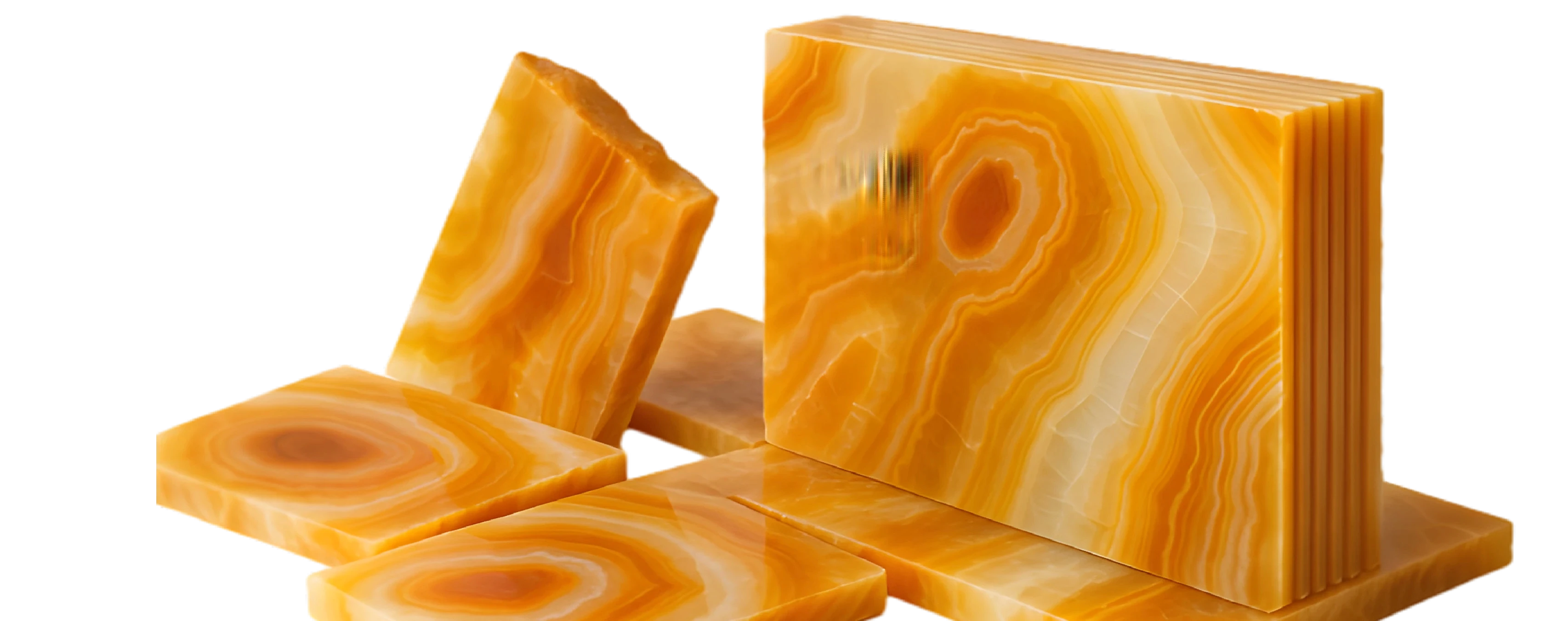

Onyx ❯ Dividers & Claddings
Luxury Stone ❯ Museum Elements
▶ Product Demo
Italian marble has become essential in luxury hotels, high-end homes, and exclusive retail spaces. As demand grows for thinner materials in architecture, quality marble processing needs advanced cutting solutions.
DINOSAW's Multi-Wire Saw represents a major advancement in stone fabrication. The system cuts premium Calacatta White and Carrara marble into slabs as thin as 3mm with consistent thickness. The 0.35mm diamond wire creates just 0.5mm cutting width. This maximizes material yield while ensuring perfect book-matching across large installations.
These lightweight marble panels reduce installation costs and structural requirements. The excellent surface quality from multi-wire cutting eliminates extensive secondary processing. This reduces production time by up to 40%. The system can process multiple slabs simultaneously, further enhancing efficiency.
Applications range from hotel entrances with dramatic veining to boutique fitting rooms and private residences. The superior edge finish and consistent thickness make these panels ideal for large architectural applications where both visual appeal and structural integrity matter.
Marble ❯ Feature Walls & Floors
Travertine ❯ Counters & Displays
Onyx ❯ Dividers & Claddings
Luxury Stone ❯ Museum Elements
▶ Product Demo
Italian marble has become essential in luxury hotels, high-end homes, and exclusive retail spaces. As demand grows for thinner materials in architecture, quality marble processing needs advanced cutting solutions.
DINOSAW's Multi-Wire Saw represents a major advancement in stone fabrication. The system cuts premium Calacatta White and Carrara marble into slabs as thin as 3mm with consistent thickness. The 0.35mm diamond wire creates just 0.5mm cutting width. This maximizes material yield while ensuring perfect book-matching across large installations.
These lightweight marble panels reduce installation costs and structural requirements. The excellent surface quality from multi-wire cutting eliminates extensive secondary processing. This reduces production time by up to 40%. The system can process multiple slabs simultaneously, further enhancing efficiency.
Applications range from hotel entrances with dramatic veining to boutique fitting rooms and private residences. The superior edge finish and consistent thickness make these panels ideal for large architectural applications where both visual appeal and structural integrity matter.
Consult DINOSAW Material Expert →

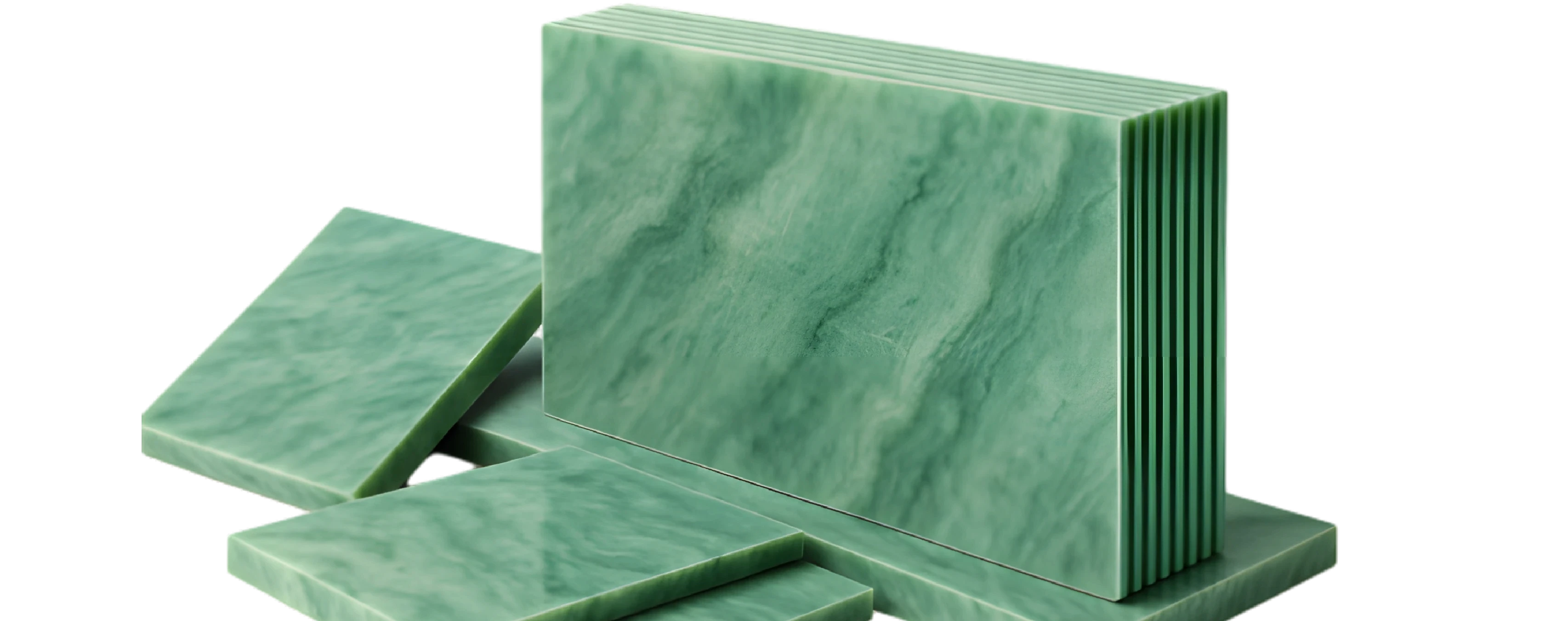

Jade Processing
35% Material Yield Improvement

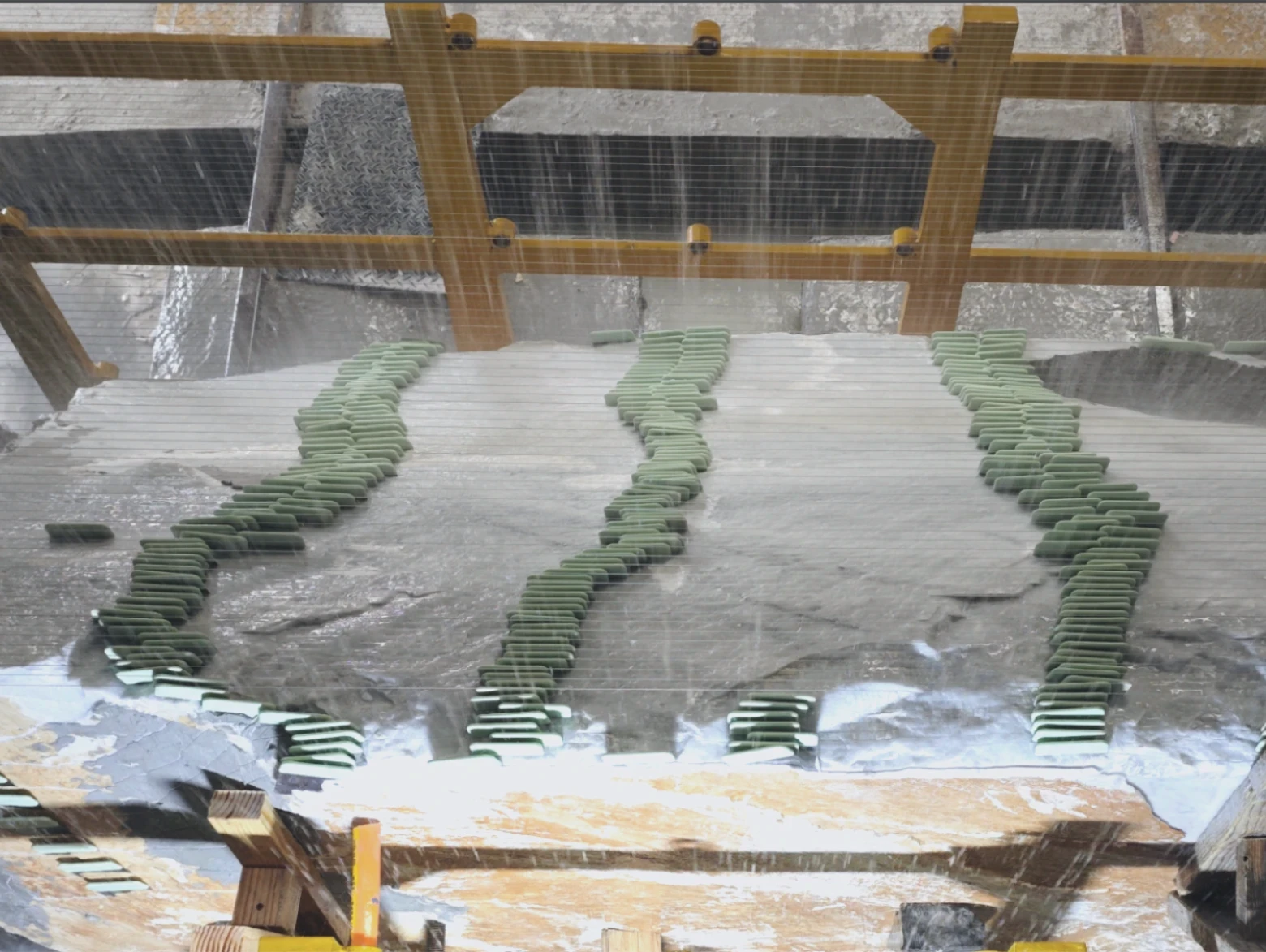

A Japanese fabricator cut premium jade with 35% less waste using DINOSAW's multi-wire saw. The 0.5mm kerf technology maximized slab yield while tension control maintained ±0.2mm thickness tolerance. This eliminated secondary processing and delivered superior surface quality for high-end furniture tabletops.
Boost stone yield with multi-wire technology →
Italian Travertine Floor Panel Production
Ultra-Thin Cutting Excellence for Museum Flooring
A Milan supplier needed thin panels for museum floors. DINOSAW's multi-wire saw cut 3m×1.8m Italian Silver Travertine panels with consistent 5mm thickness. The low-vibration system prevented edge chipping while precision cutting created perfectly matched patterns for premium exhibition spaces.
Enhance architectural stone projects →
Luxury Onyx Divider Fabrication
40% Material Yield Improvement for Translucent Applications
A Vermont fabricator wasted 55% material cutting premium onyx. DINOSAW's multi-wire saw delivered consistent 6mm cuts with perfect edges across varying material densities. The system auto-adjusted to stone variations, reducing wire breakage by 80% while enabling thin panel production for boutique hotel room dividers.
Improve stone fabrication efficiency →
Jade Processing
35% Material Yield Improvement
A Japanese fabricator cut premium jade with 35% less waste using DINOSAW's multi-wire saw. The 0.5mm kerf technology maximized slab yield while tension control maintained ±0.2mm thickness tolerance. This eliminated secondary processing and delivered superior surface quality for high-end furniture tabletops.
Boost stone yield with multi-wire technology →
Italian Travertine Floor Panel Production
Ultra-Thin Cutting Excellence for Museum Flooring
A Milan supplier needed thin panels for museum floors. DINOSAW's multi-wire saw cut 3m×1.8m Italian Silver Travertine panels with consistent 5mm thickness. The low-vibration system prevented edge chipping while precision cutting created perfectly matched patterns for premium exhibition spaces.
Enhance architectural stone projects →
Luxury Onyx Divider Fabrication
40% Material Yield Improvement for Translucent Applications
A Vermont fabricator wasted 55% material cutting premium onyx. DINOSAW's multi-wire saw delivered consistent 6mm cuts with perfect edges across varying material densities. The system auto-adjusted to stone variations, reducing wire breakage by 80% while enabling thin panel production for boutique hotel room dividers.
Improve stone fabrication efficiency →
Jade Processing
35% Material Yield Improvement
A Japanese fabricator cut premium jade with 35% less waste using DINOSAW's multi-wire saw. The 0.5mm kerf technology maximized slab yield while tension control maintained ±0.2mm thickness tolerance. This eliminated secondary processing and delivered superior surface quality for high-end furniture tabletops.
Boost stone yield with multi-wire technology →
Italian Travertine Floor Panel Production
Ultra-Thin Cutting Excellence for Museum Flooring
A Milan supplier needed thin panels for museum floors. DINOSAW's multi-wire saw cut 3m×1.8m Italian Silver Travertine panels with consistent 5mm thickness. The low-vibration system prevented edge chipping while precision cutting created perfectly matched patterns for premium exhibition spaces.
Enhance architectural stone projects →
Luxury Onyx Divider Fabrication
40% Material Yield Improvement for Translucent Applications
A Vermont fabricator wasted 55% material cutting premium onyx. DINOSAW's multi-wire saw delivered consistent 6mm cuts with perfect edges across varying material densities. The system auto-adjusted to stone variations, reducing wire breakage by 80% while enabling thin panel production for boutique hotel room dividers.
Improve stone fabrication efficiency →
Jade Processing
35% Material Yield Improvement
A Japanese fabricator cut premium jade with 35% less waste using DINOSAW's multi-wire saw. The 0.5mm kerf technology maximized slab yield while tension control maintained ±0.2mm thickness tolerance. This eliminated secondary processing and delivered superior surface quality for high-end furniture tabletops.
Boost stone yield with multi-wire technology →
Italian Travertine Floor Panel Production
Ultra-Thin Cutting Excellence for Museum Flooring
A Milan supplier needed thin panels for museum floors. DINOSAW's multi-wire saw cut 3m×1.8m Italian Silver Travertine panels with consistent 5mm thickness. The low-vibration system prevented edge chipping while precision cutting created perfectly matched patterns for premium exhibition spaces.
Enhance architectural stone projects →
Luxury Onyx Divider Fabrication
40% Material Yield Improvement for Translucent Applications
A Vermont fabricator wasted 55% material cutting premium onyx. DINOSAW's multi-wire saw delivered consistent 6mm cuts with perfect edges across varying material densities. The system auto-adjusted to stone variations, reducing wire breakage by 80% while enabling thin panel production for boutique hotel room dividers.
Improve stone fabrication efficiency →
Specs and options
Specifications customizable upon request.
Model | Unit | DSY-XY3411 | DSY-JS3411 | DSY-XY3623 | DSY-JS3623 |
|---|---|---|---|---|---|
Feed Type | / | downward pressing | up lifting | downward pressing | up lifting |
Cutting Feed Rate | mm/h | 0 - 180 | 0 - 180 | 0 - 200 | 0 - 200 |
Diamond Wire Diameter | mm | 0.35 - 0.8 | 0.35 - 0.8 | 0.35 - 0.8 | 0.35 - 0.8 |
Cutting Thickness | mm | 5 ~ 30 | 5 ~ 30 | 5 ~ 30 | 5 ~ 30 |
Cutting Tension | N | 0 - 250 | 0 - 350 | 0 - 250 | 0 - 350 |
Worktable Vertical Travel | m | 2400 | 2400 | 2400 | 2400 |
Wire Storage Capacity | m | 30000 | 30000 | 30000 | 30000 |
Roller | mm | 320~450 | 320~450 | 320~450 | 320~450 |
Main Motor Power | KW | 60x4 | 60x4 | 60x4 | 60x4 |
Processing Dimensions(L×W×H) | mm | 3400x1100x2200 | 3400x1100x2200 | 3400x2000x2200 | 3400x2000x2200 |
Machine Weight | T | 30~35 | 30~35 | 35~40 | 35~40 |
Overall dimensions (L x W x H) | m | ≈8.9x6.4x5.3 | ≈8.9x6.4x5.3 | ≈9.2x7.5x5.3 | ≈9.2x7.5x5.3 |
Contact DINOSAW technical team for details →
Diamond Wire Technology for Precision Block Cutting
Transform Stone Blocks into Maximum Value
Ultra-Thin Slab Production
Vibration control prevents edge chipping, enabling 3mm precision cutting on delicate stone

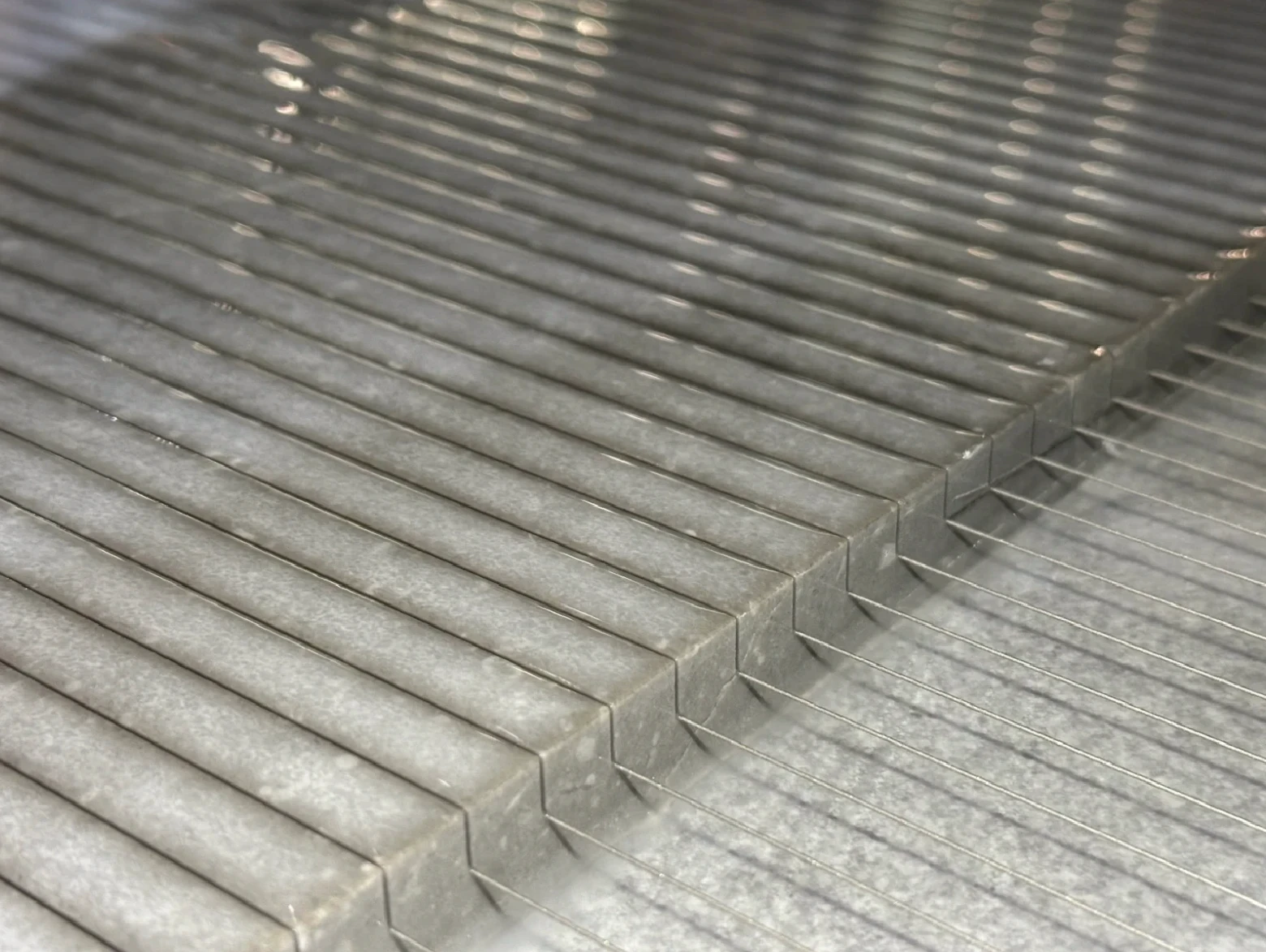

Minimal Kerf Cutting
0.5mm cutting width, increasing slab output by up to 40% per block

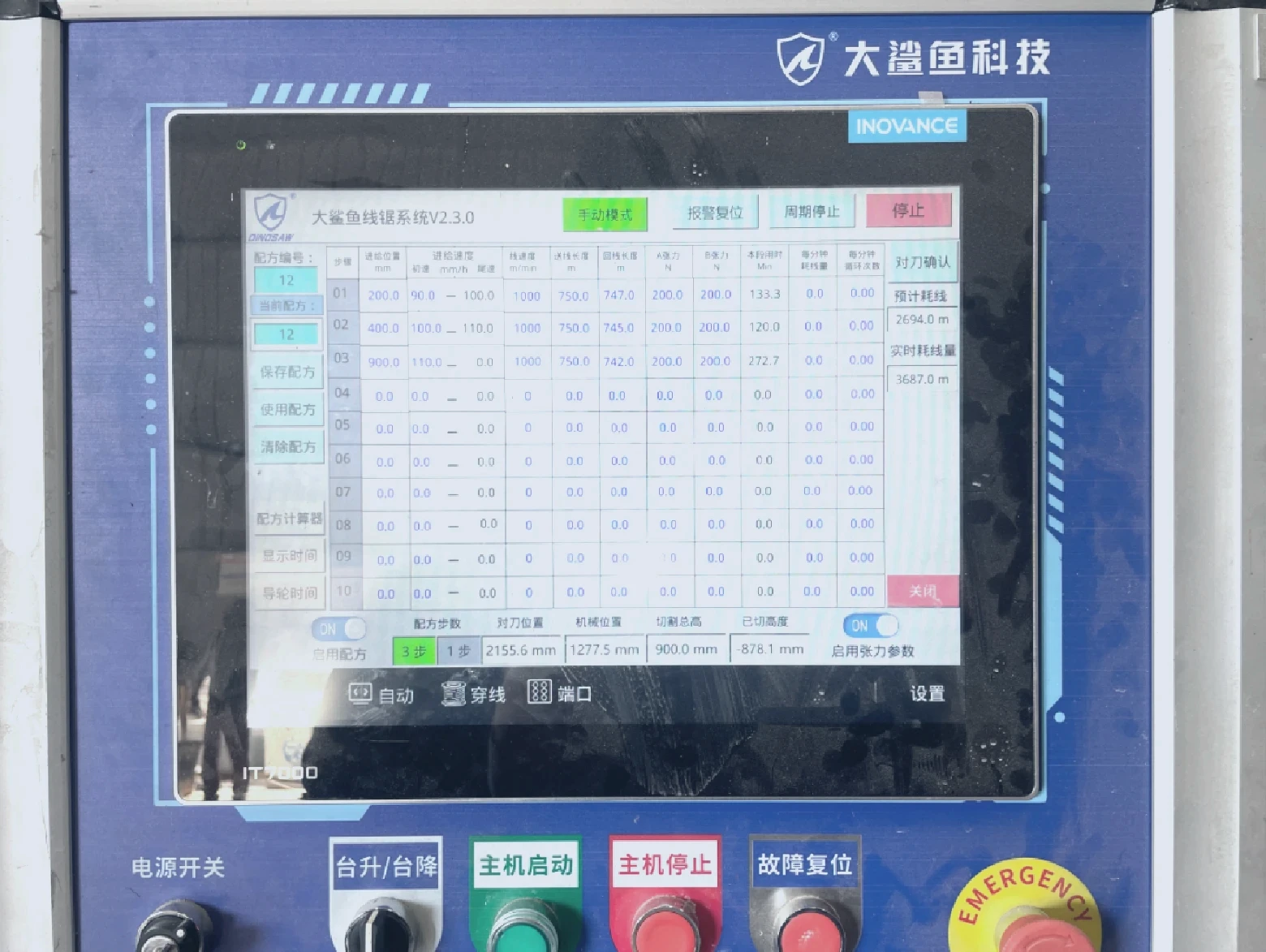

Smart Material Processing
CNC system automatically optimizes cutting parameters for best results
Inqury for Details →
Ultra-Thin Slab Production
Vibration control prevents edge chipping, enabling 3mm precision cutting on delicate stone
Minimal Kerf Cutting
0.5mm cutting width, increasing slab output by up to 40% per block
Smart Material Processing
CNC system automatically optimizes cutting parameters for best results
Inqury for Details →
High-Speed Stone Cutting
Fast start-stop system with high-speed cutting enhances production efficiency and throughput
Precision Tension Control
Servo motors deliver accurate tension for consistent surface quality across varied materials
Adaptive Cutting System
Real-time feedback adjusts cutting parameters for optimal performance
Low-Noise Operation
Reduced noise design creates a quieter workshop, improving working conditions
Energy Efficient
Energy recovery system converts braking energy back to electricity, reducing operating costs
Minimal Waste Generation
Minimal cutting width produces less stone powder and wastewater
FAQs
Common Questions About DINOSAW Multi-Wire Saw Machines
What are the main advantages of a multi-wire saw over traditional stone cutting methods?
What are the main advantages of a multi-wire saw over traditional stone cutting methods?
What types of stones can be cuttib with multi-wire saw machine?
What types of stones can be cuttib with multi-wire saw machine?
How thin can stone slabs be cut using multi-wire cutting machine?
How thin can stone slabs be cut using multi-wire cutting machine?
What is the difference between Up Lifting and Downward Pressing configurations?
What is the difference between Up Lifting and Downward Pressing configurations?
How does DINOSAW multi-wire saw ensure consistent cutting quality?
How does DINOSAW multi-wire saw ensure consistent cutting quality?
Can the multi-wire saw produce slabs of different thicknesses in one cutting cycle?
Can the multi-wire saw produce slabs of different thicknesses in one cutting cycle?
Need more assistance? Click to contact DINOSAW →
Certifications & Standards
Global Leader in Industrial Machinery & Diamond Tools Manufacturing
CE Certification
100+ Tech Patents
ISO 9001:2015
DINOSAW product lines fully comply with international engineering standards, passing rigorous third-party quality certifications to ensure exceptional performance and durability for all industrial equipment operating in high-load environments.
Expertise & Applications
75+
Countries Served Worldwide
20+
Industry machinery expertise
DINOSAW delivers lifecycle quality traceability and technical support for machinery equipment and diamond tools, covering cutting, drilling, engraving, polishing, and processing requirements for precision machining across industries.
Our products serve traditional industries (mining, stone processing, building materials), high-precision manufacturing (quartz glass, semiconductor), advanced materials (graphite, carbon fiber composites), and specialized applications (nuclear decommissioning, railway construction machinery).
Complete Production Solutions & Equipments
Choose equipment combinations for your product needs to establish efficient automated production lines and maximize profitability.
Diamond Wire Saw for Quarry Stone Extraction
Extract quality blocks with our quarry wire saw. Cuts hard stone without micro-fracturing for maximum yield. Tension control maintains optimal wire pressure, reducing waste and extending wire life while providing ideal blocks for your multi-wire fabrication.
Enhance quarry efficiency with advanced stone extraction technology →
Automatic Stone Polishing Machine for slabs
Process thin slabs into finished elements with our polishing technology. Delivers high-volume processing with superior surface quality for luxury applications. Multi-head design handles various finishes while CNC system ensures consistent results without manual intervention.
Elevate your architectural stone finishing workflow →
Automatic Edge Processing Machine
Complete your fabrication workflow with our edge processing machine for cutting, profiling and polishing thin slab edges. Multiple tool positions handle various profiles. Vertical design improves efficiency and workspace use while ensuring perfect edge quality without breakage risk.
Achieve perfect architectural stone edges in one process →
Get a Custom Solution
Transform Your High-value Stone Block Cutting
Contact DINOSAW today for a customized analysis and discover how our multi-wire saw technology maximizes material yield
Contact DINOSAW
Connect with DINOSAW experts to find the perfect processing solution for your specific material and production needs.
Get A Quote
DINOSAW: Trustworthy Multi-Wire Saw Machine Manufacturer
Discover how DINOSAW can accelerate your projects. Our tailored product line, cutting-edge R&D, robust manufacturing, end-to-end service, global support, and industry certifications are at your service.
