Hello to all the entrepreneurs and technical experts in the stone processing and superhard materials industries. As a technical consultant who has served the automated processing sector for many years, I deeply understand the challenges you face daily: How do you achieve micron-level precision on high-value materials? How do you extend the life of expensive diamond tools? How do you convert the skills of a master craftsman into a stable, repeatable production capability?

The answer lies within a seemingly cryptic language: G-code. My mission today is not to hand you a thick technical manual, but to demystify G-code, helping you understand that it is the digital key to elevating your factory from "manufacturing" to "intelligent manufacturing," and the core that drives your CNC machine to peak efficiency.

From Manual to Digital: G-Code, the Craftsman's Language of Our Era

We all remember, or perhaps have experienced firsthand, master craftsmen relying on touch and experience, turning handwheels to carefully cut and polish each stone slab. That skill is admirable but difficult to replicate and limited in efficiency. With the advent of servo motors, machines gained precise "muscles," but how do we command them? We needed a universal language.

G-code is the modern craftsman's language for commanding these machines. It translates the master's experience—"slow down here," "round that corner smoothly"—into precise instructions that any CNC machine can execute flawlessly. According to the ISO 6983 international standard, G-code programming has become the universal language for numerical control of machine tools, enabling manufacturers to achieve repeatability within 0.001 inches. This standardization has revolutionized manufacturing across industries, from aerospace to stone processing.

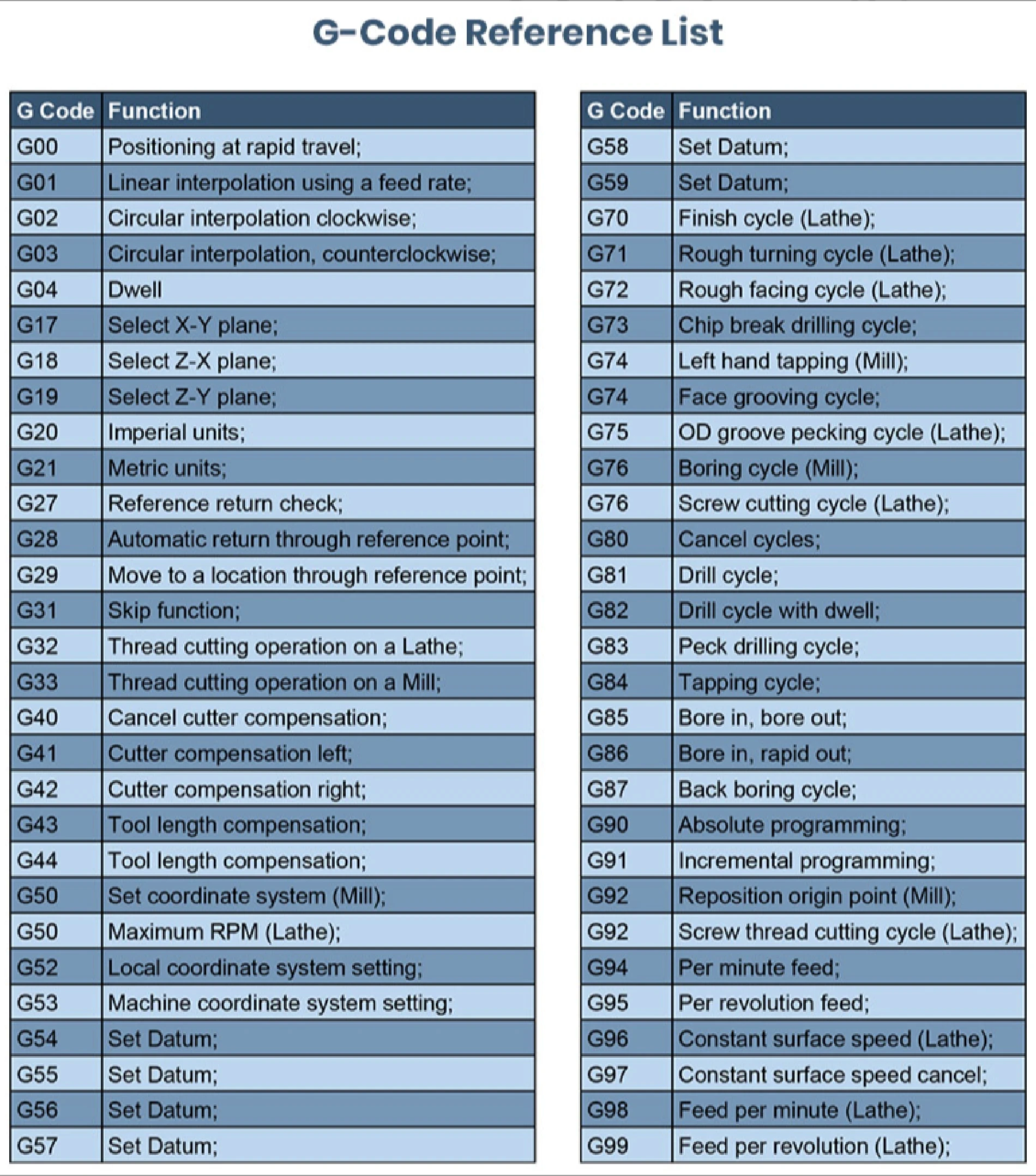

Essential G-codes reference chart for CNC stone processing operations

The Essence of G-Code: A "Digital Blueprint" for Your Machine

Putting complex definitions aside, the essence of G-code is incredibly simple: it is a set of instructions you use to tell your CNC stone cutting machine or other CNC equipment "where to go, how fast to go, and what to do."

Imagine you are not writing code, but rather giving a digital, reusable blueprint to a tireless, absolutely obedient master craftsman. This digital transformation is particularly crucial in today's competitive landscape, where precision and efficiency determine market leadership.

Industry Insight: When considering advanced CNC solutions for stone processing, the Dinosaw CNC Diamond Wire Saw Cutting Machine Pro represents the cutting edge of G-code controlled stone processing technology. This machine combines precision diamond wire cutting with advanced CNC control systems, allowing operators to execute complex G-code programs with exceptional accuracy and surface finish quality.

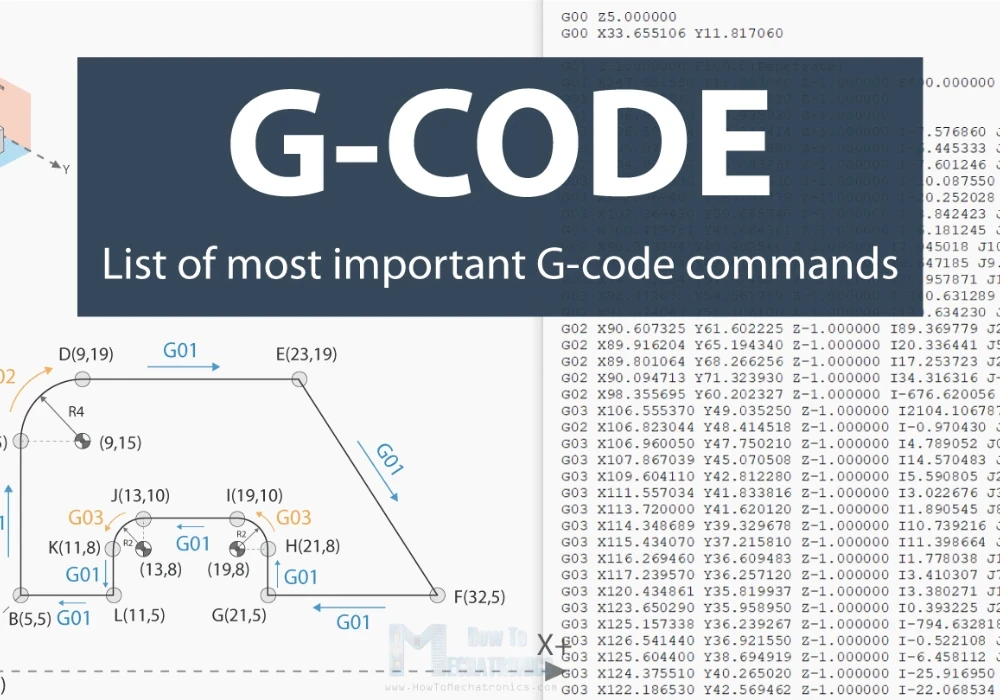

G-code programming interface showing commands for precision stone machining

Decoding the Blueprint: The Core Components of G-Code

A G-code "blueprint" is constructed from a few simple "command modules," each starting with a letter. Let's examine these fundamental building blocks that form the vocabulary of modern stone processing:

G-codes (Preparatory Functions): Motion Commands

These are "motion commands" that tell the machine what kind of movement to perform:

• G00: Rapid Move (for non-cutting travel)

• G01: Linear Interpolation (straight-line cutting)

• G02/G03: Circular Interpolation (for cutting arcs, sink cutouts, etc.)

M-codes (Miscellaneous Functions): Switch Commands

These are "switch commands" that control the machine's accessories. They are critical for stone processing:

• M03: Spindle On, Clockwise (gets the tool spinning)

• M05: Spindle Stop

• M08: Coolant On (This is non-negotiable when cutting stone and hard materials to cool, clear debris, and protect the tool!)

• M09: Coolant Off

T, D, H Codes: Tool Commands

• T01: Call Tool 1 (e.g., a large diamond-tipped saw blade)

• D01 / H01: Tell the CNC machine the radius and length offsets for this specific tool, ensuring absolute dimensional accuracy

F and S Codes: Efficiency and Quality Commands

• S1200: Set Spindle Speed to 1200 RPM

• F800: Set Feed Rate to 800 mm/minute

Expert Tip: For stone and superhard materials, the relationship between F (Feed) and S (Speed) is a core technology. Get it right, and you get smooth finishes and long tool life. Get it wrong, and you risk chipping the material or burning out expensive tools. This is key to optimizing your CNC machine's performance.

International Standards for G-Code Programming

Modern CNC programming builds upon decades of standardization efforts. The ISO 6983 standard defines the fundamental G-code syntax, while the more advanced ISO 14649 standard represents the next generation of feature-based CNC programming.

According to research published in MDPI's Machines journal, stone processing has unique requirements that extend beyond traditional metalworking applications, necessitating specialized approaches within these international standards.

The "Restaurant Menu" Rule: The Key to Avoiding Production Chaos

Now, let's discuss G-code's most brilliant feature: command groups. Think of G-code as a restaurant menu. The menu is divided into sections, like "Appetizers," "Main Courses," and "Soups."

• The "Appetizers" section might have G00 (Rapid), G01 (Cut Straight), G02/G03 (Cut Arc).

• The "Main Courses" section might have G81 (Drilling Cycle), G83 (Peck Drilling Cycle).

The rule is: you can only order one item from each section at a time! You wouldn't tell a waiter you want both the steak and the lobster as your single main course. Likewise, you can't tell your machine to perform a G01 straight cut and a G02 arc in the same motion. This "modal" group design fundamentally prevents logical conflicts and dangerous commands, ensuring production safety and stability.

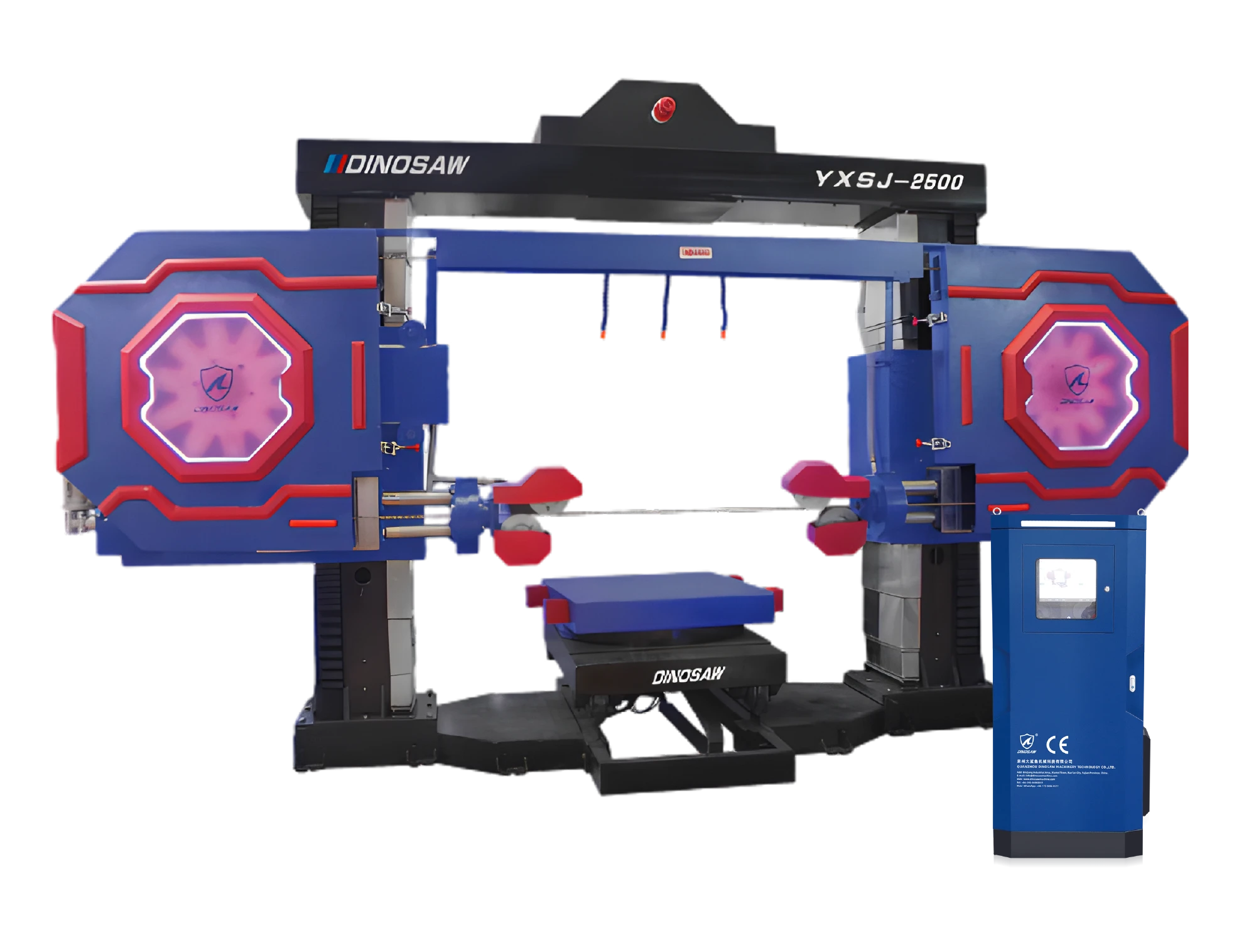

Advanced 5-axis CNC diamond wire saw machine demonstrating precision G-code controlled stone processing

Practical Application: Cutting a Simple Sink Hole

Let's look at a highly simplified example. Imagine we are using a CNC stone cutting machine to cut a rectangular sink hole in a marble countertop:

T01 M06 ; Change to Tool 1 (e.g., a diamond milling bit)

G00 X100 Y100 S1500 M03 ; 1. Rapid move to start point, spindle on at 1500 RPM

M08 ; 2. Turn on coolant! (Crucial step)

G01 Z-20 F400 ; 3. Plunge the tool 20mm deep into the stone

G01 X500 F800 ; 4. Cut a straight line along the X-axis to position 500

G01 Y400 ; 5. Cut a straight line along the Y-axis to position 400

G01 X100 ; 6. Cut back along the X-axis to position 100

G01 Y100 ; 7. Cut along the Y-axis to the start, closing the rectangle

G00 Z50 ; 8. Retract the tool upwards

M05 M09 ; 9. Turn off spindle and coolant

With these few lines of simple commands, a precise, standard cutting process is defined. You can save this as a digital asset and repeat this high-quality process an infinite number of times, on any capable machine. This approach has revolutionized manufacturing productivity, with studies from leading CNC manufacturers showing up to 40% improvement in production consistency when transitioning from manual to G-code controlled operations.

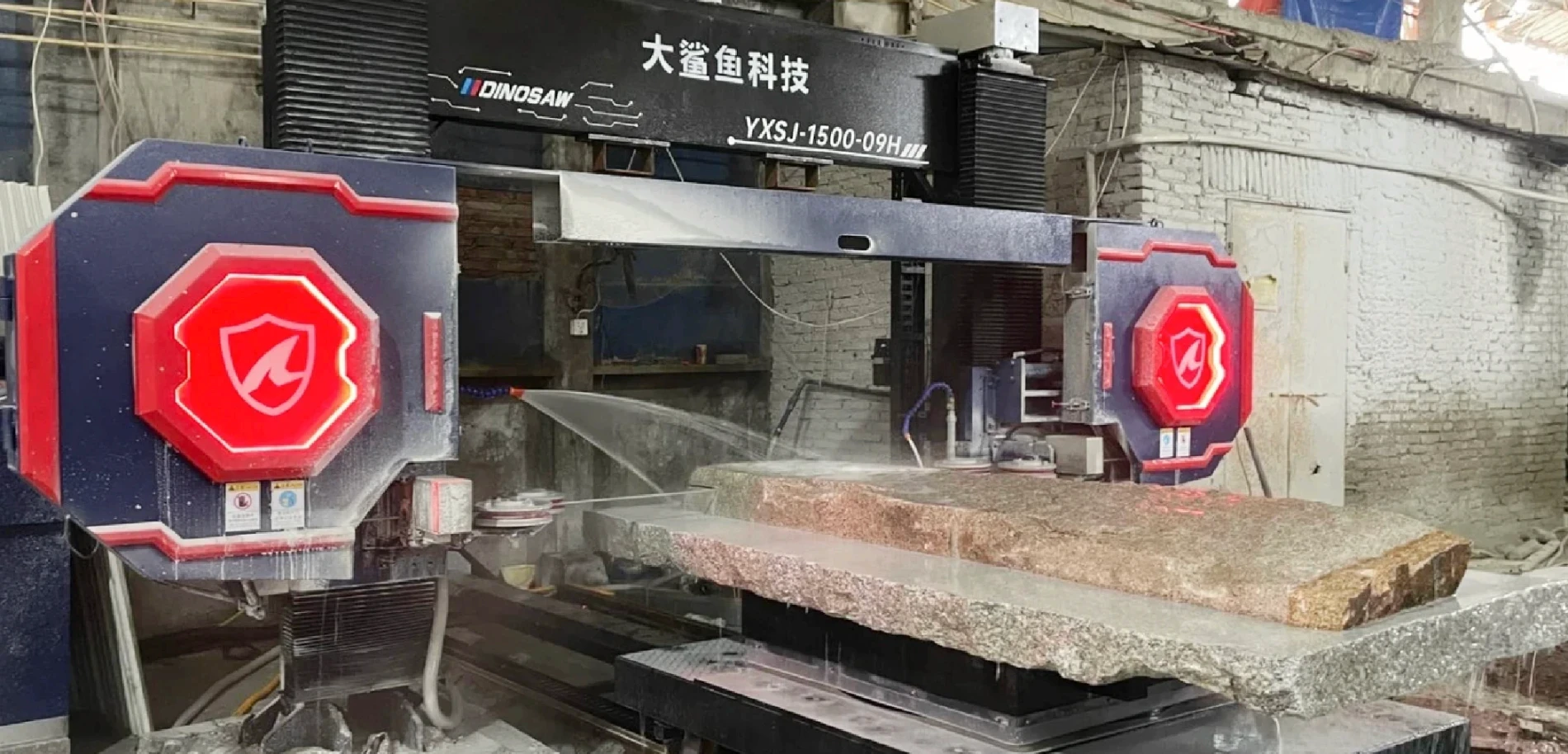

Diamond wire saw CNC machine executing G-code programs for efficient stone block processing

Building Your Competitive Advantage Through G-Code Mastery

G-code is not unapproachable programming. It is a logical, powerful toolset and the best way to digitize and standardize your production experience. Mastering it means gaining precise control, which allows you to improve product quality, extend tool life, and free up manpower.

Furthermore, the integration of advanced CNC systems with G-code programming creates unprecedented opportunities for customization and efficiency. Modern machines can execute complex cutting patterns that would be impossible to achieve manually, opening new markets for decorative stone work, architectural elements, and precision components.

Ultimately, in a competitive market, mastering G-code allows you to build a formidable technical moat around your business. The combination of digital precision, repeatability, and the ability to rapidly prototype new designs transforms your operation from a traditional workshop into a technology-driven manufacturing powerhouse.

Industry Evolution: From Legacy Standards to Modern Solutions

The evolution of CNC programming standards reflects the industry's drive toward greater precision and intelligence. While traditional G-code programming remains the foundation, emerging standards like ISO 14649 promise feature-based programming that could revolutionize stone processing automation.

Furthermore, specialized resources such as comprehensive G-code guides and practical machining tutorials provide valuable learning resources for professionals seeking to master these technologies.

Ready to Transform Your Stone Processing Operation?

The journey from traditional craftsmanship to digital precision begins with the right equipment and knowledge. G-code mastery, combined with advanced CNC technology, represents the future of stone processing—a future where precision, efficiency, and innovation converge to create extraordinary results.

Whether you're cutting intricate architectural details, producing high-volume countertops, or working with exotic superhard materials, the principles outlined in this guide provide the foundation for success in the digital age of stone processing.
